1. Introduction
Thank you for choosing the VOX KK3300F Combi Refrigerator. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your appliance. Please read this manual thoroughly before using the refrigerator and keep it for future reference.
The VOX KK3300F is a white combi refrigerator designed for household use, featuring a total capacity of 268 liters, reversible doors, and an energy efficiency rating of F (equivalent to former A+).
2. Safety Information
Important Safety Instructions:
- Ensure the appliance is properly grounded before use.
- Do not damage the refrigerant circuit.
- Do not use electrical appliances inside the food storage compartments unless they are of the type recommended by the manufacturer.
- Keep ventilation openings clear of obstruction.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
3. Product Overview
The VOX KK3300F Combi Refrigerator offers a modern design with practical features for efficient food storage.
Key Features:
- Total Capacity: 268 liters (184 liters refrigerator, 84 liters freezer).
- Dimensions: Approximately 170 cm (height) x 54 cm (width) x 59.5 cm (depth).
- Reversible Doors: Allows for flexible placement by changing the door opening direction.
- Interior LED Light: Energy-efficient lighting in the refrigerator compartment.
- Storage: Refrigerator section includes 4 glass shelves, 1 drawer, and 4 door shelves. The freezer section includes 1 shelf.
- Energy Efficiency: Class F (equivalent to former A+), designed for energy saving.
Components:
Familiarize yourself with the main components of your refrigerator:
4. Setup and Installation
Proper installation is crucial for the performance and longevity of your refrigerator.
4.1 Unpacking
- Remove all packaging materials, including foam and adhesive tape.
- Inspect the appliance for any damage during transit. Report any damage to your retailer immediately.
4.2 Placement
- Place the refrigerator on a firm, level surface.
- Ensure adequate ventilation around the appliance. Leave at least 10 cm of space at the back and sides for proper air circulation.
- Avoid placing the refrigerator in direct sunlight or near heat sources (e.g., ovens, radiators).
- The dimensions are approximately 170 cm (H) x 54 cm (W) x 59.5 cm (D). Ensure your space accommodates these measurements.
4.3 Leveling
Adjust the leveling feet at the bottom front of the refrigerator to ensure it is stable and level. This prevents vibrations and ensures proper door closure.
4.4 Door Reversal (Optional)
The doors of the VOX KK3300F are reversible. If you need to change the door opening direction, refer to the detailed instructions provided in the separate door reversal kit or contact customer support. This process typically involves moving hinges and door stops from one side to the other.
4.5 Electrical Connection
- Connect the appliance to a dedicated, grounded power outlet.
- Ensure the voltage and frequency match the specifications on the rating label.
- Do not use extension cords or multiple socket adapters.
4.6 First Use
After installation, wait at least 2-4 hours before plugging in the appliance to allow the refrigerant to settle. Clean the interior with a damp cloth before loading food.
5. Operating Instructions
This section guides you on how to operate your VOX KK3300F refrigerator effectively.
5.1 Temperature Control
The refrigerator features an adjustable thermostat, typically located inside the refrigerator compartment. Turn the dial to set the desired cooling level. A higher number usually indicates a colder setting. Start with a medium setting and adjust as needed based on ambient temperature and food load.
- Refrigerator Compartment: Ideal temperature range is typically 2°C to 8°C (35°F to 46°F).
- Freezer Compartment: Ideal temperature is -18°C (0°F) or colder for long-term storage.
5.2 Food Storage Guidelines
Proper food storage helps maintain freshness and prevents spoilage.

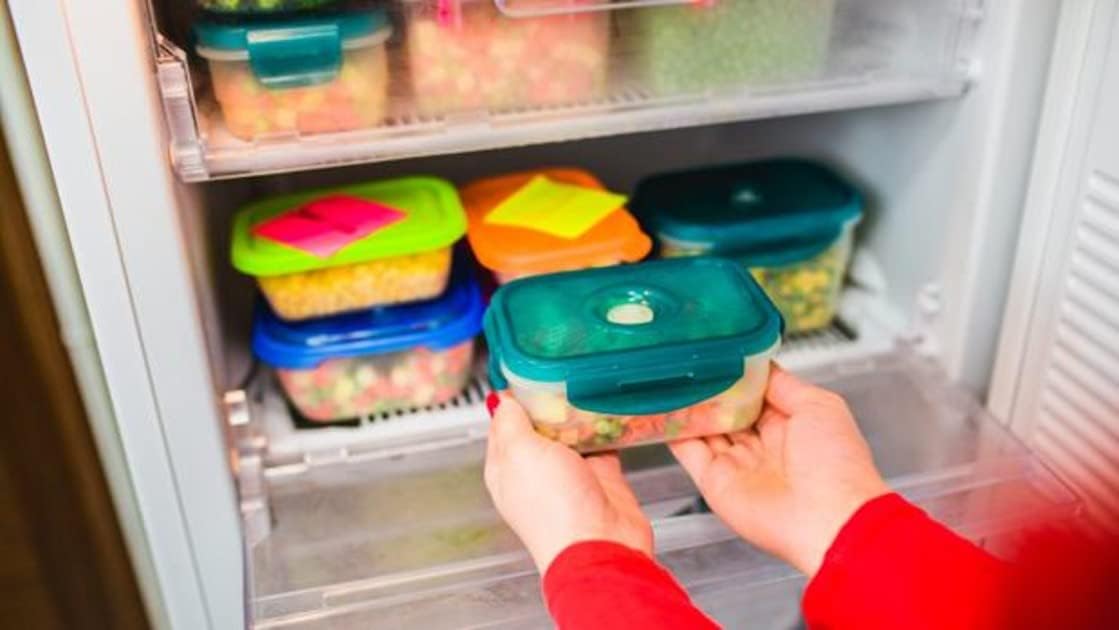

- Refrigerator: Store fresh foods, dairy products, cooked leftovers, and beverages. Use the crisper drawer for fruits and vegetables.

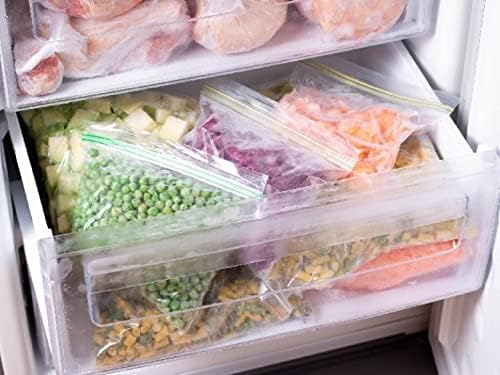

- Freezer: Suitable for long-term storage of frozen foods. Ensure food is properly sealed to prevent freezer burn.
6. Maintenance
Regular maintenance ensures optimal performance and extends the lifespan of your appliance.
6.1 Cleaning the Interior
- Unplug the refrigerator before cleaning.
- Clean the interior regularly with a solution of mild detergent and warm water.
- Wipe dry thoroughly to prevent odors and mold growth.
- Remove shelves and drawers for easier cleaning.
6.2 Cleaning the Exterior
- Wipe the exterior surfaces with a soft, damp cloth.
- Avoid abrasive cleaners or solvents that could damage the finish.
- Clean the door gaskets regularly to ensure a tight seal.
6.3 Defrosting
This refrigerator may require manual defrosting of the freezer compartment if ice buildup becomes excessive. Refer to the following steps:
- Turn off the appliance and unplug it from the power outlet.
- Remove all food items from the freezer and store them in a cool place or another freezer.
- Leave the freezer door open to allow ice to melt naturally. Place towels at the bottom to absorb water.
- Do not use sharp objects or heating devices to speed up defrosting, as this can damage the appliance.
- Once defrosted, clean and dry the interior thoroughly before plugging the appliance back in and returning food.
7. Troubleshooting
Before contacting customer service, please check the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Refrigerator not cooling | Power outage; plug not inserted; temperature setting too high; door left open; excessive food load. | Check power supply; ensure plug is secure; adjust thermostat to a colder setting; ensure door is closed properly; reduce food load if overloaded. |
| Excessive noise | Appliance not level; objects touching the back; compressor noise (normal). | Level the appliance using adjustable feet; move objects away from the back; some compressor noise is normal during operation. |
| Water on floor/inside | Drain hole blocked; door not sealing properly; high humidity. | Clear the drain hole; check door gasket for proper seal; this can be normal in high humidity environments. |
| Door not closing properly | Door gasket dirty or damaged; appliance not level; shelves/drawers obstructing. | Clean or replace gasket; level the appliance; rearrange contents. |
8. Specifications
Technical details for the VOX KK3300F Combi Refrigerator:
- Brand: VOX
- Model: KK3300F
- Type: Combi Refrigerator (Freezer at bottom)
- Color: White
- Total Capacity: 268 Liters
- Refrigerator Net Capacity: 184 Liters
- Freezer Net Capacity: 84 Liters
- Dimensions (H x W x D): 170 cm x 54 cm x 59.5 cm
- Weight: Approximately 50 kg
- Energy Efficiency Class: F (equivalent to former A+)
- Special Features: Reversible Door, Interior LED Light
- Number of Doors: 2 (one for refrigerator, one for freezer)
- Installation Type: Freestanding
9. Warranty and Support
For warranty information and customer support, please refer to the warranty card included with your purchase or contact your retailer. You can also visit the official VOX website for further assistance and contact details.
When contacting support, please have your model number (KK3300F) and purchase date available.
