1. Introduction
The CEM DT-9516 is a professional True RMS Digital Multimeter designed for safe, reliable, and accurate electrical measurements. This compact and easy-to-use instrument is ideal for identifying and resolving issues in various electrical and electronic systems. It features auto-ranging capabilities and a 6000-count display, making it suitable for both professional and hobbyist applications.
2. Safety Information
Read all safety information and operating instructions before using this meter.
This device complies with the following safety standards:
- EN61010-1 CAT IV 600V, CAT III 1000V
- 1000V input protection on all ranges
- 10A/1000V and 0.8A/1000V fuses protection on current ranges
General Safety Precautions:
- Always ensure the test leads are in good condition and properly connected.
- Do not attempt to measure voltages or currents exceeding the specified maximum limits.
- Use caution when working with live circuits.
- Replace batteries and fuses only with the specified types and ratings.
- Do not operate the meter if it appears damaged or if the case is open.
3. Setup and Initial Operation
3.1 Battery Installation
The CEM DT-9516 requires three (3) AAA batteries for operation. These are typically included with the device.
- Locate the battery compartment cover on the rear of the multimeter.
- Use a screwdriver to open the battery compartment.
- Insert three AAA batteries, observing the correct polarity (+ and -) as indicated inside the compartment.
- Replace the battery compartment cover and secure it with the screw.
Figure 1: CEM DT-9516 Multimeter with test leads, AAA batteries, and a protective carrying case.
3.2 Connecting Test Leads
Before taking any measurements, ensure the test leads are correctly connected to the multimeter.
- Connect the red test lead to the VΩHz%CAP input jack (positive input).
- Connect the black test lead to the COM input jack (common/negative input).
- For current measurements (mA, µA), connect the red lead to the mAµA input jack.
- For high current measurements (up to 10A), connect the red lead to the 10A input jack.
Figure 2: Detailed view of the multimeter's input jacks and function switch, indicating where to connect test leads for various measurements.
4. Operating Instructions
The DT-9516 features an intuitive interface with a large LCD display and a rotary function switch for selecting measurement modes.
Figure 3: Overview of the CEM DT-9516 Multimeter's controls and display elements.
4.1 Function Switch and Auto Ranging
Turn the rotary switch to the desired measurement function. The DT-9516 is an auto-ranging multimeter, meaning it automatically selects the appropriate measurement range for the input signal, simplifying operation.
Figure 4: The multimeter's auto-ranging feature allows for intuitive operation without manual range selection.
4.2 Measurement Functions
The DT-9516 offers a wide range of measurement capabilities:
- Voltage (AC/DC): Select the 'V' position on the rotary switch. The meter will automatically detect AC or DC voltage.
- Current (AC/DC): Select the 'mAµA' or '10A' position. Ensure test leads are connected to the correct current input jacks.
- Resistance (Ω): Select the 'Ω' position.
- Capacitance (CAP): Select the 'CAP' position.
- Frequency (Hz%): Select the 'Hz%' position.
- Diode Test: Select the diode symbol position.
- Continuity: Select the continuity symbol position. An audible tone indicates continuity.
- Temperature: Select the temperature symbol position. This function typically requires a K-type thermocouple (sold separately).

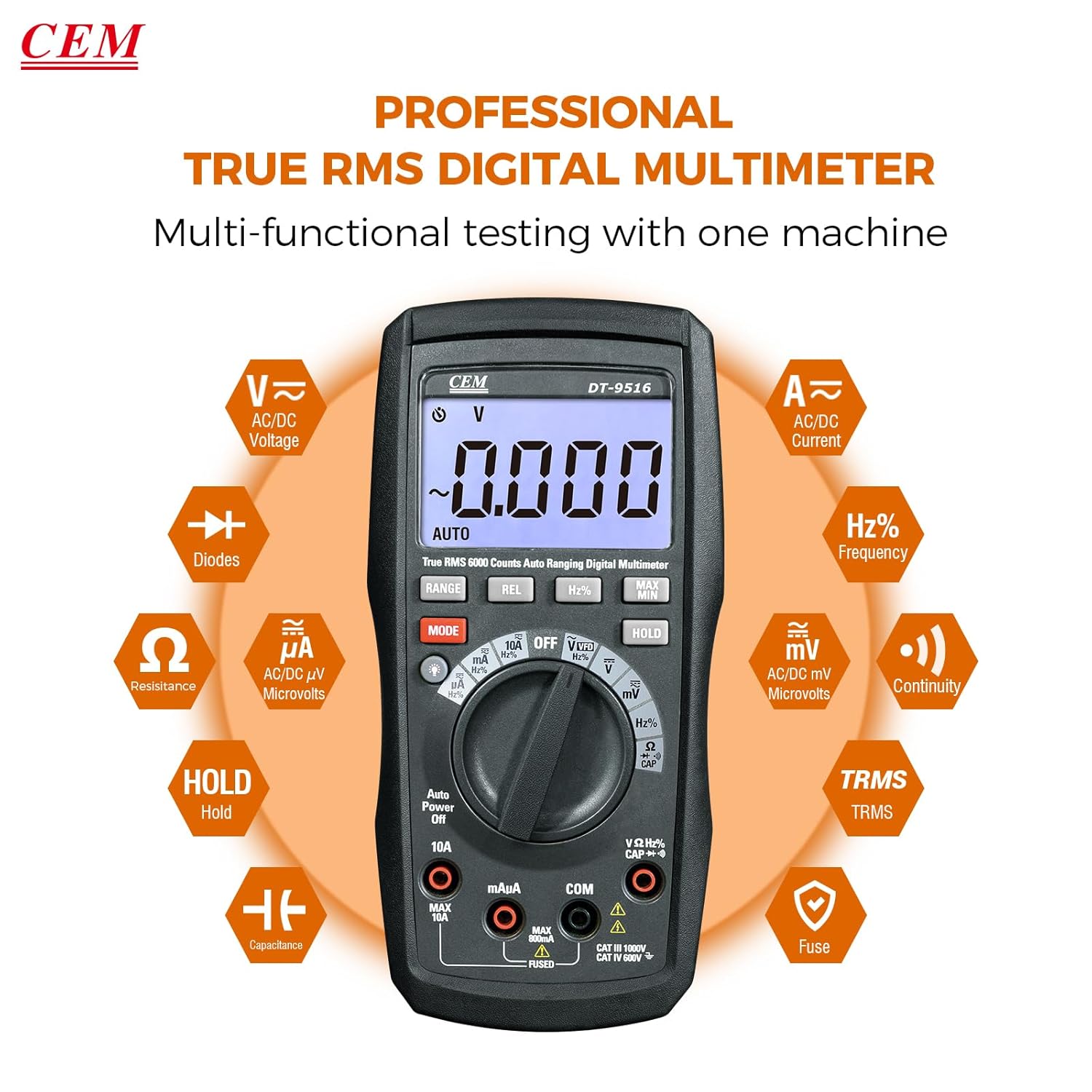

Figure 5: The multimeter's multi-functional testing capabilities are clearly illustrated.
Figure 6: The 6000-count display provides higher resolution and more accurate readings.
4.3 Special Functions
- VFD Function: The Variable Frequency Drive (VFD) function utilizes a low-pass filter for accurate measurement of VFD signals. Select the 'VFD' position on the rotary switch.
- Data Hold (HOLD): Press the HOLD button to freeze the current measurement on the display. Press again to release. This is useful for recording readings in difficult-to-view locations.
- MAX/MIN: Press the MAX/MIN button to record the maximum and minimum values during a measurement session.
- REL (Relative Measurement): Press the REL button to store the current reading as a reference value. Subsequent measurements will be displayed as a deviation from this reference.
- Backlight: Press the backlight button (often integrated with another function or a dedicated button) to illuminate the display for better visibility in low-light conditions.
Figure 7: The VFD function enables precise measurement of variable frequency drive signals.
Figure 8: The Data Hold function allows users to lock and record measurement values with a single button press.
Figure 9: The high-definition LCD display ensures clear digital readings at a glance, even with multiple indicators.
5. Maintenance
5.1 Cleaning
Wipe the case with a damp cloth and mild detergent. Do not use abrasives or solvents. Keep the input terminals free of dirt and moisture.
5.2 Battery Replacement
When the battery indicator appears on the display, replace the batteries as described in Section 3.1. Always use three new AAA batteries.
5.3 Fuse Replacement
If the current measurement functions cease to operate, the internal fuses may need replacement. Refer to the safety section for fuse specifications (10A/1000V and 0.8A/1000V). Fuse replacement should only be performed by qualified personnel.
Warning: Disconnect all test leads from the meter and any circuit before opening the case for battery or fuse replacement.
6. Troubleshooting
- No Display: Check battery installation and charge. Replace batteries if necessary.
- Incorrect Readings:
- Ensure test leads are properly connected to the correct input jacks for the selected function.
- Verify the function switch is set to the appropriate measurement type.
- Check for damaged test leads.
- For current measurements, check the internal fuses.
- "OL" or "OVERLOAD" on Display: The measured value exceeds the selected range. The auto-ranging feature should typically prevent this, but if it occurs, ensure the meter is capable of measuring the expected value.
7. Specifications
| Feature | Detail |
|---|---|
| Model Number | DT-9516 |
| Display | 6000 Counts LCD |
| Safety Category | CAT IV 600V, CAT III 1000V |
| Voltage Measurement | AC/DC up to 1000V |
| Current Measurement | AC/DC up to 10A |
| Resistance Measurement | Up to 60 MΩ |
| Capacitance Measurement | Up to 6000µF |
| Frequency Measurement | Up to 10MHz |
| Diode Test | Yes |
| Continuity Test | Yes (with audible indicator) |
| Special Features | True RMS, Auto Ranging, VFD Function, Data Hold, MAX/MIN, Relative Measurement, Backlight |
| Batteries | 3 x AAA (included) |
| Package Dimensions | 20.6 x 13 x 7.9 cm |
| Weight | 654 g |
| Manufacturer | Shenzhen Everbest Machinery Industry Co.,Ltd. |
| UPC | 887327951600 |
8. Warranty and Support
CEM products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the warranty card included with your product or contact CEM customer support.
For technical assistance, troubleshooting, or service inquiries, please contact your local CEM distributor or visit the official CEM website for support resources.
