Important Safety Information
WARNING: Failure to follow these instructions may result in fire, injury, or property damage.
- Keep out of reach of children.
- Contains flammable gas under pressure. Do not puncture or incinerate.
- Do not expose to heat or store above 120°F (49°C).
- Do not keep lit for more than 10 seconds at a time to prevent overheating.
- Ensure proper ventilation when using.
- Do not attempt to repair or modify the torch.
- Use only high-quality butane fuel for refilling.
- Avoid direct contact with flame and hot parts.
Product Overview
The EAGLE TORCH Neon Color Mini Angle-Torch is a compact, refillable butane torch designed for various applications requiring a precise flame. It features a convenient flip cap for protection and an angled nozzle for ease of use.
Image: A green EAGLE TORCH Neon Color Mini Angle-Torch with its flip cap closed, showing the angled nozzle and compact design.
Components:
- Flip Cap: Protects the nozzle when not in use.
- Ignition Button: Activates the flame.
- Flame Adjustment Lever: Controls flame intensity.
- Butane Refill Valve: Located at the bottom for refilling.
- Fuel Window (if applicable): Allows viewing of butane level. Note: Some models may have an opaque body.
Setup: Initial Fueling
The torch is shipped without butane fuel. It must be filled before first use.
- Ensure the flame adjustment lever is set to the lowest setting (usually indicated by a minus sign or smaller flame icon).
- Hold the torch upside down.
- Insert the nozzle of a standard butane fuel canister vertically into the refill valve located at the bottom of the torch.
- Press down firmly for 5-10 seconds. You may hear a hissing sound and see some liquid butane escaping, which is normal.
- Repeat the process 2-3 times to ensure a full fill.
- Wait for at least 2 minutes after refilling before attempting to ignite the torch. This allows the gas to stabilize and reach room temperature.
Important: Use only high-quality, triple-refined or higher butane fuel to prevent clogging and ensure optimal performance.
Operating Instructions
- Open the Flip Cap: Lift the protective flip cap to expose the nozzle.
- Adjust Flame: Use the flame adjustment lever to set the desired flame intensity. Move towards '+' for a larger flame, and towards '-' for a smaller flame. Start with a medium setting.
- Ignite: Press the ignition button firmly. The torch should ignite with a steady flame. If it does not ignite immediately, release the button and try again after a few seconds.
- Maintain Flame: Keep the ignition button pressed to maintain the flame.
- Extinguish Flame: Release the ignition button to turn off the flame.
- Close Flip Cap: Once the torch has cooled, close the flip cap for safety and to protect the nozzle.

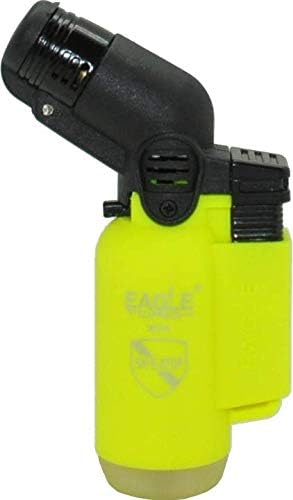

Image: A yellow EAGLE TORCH Neon Color Mini Angle-Torch with its flip cap open, ready for ignition.
Maintenance
Refilling:
Follow the "Setup: Initial Fueling" instructions when the torch runs low on fuel. It is recommended to completely deplete the fuel before refilling to avoid mixing different types of butane and to ensure optimal performance.
Cleaning:
- Periodically wipe the exterior of the torch with a soft, dry cloth.
- If the nozzle becomes clogged, gently clear it with a fine needle or compressed air. Ensure the torch is completely cool and empty of fuel before attempting this.
- Do not use abrasive cleaners or solvents.
Storage:
Store the torch in a cool, dry place, away from direct sunlight and heat sources. Ensure the flip cap is closed and the torch is empty of fuel if storing for extended periods.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Torch does not ignite. | No fuel or low fuel. Air in fuel tank. Clogged nozzle. Ignition mechanism issue. | Refill with butane. Purge air by pressing refill valve with a small tool until hissing stops, then refill. Clean nozzle (see Maintenance). Contact manufacturer if issue persists. |
| Weak or inconsistent flame. | Low fuel. Improper flame adjustment. Low-quality butane. Clogged nozzle. | Refill with butane. Adjust flame lever to a higher setting. Drain existing fuel and refill with high-quality butane. Clean nozzle (see Maintenance). |
| Gas leaks during refilling. | Canister nozzle not properly aligned. Torch is full. | Ensure butane canister nozzle is straight and firmly inserted into the refill valve. Stop refilling if torch is full. |
Specifications
- Brand: Eagle Torch
- Model: Mini Angle-Torch
- ASIN: B07TS9NLWP
- Manufacturer: EAGLE TORCH
- Material: Plastic
- Style: Keychain (as per product listing, refers to compact size)
- Fuel Type: Butane (not included)
- First Available Date: July 2, 2019
- GTIN (Global Trade Identification Number): 10853195000495
Warranty and Support
Specific warranty information for the EAGLE TORCH Neon Color Mini Angle-Torch is not provided in the product details. For warranty claims, technical support, or further inquiries, please contact the manufacturer directly or refer to the retailer's return policy.
Manufacturer: EAGLE TORCH
Please retain your proof of purchase for any warranty or support requests.
