1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of your Raymarine Element 7 HV marine chartplotter. The Element 7 HV is a powerful navigation and sonar system designed for marine environments, featuring a 7-inch display and pre-loaded Nav+ charts for the US and Canada. This specific model (E70532-00-NAG) includes the main display unit and charting capabilities but does not include a transducer for sonar functions. A compatible transducer must be purchased separately to utilize the HyperVision, DownVision, SideVision, and conventional sonar features.
Figure 1.1: Front view of the Raymarine Element 7 HV Chartplotter, displaying its user interface with navigation, fishfinder, and dashboard screens. The control keypad is visible on the right side of the unit.
2. Setup and Installation
2.1 Unpacking
Carefully unpack all components and verify the contents against the packing list. The standard package for model E70532-00-NAG typically includes:
- Element 7 HV Display Unit
- Trunnion Bracket with mounting knobs
- Flush Mount Kit (gasket, studs, thumb nuts)
- Power/NMEA2000 Cable
- Documentation Pack
Note: A transducer is not included with this model and must be purchased separately for sonar functionality.
2.2 Mounting Options
The Element 7 HV can be installed using either a trunnion bracket mount or a flush mount.
- Trunnion Bracket Mount: Secure the bracket to a flat surface using appropriate fasteners. The display unit then attaches to the bracket, allowing for angle adjustment.
- Flush Mount: Cut an opening in the mounting surface according to the provided template. Insert the display unit and secure it from behind using the flush mount studs and thumb nuts. Ensure the gasket is properly seated for a watertight seal.
Always choose a mounting location that provides good visibility, protection from excessive vibration, and allows for adequate ventilation around the unit.
2.3 Power Connection
Connect the supplied Power/NMEA2000 cable to a 12V DC power source. Ensure the power circuit is protected by an appropriate fuse (refer to the specifications section for fuse rating). Connect the red wire to the positive (+) terminal and the black wire to the negative (-) terminal of your boat's power supply. Incorrect wiring can damage the unit.
2.4 Transducer Connection (Optional)
If you have purchased a compatible Raymarine HV-series transducer, connect its cable to the designated transducer port on the back of the Element 7 HV unit. Ensure the connection is secure and watertight. Refer to your transducer's specific installation guide for optimal placement and mounting.
2.5 Initial Power On
Once all connections are made, power on the unit. The Element 7 HV will typically guide you through an initial setup wizard, allowing you to configure language, time zone, units of measurement, and other basic settings.

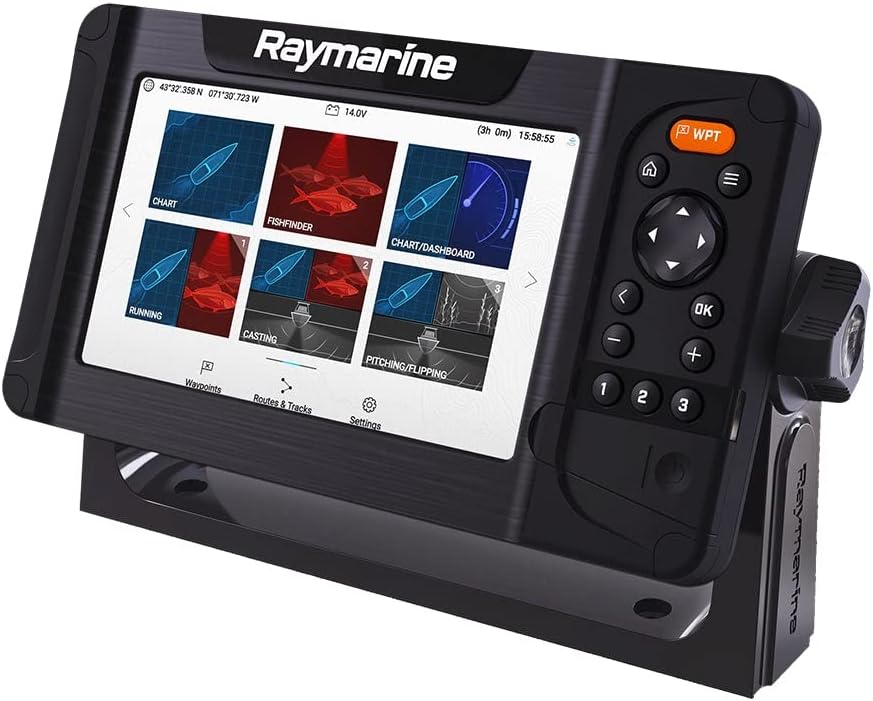

Figure 2.1: Angled view of the Raymarine Element 7 HV Chartplotter, illustrating the unit's profile and its connection to the mounting bracket.
3. Operating the Element 7 HV
3.1 User Interface
The Element 7 HV features a bright LCD display and a combination of physical buttons and a rotary dial for navigation and control. The keypad on the right side provides quick access to common functions and menu navigation.
3.2 Home Screen
The Home screen is the central hub for accessing all applications. It typically displays large icons for:
- Chart: For navigation, viewing charts, creating waypoints and routes.
- Fishfinder: (Requires transducer) For viewing sonar data, including HyperVision, DownVision, SideVision, and conventional sonar.
- Dashboard: Displays key vessel data such as speed, depth, heading, and engine information (if connected to NMEA2000 network).
- Settings: Access to system configuration, display options, and network settings.
3.3 Chart Application
In the Chart application, you can:
- Pan and Zoom: Use the keypad or rotary dial to move around the chart and adjust the zoom level.
- Create Waypoints: Mark specific locations on the chart.
- Plan Routes: Create a series of waypoints to define a navigation path.
- Go To: Navigate directly to a waypoint or a specific point on the chart.
3.4 Fishfinder Application (with optional transducer)
If a compatible transducer is connected, the Fishfinder application provides advanced sonar views:
- HyperVision: Ultra-high resolution sonar for incredibly detailed underwater imaging.
- DownVision: Picture-like view of the underwater world directly below your boat.
- SideVision: Expansive side-scanning sonar to see fish and structure to the left and right of your vessel.
- Conventional Sonar: Traditional CHIRP sonar for reliable fish targeting and depth readings.
Adjust gain, range, and frequency settings for optimal performance in different water conditions.
3.5 Settings Menu
Access the Settings menu from the Home screen to customize your Element 7 HV. Here you can adjust:
- Display brightness and color palette.
- Units of measurement (e.g., feet/meters, knots/mph).
- GPS and chart settings.
- Network configuration (NMEA2000).
4. Maintenance
4.1 Cleaning
To maintain optimal performance and longevity, regularly clean your Element 7 HV unit:
- Display Screen: Use a clean, soft, damp cloth with fresh water. For stubborn marks, a mild soap solution can be used. Avoid abrasive cleaners, solvents, or harsh chemicals, as these can damage the screen coating.
- Unit Casing: Wipe down the casing with a damp cloth. Ensure all port covers are securely closed to prevent water ingress.
4.2 Software Updates
Raymarine periodically releases software updates to improve performance, add features, and fix bugs. It is recommended to keep your Element 7 HV software up-to-date.
- Visit the official Raymarine website to check for the latest software version for your Element 7 HV.
- Download the update file to a microSD card.
- Insert the microSD card into the Element 7 HV's card slot and follow the on-screen instructions to initiate the update process.
4.3 Storage
When storing the unit for extended periods, especially in cold or damp conditions, it is advisable to:
- Disconnect the power cable.
- Remove the unit from its mounting bracket and store it in a dry, temperature-controlled environment.
5. Troubleshooting
This section addresses common issues you might encounter with your Element 7 HV. For more complex problems, refer to the Raymarine support resources.
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not power on | No power supply; Blown fuse; Loose connection | Check power cable connections; Verify 12V DC supply; Inspect and replace fuse if necessary. |
| No GPS position fix | Obstructed view of sky; Internal GPS fault | Ensure the unit has a clear, unobstructed view of the sky; Move to an open area; Perform a soft reset. |
| No sonar data (if transducer connected) | Transducer not connected; Incorrect transducer type selected; Transducer fault | Verify transducer cable is securely connected; Check transducer settings in the menu; Ensure transducer is submerged and clean. |
| Screen is dim or unreadable | Brightness setting too low; Glare | Adjust display brightness in the Settings menu; Reposition unit or use a sun cover to reduce glare. |
| Unit freezes or becomes unresponsive | Software issue; Temporary glitch | Perform a soft reset (power cycle); If persistent, consider a factory reset (backup data first) or software update. |
6. Specifications
Key technical specifications for the Raymarine Element 7 HV (Model E70532-00-NAG):
| Feature | Specification |
|---|---|
| Brand | Raymarine |
| Model Name | E70532-00-NAG |
| Screen Size | 7 Inches |
| Display Type | LCD |
| Power Source | Battery Powered (12V DC system) |
| Item Weight | 5.9 Pounds |
| Item Dimensions (LxWxH) | 6 x 4 x 1 inches (approximate unit dimensions) |
| Package Dimensions (LxWxH) | 16 x 12 x 6 inches |
| UPC | 723193831403 |
| Included Components | Display unit, mounting hardware, power cable (Transducer NOT included) |
7. Warranty Information
Raymarine products are covered by a manufacturer's warranty. The specific terms and duration of the warranty may vary by region and product. For detailed warranty information, including coverage, limitations, and how to make a claim, please refer to the official Raymarine website or the warranty card included with your product. Keep your proof of purchase for warranty validation.
8. Support
For further assistance, technical support, or to access additional resources, please utilize the following Raymarine support channels:
- Official Website: Visit www.raymarine.com for product manuals, FAQs, software downloads, and support contact information.
- Customer Service: Contact Raymarine customer service directly for personalized support. Contact details are available on their website.
- Authorized Dealers: Your local authorized Raymarine dealer can provide installation assistance, troubleshooting, and service.
