1. Introduction
Thank you for choosing the Fermod Fermostock 4R47B66 Starter Shelving Unit. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new shelving system. Please read these instructions carefully before beginning assembly and retain them for future reference.
The Fermostock shelving unit is designed for various storage needs, offering a robust and hygienic solution with its anodized aluminum frame and removable polymer inserts.

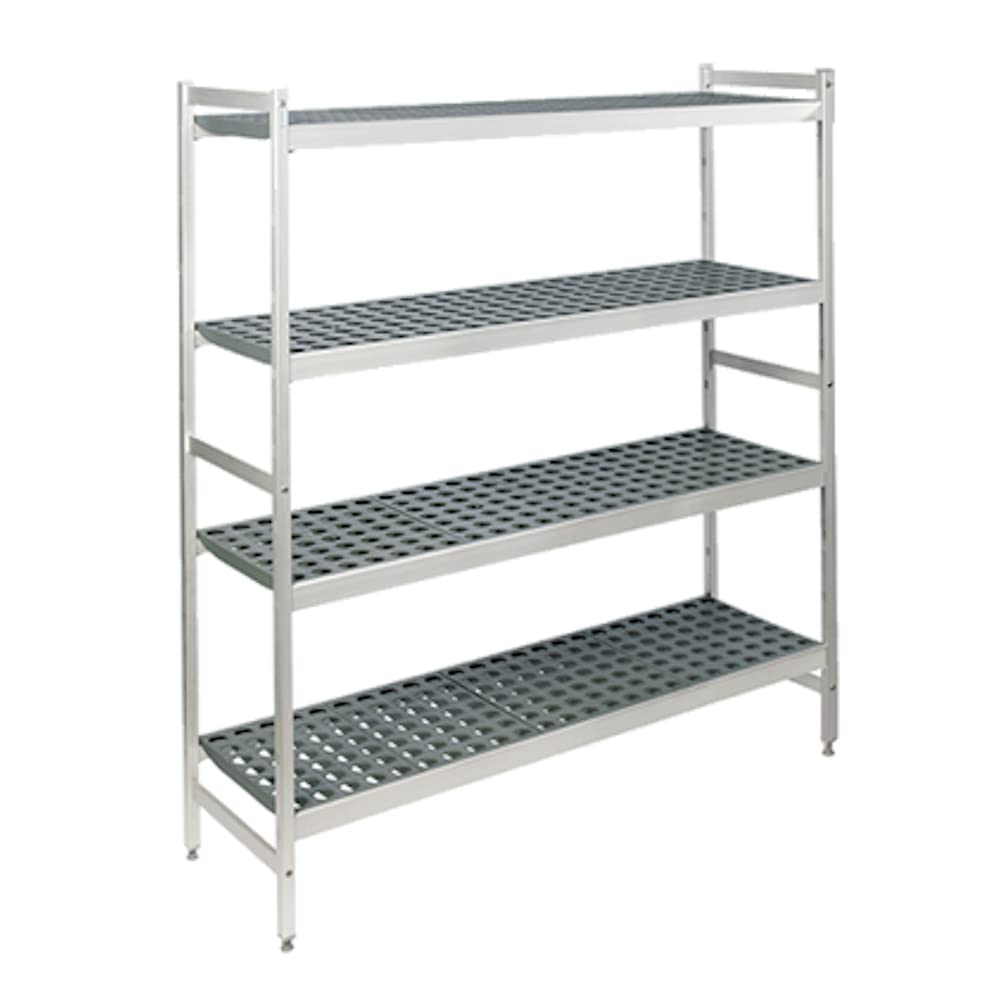

Figure 1: Fermod Fermostock 4R47B66 Starter Shelving Unit, 4-Tier, 66" H x 47" W x 18" D. This image shows the complete shelving unit with four tiers, suitable for various storage environments.
2. Safety Instructions
To ensure safe use and prevent injury or damage, please observe the following safety guidelines:
- Weight Capacity: Do not exceed the maximum weight capacity of 800 lbs (363 kg) per shelf. Distribute weight evenly across each shelf.
- Stable Surface: Always assemble and place the shelving unit on a flat, level, and stable surface. Use the adjustable feet to ensure stability.
- Assembly: Follow all assembly instructions carefully. Ensure all components are securely fitted before loading the shelves.
- Children and Pets: Keep children and pets away from the shelving unit during assembly. Do not allow them to climb on or play with the unit.
- Inspection: Regularly inspect the shelving unit for any signs of damage, loose parts, or instability. Do not use if damaged.
- Temperature Range: The unit is designed for an operating temperature range of -40°F to 140°F (-40°C to 60°C). Do not expose to temperatures outside this range.
3. Package Contents
Before beginning assembly, verify that all parts are present and undamaged. If any parts are missing or damaged, do not proceed with assembly and contact customer support.
- Upright Posts (4)
- Shelf Frames (4)
- Polymer Shelf Inserts (multiple per shelf frame)
- Adjustable Composite Feet (4)
- Crossbars/Connectors (as required for frame assembly)
4. Setup Instructions
The Fermostock shelving unit features tool-free assembly. Follow these steps for quick and easy setup:
- Prepare the Area: Choose a clear, level space for assembly.
- Attach Feet: Screw the adjustable composite feet into the bottom of each upright post.
- Assemble Upright Frames: Connect two upright posts with the appropriate crossbars/connectors to form a side frame. Repeat for the second side frame.
- Connect Side Frames: Stand the two side frames upright. Attach the shelf frames at your desired heights by sliding them into the designated slots on the upright posts. Ensure they click securely into place.
- Insert Polymer Inserts: Once all shelf frames are securely in place, insert the polymer shelf inserts into the frames.
- Level the Unit: Adjust the composite feet as needed to ensure the shelving unit is perfectly level and stable.
5. Operating Instructions
Once assembled and leveled, the Fermostock shelving unit is ready for use. Observe the following for optimal performance:
- Load Distribution: Distribute items evenly across each shelf to maintain stability and prevent overloading specific areas.
- Weight Limits: Adhere strictly to the 800 lbs (363 kg) maximum weight per shelf.
- Environment: Use the shelving unit within its specified operating temperature range of -40°F to 140°F (-40°C to 60°C).
- Stability Check: Periodically check the unit for stability, especially after moving or rearranging items.
6. Maintenance
Proper maintenance will extend the life and appearance of your shelving unit:
- Cleaning: The removable polymer inserts are dishwasher safe up to 212°F (100°C). For the anodized aluminum frame, wipe with a damp cloth and mild detergent. Avoid abrasive cleaners.
- Regular Inspection: Periodically check all connections and components for tightness and wear.
- Damage: If any part of the unit becomes damaged, discontinue use and replace the affected components or contact customer support.
7. Troubleshooting
Refer to the table below for common issues and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Shelving unit is wobbly or unstable. | Uneven floor surface; feet not properly adjusted; components not fully engaged. | Adjust the composite feet until the unit is level and stable. Ensure all shelf frames are securely clicked into the upright posts. |
| Shelf inserts do not fit correctly. | Inserts are not aligned properly; incorrect size inserts. | Ensure inserts are oriented correctly and pressed firmly into the shelf frame. Verify you have the correct inserts for your model. |
| Difficulty assembling components. | Parts not aligned; debris in connection points. | Ensure parts are aligned correctly before applying pressure. Check for any obstructions in the connection points. Refer to setup instructions. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | 4R47B66 |
| Dimensions (H x W x D) | 66" H x 47" W x 18" D (167.6 cm H x 119.4 cm W x 45.7 cm D) |
| Number of Tiers | 4 |
| Max Weight per Shelf | 800 lbs (363 kg) |
| Operating Temperature Range | -40°F to 140°F (-40°C to 60°C) |
| Material | 20 micron deep anodized aluminum frame, removable polymer inserts |
| Assembly | Tool-free assembly |
| Special Features | Adjustable composite feet, removable polymer inserts (dishwasher safe to 212°F) |
9. Warranty and Support
Fermod products are manufactured to high standards and are designed for durability. For specific warranty information, please refer to the documentation included with your purchase or visit the official Fermod website.
If you require assistance with assembly, have questions about your product, or need to report a missing or damaged part, please contact Fermod customer support through their official channels. Please have your model number (4R47B66) and purchase details ready when contacting support.
