1. Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your HAAGEEP 18-inch Queen Metal Platform Bed Frame. This sturdy metal bed frame includes a headboard and footboard, offers 16 inches of under-bed storage, and does not require a box spring. Please read these instructions carefully before assembly and retain them for future reference.
2. Safety Information
- Ensure all parts are present and undamaged before beginning assembly. Do not use if any parts are missing or broken.
- Assemble the bed frame on a soft, clean surface (e.g., carpet) to prevent scratching.
- Tighten all bolts and screws securely. Periodically check and re-tighten fasteners to maintain stability.
- Do not allow children to climb or play on the bed frame.
- Distribute weight evenly across the bed frame. Do not exceed the maximum weight capacity of 1,600 lbs.
- The bed frame features round corners for safety; however, exercise caution around all edges.
3. Package Contents
Verify that all components listed below are included in your package. If any parts are missing, please contact customer support.
- Headboard sections
- Footboard sections
- Side rails
- Center support beams
- Metal slats
- Support legs
- Assembly hardware (bolts, washers, nuts)
- Assembly tools (Allen wrench)
4. Setup and Assembly Instructions
Assembly typically requires two people and takes approximately 45-90 minutes. All necessary tools and hardware are provided.
- Unpack and Identify Parts: Carefully unpack all components and lay them out on a soft, clean surface. Identify each part by its label (e.g., A, B, C) and compare with the parts list in your included diagram.
- Assemble Headboard and Footboard: Connect the vertical and horizontal sections of the headboard and footboard using the provided bolts and Allen wrench. Do not fully tighten bolts until all sections are loosely assembled.
- Attach Side Rails: Connect the side rails to the assembled headboard and footboard. Ensure the connection points are aligned correctly.
- Install Center Support: Place the center support beams and legs into position. These provide crucial stability for the mattress.
- Place Slats: Lay the metal slats across the frame, ensuring they are evenly spaced and securely seated in their designated positions. The frame is designed to enclose the mattress to prevent slipping.
- Final Tightening: Once all components are in place and aligned, systematically tighten all bolts and screws using the Allen wrench. Ensure all connections are firm to prevent wobbling or squeaking.
Figure 1: HAAGEEP Queen Bed Frame dimensions, indicating length, width, height, under-bed clearance, and slat spacing.

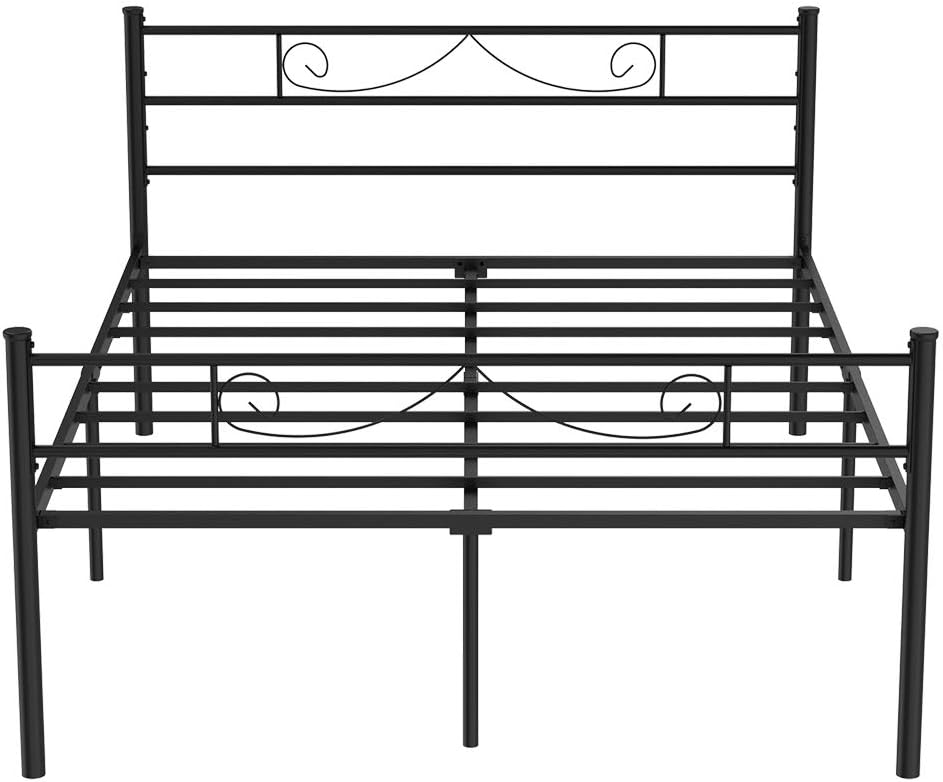

Figure 2: Fully assembled HAAGEEP Queen Bed Frame, ready for mattress placement.
5. Operating Instructions
- Mattress Placement: This platform bed frame is designed to be used without a box spring. Place your standard queen-size mattress directly onto the metal slats. The frame's design helps prevent the mattress from slipping.
- Under-Bed Storage: The 18-inch height provides 16 inches of clearance for ample under-bed storage. Utilize this space for storage bins, luggage, or other items to maximize room efficiency.
Figure 3: Illustration of the generous 16-inch under-bed storage space, shown with suitcases.
Figure 4: Detail showing the non-slip design where the frame encloses the mattress.
Figure 5: Detail of the round corner design for enhanced safety.
6. Maintenance
- Cleaning: Wipe the metal frame with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
- Fastener Check: Periodically (e.g., every 3-6 months) inspect all bolts and screws. Re-tighten any loose fasteners to ensure the bed frame remains stable and free from squeaking.
- Weight Distribution: Ensure weight is distributed evenly on the bed frame to prevent stress on individual components.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Bed frame is wobbly or unstable. | Loose bolts or incorrect assembly. | Ensure all bolts are fully tightened. Review assembly steps to confirm correct installation of all parts. |
| Squeaking noises. | Loose connections or friction between metal parts. | Re-tighten all bolts. Apply a small amount of lubricant (e.g., silicone spray) to connection points if squeaking persists. |
| Mattress slides on the frame. | Mattress not properly seated or non-slip feature not engaged. | Ensure the mattress is centered and fully within the frame's edges designed to prevent slipping. |
| Missing or damaged parts upon arrival. | Shipping damage or packaging error. | Do not proceed with assembly. Contact customer support immediately for replacement parts. |
8. Specifications
- Product Dimensions (Queen): 82.4"L x 62.2"W x 40"H
- Under-Bed Clearance: 16 inches
- Slat Distance: Approximately 7.7 inches
- Material: Alloy Steel, Metal
- Color: Black
- Finish Type: Matte
- Weight Capacity: 1,600 lbs.
- Item Weight: 50.8 pounds
- Assembly Required: Yes
- Compatible Mattress Size: Queen (also available in Twin, Full, King)
- Manufacturer: HAAGEEP
- ASIN: B07T1NHF33
- UPC/GTIN: 726672212908
9. Warranty and Support
For any issues, questions, or to report missing/damaged parts, please contact HAAGEEP customer support. Refer to your purchase documentation for specific warranty details. We aim to respond to inquiries within 12 hours.
Note: Specific warranty terms may vary by retailer and region. Please retain your proof of purchase.
