YaeCCC ST-3000 Voltage Transformer and Regulator User Manual

1. Introduction

This manual provides essential instructions for the safe and efficient operation of your YaeCCC ST-3000 Voltage Transformer and Regulator. This device is designed to convert voltage between 110V and 220V, allowing you to use electrical appliances from different regions. It features a voltage meter for monitoring output, circuit breaker protection, and multiple output sockets.

Please read this manual thoroughly before using the product and retain it for future reference.

2. Safety Information

To prevent injury or damage to the unit and connected appliances, observe the following safety precautions:

• Always ensure the transformer's wattage capacity is at least 2.5 to 3 times the wattage of the appliance you intend to connect. For appliances with motors (e.g., refrigerators, coffee makers), the startup wattage can be 2-4 times higher than the rated wattage.
• Verify the input voltage switch setting on the back of the unit matches your local power supply before plugging in the transformer. Incorrect setting can cause severe damage.
• Do not overload the transformer. The maximum continuous use wattage is 1200W. It can handle up to 3000W for a maximum of 30 minutes.
• Place the transformer in a well-ventilated area to ensure proper heat dissipation.
• Keep the unit away from water, moisture, and extreme temperatures.
• Do not open the casing or attempt to repair the unit yourself. Refer all servicing to qualified personnel.
• Ensure the power cord is not damaged or pinched.

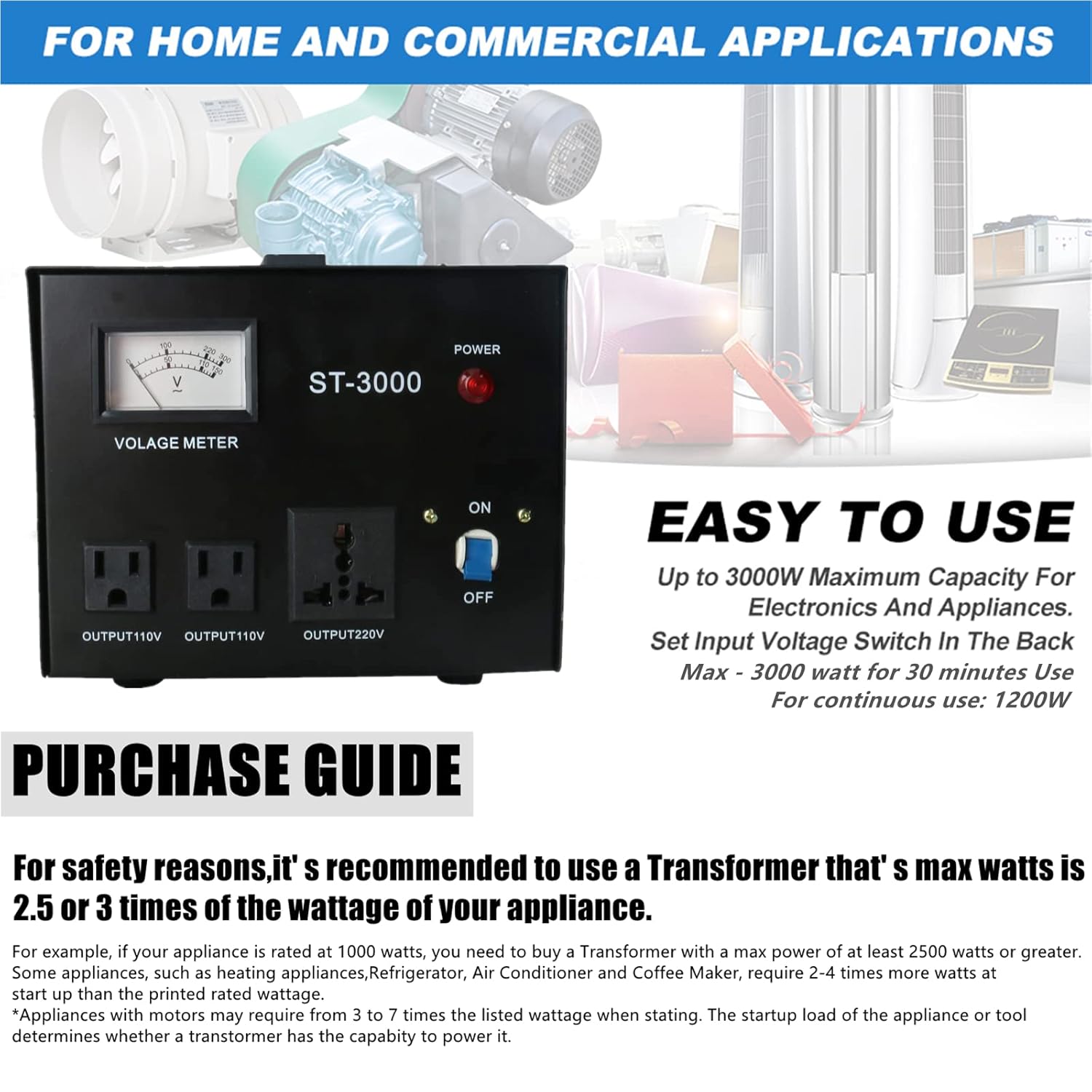

Image: The YaeCCC ST-3000 transformer with a graphic highlighting the importance of matching transformer wattage to appliance wattage, recommending 2.5 to 3 times the appliance's rated wattage for safety.

3. Product Features

The YaeCCC ST-3000 Voltage Transformer and Regulator offers the following key features:

• Voltage Regulation: Regulates input voltage from AC 85V-130V or 180V-260V to an output of AC 110V ±3% or AC 220V ±3%.
• Voltage Meter: Integrated meter on the front panel displays the exact output voltage.
• Circuit Breaker Protection: Provides protection against overloads without the need to replace fuses.
• Multiple Output Sockets: Includes two 110V US standard sockets and one 220V universal socket, compatible with most plug types (excluding large South African plugs).
• High Capacity: 3000W maximum capacity for 30 minutes, 1200W for continuous use.
• Safety Certifications: CE Certified for quality and safety standards.
• Efficient Design: Features effective heat dissipation and a soft-start function.

Image: A visual representation of the YaeCCC ST-3000's protective features, including 100% full load capacity, surge protection, over-heating protection, soft-start function, effective heat dissipation, and over current protection.

4. Components Overview

Familiarize yourself with the different parts of your YaeCCC ST-3000 unit:

Image: Front panel of the YaeCCC ST-3000, displaying the analog voltage meter, red power indicator light, blue ON/OFF switch, two 110V output sockets, and one 220V universal output socket.

• Voltage Meter: Displays the current output voltage.
• Power Indicator: Red light illuminates when the unit is powered on.
• ON/OFF Switch: Controls the power to the unit.
• 110V Output Sockets: Two standard US sockets for 110V appliances.
• 220V Universal Output Socket: One universal socket for 220V appliances.
• Carry Handle: For easy portability.

Image: Rear panel of the YaeCCC ST-3000, showing the input voltage selector switch (AC220-240V / AC110-120V) and the attached heavy-duty power cord with a US-style plug.

• Input Voltage Selector Switch: Located on the back. Allows selection between 110V-120V and 220V-240V input. Ensure this is set correctly before use.
• Power Cord: Heavy-duty cord for connecting to the main power supply.
• Circuit Breaker Reset Button: (If applicable, usually near the cord or switch, not explicitly visible in images but mentioned in features).

5. Setup

1. Unpack the Unit: Carefully remove the transformer from its packaging. Inspect for any signs of damage.
2. Placement: Place the transformer on a stable, flat surface in a dry, well-ventilated area. Ensure there is adequate space around the unit for air circulation.
3. Select Input Voltage: Locate the input voltage selector switch on the back of the unit. Set it to match your local power supply (e.g., 110V-120V for North America, 220V-240V for many other regions). This step is critical.
4. Connect Appliance: With the transformer's power switch in the OFF position, plug your appliance into the appropriate output socket on the front panel (110V or 220V).
5. Connect to Power: Plug the transformer's power cord into a wall outlet that matches the selected input voltage.

Image: The YaeCCC ST-3000 transformer shown in an environment with multiple appliances, illustrating its capability to power different devices simultaneously via its 110V and 220V output sockets.

6. Operating Instructions

1. Power On: After completing the setup steps, switch the ON/OFF button on the front panel to the "ON" position. The red power indicator light will illuminate.
2. Monitor Voltage: Observe the voltage meter on the front panel. It will display the output voltage being supplied to your connected appliance. The unit is designed to maintain the output voltage within ±3% of the target (110V or 220V).
3. Appliance Operation: Turn on your connected appliance.
4. Power Off: When finished, first turn off your appliance, then switch the transformer's ON/OFF button to the "OFF" position. Unplug the transformer from the wall outlet if not in use for an extended period.

Important Note on Wattage: The ST-3000 can handle a maximum of 3000W for short durations (up to 30 minutes). For continuous operation, the connected load should not exceed 1200W. Exceeding these limits can trigger the circuit breaker or damage the unit.

Image: The YaeCCC ST-3000 transformer shown in a kitchen setting, demonstrating its use with common household appliances such as a coffee machine, juicer, toaster, and oven, highlighting its versatility.

7. Maintenance

• Cleaning: Disconnect the unit from power before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use liquid cleaners or solvents.
• Ventilation: Ensure the ventilation openings are clear of dust and debris to maintain proper airflow and prevent overheating.
• Storage: Store the transformer in a cool, dry place when not in use for extended periods.

8. Troubleshooting

9. Specifications

10. Warranty and Support

For warranty information or technical support, please refer to the documentation included with your purchase or contact YaeCCC customer service directly. Keep your purchase receipt as proof of purchase.

For further assistance, you may visit the YaeCCC Store on Amazon.
