1. Introduction
This manual provides instructions for the installation, operation, and maintenance of your Hoffen 8-inch Round Inspection Hatch. Designed for marine applications, this durable and weather-tight hatch offers convenient access to compartments on boats, yachts, and other marine vessels. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product.
Figure 1: Hoffen 8-inch Round Inspection Hatch with mounting screws.
2. Product Features
The Hoffen Inspection Hatch is engineered with high-quality materials and thoughtful design for reliable performance in marine environments.
- High-Quality Construction: Manufactured from solid, weather-tight, and anti-aging ABS thermoplastic. It is anti-corrosive and ultraviolet-resistant, ensuring durability against harsh marine conditions.
- Reinforced Design: Features a reinforced lid with a non-skid surface for enhanced safety and structural integrity.
- Low Profile: Designed for installation on internal or external flat surfaces, maintaining a sleek appearance.
- Easy Access: The hatch cover is detachable and features a rotary switch mechanism for easy opening and secure closing. It allows for a 180° opening.
- Versatile Application: Suitable for various marine vessels including motorboats, fishing boats, yachts, and pontoon boats.

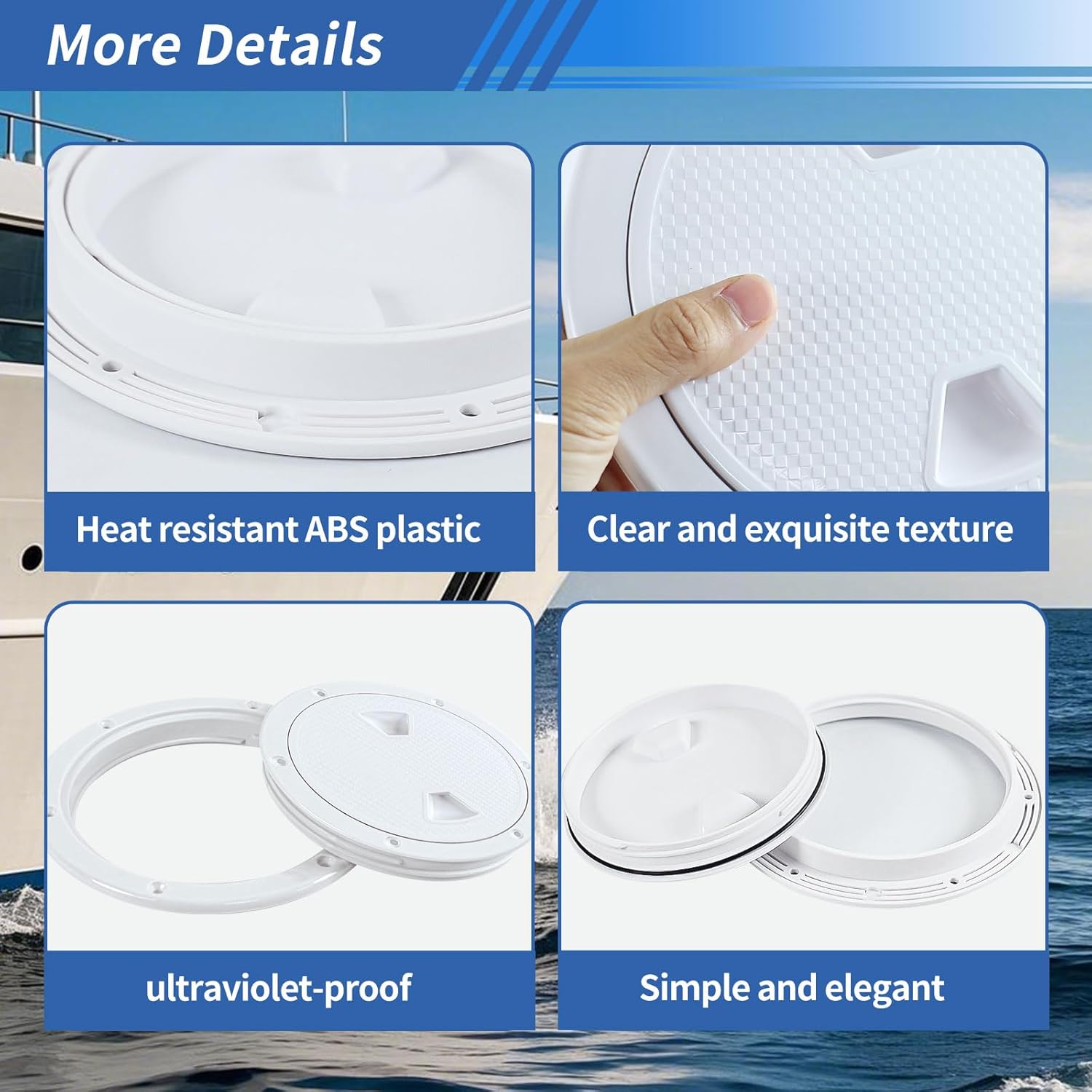

Figure 2: Key features of the hatch, highlighting material quality and design elements.
3. Specifications
Refer to the table below for detailed product specifications and dimensions.
| Attribute | Detail |
|---|---|
| Brand | Hoffen |
| Model Number | Boat hatch |
| Material | Acrylonitrile Butadiene Styrene (ABS) |
| Color | White |
| Shape | Round |
| Inner Diameter (8-inch model) | Approx. 8 inches (203 mm) |
| Outer Diameter (8-inch model) | Approx. 9.7 inches (247 mm) |
| Cutout Size (8-inch model) | Approx. 8.25 inches (209 mm) |
| Item Weight | 109 g (0.24 lbs) |
| Country of Origin | USA |
Figure 3: Detailed dimensions for various hatch sizes, including the 8-inch model.
4. Package Contents
Upon opening the package, please verify that all components are present and undamaged.
- 1 x Hoffen Round Inspection Hatch (8-inch)
- Mounting Screws (quantity sufficient for installation)
5. Installation Instructions
Follow these steps for proper installation of your Hoffen Inspection Hatch. Ensure you have appropriate tools and safety gear before beginning.
- Select Location: Choose a flat, stable surface on your boat or yacht for installation. Ensure there is sufficient clearance beneath the surface for the hatch body.
- Mark Cutout: Using the hatch's inner ring as a template, carefully mark the cutout area on the chosen surface. For the 8-inch model, the recommended cutout size is approximately 8.25 inches (209 mm).
- Cut Opening: Using an appropriate cutting tool (e.g., jigsaw), carefully cut the marked opening. Ensure the edges are smooth and free of burrs.
- Position Hatch: Place the main body (chassis) of the hatch into the cutout. The hatch is designed with pre-drilled countersunk fastening holes.
- Secure Hatch: Using the provided mounting screws, secure the hatch chassis to the surface. Ensure screws are tightened evenly to create a secure and flush fit. Avoid over-tightening.
- Install Cover: Once the chassis is securely mounted, align the detachable cover with the chassis and engage the rotary switch mechanism to lock it in place.
Figure 4: Example of a Hoffen hatch installed on a marine deck, showcasing its integration and weather-resistant properties.
6. Operation
The Hoffen Inspection Hatch features a simple rotary switch mechanism for opening and closing.
- To Open: Rotate the cover counter-clockwise until it disengages from the chassis. The cover can then be lifted off.
- To Close: Place the cover back onto the chassis, aligning the tabs. Rotate the cover clockwise until it locks securely into place. Ensure it is fully engaged to maintain a weather-tight seal.
Figure 5: The hatch cover detached, revealing the storage space beneath, suitable for various items.
7. Maintenance
Regular maintenance will ensure the longevity and optimal performance of your inspection hatch.
- Cleaning: Clean the hatch regularly with mild soap and fresh water. Avoid abrasive cleaners or solvents that could damage the ABS material.
- Inspection: Periodically check the hatch for any signs of wear, cracks, or damage. Ensure the rotary mechanism operates smoothly and the seal remains intact.
- Lubrication: If the rotary mechanism becomes stiff, apply a small amount of marine-grade lubricant to the moving parts.
- Seal Integrity: Verify that the weather-tight seal (O-ring) is clean and free from debris to prevent water intrusion.
8. Troubleshooting
If you encounter any issues with your Hoffen Inspection Hatch, refer to the following common problems and solutions.
- Hatch is difficult to open/close:
- Check for debris or salt buildup around the rotary mechanism or seal. Clean thoroughly.
- Apply marine-grade lubricant to the rotary parts.
- Ensure the cover is aligned correctly before attempting to close.
- Water leakage:
- Verify the cover is fully closed and locked.
- Inspect the O-ring seal for damage, cracks, or displacement. Replace if necessary.
- Check the mounting screws for tightness.
- Hatch appears loose:
- Tighten the mounting screws. Do not overtighten.
- Inspect the mounting surface for any damage or warping.
9. Warranty and Support
Hoffen products are manufactured to high standards. For specific warranty information or technical support, please refer to the product packaging or contact Hoffen customer service through their official website or authorized distributors. Keep your purchase receipt as proof of purchase.
For more information and product range, visit Hoffen's Amazon Store.
