Introduction
The AZUNO Professional Pneumatic Grease Gun is designed for efficient and reliable lubrication in various applications, including automotive, industrial, and agricultural settings. This air-powered grease gun delivers grease at pressures ranging from 1200 PSI to 6000 PSI, making it suitable for penetrating stubborn grease fittings. Its ergonomic design and robust construction ensure ease of use and durability.
Image: Overview of the AZUNO Pneumatic Grease Gun, highlighting features like the spring bend guard, trigger, air vent valve, non-slip knurling barrel, reinforced plunger rod, and 1/4 NPT air inlet.
Package Contents
Verify that all components are present in the package:
- 1 x AZUNO Pneumatic Grease Gun
- 1 x Flex Hose (18" High Pressure Hose with Spring Bend Guard)
- 1 x Extension Straight Pipe (Metal Pipe)
- 1 x Sharp Type Nozzle (Sharpe Nozzle)
- 1 x Normal Coupler (Reinforced Grease Coupler)
- 1 x Quick Connect Coupler
Image: Display of the various accessories included with the grease gun, such as the reinforced grease coupler, sharp nozzle, metal pipe, and 18-inch high-pressure hose with spring bend guard.
Key Features
- Output Pressure: Delivers 1200-6000 PSI at the nozzle with an air compressor pressure range of 30 PSI to 150 PSI.
- Non-Slip Design: Unique knurling on the barrel enhances grip.
- 3-Way Loading: Compatible with standard 14 oz. grease cartridges, suction loading, or bulk filling.
- Ergonomic Grip: Non-slip rubber grip provides higher gripping friction for comfortable use.
- Leak Prevention: O-Ring sealed high-pressure piston design prevents grease leakage from the pump head.
- Air Vent Valve: Allows trapped air in the tube to be pushed out after use, ensuring efficient operation.
- Versatile Applications: Suitable for automotive, trailers, agriculture, industrial, and marine uses.
Setup and Loading Grease
Loading Methods:
The AZUNO Pneumatic Grease Gun supports three methods for loading grease:
- 14 oz. Cartridge Loading: Unscrew the barrel, insert a standard 14 oz. grease cartridge, and reattach the barrel.
- Suction Loading: Submerge the open end of the barrel into bulk grease and pull the plunger rod back to draw grease into the barrel.
- Bulk Filling: Use a loader pump to fill the barrel directly with bulk grease.

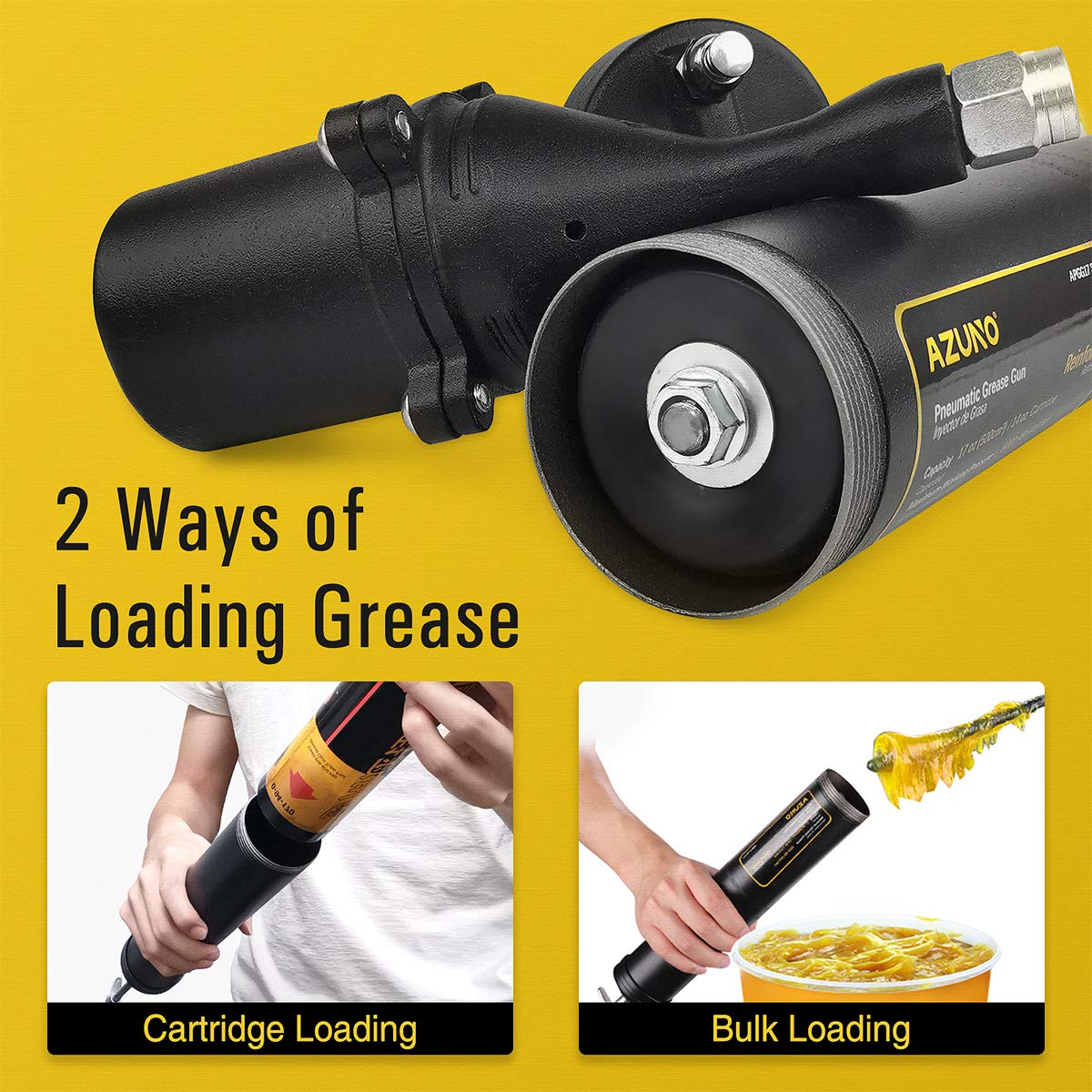

Image: Illustration showing how to load grease using a cartridge and by bulk filling.
Preparation Steps for Smooth Operation:
Follow these steps to prepare the grease gun for use after loading grease:
- Tighten Barrel: Ensure the barrel is securely tightened after loading grease.
- Pull Plunger Rod: Pull the plunger rod back and release the plunger lock.
- Push Plunger Rod: Push the plunger rod back into the barrel.
- Connect Air Compressor: Connect the grease gun to an air compressor using the 1/4 NPT inlet.
Image: Visual guide demonstrating the "Tighten, Pull, Push" preparation steps and connecting to an air compressor.
Operating Instructions
Once the grease gun is loaded and connected to an air compressor (30-150 PSI), it is ready for operation.
- Attach Nozzle: Select the appropriate nozzle (flex hose, extension pipe with normal coupler, or sharp nozzle) and securely attach it to the grease gun. Ensure all connections are tight to prevent leakage.
- Apply to Fitting: Place the nozzle firmly onto the grease fitting of the component to be lubricated.
- Dispense Grease: Press the trigger to dispense grease. Grease is delivered with each trigger pull. Release the trigger to stop the flow.
- Air Vent Valve: If air becomes trapped in the tube, open the air vent valve to release it, ensuring a continuous flow of grease.

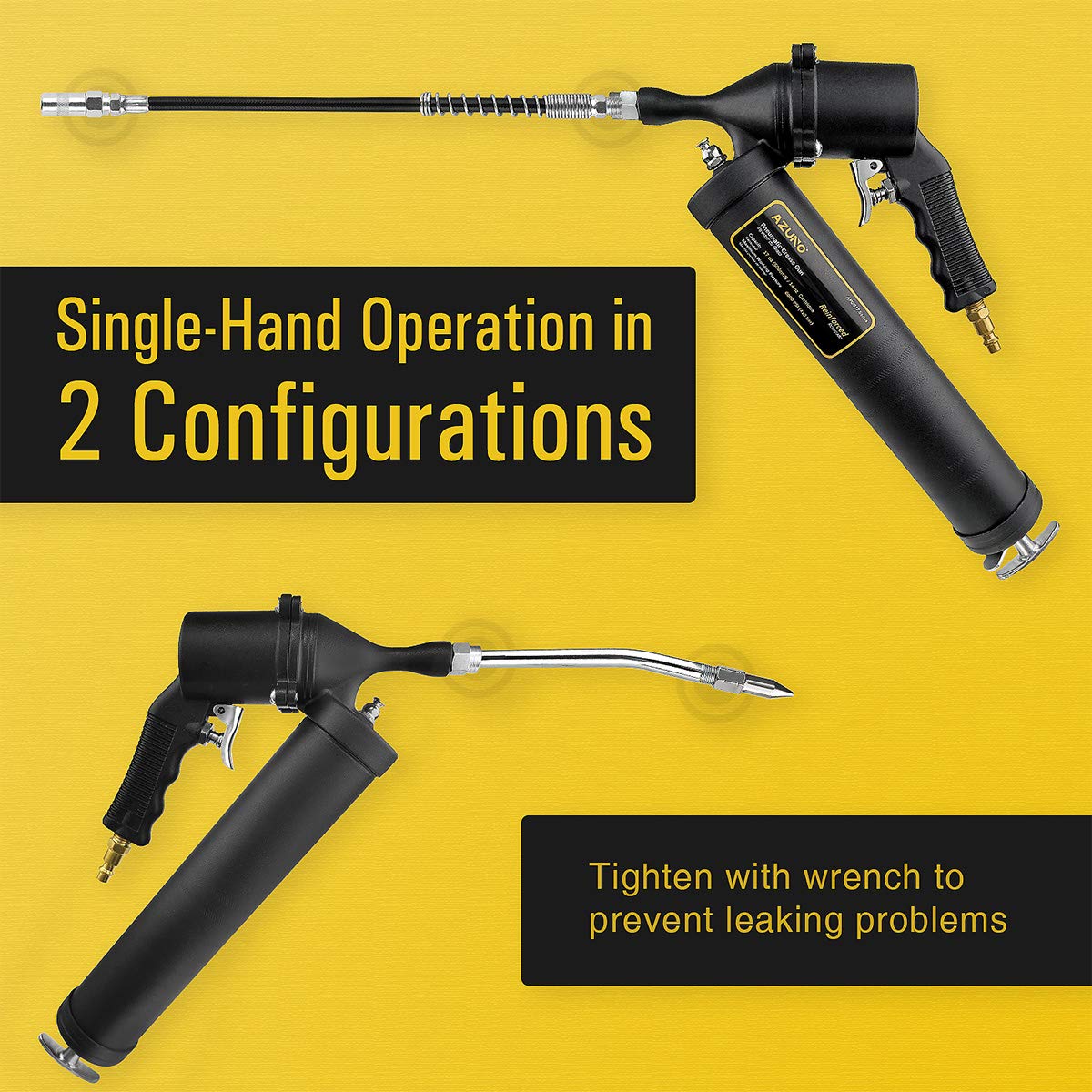

Image: The grease gun shown with both a flexible hose and a rigid extension, demonstrating its adaptability for single-hand operation. Note to tighten connections with a wrench to prevent leaks.
Image: A user operating the AZUNO Pneumatic Grease Gun on a piece of heavy equipment in an outdoor setting, illustrating a typical application.
Maintenance
- Cleaning: After each use, wipe down the exterior of the grease gun to remove any excess grease or dirt.
- Storage: Store the grease gun in a clean, dry place away from extreme temperatures.
- Air Vent Valve: Regularly check the air vent valve for proper function to ensure efficient air purging.
- Connections: Periodically inspect all connections (hose, pipe, couplers) for tightness and wear. Replace any worn or damaged components.
- O-Rings: The O-ring sealed piston design helps prevent leaks. If leaks occur, inspect and replace O-rings as necessary.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Grease not dispensing or inconsistent flow |
|
|
| Grease leaking from connections |
|
|
| Difficulty connecting to grease fitting |
|
|
Specifications
| Model Number | Grease Gun-1 |
| Brand | AZUNO |
| Output Pressure Range | 1200 - 6000 PSI |
| Required Air Compressor Pressure | 30 - 150 PSI |
| Grease Capacity | 14 oz. standard cartridge, suction, or bulk |
| Air Inlet Size | 1/4 NPT |
| Item Weight | 1.51 kg (approx. 3.33 lbs) |
| Package Dimensions | 39.9 x 18.1 x 7.1 cm |
Warranty and Support
For warranty information or technical support, please refer to the documentation provided with your purchase or contact AZUNO customer service directly. Keep your purchase receipt for warranty claims.
