Introduction
This manual provides essential information for the safe and efficient operation of your Nikai NWM800FN6 8Kg Fully Automatic Front Loading Washing Machine. Please read these instructions carefully before using the appliance and retain them for future reference.

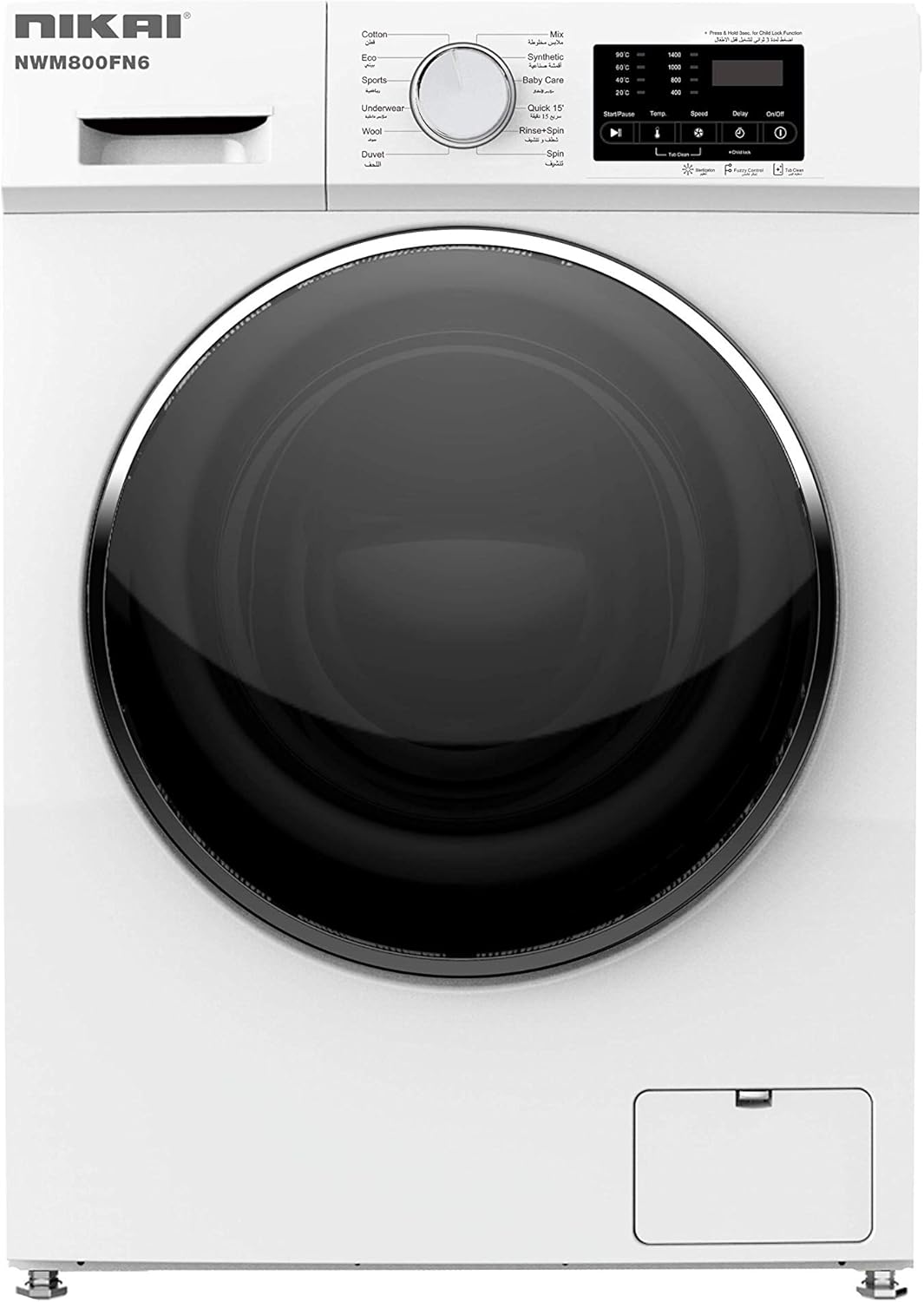

Image: Front view of the Nikai NWM800FN6 washing machine, showcasing its modern design and front-loading door.
Safety Information
Always follow basic safety precautions when using electrical appliances to reduce the risk of fire, electric shock, or injury to persons.
- Ensure the appliance is properly grounded.
- Do not allow children to play on or in the appliance.
- Keep flammable materials away from the appliance.
- Unplug the appliance before cleaning or performing any maintenance.
- Child Lock Feature: This washing machine includes a child lock to prevent accidental tampering with settings. Refer to the operating instructions for activation and deactivation.
Setup and Installation
Proper installation is crucial for the performance and longevity of your washing machine. This appliance is designed for freestanding installation.
Unpacking
- Carefully remove all packaging materials.
- Inspect the machine for any damage incurred during transit. Report any damage immediately to your retailer.
- Remove all transit bolts from the rear of the machine before use. Failure to do so will cause severe vibration and damage.
Placement
- Place the washing machine on a firm, level surface.
- Ensure adequate space around the machine for ventilation and access.
Dimensions and Weight
Refer to the image below for approximate dimensions and ensure your installation area can accommodate the appliance.
Image: Side view of the Nikai NWM800FN6 washing machine with dimensions labeled: 85cm height, 55cm depth, 58cm width.
- Product Dimensions (approximate): 59 cm (Length) x 47 cm (Width) x 84 cm (Height)
- Item Weight: 75 Kilograms
Water and Electrical Connections
- Connect the water inlet hose to a cold water tap. Ensure connections are tight to prevent leaks.
- Position the drain hose into a standpipe or sink, ensuring it is securely fastened.
- Plug the power cord into a grounded 240 Volt electrical outlet.
Operating Instructions
Your Nikai NWM800FN6 washing machine is designed for ease of use with a variety of programs to suit different fabric types and soil levels.
Loading Laundry
- Open the front-loading door.
- Load clothes loosely into the drum, ensuring not to overload. The machine has an 8 Kg capacity.
- Close the door firmly until it latches.
Image: The Nikai NWM800FN6 washing machine with its front door open, revealing the stainless steel drum.
Adding Detergent
- Pull out the detergent dispenser drawer.
- Add appropriate amounts of detergent and fabric softener to their respective compartments.
- Close the dispenser drawer.
Control Panel Overview
The control panel features a rotary dial for program selection and push buttons for additional settings.
Image: Close-up view of the Nikai NWM800FN6 washing machine's control panel, showing the program dial and digital display.
- Program Dial: Rotate to select one of the 18 standard cycles (e.g., Cotton, Eco, Sports, Underwear, Wool, Duvet, Mix, Baby Care, Quick 15', Rinse+Spin, Spin).
- Push Buttons: Used to adjust temperature, spin speed, delay start, and other special functions.
Starting a Wash Cycle
- Load laundry and add detergent.
- Turn the program dial to select the desired wash program.
- Adjust any additional settings (temperature, spin speed) using the push buttons.
- Press the Start/Pause button to begin the cycle.
Key Features in Operation
- Auto Balance Technology: The machine automatically redistributes uneven loads to ensure stable operation and reduce vibrations during the spin cycle.
- Power-Off Memory: In case of a power interruption, the machine retains your chosen settings and resumes the cycle from where it left off once power is restored.
- Universal Motor: Provides consistent and reliable performance across all wash cycles.
- Pump Models: Equipped with a pump for efficient water drainage.
Maintenance
Regular maintenance helps ensure the longevity and optimal performance of your washing machine.
Cleaning the Exterior
- Wipe the exterior with a soft, damp cloth. Avoid abrasive cleaners.
- The anti-rust body design helps maintain the machine's pristine appearance.
Cleaning the Drum
The stainless steel drum is designed for durability and powerful washing performance. Periodically run a maintenance wash cycle (e.g., a hot wash with no laundry and a washing machine cleaner) to keep the drum clean and free of residue.
Image: Close-up view of the interior of the Nikai NWM800FN6 washing machine's stainless steel drum, highlighting its textured surface for effective cleaning.
Cleaning the Detergent Dispenser
- Remove the detergent dispenser drawer and rinse it under running water to remove any detergent or softener residue.
- Clean the housing of the dispenser drawer with a brush.
Filter Cleaning
Regularly check and clean the drain pump filter to prevent blockages and ensure efficient drainage. Refer to the diagram in the full manual for the exact location and procedure.
Troubleshooting
This section provides solutions to common issues you might encounter. For more complex problems, contact customer support.
Self-Diagnostic Capability
The machine features self-diagnostic functionality that identifies problems and provides relevant notifications on the display. Consult the full manual for a list of error codes and their meanings.
Common Issues and Solutions
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not start | Power cord not plugged in; Door not closed properly; Start/Pause button not pressed. | Check power connection; Ensure door is latched; Press Start/Pause. |
| No water filling | Water tap closed; Water inlet hose kinked; Water supply cut off. | Open water tap; Straighten hose; Check household water supply. |
| Excessive vibration | Transit bolts not removed; Machine not level; Uneven load. | Remove transit bolts; Adjust leveling feet; Redistribute laundry (Auto Balance Technology assists with this). |
| Water not draining | Drain hose kinked or blocked; Drain pump filter clogged. | Check and clear drain hose; Clean drain pump filter. |
Specifications
Detailed technical specifications for the Nikai NWM800FN6 washing machine.
| Feature | Detail |
|---|---|
| Brand | Nikai |
| Model Info | NWM800FN6 |
| Capacity | 8 Kilograms |
| Product Dimensions (L x W x H) | 59 x 47 x 84 cm (approximate) |
| Item Weight | 75 Kilograms |
| Installation Type | Freestanding |
| Access Location | Front Load |
| Control Console | Push Button / Rotary Dial |
| Standard Cycles | 18 |
| Voltage | 240 Volts |
| Material Type | Stainless Steel (Drum) |
| Color | White |
| Special Features | High Efficiency, Auto Balance, Anti-Wrinkle, Anti-Rust Body, Child Lock, Self-Diagnostic, Power-Off Memory |
| Included Components | Pipe Accessories |
Warranty and Support
Your Nikai NWM800FN6 washing machine comes with a manufacturer's warranty and dedicated support.
- Manufacturer's Warranty: A 1-year manufacturer's guarantee covers your purchase.
- Warranty Extension: You can extend this protection by an additional month by registering your product online through Nikai Customer Care.
- For technical assistance, spare parts, or warranty claims, please contact Nikai Customer Care. Refer to the product packaging or Nikai's official website for contact details.
