1. Introduction
Thank you for choosing the tectake Greenhouse. This manual provides essential information for the safe assembly, operation, and maintenance of your greenhouse. Please read these instructions carefully before beginning assembly and retain them for future reference.
1.1 Safety Warnings
- Exercise caution during assembly due to potential sharp edges on components.
- Ensure the greenhouse is securely anchored to the ground to prevent damage or injury, especially in windy conditions.
- Protect yourself from potential UV exposure during assembly and use.
- The greenhouse must be adapted to local weather conditions and sufficiently anchored. Consider using appropriate tectake foundations, which should be concreted into the ground for sufficient stability.
2. Setup and Assembly
Proper assembly is crucial for the stability and longevity of your greenhouse. While the process is precise, it requires patience and attention to detail. It is highly recommended that two people undertake the assembly.
2.1 Site Preparation
- Choose a level, well-drained site with adequate sunlight exposure.
- Clear the area of any debris, rocks, or vegetation.
- For enhanced stability, especially in areas prone to strong winds, consider installing a concrete foundation or securely embedding the greenhouse base into the ground.
2.2 Assembly Steps
Follow the provided graphical instructions carefully. Lay out all components and identify them before starting. Do not fully tighten all screws until the entire frame is assembled to allow for minor adjustments.
- Frame Construction: Assemble the base frame first, ensuring it is square and level.
- Wall and Roof Panels: Install the aluminum profiles for the walls and roof. Pay close attention to the orientation of each piece as indicated in the manual.
- Polycarbonate Panels: Carefully insert the 4mm polycarbonate panels into the frame channels. Ensure they are seated correctly. Some users recommend applying silicone sealant around the panels for extra security against wind and moisture.
- Door and Window Installation: Assemble and install the sliding door and the roof window according to the instructions. Ensure smooth operation.
- Final Tightening and Anchoring: Once the entire structure is complete and aligned, tighten all screws. Securely anchor the greenhouse to the ground using appropriate methods for your site conditions.

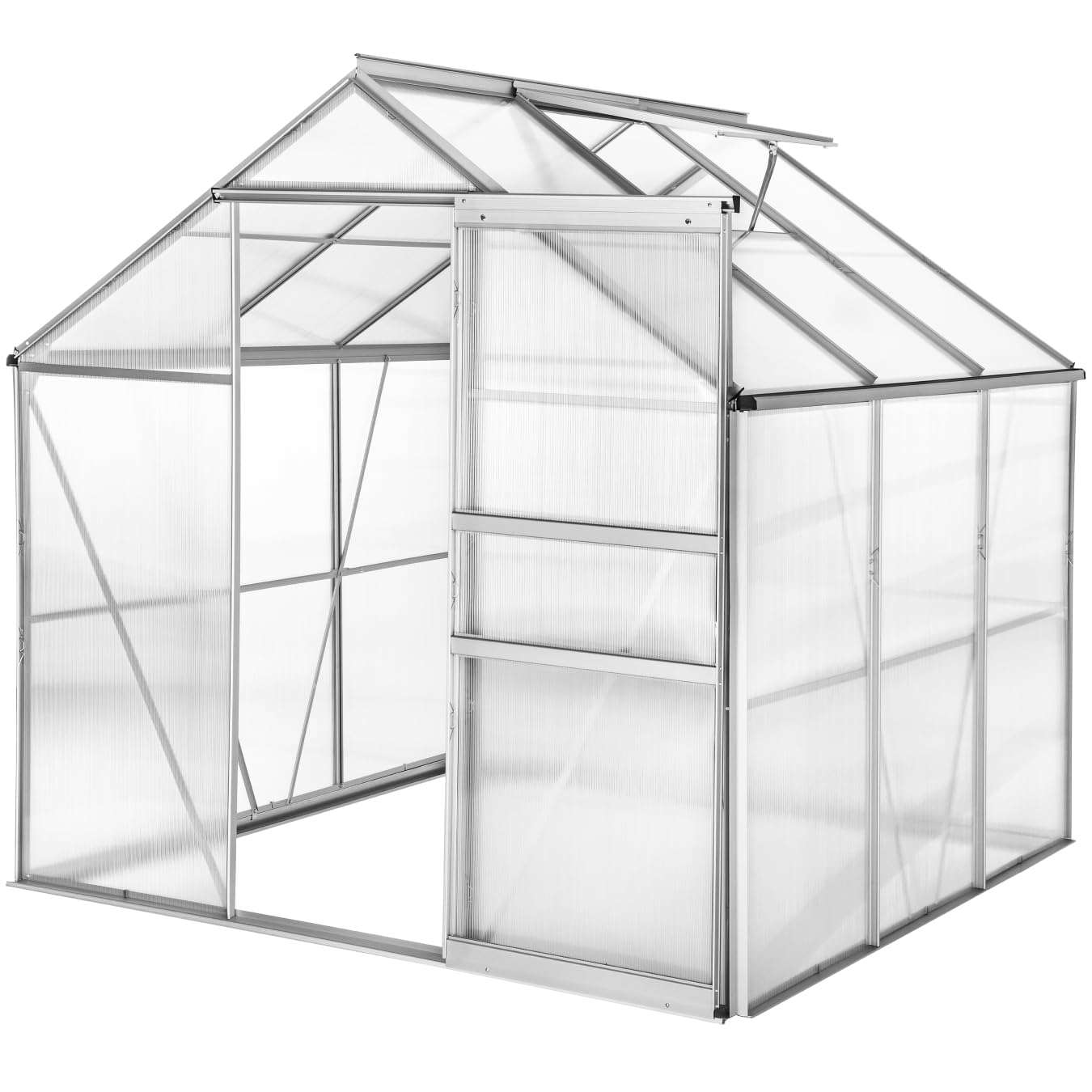

Image: The tectake Greenhouse (190x185x195 cm) fully assembled, showcasing its aluminum frame and polycarbonate panels.
Image: Close-up view of the roof window mechanism, illustrating its design for ventilation.
3. Operating Instructions
The tectake Greenhouse is designed to create an optimal environment for plant growth. Understanding its features will help you maximize its benefits.
3.1 Ventilation
Effective ventilation is essential to regulate temperature and humidity, preventing mold and overheating. Your greenhouse is equipped with a sliding door and a roof window for this purpose.
- Sliding Door: Open the sliding door to allow fresh air circulation, especially on warm days. The sliding design saves space and resists wind gusts.
- Roof Window: The foldable roof window provides additional aeration and helps regulate internal humidity. Open it during the day to release excess heat and moisture.
Image: Interior view of the greenhouse, highlighting the light-permeable polycarbonate panels and the spacious environment for plants.
3.2 Light and Insulation
The 4mm thick polycarbonate alveolar plates offer superior insulation, keeping plants warm in winter and protecting them from frost. They are also UV-resistant, ensuring plant health and structural durability.
4. Maintenance
Regular maintenance will extend the life of your greenhouse and ensure optimal growing conditions for your plants.
- Cleaning Panels: Clean the polycarbonate panels periodically with mild soap and water to remove dirt and algae, ensuring maximum light transmission. Avoid abrasive cleaners or tools that could scratch the surface.
- Frame Inspection: Annually inspect the aluminum frame for any signs of corrosion, loose screws, or damage. Tighten any loose fasteners.
- Panel Security: Regularly check that all polycarbonate panels are securely held in place by their clips and frame channels. Re-secure or reinforce as needed, especially after strong winds.
- Door and Window Functionality: Ensure the sliding door and roof window operate smoothly. Lubricate tracks if necessary.
5. Troubleshooting
This section addresses common issues you might encounter with your greenhouse.
| Problem | Possible Cause | Solution |
|---|---|---|
| Greenhouse feels unstable or wobbly. | Insufficient anchoring; loose frame connections. | Ensure the base is firmly anchored to the ground. Tighten all frame screws. Consider a concrete foundation for added stability. |
| Polycarbonate panels detach or fly off in wind. | Panel clips are not strong enough or panels are not fully seated. | Ensure all panel clips are correctly installed and bent to provide maximum pressure. Apply silicone sealant around panel edges for extra adhesion. Consider adding extra screws with washers to secure panels. |
| Difficulty assembling components. | Misinterpretation of instructions; components not aligned. | Review the assembly diagrams carefully. Do not fully tighten screws until all related components are in place. Work with a second person for easier alignment. |
| Door or window sticks. | Debris in tracks; misaligned frame. | Clean tracks of any dirt or debris. Check frame for squareness and adjust if necessary. Lubricate tracks with a suitable silicone spray. |
6. Specifications
Key technical details for the tectake Greenhouse (Model 190x185x195 cm).
- Dimensions (L x W x H): 190 cm x 185 cm x 195 cm
- Frame Material: Anodized Aluminum
- Covering Material: Polycarbonate (PC)
- Nominal Wall Thickness: 4 millimeters
- Weight: Approximately 15 Kilograms
- Number of Doors: 1 (Sliding Door)
- Number of Vents: 1 (Roof Window)
- Manufacturer: TecTake GmbH
- Country of Origin: China
Image: Diagram illustrating the detailed dimensions of the greenhouse, including length, width, and height.
7. Warranty and Support
Your tectake Greenhouse comes with standard legal guarantees. For specific warranty details or support inquiries, please refer to your purchase documentation or contact the retailer.
- Returns: A 30-day return policy may apply, as per retailer terms.
- Customer Support: For assistance with parts, assembly, or product issues, please contact the seller or manufacturer directly.
