1. Introduction
This manual provides essential instructions for the safe and efficient installation, operation, and maintenance of your Crown DLT-60 Direct Steam Tilting Kettle. This commercial-grade kettle is designed for high-volume cooking in professional kitchens, utilizing direct steam for heating and featuring a tilting mechanism for easy dispensing. Please read this manual thoroughly before operating the equipment and retain it for future reference.

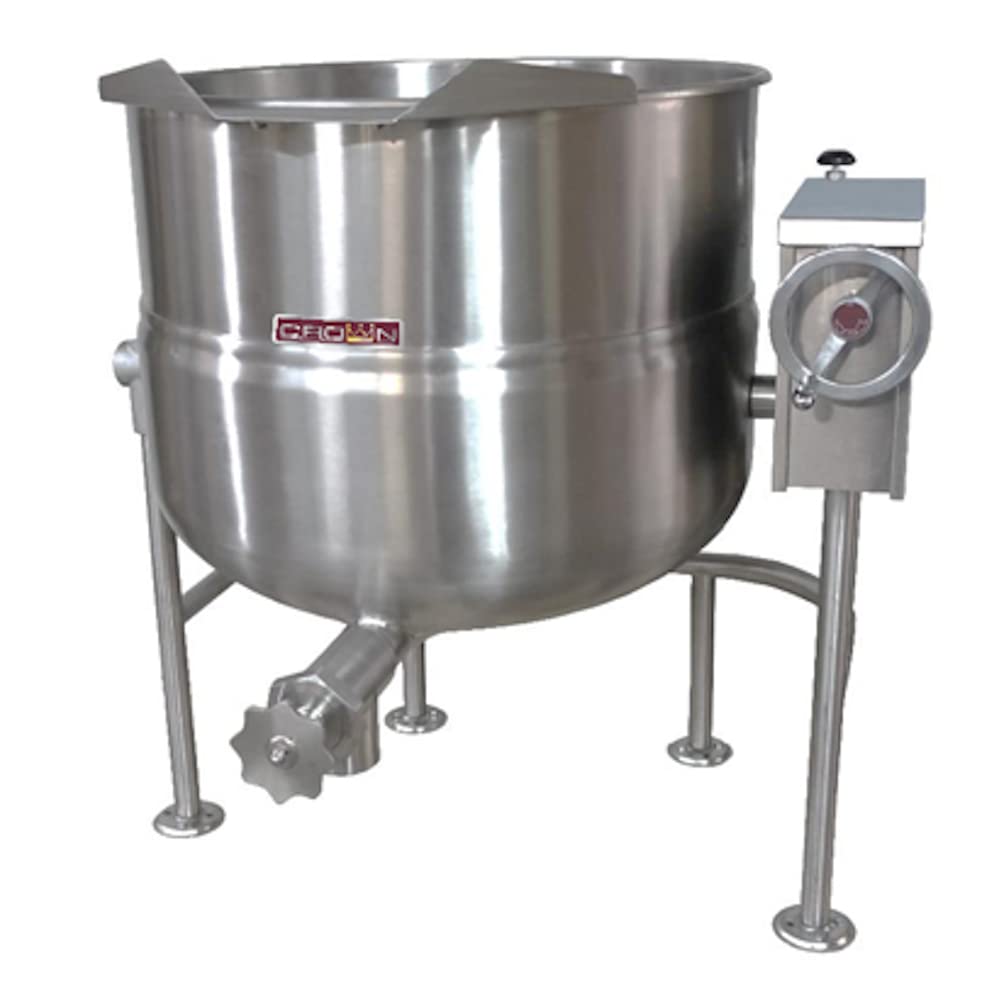

Figure 1: Crown DLT-60 Direct Steam Tilting Kettle. This image shows the stainless steel kettle with its control panel and tilting mechanism.
2. Safety Instructions
Always observe the following safety precautions to prevent injury and damage to the equipment:
- Qualified Personnel: Installation, maintenance, and repairs must be performed by qualified and authorized service technicians.
- Steam Hazards: Direct steam is extremely hot. Always wear appropriate personal protective equipment (PPE), including heat-resistant gloves and eye protection, when operating or cleaning the kettle.
- Hot Surfaces: The kettle surfaces will become very hot during operation. Avoid direct contact.
- Electrical Safety: Ensure the kettle is properly grounded. Disconnect power before any servicing or cleaning.
- Tilting Mechanism: Operate the tilting mechanism carefully. Ensure the area around the kettle is clear before tilting. Do not overfill the kettle.
- Cleaning: Always allow the kettle to cool down before cleaning. Use only approved cleaning agents.
- Ventilation: Ensure adequate ventilation in the kitchen area to dissipate steam and heat.
- Emergency Shut-off: Familiarize yourself with the location of the main power and steam shut-off valves.
3. Setup and Installation
3.1 Unpacking
Carefully remove the kettle from its packaging. Inspect for any shipping damage. Report any damage immediately to the carrier and your supplier.
3.2 Placement
Place the kettle on a level, stable, and non-combustible surface capable of supporting its weight when full. Ensure sufficient clearance around the kettle for ventilation, operation, and maintenance. The kettle should be installed under an appropriate ventilation hood.
3.3 Steam and Electrical Connections
All steam and electrical connections must be made by qualified and licensed professionals in accordance with local and national codes. Ensure the steam supply pressure is within the kettle's specified operating range. The kettle requires a dedicated electrical circuit.
3.4 Initial Cleaning
Before first use, clean the interior of the kettle thoroughly with a mild detergent and warm water. Rinse completely and dry.
4. Operating Instructions
4.1 Pre-Operation Checklist
- Ensure all connections (steam, electrical) are secure.
- Verify the kettle is clean and free of debris.
- Confirm the tilting mechanism operates smoothly and is in the upright position.
4.2 Filling the Kettle
Fill the kettle with the desired food product or liquid. Do not fill above the maximum fill line indicated inside the kettle to prevent boil-overs and ensure safe tilting.
4.3 Heating
- Turn on the main power switch for the kettle.
- Open the steam supply valve to the kettle.
- Adjust the temperature control knob or digital interface to the desired cooking temperature. The kettle will begin to heat as steam circulates through the jacket.
- Monitor the cooking process.
4.4 Tilting and Dispensing
Once cooking is complete, ensure the area below the kettle is clear and a suitable receiving container is in place. Slowly operate the tilting handle or control to pour the contents. Do not force the tilting mechanism.
4.5 Shutting Down
- Close the steam supply valve.
- Turn off the temperature control.
- Turn off the main power switch.
- Allow the kettle to cool before cleaning.
5. Maintenance
5.1 Daily Cleaning
After each use, and once the kettle has cooled:
- Drain any remaining contents.
- Wash the interior and exterior surfaces with a mild, food-safe detergent and warm water.
- Rinse thoroughly with clean water.
- Wipe dry with a clean cloth to prevent water spots and corrosion.
5.2 Regular Inspection
Periodically inspect the following components:
- Steam Lines and Connections: Check for leaks or damage.
- Electrical Cords and Connections: Ensure they are intact and secure.
- Tilting Mechanism: Lubricate moving parts as recommended by a qualified technician.
- Gaskets and Seals: Inspect for wear and tear; replace if necessary.
5.3 Descaling (Professional Service Recommended)
Depending on water quality, mineral deposits may accumulate within the steam jacket. Descaling should be performed by a qualified service technician to maintain efficiency and prevent damage.
6. Troubleshooting
Refer to the table below for common issues and their potential solutions. For problems not listed or if solutions do not resolve the issue, contact a qualified service technician.
| Problem | Possible Cause | Solution |
|---|---|---|
| Kettle not heating. | No power; Steam supply off; Temperature control set too low. | Check power connection and circuit breaker; Open steam supply valve; Adjust temperature control. |
| Steam leaking from connections. | Loose fittings; Damaged gasket. | Tighten fittings (when cool); Contact service technician to replace gasket. |
| Tilting mechanism stiff or not working. | Lack of lubrication; Obstruction; Mechanical fault. | Inspect for obstructions; Contact service technician for lubrication or repair. |
| Uneven heating. | Mineral buildup in steam jacket. | Contact service technician for descaling. |
7. Specifications
The following are general specifications for the Crown DLT-60 Direct Steam Tilting Kettle. Specific details may vary slightly.
- Model: DLT-60
- Brand: CROWN
- Capacity: 60 Gallons
- Material: Stainless Steel
- Finish Type: Stainless Steel, Steel
- Heating Method: Direct Steam, 2/3 Jacket
- Color: Silver
- Product Care Instructions: Wipe clean
- ASIN: B07QZY2614
- Item Model Number: 44884121-ed6c-4a0a-90d0-34c901be081f
- Date First Available: April 23, 2019
