Introduction
Thank you for choosing the LIGE LG9846L Men's Quartz Analog Watch. This manual provides essential information for the proper setup, operation, and maintenance of your timepiece. Please read it carefully to ensure optimal performance and longevity of your watch.
The LIGE LG9846L Men's Quartz Analog Watch, featuring a striking blue dial and a durable stainless steel bracelet.
Setup
1. Unboxing and Initial Inspection
Upon opening the package, ensure all included components are present:
- LIGE LG9846L Watch
- Instruction Manual
- Warranty Card
- Stainless Steel Bracelet (attached to watch)
- Link Removal Tool (for bracelet adjustment)
2. Setting Time and Date
- Pull the crown out to position 2: This is the outermost position. Rotate the crown to adjust the time. Set the time a few minutes ahead, then push the crown back to position 1 (middle position) to set the date.
- Pull the crown out to position 1: This is the middle position. Rotate the crown to adjust the date and day of the week. Adjust until the correct date and day are displayed.
- Push the crown back to position 0: Once the time, date, and day are set, push the crown fully back into its original position against the watch case. This engages the movement and starts the watch.
The watch crown is used for adjusting the time and date. Pull it out to different positions for specific adjustments.
3. Bracelet Adjustment
The stainless steel bracelet can be adjusted to fit your wrist size. A link removal tool is included for this purpose. Carefully follow the instructions provided with the tool to remove or add links. If you encounter difficulty or prefer professional assistance, it is recommended to visit a jeweler for bracelet adjustment.
Use the provided link removal tool to adjust the stainless steel bracelet for a comfortable fit.
Operating the Watch
1. Basic Timekeeping
Your LIGE LG9846L watch is equipped with a high-quality quartz movement, providing precise analog time display. Once set, the watch will maintain accurate timekeeping.
2. Calendar Function
The watch features a calendar display for the date and day of the week. Ensure these are set correctly during the initial setup. The calendar will automatically advance, but may require manual adjustment for months with fewer than 31 days.
3. Luminous Hands and Markers
The watch hands and hour markers are designed with luminous material. After exposure to light, they will glow in low-light conditions, allowing for easy time reading in the dark.

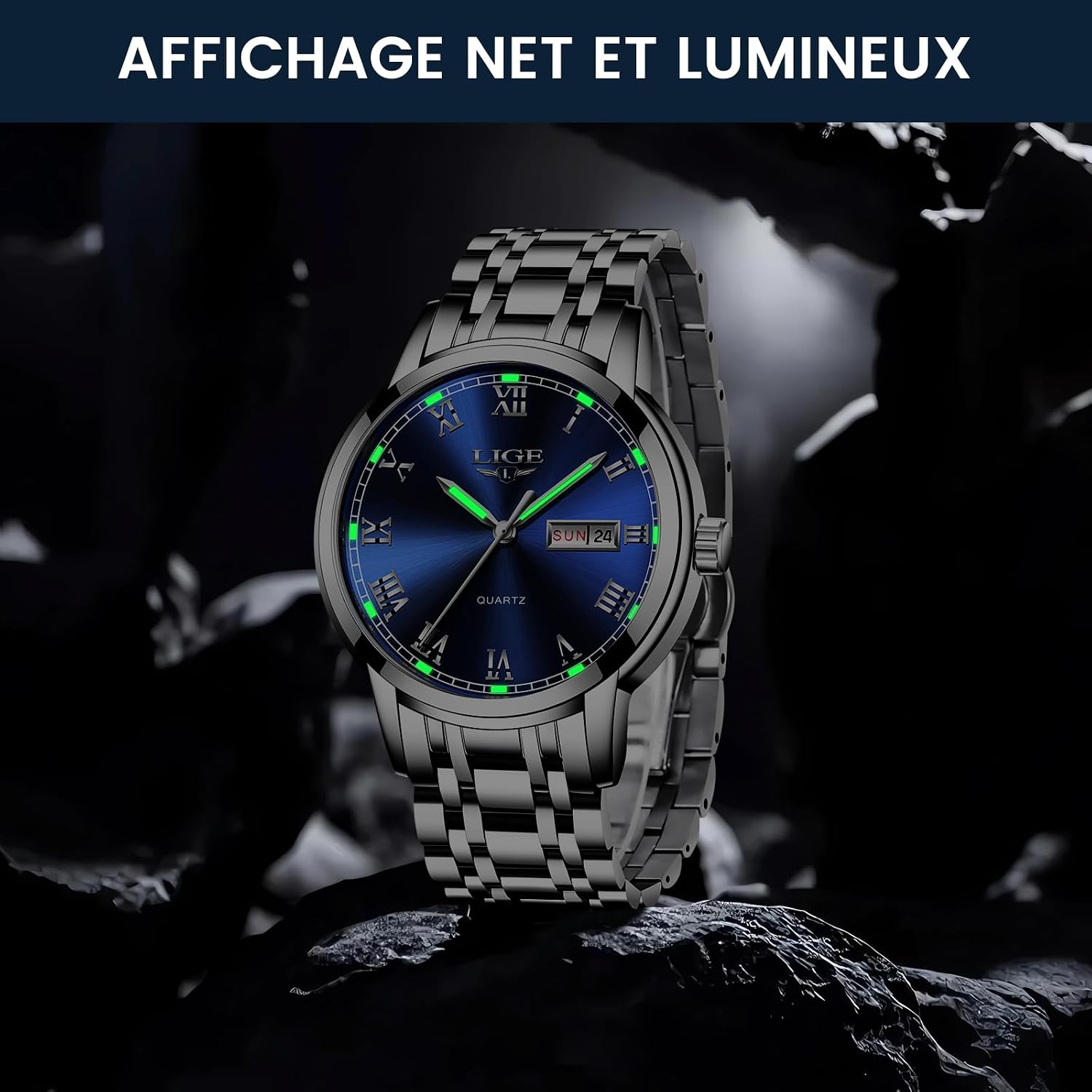

The luminous hands and markers provide visibility in low-light conditions after exposure to light.
Maintenance
1. Water Resistance (3ATM / 30 Meters)
The LIGE LG9846L watch is water-resistant up to 3ATM (30 meters). This means it is suitable for daily use and can withstand splashes, rain, and hand washing. However, it is not suitable for showering, swimming, diving, or any prolonged water immersion. Important: Do not press any buttons while the watch is wet or submerged in water.
The watch is resistant to splashes and rain, but not suitable for swimming or diving.
2. Cleaning
To clean your watch, wipe the case and bracelet with a soft, dry cloth. For stubborn dirt, a slightly damp cloth can be used, followed by immediate drying. Avoid using chemical cleaners, as they may damage the watch's finish.
3. Battery Replacement
The watch is powered by one LR44 battery. When the watch stops or its movement becomes erratic, it may be time to replace the battery. Battery replacement should ideally be performed by a qualified watch technician to ensure proper sealing and maintain water resistance.
4. Storage
When not wearing your watch for extended periods, store it in a cool, dry place away from direct sunlight, extreme temperatures, and strong magnetic fields. The original watch box is ideal for storage.
Troubleshooting
- Watch not running: Ensure the crown is fully pushed in to position 0. If it still does not run, the battery may need replacement.
- Incorrect time or date: Refer to the "Setting Time and Date" section to re-adjust.
- Bracelet difficult to adjust: If you experience significant difficulty adjusting the bracelet links with the provided tool, it is advisable to seek assistance from a professional jeweler to prevent damage.
- Condensation under the crystal: If condensation appears under the watch crystal, it indicates a potential issue with the watch's water resistance. Have the watch inspected by a professional immediately.
Specifications
Detailed product specifications and dimensions of the LIGE LG9846L watch.
| Feature | Detail |
|---|---|
| Brand | LIGE |
| Model Name | LG9846L |
| Item Model Number | LG9846L |
| Product Dimensions (L x W x H) | 15.24 x 7.62 x 5.08 cm |
| Item Weight | 131 Grams |
| Display Type | Analog |
| Watch Movement Type | Quartz |
| Water Resistance Depth | 30 Meters (3ATM) |
| Case Diameter | 44 Millimeters |
| Case Thickness | 12 Millimeters |
| Band Width | 22 Millimeters |
| Band Length | 220 Millimeters |
| Band Material Type | Stainless Steel |
| Case Material Type | Stainless Steel |
| Dial Window Material Type | Mineral |
| Power Source | Battery Powered (1 LR44 included) |
| Special Features | Calendar, Date, Luminous Hands |
| Clasp Type | Fold-over clasp with safety |
| Dial Color | Blue |
| Band Color | Silver |
| Country of Origin | China |
Warranty Information
Your LIGE LG9846L watch comes with a Limited Warranty. Please refer to the included warranty card for specific terms, conditions, and duration of coverage. Keep your proof of purchase for any warranty claims.
Customer Support
Should you have any questions regarding your LIGE LG9846L watch, its operation, or require assistance, please do not hesitate to contact our customer service team. We are committed to providing a satisfactory solution within 24 hours.
For support, please visit the official LIGE store on Amazon or use the contact information provided on your warranty card.
Online Store: LIGE Official Store
