1. Introduction
This instruction manual provides important information for the safe and efficient use of your SEVERIN EZ 7406 2-in-1 Ice Cream and Yogurt Maker. This appliance is designed for preparing homemade ice cream, sorbet, and yogurt. Please read this manual thoroughly before first use and keep it for future reference.
2. Important Safety Instructions
Observe the following safety precautions to prevent injury or damage to the appliance:
- Read all instructions carefully before operating the appliance.
- Ensure the voltage indicated on the rating label matches your mains voltage.
- Do not immerse the appliance, cord, or plug in water or other liquids.
- Close supervision is necessary when the appliance is used by or near children.
- Unplug from the outlet when not in use, before assembling or disassembling parts, and before cleaning.
- Avoid contact with moving parts.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- The use of accessories not recommended by the manufacturer may cause hazards.
- Do not use outdoors.
- Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Always attach the plug to the appliance first, then plug the cord into the wall outlet. To disconnect, turn any control to "off", then remove the plug from the wall outlet.
- Do not use the appliance for other than intended use.
3. Product Components
The SEVERIN EZ 7406 includes the following main components:

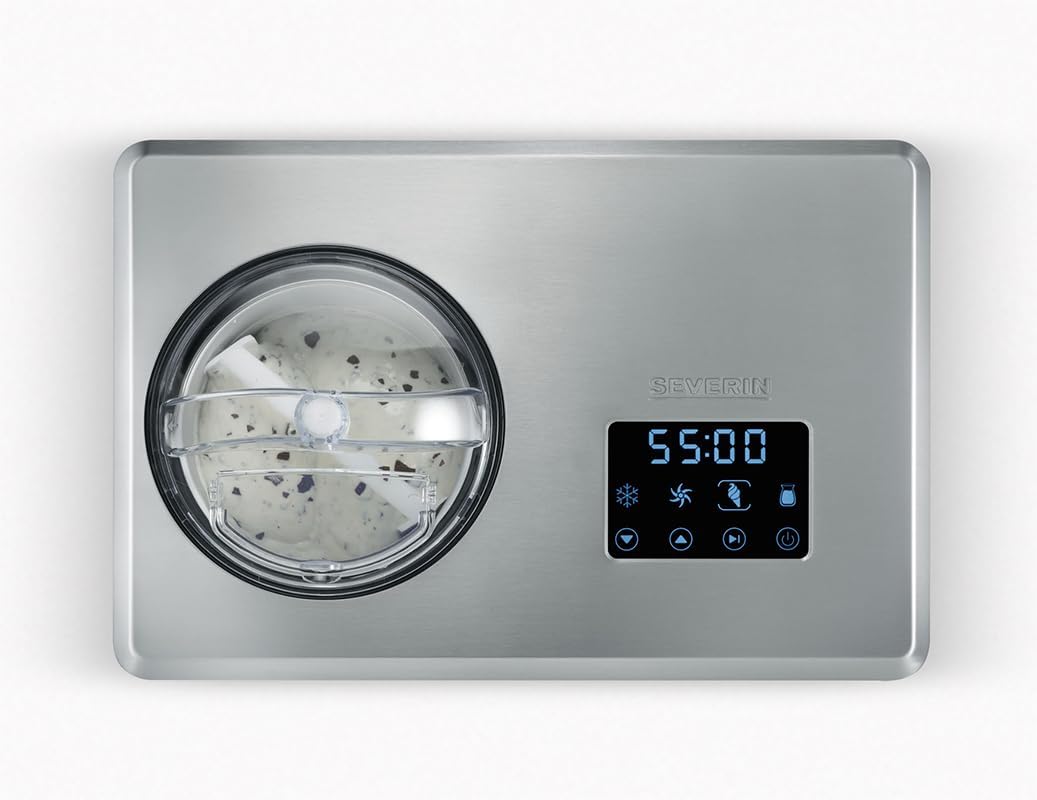

- Main unit with compressor cooling system and control panel.
- Two removable ice cream/yogurt containers (2 liters each).
- Two mixing paddles.
- Two transparent lids with ingredient opening.
- Measuring cup.
- Ice cream scoop.
- Recipe book.
4. Setup and First Use
Before using your appliance for the first time, follow these steps:
- Unpack: Carefully remove all packaging materials and check that all components are present and undamaged.
- Clean: Wash the removable containers, mixing paddles, lids, measuring cup, and ice cream scoop in warm soapy water. Rinse thoroughly and dry completely. The main unit should be wiped with a damp cloth. Do not immerse the main unit in water.
- Placement: Place the appliance on a stable, flat, heat-resistant surface, ensuring adequate ventilation around the unit.
- Assembly: Insert the clean, dry container(s) into the main unit. Place the mixing paddle(s) inside the container(s) and secure the lid(s).
5. Operating Instructions
5.1. Making Ice Cream or Sorbet
- Prepare Ingredients: Prepare your ice cream or sorbet mixture according to a recipe. Ensure ingredients are chilled for best results.
- Assemble: Place the mixing paddle into the removable container, then pour the mixture into the container. Do not fill above the maximum fill line to allow for expansion.
- Secure Lid: Place the transparent lid onto the container and ensure it is properly seated.
- Power On: Plug the appliance into a grounded electrical outlet. The LED display will illuminate.
- Select Program: Use the touch control panel to select the ice cream/sorbet program. Set the desired preparation time using the digital timer (typically 30-60 minutes, depending on the recipe and desired consistency).
- Start: Press the Start/Stop button to begin the churning process. The compressor will activate, and the paddle will start rotating.
- Add Ingredients (Optional): During the last 5-10 minutes of churning, you can add solid ingredients like chocolate chips, nuts, or fruit pieces through the opening in the lid.
- Keep-Cooling Function: After the set time, the appliance will automatically activate the "Keep-Cooling" function for approximately 60 minutes to maintain the consistency of the finished product.
- Serve: Once complete, unplug the appliance. Remove the lid and paddle, then scoop out the ice cream or sorbet. For a firmer consistency, transfer to an airtight container and freeze for a few hours.
5.2. Making Yogurt
The appliance can also be used to prepare homemade yogurt. Refer to the included recipe book for specific yogurt recipes and instructions.
- Prepare Yogurt Mixture: Prepare your yogurt mixture (milk and starter culture) according to the recipe.
- Assemble: Pour the mixture into the removable container.
- Secure Lid: Place the transparent lid onto the container.
- Select Program: Plug in the appliance and select the yogurt program. Set the desired fermentation time and temperature as per your recipe.
- Start: Press the Start/Stop button. The appliance will maintain the optimal temperature for yogurt fermentation.
- Cooling: After fermentation, the appliance will automatically cool the yogurt.
- Serve: Once cooled, transfer the yogurt to storage containers and refrigerate.
For detailed recipes and tips, consult the included recipe book.
6. Cleaning and Maintenance
Regular cleaning ensures optimal performance and extends the life of your appliance.
- Unplug: Always unplug the appliance from the power outlet before cleaning.
- Disassemble: Remove the lid, mixing paddle, and removable container from the main unit.
- Wash Removable Parts: Wash the containers, paddles, lids, measuring cup, and scoop in warm, soapy water. Rinse thoroughly and dry immediately. These parts are generally not dishwasher safe unless specified.
- Clean Main Unit: Wipe the exterior of the main unit with a soft, damp cloth. Do not use abrasive cleaners or scourers. Ensure no water enters the ventilation openings.
- Storage: Ensure all parts are completely dry before reassembling or storing the appliance. Store in a cool, dry place.
7. Troubleshooting
If you encounter issues with your appliance, refer to the table below for common problems and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Appliance does not turn on. | Not plugged in; power outage; faulty outlet. | Ensure the appliance is securely plugged into a working outlet. Check your circuit breaker. |
| Mixture is not freezing. | Ingredients not sufficiently chilled; too much mixture; lid not properly sealed; compressor issue. | Pre-chill ingredients. Do not exceed max fill line. Ensure lid is securely in place. If problem persists, contact customer support. |
| Mixing paddle stops during operation. | Mixture too thick; obstruction. | Ensure mixture consistency is appropriate. Check for any obstructions. If the motor overheats, it may temporarily stop; allow it to cool. |
| Yogurt is not fermenting properly. | Incorrect temperature or time setting; inactive starter culture. | Verify temperature and time settings according to recipe. Ensure your starter culture is fresh and active. |
If the problem persists after attempting these solutions, please contact Severin customer support.
8. Technical Specifications
- Model: EZ 7406
- Power: 180 Watts
- Voltage: 230 Volts
- Capacity: 2 x 2 Liters (total 4 Liters)
- Dimensions (L x W x H): 43 x 29 x 22.5 cm (approx. 16.9 x 11.4 x 8.9 inches)
- Weight: 11.64 kg (approx. 25.67 lbs)
- Material: Stainless Steel
- Special Features: Digital timer, adjustable to the minute; Temperature display; Automatic Keep-Cooling function (60 min).
- Country of Origin: China
9. Warranty and Customer Support
Severin products are manufactured to high-quality standards. In the unlikely event of a defect, please refer to your purchase documentation for warranty details. For technical assistance, spare parts, or further inquiries, please visit the official Severin website or contact their customer service department.
Official Website: www.severin.com
