1. Introduction
This manual provides detailed instructions for the safe and effective use of your FENCHILIN Lighted Makeup Mirror. Please read this manual thoroughly before operating the device and retain it for future reference.
2. Safety Information
- Ensure the mirror is placed on a stable, flat surface to prevent tipping.
- Keep the mirror away from water or other liquids to avoid electrical shock.
- Do not attempt to disassemble or repair the mirror yourself. Contact customer support for assistance.
- Unplug the mirror from the power outlet when not in use or before cleaning.
- Keep out of reach of children.
3. Package Contents
Verify that all items are present in the package:
- 1 x FENCHILIN Lighted Makeup Mirror
- 1 x Detachable 10X Magnification Mirror
- 1 x 12V UL Certified Power Adapter (60-inch extra long)
- Assembly Hardware (screws, washers, columns, mirror base)
- 1 x Cleaning Cloth
4. Setup
4.1 Assembly Instructions
The FENCHILIN Lighted Makeup Mirror requires minimal assembly. Follow these steps:
- Unscrew the short screws on both sides of the mirror body.
- Ensure the parts (mirror, columns, and mirror base) are aligned correctly.
- Screw the bolts and washers to the mirror to secure the columns.
- Attach the mirror base to the bottom of the columns using the provided M4 countersunk screws.
- Check for stability before use.
Figure 1: Assembly Diagram
4.2 Power Connection
Connect the 12V UL certified adapter to the power input port on the back of the mirror, then plug the adapter into a standard wall outlet.
Figure 2: FENCHILIN Lighted Makeup Mirror
5. Operating Instructions
5.1 Smart Touch Control
The mirror features smart touch controls located on the bottom center of the mirror surface.
- Power On/Off: Touch the power icon (
) to turn the mirror lights on or off. - Adjust Brightness: Long press the 'P' icon (
) to dim or brighten the lights. The mirror will remember your last brightness setting. - Change Light Color: Touch the 'M' icon (
) to cycle through three light colors: Day Light (Cool White), Cool White, and Warm Yellow.

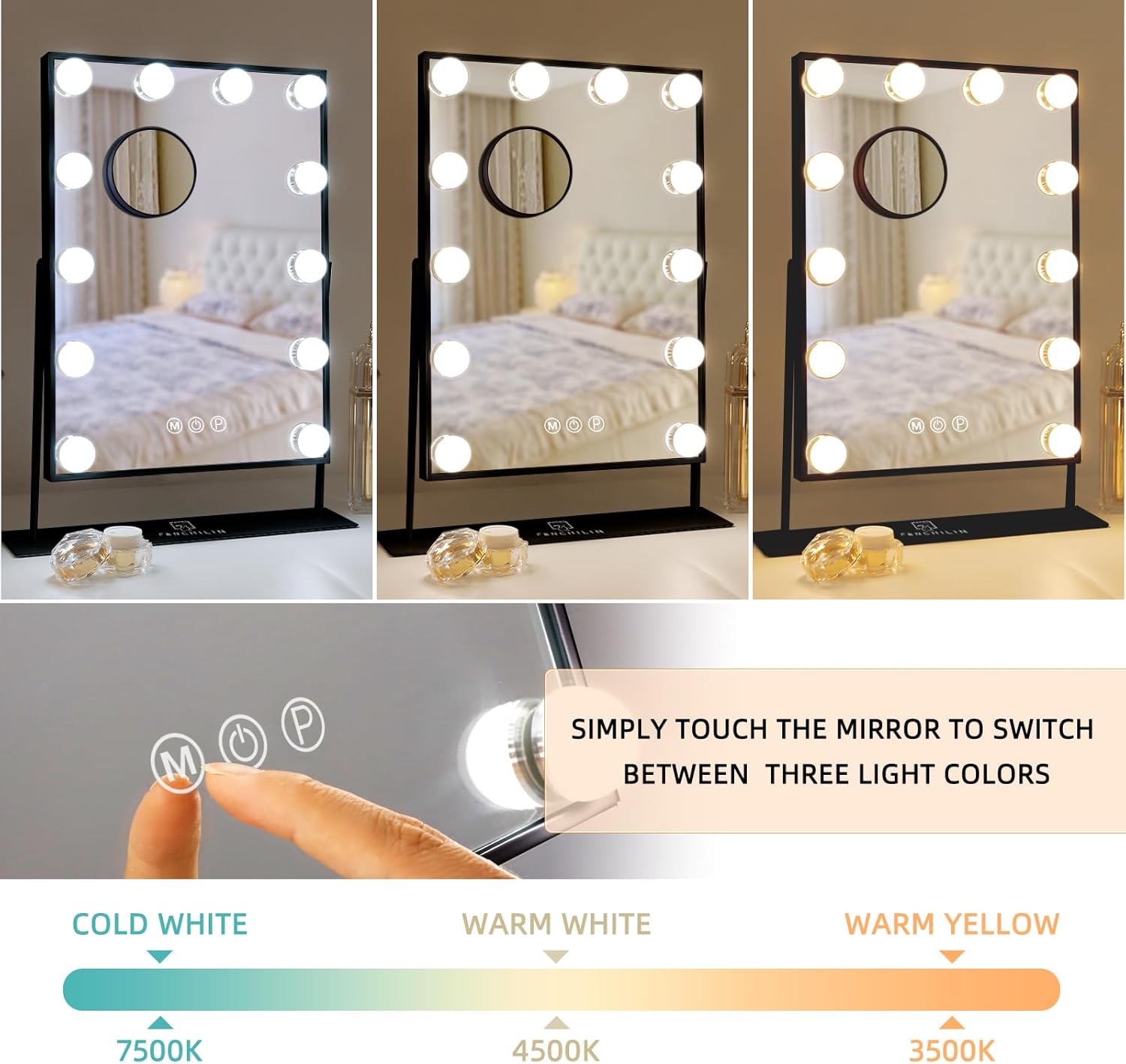

Figure 3: Three Color Lighting Modes
Figure 4: Brightness Adjustment
5.2 360° Rotation
The mirror is designed with a 360-degree rotation feature, allowing you to adjust it to any desired viewing angle for optimal comfort and utility.

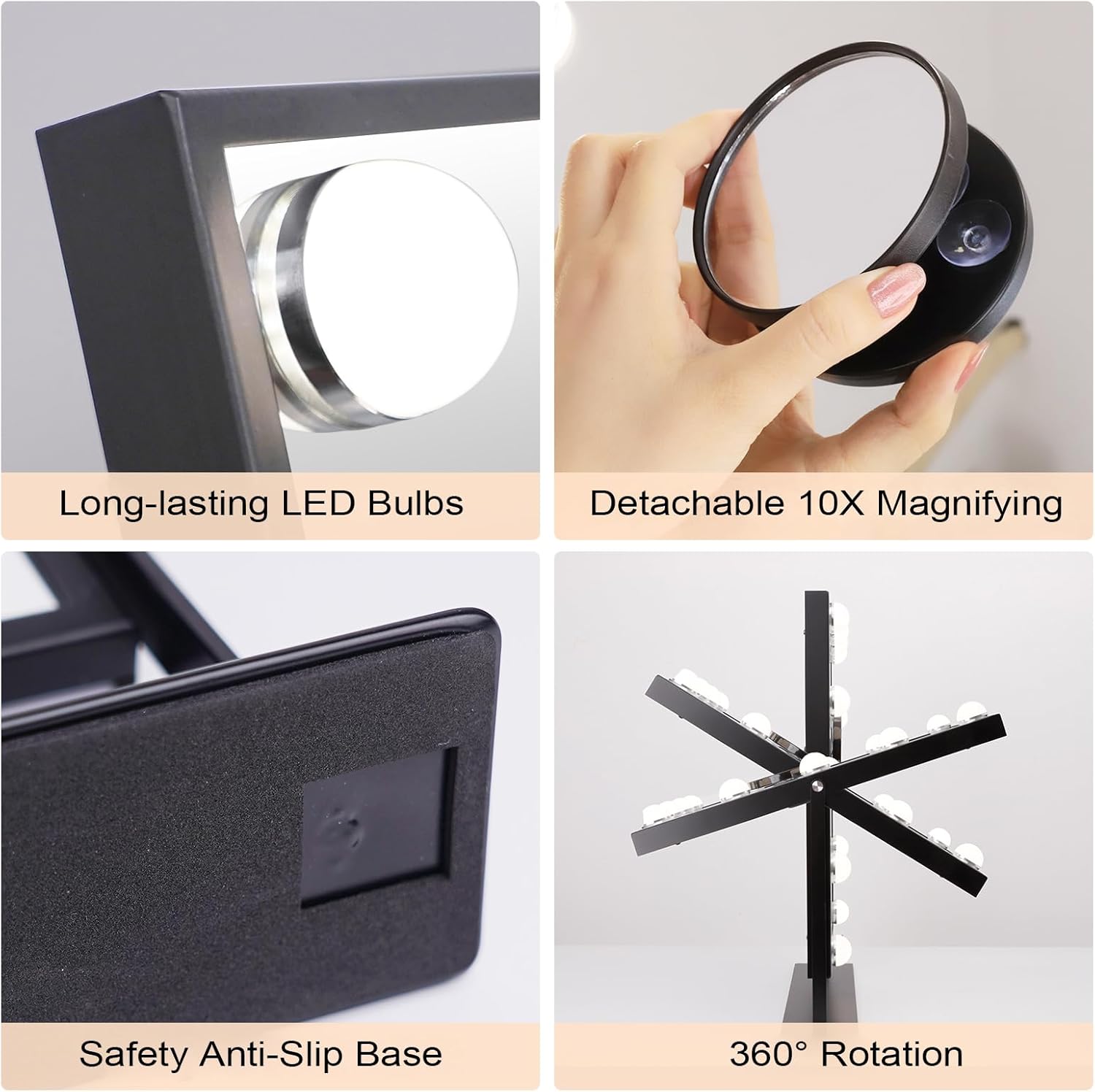

Figure 5: Key Features (including 360° Rotation)
5.3 Detachable 10X Magnification Mirror
The included 10X magnification mirror is detachable and can be affixed to the main mirror surface using its suction cups. This is ideal for detailed tasks such as eyeliner application, eyebrow shaping, or precise lipstick application.
Figure 6: 10X Magnification Mirror Usage
6. Maintenance
6.1 Cleaning
To clean the mirror surface, use the provided cleaning cloth or a soft, lint-free cloth. For stubborn marks, dampen the cloth slightly with a glass cleaner. Avoid abrasive cleaners or harsh chemicals that could damage the mirror or frame.
6.2 LED Bulb Care
The mirror is equipped with non-replaceable LED bulbs designed for long-lasting performance (up to 50,000 hours). No specific maintenance is required for the bulbs themselves. If a bulb appears to be malfunctioning, refer to the troubleshooting section.
7. Troubleshooting
If you encounter any issues with your FENCHILIN Lighted Makeup Mirror, please refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Lights do not turn on. | Power adapter not properly connected or no power from outlet. | Ensure the power adapter is securely plugged into both the mirror and a working wall outlet. Test the outlet with another device. |
| Touch controls are unresponsive. | Dirty mirror surface over touch sensors or temporary electronic glitch. | Clean the mirror surface, especially around the touch icons. Unplug the mirror for 30 seconds, then plug it back in to reset. |
| Lights flicker or dim unexpectedly. | Unstable power supply or internal component issue. | Try plugging the mirror into a different outlet. If the issue persists, contact customer support. |
| Mirror is unstable. | Loose assembly screws or uneven surface. | Check and tighten all assembly screws. Ensure the mirror is placed on a completely flat and stable surface. |
If the problem persists after attempting these solutions, please contact FENCHILIN customer support for further assistance.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | FENCHILIN |
| Model | B07Q4TCLGT |
| Product Dimensions | 18.9"L x 13.97"W |
| Frame Material | Metal |
| Mounting Type | Tabletop Mount |
| Special Features | 360 Degree Rotation, Adjustable Brightness, Lighted, Smart Touch Control |
| Light Colors | Day Light (Cool White), Cool White, Warm Yellow |
| Magnification | 10X (detachable) |
| Power Source | 12V UL Certified Adapter |
| Item Weight | 6.69 pounds |
| UPC | 670046074626 |
9. Warranty Information
FENCHILIN products are supported by 1 year of dedicated customer care. This warranty covers manufacturing defects and functional issues under normal use. Please retain your proof of purchase for warranty claims.
10. Support
For product support, missing parts, or to inquire about exchanges for defective products, please contact FENCHILIN customer service. You can also visit the official FENCHILIN store on Amazon for more information and assistance:
