1. Product Overview
The Tacticon Predator V2 Reflex Sight is a high-performance optic designed to enhance accuracy and target acquisition for rifles and shotguns. It features both red and green dot options, four selectable reticle types, and nine brightness settings per color, providing versatility for various shooting scenarios and lighting conditions. Constructed from durable aluminum, this sight is built to withstand rigorous use and maintain zero after thousands of shots. It also includes a 45-degree offset mount for flexible mounting options.
Key Features:
- Precision Sights: Offers crystal-clear visuals and fast target acquisition.
- Uncompromising Accuracy: Designed to hold zero after thousands of shots for consistent performance.
- Optimized Performance: Four selectable reticle types with red and green color options, and 9 brightness settings.
- Versatile Mounting: Includes a 45-degree offset mount for various shooting scenarios.
- Durable Construction: Made from aluminum, ensuring longevity and reliability.
Product Overview Video:
This official video from Tacticon Armament provides a visual overview of the Predator V2 Reflex Sight, demonstrating its features and functionality, including reticle options and adjustments.
2. Setup
2.1 Mounting the Sight

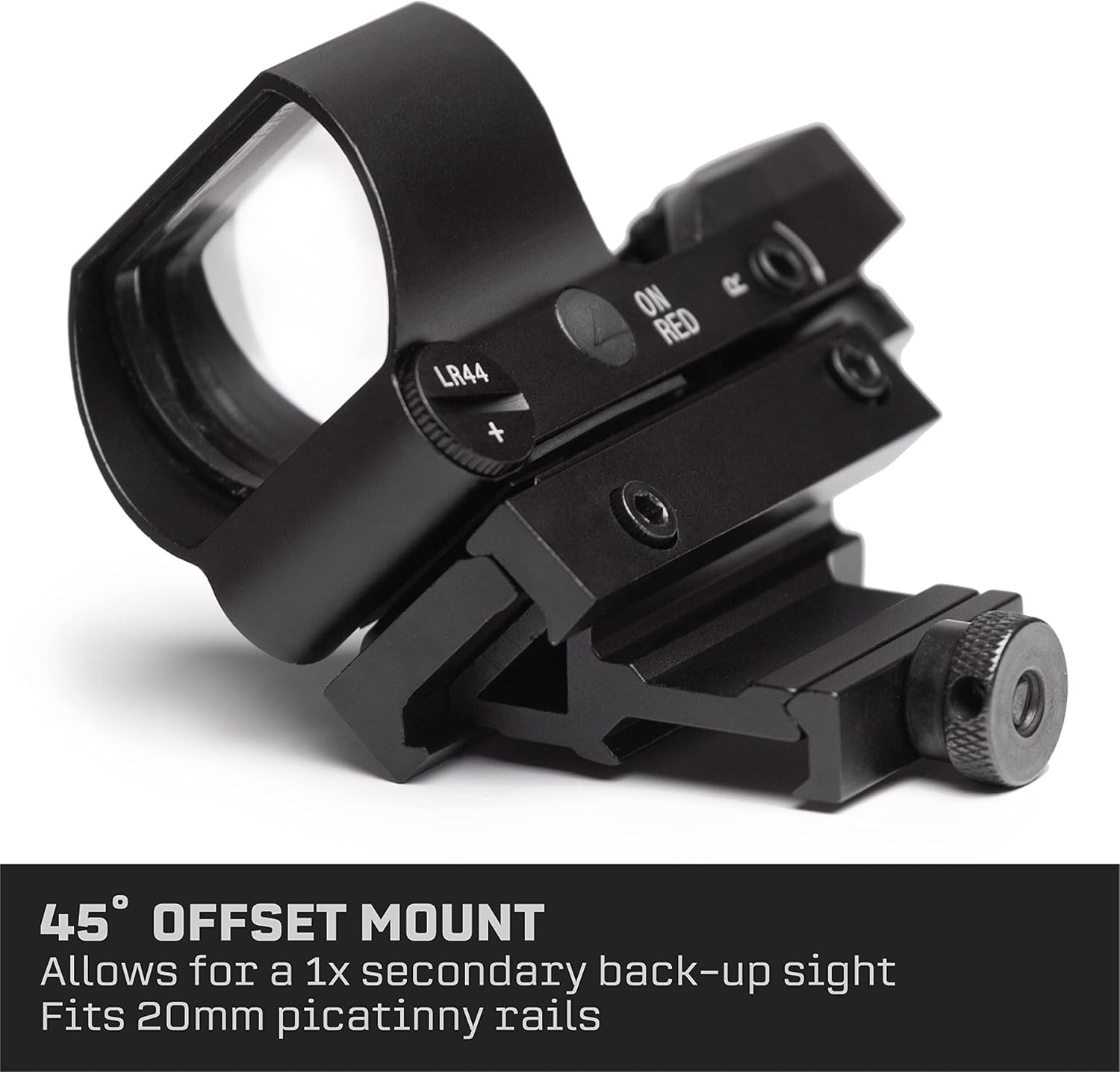

The Predator V2 Reflex Sight comes with a 45-degree offset mount, compatible with 20mm Picatinny rails. To mount the sight, align the mount with your firearm's Picatinny rail and secure it using the provided screws and hex wrenches. Ensure the sight is firmly attached to prevent movement during use.
2.2 Battery Installation
The sight requires LR44 batteries for operation. To install or replace batteries, locate the battery compartment on the side of the sight. Unscrew the cap, insert the batteries with the correct polarity, and then securely fasten the cap. The product package includes 6 LR44 batteries, though only 3 are required for operation.
2.3 Zeroing and Adjustments
To achieve optimal accuracy, the sight needs to be zeroed to your firearm. The Predator V2 features elevation and windage adjustment screws. Use the provided hex wrench to make precise adjustments. Turning the elevation screw (marked 'UP'/'OFF') counter-clockwise moves the point of impact up, and clockwise moves it down. For windage, turning the screw (marked 'R') clockwise moves the point of impact right, and counter-clockwise moves it left. Make small, incremental adjustments and test fire to fine-tune your zero.
3. Operating Instructions
3.1 Power On/Off and Color Selection
The sight features dedicated buttons for red and green dot activation. Press the 'ON RED' button to activate the red reticle, and the 'ON GREEN' button to activate the green reticle. To turn the sight off, press and hold both the red and green buttons simultaneously until the reticle disappears.
3.2 Reticle Selection and Brightness Adjustment

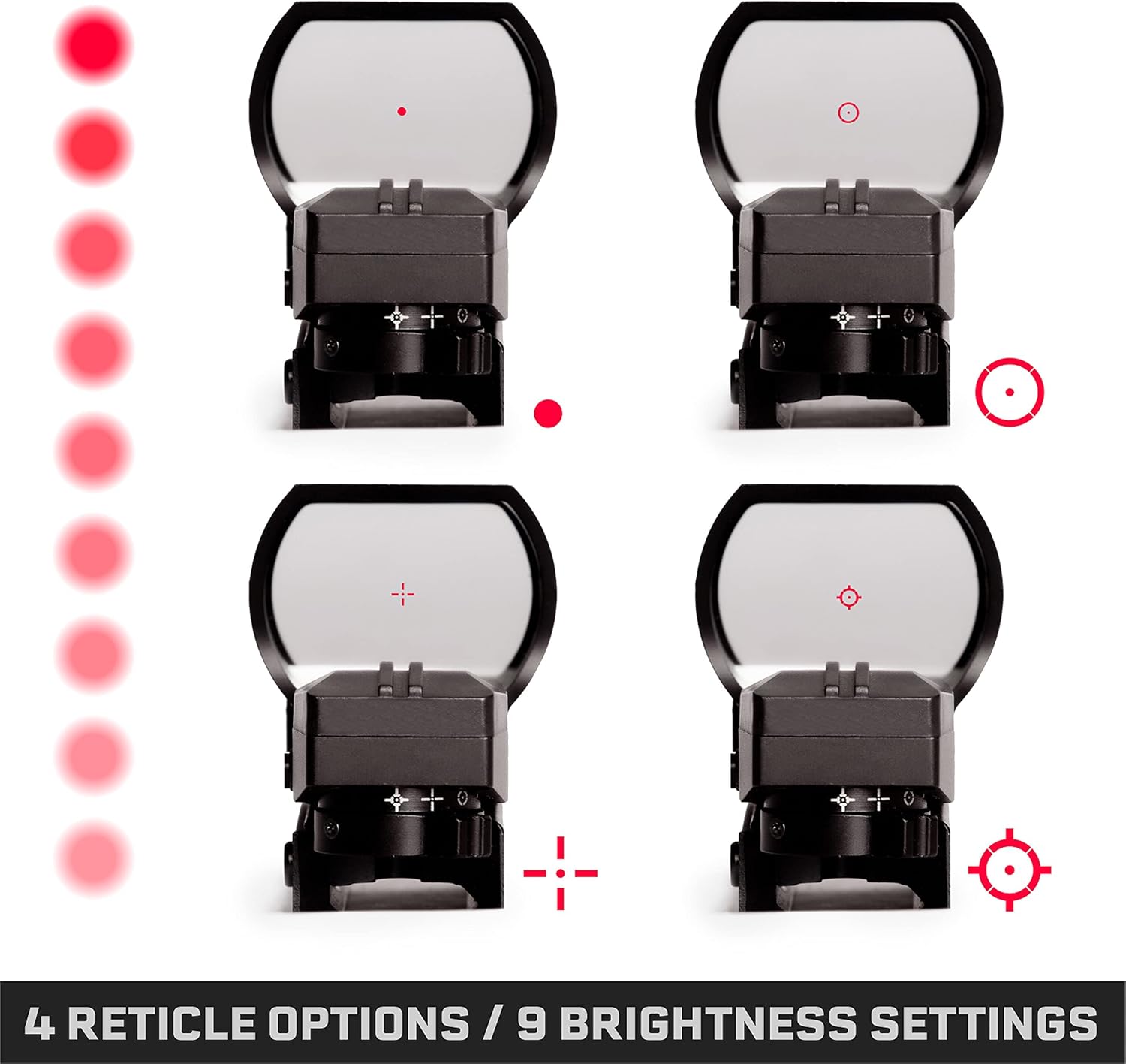

The Predator V2 offers four distinct reticle patterns. To cycle through the reticle options, use the selector dial located at the rear of the sight. Each reticle type is available in both red and green. The sight also provides nine brightness settings for each color. Adjust the brightness by repeatedly pressing the respective 'ON RED' or 'ON GREEN' button until the desired intensity is reached.
4. Maintenance
4.1 Cleaning
To maintain the clarity of the lenses, gently wipe them with the provided lens cloth. Avoid using abrasive materials or harsh chemicals that could damage the lens coatings. For the body of the sight, a soft, damp cloth can be used to remove dirt and debris.
4.2 Battery Replacement
When the reticle dims or fails to illuminate, it's time to replace the LR44 batteries. Follow the instructions in Section 2.2 for proper battery installation. Always dispose of used batteries responsibly.
4.3 General Care
The Predator V2 Reflex Sight is designed to be waterproof and fog-proof, ensuring reliable performance in various environmental conditions. While durable, avoid unnecessary impacts or drops. Store the sight in a cool, dry place when not in use, preferably in its original packaging or a protective case.
5. Troubleshooting
5.1 Reticle Not Illuminating or Flickering
- Check Batteries: Ensure batteries are correctly installed and have sufficient charge. Replace if necessary.
- Temperature Extremes: Extreme heat or cold can affect performance. Allow the sight to return to moderate temperatures.
- Contact Points: Ensure battery contacts are clean and free from corrosion.
5.2 Reticle Appears Canted or Misaligned
- Mounting Stability: Verify the sight is securely mounted to the Picatinny rail. Tighten all mounting screws.
- Zeroing: Re-zero the sight following the instructions in Section 2.3.
- Professional Inspection: If issues persist after re-zeroing, consider having the sight inspected by a qualified gunsmith or contacting Tacticon support.
6. Specifications
| Feature | Detail |
|---|---|
| Brand | Tacticon |
| Model Name | Predator V2 |
| Model Number | BST-03 |
| Color | Black |
| Material | Aluminum |
| Product Dimensions (LxWxH) | 3.5"L x 1.25"W x 2.25"H |
| Item Weight | 5.15 Ounces |
| Magnification | 1x |
| Objective Lens Diameter | 40 Millimeters |
| Reticle Type | 4 reticle options (Red/Green) |
| Brightness Settings | 9 per color |
| Mounting Type | Picatinny Mount (45-degree offset included) |
| Compatible Devices | Handgun, Rifle |
| Night Vision Compatible | Yes |
| UPC | 736283219937 |
7. Warranty & Support
The Tacticon Predator V2 Reflex Sight comes with a Lifetime Warranty, reflecting the manufacturer's confidence in its quality and durability. For any product-related inquiries, technical assistance, or warranty claims, please refer to the official Tacticon Armament support channels.
Tacticon Armament is a disabled combat veteran-owned company committed to providing high-quality, effective tactical gear. Your support contributes to a small business dedicated to excellence.
