WilTec 2-in-1 Gasoline Brush Cutter and Trimmer, 1.3 kW (Model 61495)

1. Introduction

Thank you for choosing the WilTec 2-in-1 Gasoline Brush Cutter and Trimmer. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new garden tool. Please read this manual thoroughly before first use and keep it for future reference.

This versatile tool combines a brush cutter and a grass trimmer, making it ideal for various landscaping tasks, from precise lawn trimming to clearing dense undergrowth.

2. Safety Instructions

Always prioritize safety when operating power tools. Failure to follow these instructions may result in serious injury or property damage.

• Personal Protective Equipment (PPE): Always wear appropriate safety gear, including eye protection (safety glasses or goggles), hearing protection, heavy-duty gloves, long pants, and sturdy, non-slip footwear. A safety helmet is recommended when working in areas with potential falling debris.
• Work Area Safety: Keep bystanders, children, and pets at a safe distance (at least 15 meters) from the operating area. Clear the work area of any objects that could be thrown by the cutting attachment, such as rocks, sticks, or wire.
• Fuel Handling: Handle gasoline with extreme care. Store fuel in approved containers in a well-ventilated area, away from ignition sources. Refuel the tool outdoors, with the engine off and cool. Do not smoke while refueling.
• Operation: Do not operate the tool if you are tired, under the influence of alcohol, drugs, or medication that could impair your judgment or coordination. Maintain a firm grip on the handles and ensure proper footing.
• Inspection: Before each use, inspect the tool for any damaged parts, loose fasteners, or worn cutting attachments. Replace or repair any damaged components before operation.
• Kickback: Be aware of the risk of kickback, especially when using the blade attachment. Avoid striking solid objects with the blade.
• Weather Conditions: Do not operate the tool in wet conditions, rain, or extreme winds.

3. Product Overview

The WilTec 2-in-1 Gasoline Brush Cutter and Trimmer is designed for efficient and comfortable use in your garden. It features a powerful 52 ccm engine and can be easily switched between a line trimmer and a brush cutter.

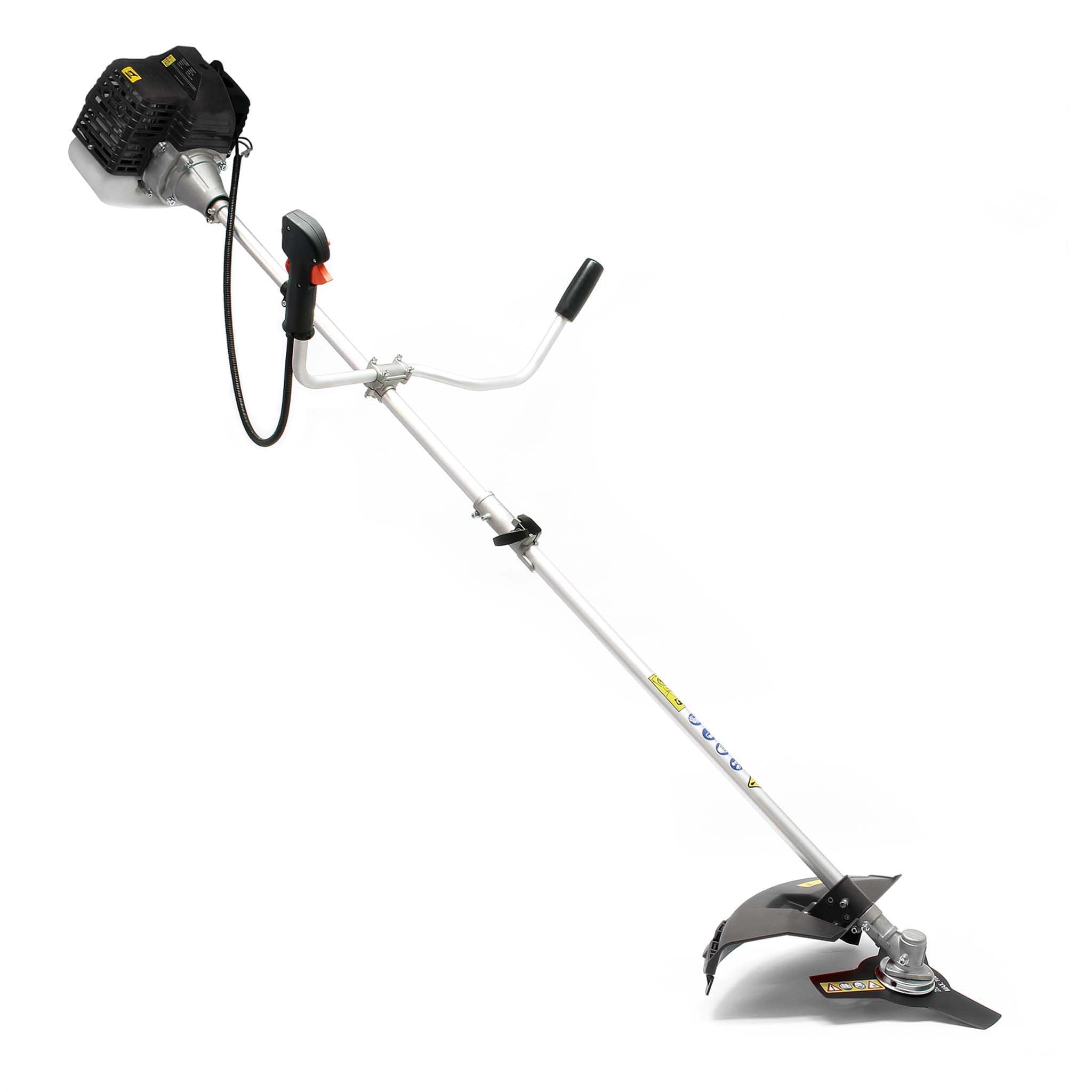

Figure 1: Overall view of the WilTec 2-in-1 Gasoline Brush Cutter and Trimmer.

Key Components:

• Engine Unit: The powerful 52 ccm gasoline engine provides the necessary power for cutting.
• Shaft: Connects the engine unit to the cutting head.
• Handlebar: Ergonomically designed for comfortable two-handed operation and control.
• Safety Guard: Protects the operator from flying debris.
• Cutting Head (Line Trimmer): Uses nylon line for trimming grass and lighter vegetation.
• Cutting Head (Blade): Uses a metal blade for cutting thicker brush and weeds.
• Shoulder Harness: Provides comfortable support and weight distribution during operation.

4. Setup and Assembly

Follow these steps to assemble your brush cutter and trimmer. Ensure all parts are present and undamaged before beginning assembly.

4.1 Attaching the Handlebar

Secure the handlebar to the main shaft using the provided clamps and fasteners. Adjust the position for comfortable operation, ensuring easy access to the throttle and controls.

Figure 2: Attaching and adjusting the ergonomic handlebar for comfortable two-handed operation.

4.2 Installing the Safety Guard

Attach the safety guard to the lower part of the shaft, above the cutting head. Ensure it is securely fastened to protect against debris.

4.3 Attaching the Cutting Head

Your tool comes with two interchangeable cutting heads: a nylon line trimmer head and a 3-tooth metal blade. Choose the appropriate head for your task.

4.3.1 Installing the Line Trimmer Head

Align the line trimmer head with the shaft and secure it according to the instructions provided with the head. Ensure the nylon line is properly loaded.

Figure 3: The line trimmer head, ideal for grass and lighter vegetation.

4.3.2 Installing the Metal Blade

If using the metal blade, carefully attach it to the shaft, ensuring it is correctly oriented and securely tightened with the provided fasteners. Always use the appropriate tools for tightening.

Figure 4: The 3-tooth metal blade, suitable for thicker brush and weeds.

4.4 Attaching the Shoulder Harness

Connect the shoulder harness to the designated attachment point on the shaft. Adjust the harness to distribute the tool's weight evenly and comfortably across your shoulders and back.

Figure 5: The comfortable shoulder harness helps distribute weight for extended use.

5. Operating Instructions

5.1 Fueling the Engine

Use a proper gasoline-oil mixture as specified in the engine manual (typically a 2-stroke mixture). Fill the fuel tank carefully, avoiding spills.

Figure 6: The powerful 52 ccm engine unit.

5.2 Starting the Engine

1. Place the tool on a flat, stable surface.
2. Engage the choke (if applicable).
3. Press the primer bulb several times until fuel is visible.
4. Pull the starter cord firmly until the engine starts.
5. Once started, disengage the choke and allow the engine to warm up for a few moments.

5.3 Operating the Trimmer/Cutter

Hold the tool firmly with both hands, maintaining a balanced stance. Use a sweeping motion to cut grass or brush. Avoid forcing the cutting head into dense vegetation.

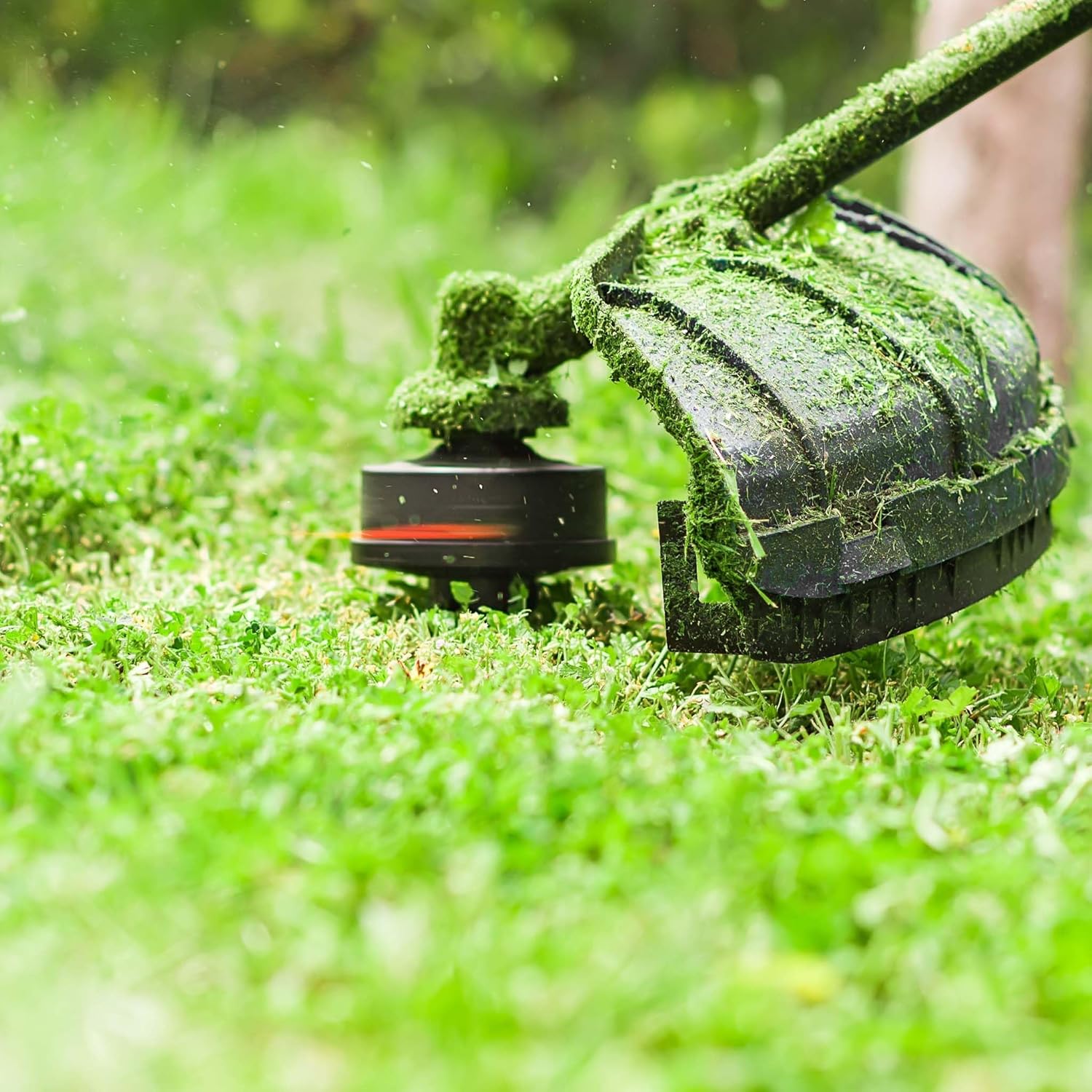

Figure 7: Operating the trimmer to cut grass efficiently.

5.4 Changing Cutting Attachments

To switch between the line trimmer head and the metal blade, always turn off the engine and ensure the cutting attachment has completely stopped. Use the provided tools to safely remove one attachment and install the other, following the specific instructions for each head.

Figure 8: Illustration of how to change the cutting line or switch to the blade attachment.

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your WilTec brush cutter and trimmer.

• Cleaning: After each use, clean the tool, especially the cutting head and safety guard, to remove grass, dirt, and debris. Use a damp cloth; avoid using high-pressure water.
• Air Filter: Regularly check and clean the air filter. A dirty air filter can reduce engine performance.
• Spark Plug: Inspect the spark plug periodically and replace it if it is fouled or worn.
• Cutting Attachments: Inspect the nylon line for wear and replace it as needed. Check the metal blade for sharpness and damage; sharpen or replace if necessary.
• Lubrication: Lubricate moving parts as recommended in the engine manual.
• Storage: Store the tool in a dry, well-ventilated area, away from children and ignition sources. Empty the fuel tank if storing for an extended period.

7. Troubleshooting

8. Specifications

9. Warranty and Support

WilTec products are manufactured to high-quality standards. In the unlikely event of a defect, please contact your retailer or WilTec customer service for assistance. Keep your proof of purchase for warranty claims.

For further support, spare parts, or technical inquiries, please visit the official WilTec website or contact their customer service department.
