SEAFRONT VT-05 Soil pH and Moisture Meter Instruction Manual

1. Product Overview

The SEAFRONT VT-05 is a portable soil pH and moisture meter designed to help you monitor the health of your plants by providing quick and accurate readings of soil acidity (pH) and moisture levels. This device is ideal for a wide range of applications, including vineyards, orchards, field production, general plant care, lawn maintenance, and gardens.

Key features include:

• No Battery Required: Operates without batteries, making it convenient and environmentally friendly.
• High Accuracy: Provides reliable measurements for both pH and moisture.
• Durable Design: Features a robust metal electrode for long-lasting, trouble-free operation.
• Easy to Use: Simple operation with a one-key switch for pH and humidity readings.

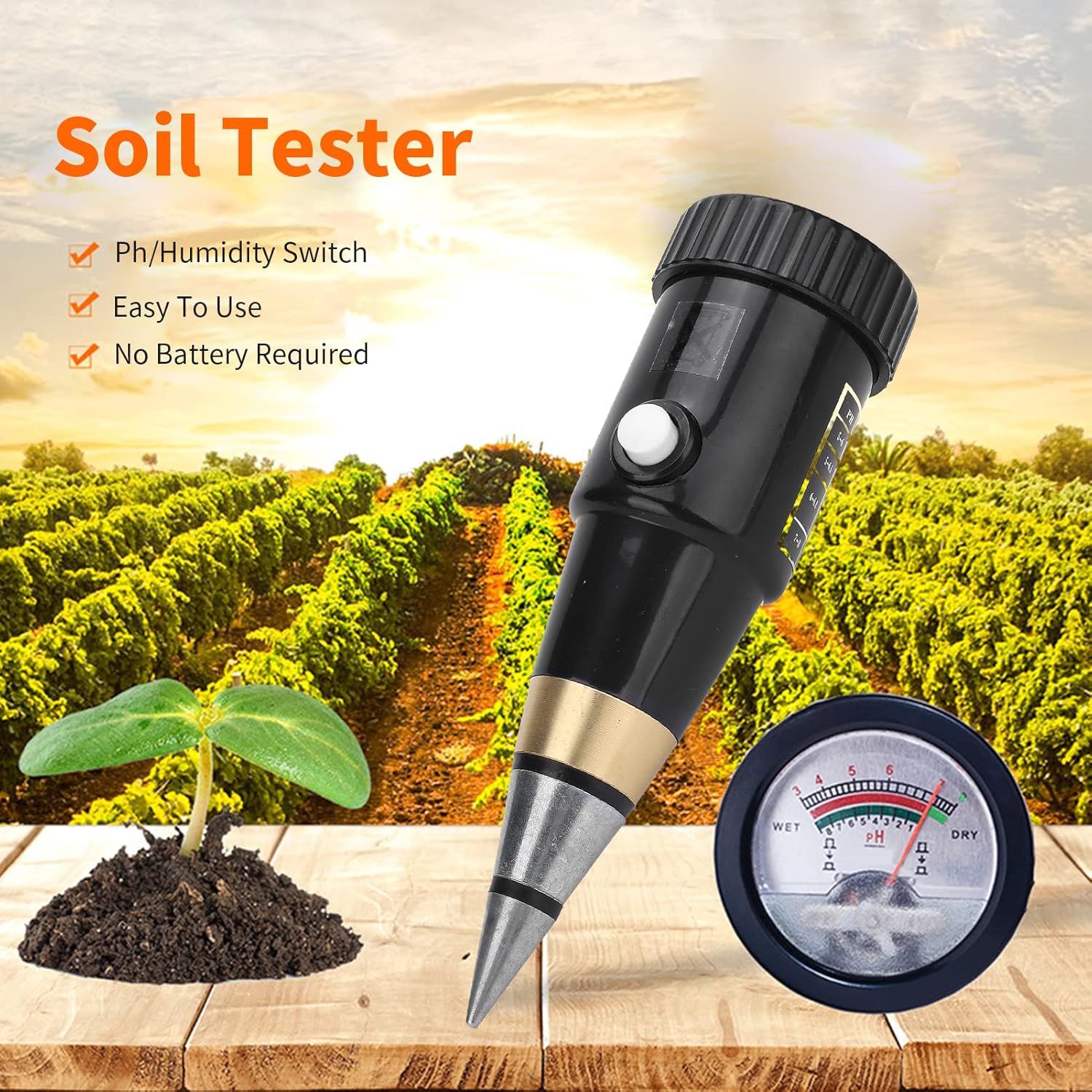

Image 1.1: Overview of the SEAFRONT VT-05 Soil pH and Moisture Meter highlighting its key features.

Image 1.2: The VT-05 meter is suitable for a wide range of applications, from home gardens to agricultural fields.

2. Product Components and Dimensions

The VT-05 meter consists of a main body with a display dial, a one-key switch, and a metal electrode tip. Refer to the diagram below for component identification and dimensions.

Image 2.1: Detailed view of the VT-05 meter with labeled components and approximate dimensions.

Image 2.2: Note that new and old models may have slight cosmetic variations and are shipped randomly.

3. Setup and Preparation

The SEAFRONT VT-05 meter requires no batteries or complex assembly. It is ready for use directly out of the packaging.

1. Carefully remove the meter from its packaging.
2. Inspect the metal electrode tip for any damage or debris. Ensure it is clean before first use.

4. Operating Instructions

Follow these steps to accurately measure soil pH and moisture:

1. Prepare the Soil: For best results, ensure the soil is moist. If the soil is very dry, water it thoroughly and wait 20-30 minutes before testing.
2. Insert the Meter: Gently insert the metal electrode tip of the meter into the soil, pushing it down to the root level of the plant (approximately 2/3 of the probe length). Avoid forcing it into hard soil to prevent damage to the probe.
3. Select Measurement Mode: Use the one-key switch on the meter to select either "PH" for acidity measurement or "HUMIDITY" for moisture measurement.
4. Read the Display: Wait for approximately 10 minutes for the needle on the dial to stabilize. Read the corresponding value for pH or moisture.

Image 4.1: The meter being inserted into soil for measurement.

4.1 Interpreting Moisture Readings (Scale 1-8)

The moisture scale ranges from 1 (very dry) to 8 (very wet). Understanding these ranges helps in proper watering.

• 1-3 (Dry): Indicates dry soil. Plants may require watering.
• 4-7 (Suitable): Optimal moisture level for most plants.
• 8-10 (Wet): Indicates very wet soil, which can lead to root rot for many plants.

Image 4.2: Guide for interpreting soil moisture levels.

4.2 Interpreting pH Readings (Scale 3-8 pH)

The pH scale measures the acidity or alkalinity of the soil. A pH of 7 is neutral, below 7 is acidic, and above 7 is alkaline.

• 3.0-6.0 (Acidic): Suitable for acid-loving plants.
• 6.0-7.0 (Neutral): Ideal for most plants.
• 7.0-8.0 (Alkaline): Preferred by alkaline-loving plants.

Image 4.3: Guide for interpreting soil pH levels.

5. Maintenance and Precautions

Proper care and adherence to precautions will ensure the longevity and accuracy of your VT-05 meter.

Image 5.1: Important precautions for using and maintaining the meter.

• Cleaning: Always clean the metal electrode tip thoroughly with a soft cloth after each use. Ensure the surface is clean and dry before storage.
• Storage: Store the meter in a dry place, away from direct sunlight and extreme temperatures.
• Duration in Soil: Do not leave the metal part of the meter in the soil for an extended period (no more than one hour), as this can damage the metal surface and affect accuracy.
• Avoid Liquids: This tester is designed for soil only. Do not use it to measure liquids.
• Magnetic Objects: Do not use the tester near strong magnetic objects. Keep it away from other metal objects to prevent interference.
• Handling: Avoid touching the metal surface of the tester with greasy fingers, as this can reduce conductivity and affect readings.
• Force: Do not force the probe into hard or rocky soil. If the soil is too compact, loosen it gently before insertion.

6. Troubleshooting

If you encounter issues with your VT-05 meter, consider the following:

• Inaccurate or Inconsistent Readings:
  • Ensure the metal electrode tip is clean and free of debris.
  • Verify the soil is adequately moist. Dry soil will not yield accurate readings.
  • Ensure the probe is inserted deep enough into the soil (at least 2/3 of its length).
  • Allow sufficient time (around 10 minutes) for the needle to stabilize before reading.
• No Needle Movement:
  • Check if the soil is too dry. The meter requires moisture to function.
  • Ensure the probe is fully inserted into the soil.
  • Confirm the switch is set to the desired measurement (pH or Humidity).

7. Specifications

8. Warranty and Support

Specific warranty information and direct customer support contacts are not provided in the product details. Please refer to your retailer or point of purchase for details regarding warranty claims and customer service.
