Midea MJFP60E1 Multi-functional Food Processor User Manual

1. Introduction

Thank you for purchasing the Midea MJFP60E1 Multi-functional Food Processor. This appliance is designed to assist with various food preparation tasks, including chopping, blending, grinding, slicing, shredding, and creaming. To ensure safe and efficient operation, please read this manual thoroughly before first use and retain it for future reference.

2. Important Safety Instructions

• Read all instructions before using the appliance.
• Always unplug the appliance from the power outlet when not in use, before assembling or disassembling parts, and before cleaning.
• Do not immerse the motor unit in water or any other liquid. Clean only with a damp cloth.
• Keep hands and utensils away from moving blades or discs while operating to prevent injury. Use the food pusher provided when feeding food into the chute.
• Ensure the lid is securely locked in place before operating the appliance. The safety lock mechanism prevents operation if not correctly assembled.
• This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Close supervision is necessary when any appliance is used by or near children.
• Do not use the appliance for anything other than its intended use.
• Avoid contact with moving parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner.
• Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.

3. Product Components

The Midea MJFP60E1 Food Processor comes with several components designed for various functions. Familiarize yourself with each part before use.

• Motor Unit (Base)
• 2.0L Food Processor Bowl
• Food Processor Lid with Feeding Chute
• Food Pusher
• Stainless Steel Chopping Blade
• Full Stainless Steel Slicing/Shredding Disc
• Plastic Cream Disc
• 1.5L Blender Jug
• Blender Jug Lid
• 0.4L Grinder Cup
• Grinder Cup Lid

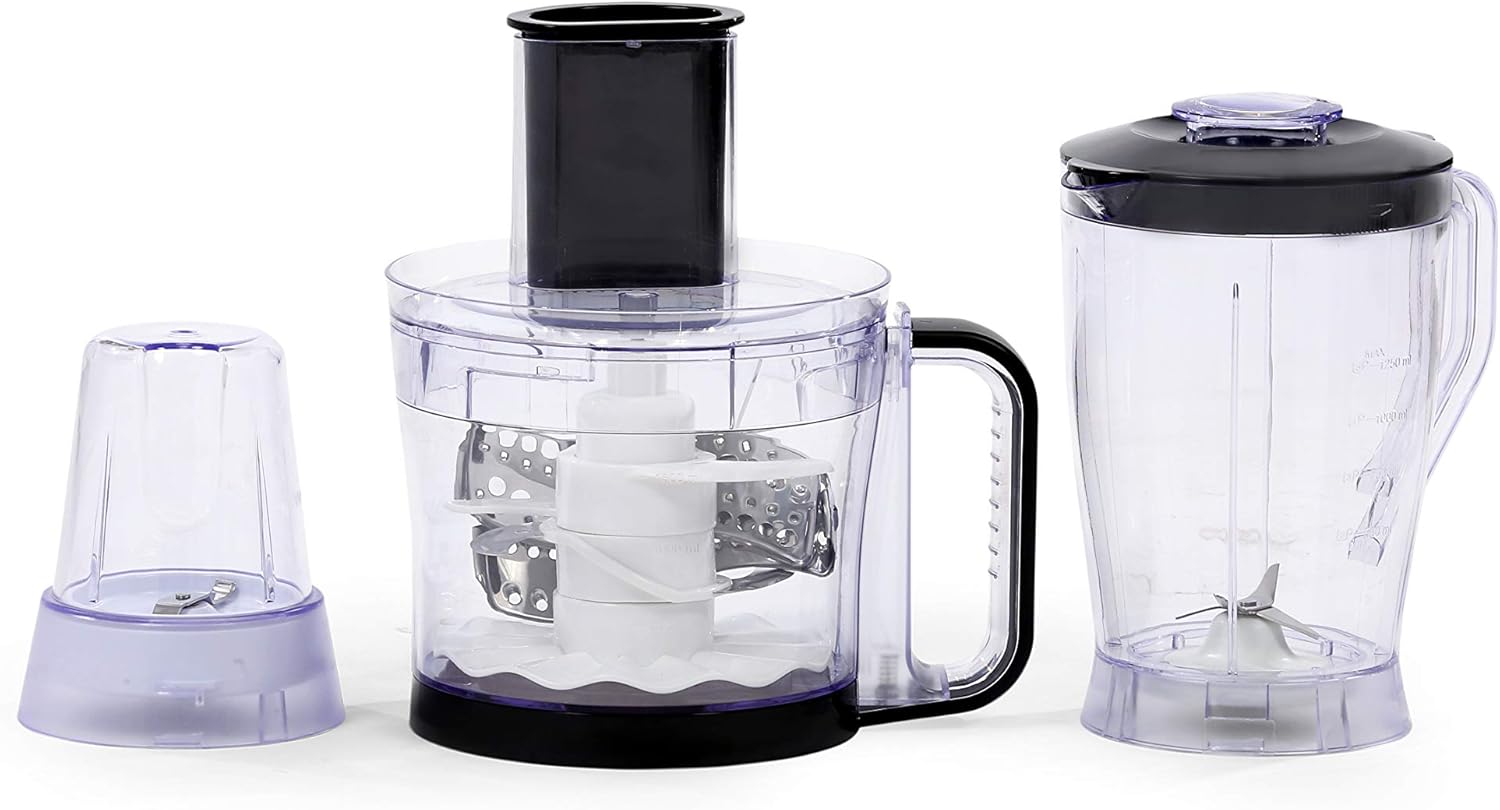

Image 3.1: Midea MJFP60E1 Food Processor with all included attachments, including the main motor unit, food processor bowl, blender jug, and grinder cup.

Image 3.2: Individual components of the Midea MJFP60E1 Food Processor, showing the motor base, food processor bowl with blade, blender jug, and grinder cup.

4. Setup and Assembly

4.1 Initial Cleaning

Before first use, wash all detachable parts (bowls, jugs, blades, discs, lids, pushers) in warm, soapy water. Rinse thoroughly and dry. Wipe the motor unit with a damp cloth. Do not immerse the motor unit in water.

4.2 Assembling the Food Processor

1. Place the motor unit on a stable, flat surface.
2. Fit the 2.0L food processor bowl onto the motor unit, aligning the bowl handle with the safety lock slot on the base. Turn clockwise until it locks securely.
3. Carefully place the desired accessory (chopping blade, slicing/shredding disc, or cream disc) onto the central shaft inside the bowl. Ensure it sits firmly.
4. Place the food processor lid onto the bowl, aligning the lid tab with the slot on the bowl handle. Turn clockwise until it locks securely. The appliance will not operate if the bowl and lid are not correctly locked.
5. Insert the food pusher into the feeding chute on the lid.

4.3 Assembling the Blender Jug

1. Ensure the blender blade assembly is securely attached to the bottom of the 1.5L blender jug.
2. Place the blender jug onto the motor unit, aligning the jug with the base. Turn clockwise until it locks securely.
3. Place the blender jug lid onto the jug.

4.4 Assembling the Grinder Cup

1. Place ingredients into the 0.4L grinder cup.
2. Securely attach the grinder cup lid.
3. Invert the grinder cup and place it onto the motor unit, aligning it with the base. Turn clockwise until it locks securely.

5. Operating Instructions

Always ensure the appliance is correctly assembled and locked before plugging it into a power outlet. The MJFP60E1 features feather touch buttons for control.

Image 5.1: Close-up of the Midea MJFP60E1 Food Processor's control panel, showing the 'ON/OFF', 'PULSE', 'HIGH', and 'LOW' feather touch buttons.

5.1 General Operation

1. After assembly, plug the appliance into a suitable power outlet.
2. Use the 'ON/OFF' button to start or stop the appliance.
3. Select 'LOW' or 'HIGH' for continuous operation at different speeds.
4. Press and hold the 'PULSE' button for short bursts of power, ideal for coarse chopping or quick mixing. Release the button to stop.
5. Do not operate the appliance continuously for more than 1 minute. Allow a rest period of at least 2 minutes between cycles.

5.2 Using the Food Processor Bowl (Chopping/Mixing)

1. Assemble the food processor bowl with the stainless steel chopping blade as described in Section 4.2.
2. Add ingredients to the bowl. Do not overfill; ensure ingredients are below the maximum fill line.
3. Secure the lid and plug in the appliance.
4. Use the 'PULSE' button for controlled chopping or 'LOW'/'HIGH' for continuous processing.
5. For best results, cut large ingredients into smaller, uniform pieces before processing.

5.3 Using the Food Processor Bowl (Slicing/Shredding)

1. Assemble the food processor bowl with the full stainless steel slicing/shredding disc as described in Section 4.2.
2. Secure the lid and plug in the appliance.
3. Turn on the appliance using 'LOW' or 'HIGH' speed.
4. Feed ingredients through the feeding chute using the food pusher. Apply even, gentle pressure. Never use your fingers or other utensils to push food.

5.4 Using the Food Processor Bowl (Creaming)

1. Assemble the food processor bowl with the plastic cream disc as described in Section 4.2.
2. Add ingredients suitable for creaming (e.g., butter, sugar).
3. Secure the lid and plug in the appliance.
4. Use 'LOW' or 'HIGH' speed until desired consistency is achieved.

5.5 Using the Blender Jug

1. Assemble the blender jug as described in Section 4.3.
2. Add liquids and soft ingredients to the jug. Do not exceed the maximum fill line.
3. Secure the lid and plug in the appliance.
4. Use 'LOW' or 'HIGH' speed for blending. For tougher ingredients or to achieve a smoother consistency, use the 'PULSE' function.

5.6 Using the Grinder Cup

1. Assemble the grinder cup as described in Section 4.4.
2. Plug in the appliance.
3. Use 'PULSE' or 'HIGH' speed for grinding dry ingredients like coffee beans, nuts, or spices.

6. Cleaning and Maintenance

Proper cleaning and maintenance will extend the life of your Midea Food Processor.

• Always unplug the appliance before cleaning.
• Motor Unit: Wipe the motor unit with a soft, damp cloth. Never immerse the motor unit in water or other liquids.
• Bowls, Jugs, Lids, Blades, Discs, Pusher: These parts are recommended for hand washing only. Wash in warm, soapy water, rinse thoroughly, and dry immediately. Be extremely careful when handling sharp blades and discs.
• Dishwasher Use: This item is not dishwasher safe. Hand washing is required for all detachable components.
• Storage: Store the assembled or disassembled appliance in a dry, safe place, out of reach of children.

7. Troubleshooting

If you encounter issues with your food processor, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact customer support.

8. Specifications

• Model: MJFP60E1
• Power: 800W
• Food Processor Bowl Capacity: 2.0 Liters
• Blender Jug Capacity: 1.5 Liters
• Grinder Cup Capacity: 0.4 Liters
• Control Type: Feather Touch Buttons (ON/OFF, PULSE, HIGH, LOW)
• Material: Stainless Steel, Plastic, Metal
• Color: Black
• Safety Features: Safety Lock System
• Recommended Uses: Chopping, Grinding, Mixing, Slicing, Shredding, Creaming

9. Warranty and Support

This Midea MJFP60E1 Multi-functional Food Processor comes with a one-year warranty from the date of purchase, covering manufacturing defects. Please retain your proof of purchase for warranty claims.

For technical support, service, or warranty inquiries, please refer to the contact information provided with your purchase documentation or visit the official Midea website for your region.
