LITFAD Dimmable Modern LED Ceiling Light (Model D) Instruction Manual
Model: D | ASIN: B07MXD72WJ
Introduction
Thank you for purchasing the LITFAD Dimmable Modern LED Ceiling Light. This manual provides essential information for the safe installation, operation, and maintenance of your new lighting fixture. Please read these instructions thoroughly before beginning installation and retain them for future reference.

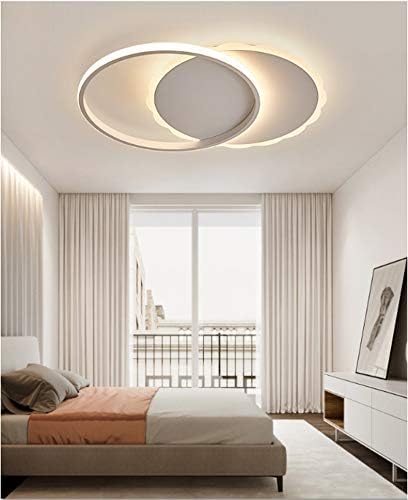

Image: The LITFAD Dimmable Modern LED Ceiling Light, featuring a contemporary ring design, installed in a bedroom setting, providing ambient illumination.
Important Safety Information
WARNING: Risk of Electric Shock. Disconnect power at the fuse box or circuit breaker before installation or servicing.
- This product must be installed in accordance with the applicable installation code by a person familiar with the construction and operation of the product and the hazards involved.
- Ensure the electrical rating of the fixture is compatible with your power supply (110 Volts).
- Do not install this fixture in wet locations. Suitable for dry indoor locations only.
- All wiring connections must be made inside the junction box.
- This fixture is UL Listed, ensuring it meets specific safety standards.
- Do not attempt to modify the fixture. Any modifications may void the warranty and create safety hazards.
Package Contents
Please check to ensure all components are present and undamaged before installation. If any parts are missing or damaged, contact customer support.
- LITFAD Dimmable Modern LED Ceiling Light Fixture (Model D)
- Mounting Hardware (screws, wire nuts, mounting bracket)
- Remote Control (batteries not included)
- Instruction Manual
Installation Instructions
Follow these steps carefully for safe and proper installation. If you are unsure about any step, consult a qualified electrician.
- Prepare for Installation:
- Turn off the electrical power at the main circuit breaker or fuse box.
- Ensure the power is off by testing the circuit with a voltage tester.
- Carefully unpack the fixture and its components.
- Mount the Bracket:
- Attach the mounting bracket to the ceiling junction box using the provided screws. Ensure the bracket is securely fastened.
- Make Electrical Connections:
- Connect the fixture's black wire to the house's black (hot) wire using a wire nut.
- Connect the fixture's white wire to the house's white (neutral) wire using a wire nut.
- Connect the fixture's ground wire (usually bare copper or green) to the house's ground wire and the mounting bracket's ground screw.
- Ensure all connections are secure and no bare wire is exposed.
- Attach the Fixture:
- Carefully lift the fixture and align it with the mounting bracket.
- Secure the fixture to the mounting bracket using the provided screws.
- Restore Power:
- Once the fixture is securely installed, restore power at the main circuit breaker or fuse box.
- Test the light fixture.

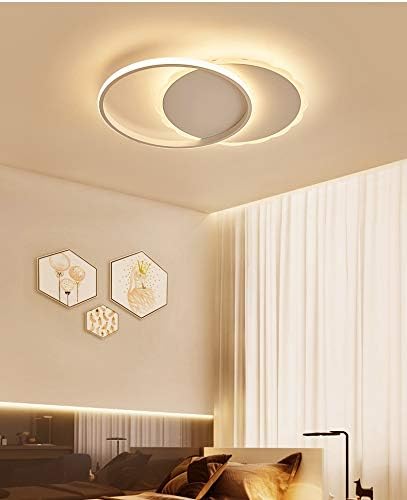

Image: The ceiling light providing illumination in a modern bedroom, showcasing its flush mount design.
Operating Instructions
This LITFAD ceiling light features dimmable LED lighting and is controlled via a remote control.
Using the Remote Control
The remote control allows you to turn the light on/off and adjust its brightness (dimming function).
- Power Button: Press to turn the light on or off.
- Brightness Up/Down: Use the designated buttons to increase or decrease the light intensity.
- Color Temperature Adjustment (if applicable): Some models may include buttons to change the color temperature (e.g., warm white to cool white). Refer to your remote for specific functions.
Ensure the remote control has working batteries (not included) and is pointed towards the light fixture for optimal operation.
Care and Maintenance
Proper care will ensure the longevity and optimal performance of your ceiling light.
- Cleaning:
- Always turn off the power to the fixture before cleaning.
- Wipe the fixture with a soft, dry, or slightly damp cloth.
- Do not use abrasive cleaners, solvents, or polishes as they may damage the finish.
- Bulb Replacement:
- This fixture uses integrated LED bulbs, which are designed for long life and are not user-replaceable. If the LEDs fail, the entire fixture may need to be replaced.
Troubleshooting
If you encounter issues with your LITFAD ceiling light, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. |
|
|
| Light flickers or dims unexpectedly. |
|
|
| Remote control not working. |
|
|
Product Specifications
Image: Dimensional diagram of the ceiling light, indicating a length of 21.5 inches, width of 16 inches, and height of 3 inches.
| Brand: | LITFAD |
| Model: | D |
| Type: | Dimmable Modern LED Ceiling Light (Flush Mount/Pendant Style) |
| Material: | Metal |
| Color/Finish: | White |
| Light Source: | Integrated LED (Bulb Included) |
| Wattage: | 36W |
| Voltage: | 110 Volts |
| Fixture Height: | 3 inches (8 cm) |
| Fixture Length: | 21.5 inches (55 cm) |
| Fixture Width: | 16 inches (40 cm) |
| Control Method: | Remote Control |
| Special Feature: | Dimmable |
| Certification: | UL Listed |
| Item Weight: | 11 pounds (5 KG) |
Warranty Information
This LITFAD Dimmable Modern LED Ceiling Light (Model D) comes with a 2-year limited warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from improper installation, accident, misuse, abuse, or unauthorized modifications.
For warranty claims, please retain your proof of purchase and contact LITFAD customer support.
Customer Support
If you have any questions, require assistance with installation, or need to report a problem, please contact LITFAD customer support.
For more information about LITFAD products, you can visit the official LITFAD store:
