1. Introduction
Thank you for choosing the LVWIT LED Bulb. This manual provides important information regarding the installation, operation, and maintenance of your new LED bulbs. Please read this manual thoroughly before use and retain it for future reference.
These LVWIT LED bulbs are designed for energy efficiency and high-quality illumination. They consume only 8.5W of power, equivalent to a traditional 60W incandescent bulb, leading to significant electricity savings. With a daylight white color temperature of 5000K and a wide beam angle, they provide bright, flicker-free light with a high color rendering index (CRI 80+), ensuring comfortable lighting for various applications.
2. Important Safety Information
Always follow these safety precautions to reduce the risk of fire, electric shock, or injury.
- Power Off: Always turn off the power supply at the switch and disconnect from the mains before installing, removing, or cleaning the bulb.
- Indoor Use Only: This product is designed for indoor use in dry environments. Do not use in wet locations or outdoors unless specifically rated for such use.
- Correct Base: Ensure the bulb's base (E26) matches your fixture's socket. Forcing an incorrect bulb into a socket can cause damage or electrical hazards.
- Ventilation: Do not install in fully enclosed fixtures that restrict airflow, as this can shorten the bulb's lifespan.
- Dimmer Compatibility: These bulbs are not specified as dimmable. Using them with a dimmer switch may cause flickering, humming, or damage to the bulb or dimmer.
- Temperature: Do not operate in extreme temperatures outside the specified range.
- Disposal: Dispose of used bulbs according to local regulations. Do not dispose of with general household waste.
- Children: Keep out of reach of children.
3. Setup and Installation
Follow these steps to properly install your LVWIT LED bulb:
- Verify Power Off: Before installation, ensure the power to the light fixture is turned off at the circuit breaker or wall switch.
- Remove Old Bulb: Carefully unscrew the old bulb from the fixture. Allow it to cool if it was recently in use.
- Inspect Fixture: Check the light fixture for any damage or loose wiring. Ensure the socket is clean and dry.
- Install New Bulb: Gently screw the LVWIT LED bulb into the E26 socket. Turn clockwise until it is snug, but do not overtighten.
- Restore Power: Turn the power back on at the circuit breaker or wall switch.
- Test: Turn on the light switch to confirm the bulb is working correctly.
Figure 3.1: LVWIT LED Bulb Dimensions and E26 Base. This image illustrates the physical dimensions of the bulb (112mm height, 60mm diameter) and highlights the E26 screw-in base, confirming its compatibility with standard fixtures.
4. Operating Instructions
Operating your LVWIT LED bulb is straightforward:
- On/Off: Use your existing wall switch to turn the light on or off.
- Instant Brightness: LVWIT LED bulbs provide instant full brightness with no warm-up time.
- Color Temperature: This model provides a consistent 5000K daylight white light, ideal for tasks requiring clear visibility.
Figure 4.1: Example of LVWIT LED Bulb in Use. The image shows the bulb installed in a bedside lamp, providing bright, clear daylight white illumination suitable for reading or general room lighting.
Figure 4.2: Versatile Applications of LVWIT LED Bulbs. This collage demonstrates the bulb's suitability for different indoor environments such as dining rooms, bathrooms, and kitchens, highlighting its wide applicability.
5. Maintenance and Care
LVWIT LED bulbs require minimal maintenance due to their long lifespan. Follow these guidelines for optimal performance:
- Cleaning: Before cleaning, ensure the power is off and the bulb is cool. Wipe the bulb with a soft, dry cloth. Do not use liquid cleaners or abrasive materials.
- Replacement: With a lifespan of over 20,000 hours, frequent replacement is not necessary. When replacement is needed, follow the installation steps in Section 3.
- Storage: If storing bulbs, keep them in their original packaging in a cool, dry place.
6. Troubleshooting
If you encounter issues with your LVWIT LED bulb, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Bulb does not light up. |
|
|
| Bulb flickers or hums. |
|
|
| Light output is low. |
|
|
7. Product Specifications
| Feature | Detail |
|---|---|
| Brand | LVWIT |
| Model Number | A19-008T018UD-29 |
| Light Type | LED |
| Wattage | 8.5 W |
| Incandescent Equivalent | 60 W |
| Lumen Output | 806 LM |
| Color Temperature | 5000K (Daylight White) |
| Color Rendering Index (CRI) | 80+ |
| Base Type | E26 |
| Voltage | 100 V (AC) |
| Lifespan | 20,000 hours |
| Material | PC, Aluminum |
| Special Features | Energy Saving, High CRI, Wide Beam Angle (approx. 220°) |
| Usage Environment | Indoor use only |
| Certifications | PSE Certified |
| Package Quantity | 6 bulbs |
Figure 7.1: Color Rendering Index (CRI) Demonstration. This image visually compares the difference in color accuracy between a CRI 70+ light source and a CRI 80+ light source, highlighting the superior color reproduction of the LVWIT bulb.

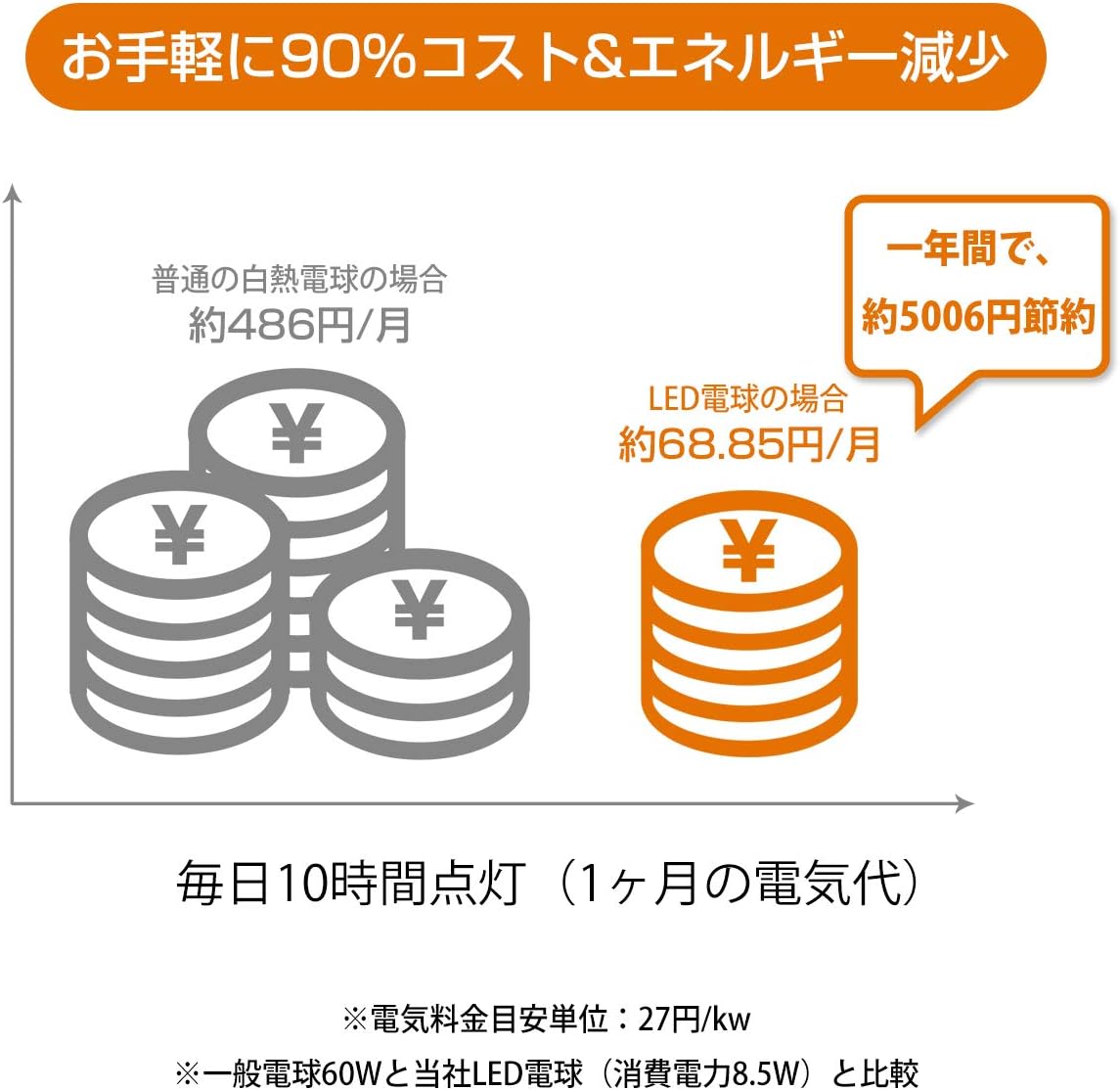

Figure 7.2: Annual Electricity Cost Savings. This chart demonstrates the significant cost reduction (approximately ¥5006 per year) achieved by using LVWIT 8.5W LED bulbs for 10 hours daily compared to traditional 60W incandescent bulbs, based on a ¥27/kW electricity rate.
8. Warranty and Support
LVWIT LED bulbs come with a 3-year warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use.
If you experience any issues with your product during the warranty period, please contact our customer support team via email. We are committed to providing appropriate assistance and resolution.
For support, please refer to the contact information provided with your purchase or visit the official LVWIT website.
