1. Introduction
Thank you for purchasing the Mayer Induction Cooker MMIC312. This manual provides important information regarding the safe operation, maintenance, and troubleshooting of your new appliance. Please read this manual thoroughly before use and retain it for future reference.
2. Important Safety Instructions
When using electrical appliances, basic safety precautions should always be followed, including the following:
- Read all instructions carefully before operating the appliance.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electrical shock, do not immerse cord, plugs, or the appliance in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
- Do not use appliance for other than intended use.
- This appliance generates heat during use. Adequate precautions must be taken to prevent the risk of burns, fires, or other damage to persons or property caused by touching the appliance during use or during cooling.
- Only use induction-compatible cookware.
- Ensure proper ventilation around the unit during operation.
3. Product Features
The Mayer Induction Cooker MMIC312 is designed for efficient and safe cooking. Key features include:
- Full black crystal panel for a sleek design and easy cleaning.
- Sensor touch control for intuitive operation.
- 10 levels of power and temperature adjustment for precise cooking.
- Automatic cut-off switch for safety.
- Child lock function to prevent accidental operation.
- Equipped with a double layer pot.
- 4 digital LED display for clear indication of settings.
- Thermostatic temperature mode ranging from 60°C to 280°C.
- 5 cooking functions: Hot pot, stir fry, soup, rice, and boiling water.
- Overheat protection system.
- Precision heating controls.
Figure 3.1: Top view of the Mayer Induction Cooker MMIC312, showcasing the black crystal panel and sensor touch controls.

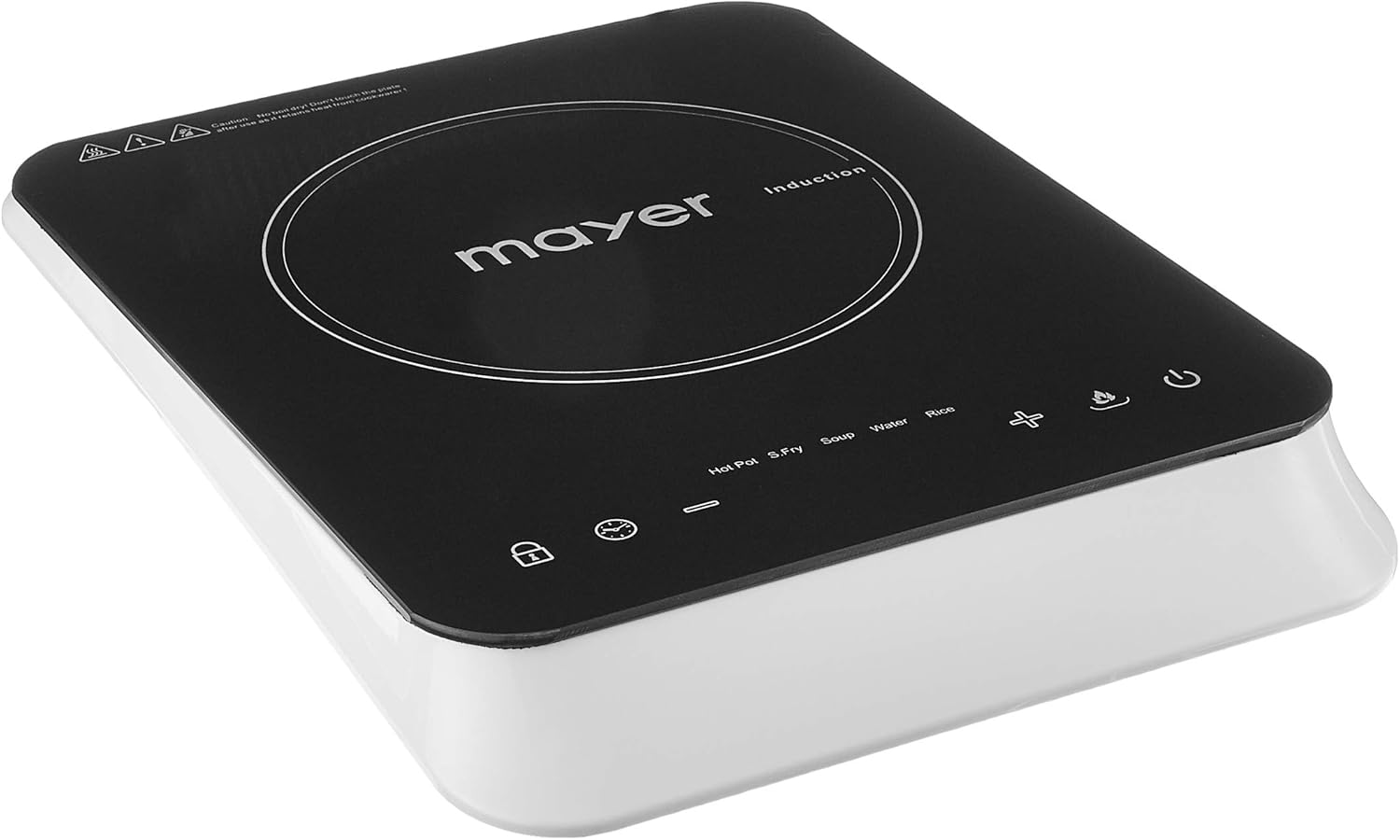

Figure 3.2: Angled view of the Mayer Induction Cooker MMIC312, highlighting its compact design.
Figure 3.3: The Mayer Induction Cooker MMIC312 shown with the included double layer pot.
4. Setup and First Use
4.1 Unpacking
Carefully remove the induction cooker and all accessories from the packaging. Inspect the appliance for any signs of damage. Retain the packaging for future storage or transport if needed.
4.2 Placement
- Place the induction cooker on a stable, flat, and heat-resistant surface.
- Ensure there is adequate ventilation around the unit. Do not block the air vents located on the sides and bottom of the cooker.
- Keep the appliance away from water sources and direct heat.
Figure 4.1: Side view of the induction cooker, illustrating the power cord connection and ventilation grilles.
4.3 Power Connection
Plug the power cord into a grounded electrical outlet. Ensure the voltage matches the specifications of the appliance.
5. Operating Instructions
5.1 Compatible Cookware
The Mayer Induction Cooker requires cookware made of ferromagnetic material (e.g., cast iron, magnetic stainless steel). Cookware must have a flat bottom and a diameter suitable for the induction zone.
5.2 Basic Operation
- Place suitable cookware with food/liquid on the center of the induction cooking zone.
- Press the Power button (
) to turn on the cooker. The LED display will illuminate. - Select a cooking function (e.g., Hot Pot, Stir Fry, Soup, Rice, Water) by touching the corresponding icon.
- Adjust the power or temperature level using the + and - buttons. The 4-digital LED display will show the current setting.
- To activate the child lock, press and hold the Lock button () for a few seconds until the lock indicator appears. Repeat to unlock.
- To turn off the cooker, press the Power button again. The fan may continue to run for a short period to cool down the unit.
Note: If no cookware is detected or if incompatible cookware is used, the cooker will display an error code and shut off automatically after a short period.
6. Cleaning and Maintenance
Proper cleaning and maintenance will ensure the longevity and optimal performance of your induction cooker.
6.1 Cleaning the Cooker
- Always unplug the appliance from the power outlet and allow it to cool completely before cleaning.
- Wipe the black crystal panel with a soft, damp cloth. For stubborn stains, use a mild detergent.
- Do not use abrasive cleaners, scouring pads, or harsh chemicals, as these can scratch or damage the surface.
- Clean the ventilation openings regularly with a soft brush or vacuum cleaner to prevent dust accumulation.
- Never immerse the induction cooker in water or any other liquid.
6.2 Storage
When not in use for extended periods, store the cooker in a cool, dry place, away from direct sunlight and moisture. It is recommended to keep it in its original packaging to protect it from dust and damage.
7. Troubleshooting
If you encounter issues with your Mayer Induction Cooker, please refer to the following table before contacting customer service.
| Problem | Possible Cause | Solution |
|---|---|---|
| Cooker does not turn on. | No power supply. | Check if the power cord is securely plugged into a working outlet. Check circuit breaker. |
| Cooker turns off automatically. | Overheat protection activated. | Allow the cooker to cool down. Ensure ventilation openings are not blocked. |
| Cooker displays an error code (e.g., E0, E1). | No cookware or incompatible cookware detected. | Place suitable induction-compatible cookware on the cooking zone. Ensure the pot is centered. |
| Cooking process is slow or inefficient. | Cookware not fully compatible or power level too low. | Use fully induction-compatible cookware. Increase the power level. |
| Fan continues to run after turning off. | Normal cooling process. | This is normal. The fan will stop once the internal components have cooled sufficiently. |
8. Product Specifications
| Feature | Detail |
|---|---|
| Model | MMIC312 |
| Brand | Mayer |
| Control Type | Sensor Touch Control |
| Power/Temperature Levels | 10 levels |
| Temperature Range | 60°C - 280°C |
| Display | 4 Digital LED Display |
| Safety Features | Automatic Cut-off Switch, Child Lock, Overheat Protection |
| Material | Full Black Crystal Panel (Glass) |
| Included Accessories | Double Layer Pot |
| Package Dimensions | 42 x 32 x 17.5 cm |
| Item Weight | 3.64 kg |
9. Warranty and Support
The Mayer Induction Cooker MMIC312 comes with a 1 Year Local (Singapore) Warranty. Please retain your proof of purchase for warranty claims.
For technical support, service, or warranty inquiries, please contact Mayer customer service through their official channels. Refer to the product packaging or Mayer's official website for contact details.
