1. Introduction
This instruction manual provides essential information for the safe installation, proper operation, and routine maintenance of your new Globo 41751-8W LED Wall Spot Light. Please read this manual thoroughly before installation and keep it for future reference. This product is designed for indoor use only.
2. Safety Instructions
Always follow basic safety precautions when installing or using electrical products to reduce the risk of fire, electric shock, and personal injury.
- Disconnect Power: Always ensure the main power supply is switched off at the circuit breaker before beginning any installation, maintenance, or cleaning.
- Qualified Electrician: Installation should be performed by a qualified electrician or a competent person in accordance with all local electrical codes and regulations.
- Indoor Use Only: This product is designed exclusively for indoor environments. Do not install in wet locations or outdoors.
- Voltage: Ensure the supply voltage matches the product's requirements (230 Volts).
- Damage Inspection: Do not install if the product or any components appear damaged. Contact your supplier for replacement parts.
- Cleaning: Use a soft, dry cloth for cleaning. Do not use abrasive cleaners or solvents.
- LED Module: The LED light source is integrated and not user-replaceable. Do not attempt to disassemble the LED module.
3. Package Contents
Carefully unpack the product and ensure all items are present and undamaged. If any parts are missing or damaged, do not proceed with installation and contact your retailer.
- Globo 41751-8W LED Wall Spot Light fixture (with integrated LED bulb)
- Mounting hardware (screws, wall plugs)
- Instruction Manual
4. Setup and Installation
Follow these steps for safe and correct installation of your wall light. Professional installation is recommended.
- Prepare the Installation Area:
a. Turn off the main power supply at the circuit breaker to prevent electric shock.
b. Choose a suitable indoor wall location for mounting. Ensure the wall surface is clean, dry, and capable of supporting the fixture's weight.
- Mark Drilling Points:
a. Hold the mounting bracket (usually attached to the fixture) against the wall at the desired installation height. Use a pencil to mark the drilling points for the mounting screws.
b. Refer to the dimensions diagram for precise measurements and mounting points.

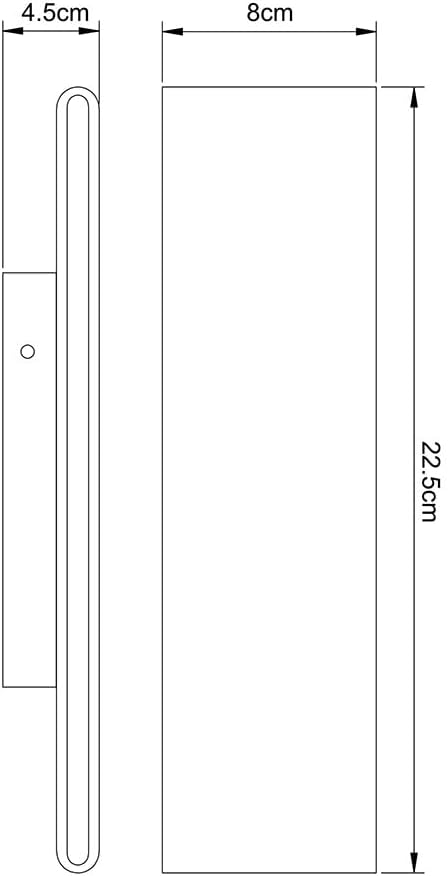

Figure 1: Product Dimensions. The diagram illustrates the light fixture's length (22.5 cm), width (8 cm), and depth (4.5 cm), along with the mounting point.
- Drill Holes and Insert Wall Plugs:
a. Drill holes at the marked points using an appropriate drill bit for your wall type.
b. Insert the provided wall plugs into the drilled holes, ensuring they are flush with the wall surface.
- Connect Wiring:
a. Carefully connect the household electrical wires to the fixture's wires. Typically, this involves connecting live (brown/red), neutral (blue/black), and earth (green/yellow) wires. Ensure all connections are secure and insulated.
b. This fixture operates on AC/DC power at 230 Volts.
- Mount the Fixture:
a. Secure the fixture's mounting bracket to the wall using the provided screws.
b. Attach the light fixture body to the mounting bracket, ensuring it is firmly in place.
Figure 2: Installed Wall Light. The image shows the Globo 41751-8W LED Wall Spot Light mounted on a wall, illuminating the surrounding area.
- Restore Power:
Once installation is complete and all connections are secure, restore power at the circuit breaker.
5. Operating Instructions
The Globo 41751-8W LED Wall Spot Light is designed for simple operation.
- Power On/Off: Control the light using a standard wall switch connected to the fixture's power supply.
- Dimming Function: This fixture is dimmable. If connected to a compatible dimmer switch, you can adjust the light intensity. The control method is tactile, suggesting it may respond to touch if a specific touch-sensitive dimmer is integrated, or it refers to the general interaction with a dimmer switch. Consult your dimmer switch's manual for specific operation.
- Light Color: The integrated LED provides a warm white light.

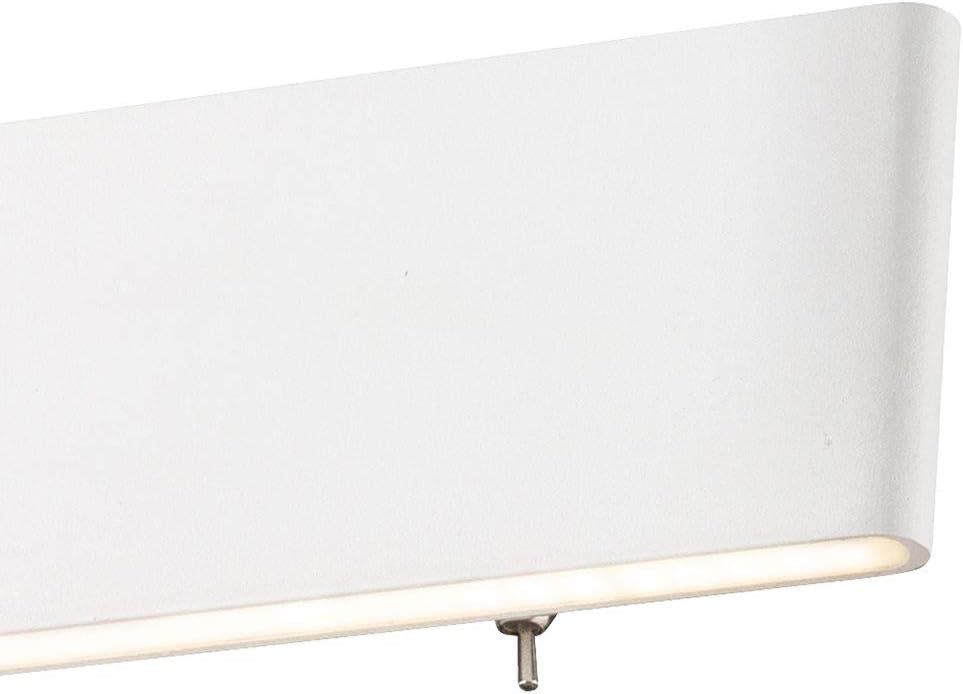

Figure 3: Close-up of the LED Light. This image highlights the design and integrated LED light source of the fixture.
6. Maintenance
Regular maintenance ensures the longevity and optimal performance of your LED wall light.
- Cleaning: Before cleaning, ensure the power supply is disconnected. Wipe the fixture with a soft, dry, or slightly damp cloth. Do not use harsh chemicals, abrasive cleaners, or polishes as they may damage the finish or acrylic shade.
- LED Replacement: The LED light source is integrated and not designed to be replaced by the user. If the LED fails, the entire fixture may need replacement.
- Inspection: Periodically check for any loose connections or signs of damage. If any issues are found, disconnect power and consult a qualified electrician.
7. Troubleshooting
If you encounter issues with your Globo 41751-8W LED Wall Spot Light, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power supply. Loose wiring connection. Faulty wall switch. | Check the circuit breaker and ensure power is on. Verify all wiring connections are secure (with power off). Test the wall switch or consult an electrician. |
| Light flickers or dims unexpectedly. | Incompatible dimmer switch. Loose wiring. Voltage fluctuations. | Ensure your dimmer switch is compatible with LED fixtures. Check wiring connections (with power off). Consult an electrician to check household voltage. |
| Light is not as bright as expected. | Dimmer setting too low. Dust accumulation on the shade. | Adjust the dimmer switch to a higher setting. Clean the acrylic shade (with power off). |
8. Specifications
Detailed technical specifications for the Globo 41751-8W LED Wall Spot Light.
- Model Number: 41751-8W (Article Model: 87822)
- Brand: GLOBO
- Material: Aluminum (structure), Acrylic (shade)
- Color: White
- Dimensions (L x W x H): 22.5 cm x 8 cm x 4.5 cm (45L x 225l x 45H millimeters)
- Style: Modern
- Fixture Shape: Wall-mounted
- Room Type: Hallway (suitable for various indoor rooms)
- Usage: Indoor use only
- Power Source: AC/DC
- Voltage: 230 Volts
- Features: Dimmable
- Control Method: Tactile (via compatible dimmer switch)
- Bulb Type: Integrated LED
- Number of Bulbs: 1 (integrated LED module)
- Light Color: Warm White
- Wattage: 8 Watts
- Switch Type: Toggle (external wall switch)
- Water Resistance Level: Not waterproof (Non étanche)
- Luminous Efficacy: 500 Lumens
- Energy Label: B
- Mounting Type: Wall Mount
- Assembly Required: Yes
Figure 4: Energy Label. This label indicates the energy efficiency class of the product.
9. Warranty and Support
For warranty information, please refer to the terms and conditions provided by your retailer at the time of purchase. If you require technical assistance or have questions not covered in this manual, please contact GLOBO customer support or your authorized dealer.
Manufacturer: Globo
ASIN: B07MNXB5JG
