1. Introduction
Thank you for choosing the Rohl A3307IWMBTO-2 Bath Faucet. This manual provides essential information for the safe installation, operation, and maintenance of your new faucet. Please read these instructions thoroughly before beginning installation or use, and retain them for future reference.
The Rohl A3307IWMBTO-2 is a wall-mounted bath faucet featuring a matte black finish and a durable brass construction. It is designed to coordinate with products from the Campo line, offering both aesthetic appeal and reliable performance.
Figure 1: Rohl A3307IWMBTO-2 Matte Black Wall-Mount Bath Faucet. This image displays the main faucet body and two lever handles in a matte black finish, designed for wall installation.
2. Safety Information
Please observe the following safety precautions during installation and use:
- Always turn off the main water supply before installing or servicing the faucet.
- Wear appropriate personal protective equipment, such as safety glasses and gloves, during installation.
- Ensure all connections are secure to prevent leaks.
- If you are unsure about any part of the installation process, consult a qualified plumber.
- This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm (Proposition 65 Warning).
3. Package Contents
The Rohl A3307IWMBTO-2 package includes the following components:
- Rohl A3307IWMBTO-2 Bath Faucet (Product Only)
Note: Additional plumbing supplies, tools, and sealants required for installation are sold separately.
4. Specifications
| Feature | Detail |
|---|---|
| Brand | Rohl |
| Model Number | A3307IWMBTO-2 |
| Mounting Type | Wall Mount |
| Finish Type | Brass |
| Color | Matte Black |
| Number of Handles | 3 |
| Handle Type | Lever |
| Style | Transitional |
| Installation Type | WALL |
| Maximum Flow Rate | 1.2 Gallons Per Minute |
| Handle Material | Brass |
| Item Weight | 7 Pounds |
| Product Dimensions | 7.48 x 7.48 x 3.96 inches |
| UPC | 824438403116 |
| Part Number | A3307IWMBTO-2 |
| Warranty Description | 5-YEAR LIMITED WARRANTY |
5. Installation
The Rohl A3307IWMBTO-2 is a wall-mount faucet. Proper installation is crucial for optimal performance and to prevent leaks. It is recommended that installation be performed by a qualified professional plumber.
5.1 Pre-Installation Steps
- Turn off Water Supply: Locate the main water shut-off valve for your home or the specific area and turn it off.
- Clear Work Area: Ensure the installation area is clean, dry, and free of obstructions.
- Gather Tools: Have all necessary tools ready, including a wrench, plumber's tape, sealant, and a screwdriver.
- Inspect Components: Carefully unpackage and inspect all faucet components for any damage.
5.2 Wall Mounting Procedure
- Prepare Rough-In: Ensure the wall rough-in plumbing is correctly positioned and secured according to standard wall-mount faucet specifications. The faucet requires connections for the spout and two handles.
- Install Valve Bodies: Connect the hot and cold valve bodies to the corresponding water lines within the wall. Secure them firmly, ensuring they are level and at the correct depth for the finished wall surface.
- Install Spout Body: Connect the main spout body to the central water outlet. Ensure all connections are watertight using plumber's tape or sealant as appropriate.
- Secure Trim Plates: Once the wall is finished, attach the decorative trim plates and escutcheons over the valve bodies and spout.
- Attach Handles and Spout: Secure the lever handles to the valve stems and the main spout to its connection point. Tighten all components carefully to avoid damage to the finish.

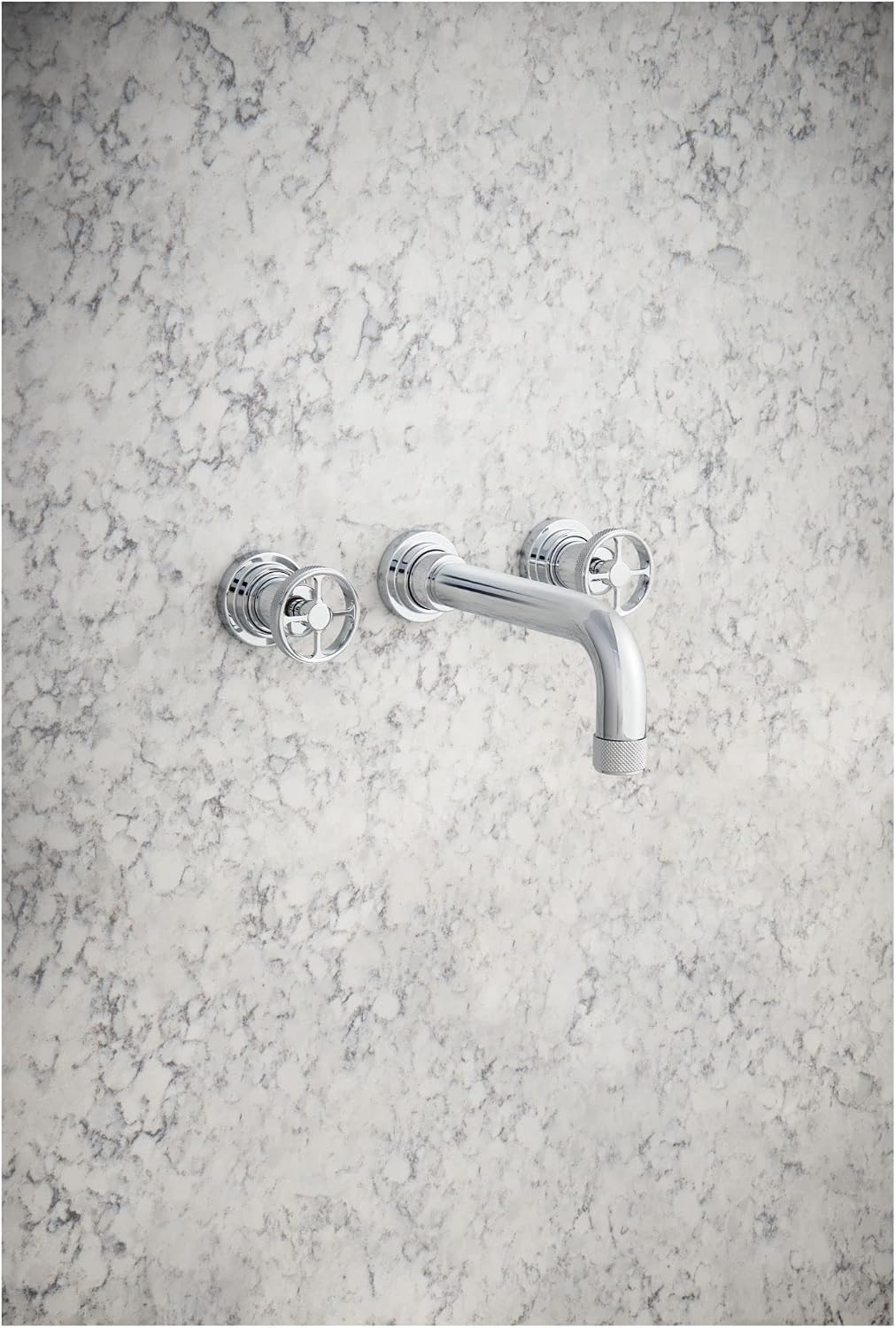

Figure 2: Example of a Rohl wall-mount faucet installed. This image illustrates the typical appearance and positioning of a wall-mounted faucet with separate handles. Note: The product shown in this image is a chrome finish, while your product is Matte Black.
5.3 Post-Installation Check
- Restore Water Supply: Slowly turn on the main water supply.
- Check for Leaks: Carefully inspect all connections for any signs of leaks. Tighten connections as needed.
- Test Faucet: Operate both hot and cold handles to ensure proper water flow and temperature control.
6. Operation
The Rohl A3307IWMBTO-2 faucet features two lever handles for precise control of water flow and temperature, consistent with its widespread handle location.
- Left Handle: Controls the hot water supply. Turn the handle to adjust the flow rate and temperature.
- Right Handle: Controls the cold water supply. Turn the handle to adjust the flow rate and temperature.
The maximum flow rate for this faucet is 1.2 Gallons Per Minute (GPM).
Figure 3: Close-up view of a Rohl faucet handle, showcasing the textured detail. This detail is characteristic of the Campo line and provides a tactile grip for operation.
7. Maintenance
Regular cleaning and maintenance will help preserve the finish and functionality of your Rohl faucet.
7.1 Cleaning the Finish
- Clean the matte black finish with a soft, damp cloth and mild soap.
- DO NOT use abrasive cleaners, harsh chemicals, ammonia-based products, or scouring pads, as these can damage the finish.
- Rinse thoroughly with clean water and dry with a soft cloth to prevent water spots.
7.2 General Care
- Periodically check for any signs of leaks around the connections. Tighten gently if necessary.
- If water flow decreases, the aerator (if present) may need cleaning. Unscrew the aerator from the spout and rinse away any debris.
8. Troubleshooting
This section addresses common issues you might encounter with your faucet.
| Problem | Possible Cause | Solution |
|---|---|---|
| Low Water Flow | Clogged aerator; partially closed shut-off valve; debris in water lines. | Clean or replace aerator. Ensure shut-off valves are fully open. Flush water lines (consult a plumber if necessary). |
| Leaking from Spout | Worn cartridge; debris in cartridge. | Contact Rohl customer support or a qualified plumber for cartridge replacement. |
| Leaking at Base/Connections | Loose connections; worn O-rings/gaskets. | Tighten connections carefully. If leaks persist, turn off water and inspect/replace O-rings or gaskets. Professional assistance recommended. |
| Handles Stiff or Hard to Turn | Mineral buildup; worn cartridge. | Clean around handle base. If issue persists, cartridge may need replacement. |
9. Warranty Information
The Rohl A3307IWMBTO-2 Bath Faucet is covered under Rohl's 5-YEAR LIMITED WARRANTY. This warranty covers defects in material and workmanship under normal use and service.
Please retain your proof of purchase for warranty claims. For full details regarding the terms and conditions of the warranty, please refer to the official Rohl warranty documentation or visit the Rohl website.
10. Customer Support
If you require further assistance, have questions not covered in this manual, or need to report a problem, please contact Rohl customer support. You can typically find contact information on the official Rohl website or through your product retailer.
For more information about Rohl products and accessories, please visit www.rohlfaucets.com.
