1. Product Overview
The Quorum International Gabriel 6-Light Entry Pendant, Model 604-6-69, is a transitional style lighting fixture designed for indoor use. This elegant pendant features a Noir (dark bronze) finish and provides ample illumination with its six candelabra-style lights. Its open-cage design makes it a versatile addition to various interior settings, particularly entryways, living rooms, and dining areas.
- Six Light Entry Pendant from the Gabriel collection.
- Dimensions: Height: 21.00 inches, Width: 17.00 inches.
- Style: Transitional Light Type: Entry.
- Finish: Noir.
- Safety Rating: Dry and Safety Listing: Dry.
This image displays the complete Quorum International Gabriel 6-Light Entry Pendant. It features a geometric open-cage design in a Noir (dark bronze) finish, housing six candelabra-style lights with gold-toned candle sleeves. The fixture is suspended by a chain from a ceiling canopy.
2. Safety Information
Please read and understand all instructions before beginning installation. Failure to do so may result in electric shock, fire, or other injuries. Always consult a qualified electrician for installation if you are unsure about the process.
- WARNING: To avoid electric shock, ensure power is turned off at the circuit breaker or fuse box before installation or servicing.
- All electrical connections must be in accordance with local codes, ordinances, or the National Electric Code (NEC).
- This fixture is rated for DRY locations only. Do not install in damp or wet locations.
- Use only the specified bulb type and wattage (E12 base, max 60 watts per bulb).
- Do not exceed the maximum wattage.
3. Included Components
Verify that all parts listed below are included in your package. If any parts are missing or damaged, contact customer service before proceeding with assembly.
- Pendant Light Fixture (Pre-assembled frame with 6 light sockets)
- Mounting Hardware (Crossbar, mounting screws, wire nuts)
- Canopy and Chain
- Instruction Manual
A detailed close-up of the central light cluster, showing the six E12 bulb sockets and their candelabra-style candle sleeves. This view highlights the internal structure and bulb type required.
4. Setup and Installation
Installation of this fixture requires basic electrical knowledge. If you are not comfortable with electrical wiring, it is highly recommended to hire a qualified, licensed electrician for installation.
- Prepare for Installation: Turn off the electricity at the main fuse box or circuit breaker. Clear the work area.
- Mount the Crossbar: Secure the mounting crossbar to the junction box in the ceiling using the provided screws.
- Adjust Chain Length: Determine the desired hanging height for the pendant. Adjust the chain length by removing links as needed.
- Wire the Fixture: Connect the fixture's wires to the corresponding house wires (black to black, white to white, ground to ground) using wire nuts. Ensure all connections are secure.
- Secure the Canopy: Carefully push the canopy up to the ceiling, covering the junction box, and secure it with the provided screws or nuts.
- Install Bulbs: Screw six E12 base bulbs (max 60 watts each, not included) into the sockets.
- Restore Power: Turn the electricity back on at the main fuse box or circuit breaker.
This image focuses on the upper section of the pendant, showing the sturdy chain connection and the top frame of the geometric design, indicating how the fixture is suspended.
5. Operating Instructions
The Gabriel 6-Light Entry Pendant is designed for simple operation. Once installed and wired correctly, it can be controlled via a standard wall switch or a compatible remote control system if integrated into your home's smart lighting setup.
- On/Off: Use the wall switch connected to the fixture to turn the light on or off.
- Remote Control: If a remote control system is installed and paired, refer to the remote control's specific instructions for operation.
6. Maintenance
Regular maintenance will help preserve the appearance and functionality of your pendant light.
- Cleaning: Always turn off the power before cleaning. Wipe the fixture with a soft, dry cloth. Do not use abrasive cleaners or solvents, as they may damage the finish.
- Bulb Replacement: Ensure the power is off and the bulbs have cooled before attempting to replace them. Unscrew old bulbs and replace with new E12 base bulbs, not exceeding 60 watts per bulb.
A variation of the Gabriel 6-Light Entry Pendant, this image shows the fixture with silver-toned candle sleeves, offering a different aesthetic. The overall geometric structure and Noir finish remain consistent.
7. Troubleshooting
If your pendant light is not functioning correctly, refer to the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power to the fixture. | Check circuit breaker or fuse. Ensure wall switch is on. |
| Bulbs are not lighting. | Loose or faulty bulbs. | Ensure bulbs are screwed in tightly. Replace with new bulbs if necessary. |
| Flickering lights. | Loose wiring connection. | Turn off power and check all wire connections. Consult an electrician if unsure. |
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Quorum International |
| Model Number | 604-6-69 |
| Style | Transitional |
| Finish | Noir |
| Material | Metal, Glass |
| Light Fixture Form | Pendant |
| Number of Light Sources | 6 |
| Bulb Base | E12 |
| Wattage | Max 60 watts per bulb |
| Voltage | 120 Volts |
| Item Dimensions (L x W x H) | 17"L x 17"W x 21"H |
| Item Weight | 10.2 Pounds |
| Indoor/Outdoor Usage | Indoor |
| Safety Rating | Dry |
| Control Method | Remote (compatible) |
| Required Assembly | Yes |

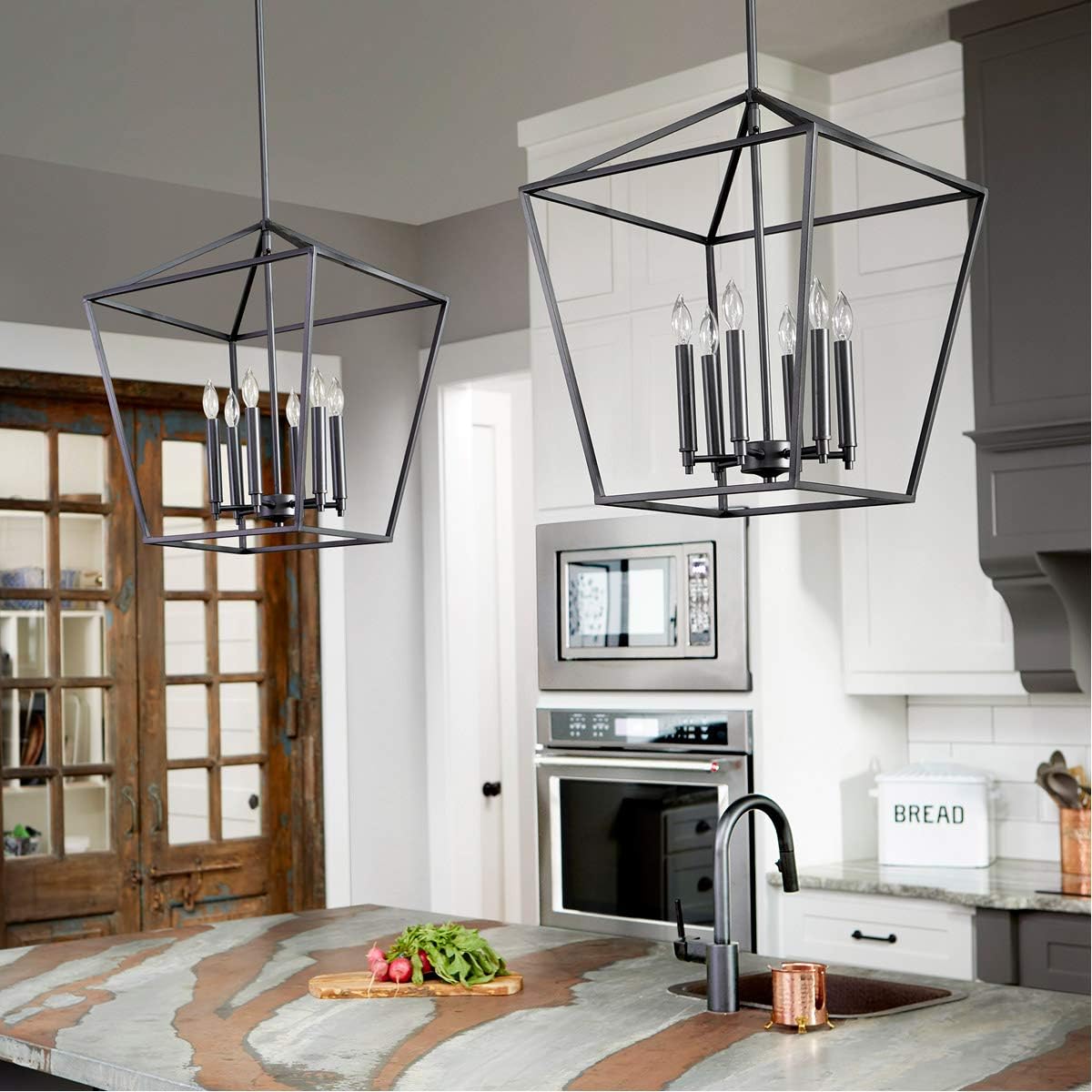

This image illustrates two Gabriel 6-Light Entry Pendants installed in a kitchen setting, hanging above a large island. It provides a real-world perspective of the fixture's size and how it complements a modern transitional interior design.
9. Warranty and Support
This product is covered by a standard manufacturer's warranty. For specific warranty details or technical support, please contact Quorum International customer service. Keep your purchase receipt for warranty claims.
Manufacturer: Quorum
Manufacturer Warranty Description: N/a (Please refer to Quorum International's official website or contact their customer service for detailed warranty information.)
