LUTEC CYRA LED Outdoor Wall Light Instruction Manual

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your LUTEC CYRA LED Outdoor Wall Light. Please read this manual thoroughly before installation and retain it for future reference. This product is designed to provide optimal outdoor lighting with adjustable light heads and an integrated motion sensor, creating an up and down light effect.

Important Safety Information

• Always disconnect power before installation, maintenance, or cleaning.
• Installation should be performed by a qualified electrician in accordance with local wiring regulations.
• Ensure the product is securely mounted to prevent falling.
• Do not modify the product in any way. Unauthorized modifications may void the warranty and pose safety risks.
• This product is rated IP54, suitable for outdoor use and protected against dust and splashing water.
• Do not look directly into the LED light source when illuminated.

Package Contents

Verify that all components are present before beginning installation:

• LUTEC CYRA Wall Light unit
• Mounting accessories (screws, wall plugs)
• Installation Instructions (this manual)

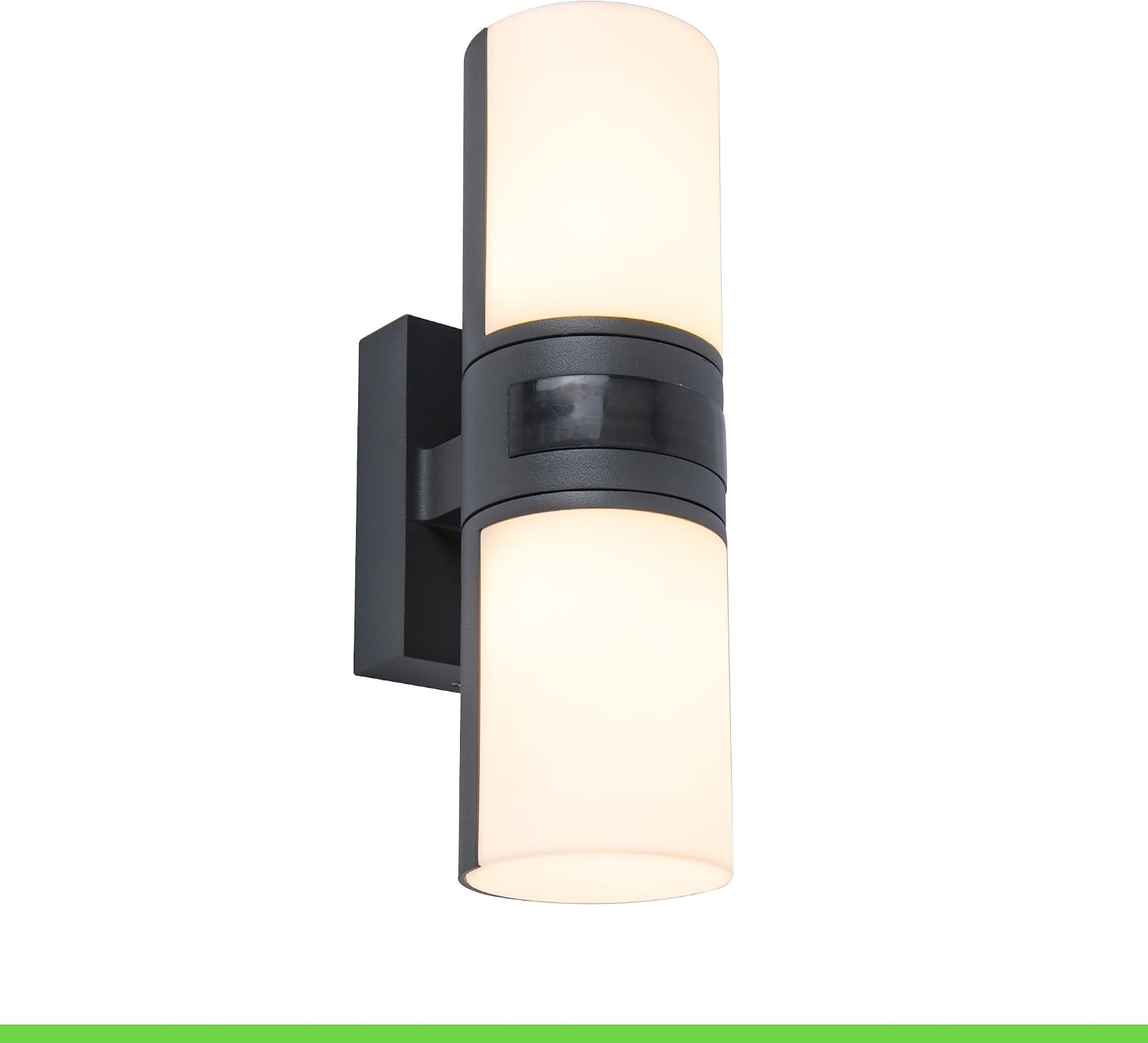

Image: Front view of the LUTEC CYRA LED Outdoor Wall Light, showing its anthracite aluminum body and white plastic diffusers.

Technical Specifications

Image: Technical diagram illustrating the dimensions (height 24.5 cm, width 7.8 cm, depth 12 cm) and the 3500 rotatable light heads of the CYRA wall light.

Image: EU Energy Label for LUTEC model 5198102118M, indicating an energy efficiency class of F and 17 kWh/1000h consumption. More details can be found at eprel.ec.europa.eu/qr/819533.

Setup and Installation

1. Site Selection

Choose a suitable location for the wall light, ensuring it is on a stable surface and has access to the necessary electrical wiring. Consider the desired illumination area and the motion sensor's detection range.

Image: The LUTEC CYRA light installed on an outdoor brick wall, demonstrating its appearance in a typical residential setting near an entrance.

2. Power Disconnection

Before starting any electrical work, turn off the main power supply at the circuit breaker to prevent electric shock.

3. Mounting the Fixture

1. Mark the drilling points on the wall using the fixture's mounting plate as a template.
2. Drill holes at the marked points and insert the provided wall plugs.
3. Secure the mounting plate to the wall using the provided screws.

4. Electrical Connection

1. Connect the household wiring to the light fixture's terminals. Ensure correct polarity (Live, Neutral, Earth).
2. Secure all connections firmly.

5. Final Assembly

1. Attach the light fixture body to the mounting plate, ensuring it is properly seated and secured.
2. Verify all connections and mounting are stable.

Operating Instructions

Power On

Once installation is complete, restore power at the circuit breaker. The light will perform a brief self-test.

Adjusting Light Heads

The two light heads can be rotated independently by 350 degrees. Gently twist each head to direct the light beam upwards, downwards, or to the sides as desired. This allows for customized illumination effects.

Image: The LUTEC CYRA light with one of its cylindrical light heads rotated, illustrating the 3500 adjustability feature.

Motion Sensor Settings

The integrated PIR motion sensor can be adjusted for sensitivity and illumination duration. The sensor has a 1800 detection angle and a range of 0 to 17 meters. Controls for these settings are typically located on the sensor unit itself, often behind a protective cover.

• Time Setting: Adjusts how long the light remains on after motion is detected. Common settings include 1, 3, or 10 minutes.
• Lux Setting (Brightness Threshold): Determines the ambient light level at which the sensor becomes active. This allows the light to only turn on when it's dark enough (e.g., 5 lux to daylight).
• Night Mode: Some models may offer a "night mode" where the light remains continuously on during darkness, overriding the motion sensor. Refer to specific markings on the sensor for adjustment details.

Image: A close-up view of the motion sensor integrated into the central band of the LUTEC CYRA light, highlighting its presence for security and convenience.

Maintenance

Regular maintenance ensures optimal performance and longevity of your LUTEC CYRA LED Outdoor Wall Light.

• Cleaning: Clean the light fixture periodically with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these can damage the finish or plastic components. Ensure power is off before cleaning.
• Inspection: Periodically inspect the fixture for any signs of damage, loose connections, or wear. If any issues are found, disconnect power and consult a qualified electrician.
• LEDs: The LEDs are integrated and not user-replaceable. If the LEDs fail, the entire fixture may need replacement.

Image: A close-up of the LUTEC CYRA light with water droplets on its surface, demonstrating its robust and weather-resistant IP54 rating.

Troubleshooting

If you experience issues with your LUTEC CYRA LED Outdoor Wall Light, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact LUTEC customer support.

Warranty Information

LUTEC offers a 5-year warranty on this LED outdoor wall light. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.

The warranty period starts from the date of purchase. For detailed terms and conditions, please refer to the official LUTEC website or contact customer support.

Customer Support

For technical assistance, warranty claims, or any other inquiries regarding your LUTEC CYRA LED Outdoor Wall Light, please contact LUTEC customer support through their official website or the retailer where the product was purchased.

Manufacturer: Lutec

Product Reference: 5198102118
