Introduction
The MEDca Pill Grinder is designed to simplify the process of taking medication and supplements by converting pills and tablets into a fine powder. This manual provides comprehensive instructions for the safe and effective use, setup, operation, maintenance, and troubleshooting of your pill grinder.
Image: The MEDca Pill Grinder, a stainless steel cylindrical device with a top handle for manual operation.
Safety Information
- Always consult with a healthcare professional before altering medication forms (e.g., crushing pills). Not all medications are suitable for crushing.
- Keep the device out of reach of children and pets.
- Use the grinder only for its intended purpose: crushing pills and tablets. Do not use for food items or other materials.
- Ensure all parts are securely assembled before use.
- Avoid excessive force when grinding, as this may damage the device or cause injury.
- Clean the device thoroughly after each use to prevent cross-contamination and maintain hygiene.
Product Overview and Components
The MEDca Pill Grinder consists of several key components designed for efficient and consistent grinding. Understanding these parts will aid in proper assembly and operation.

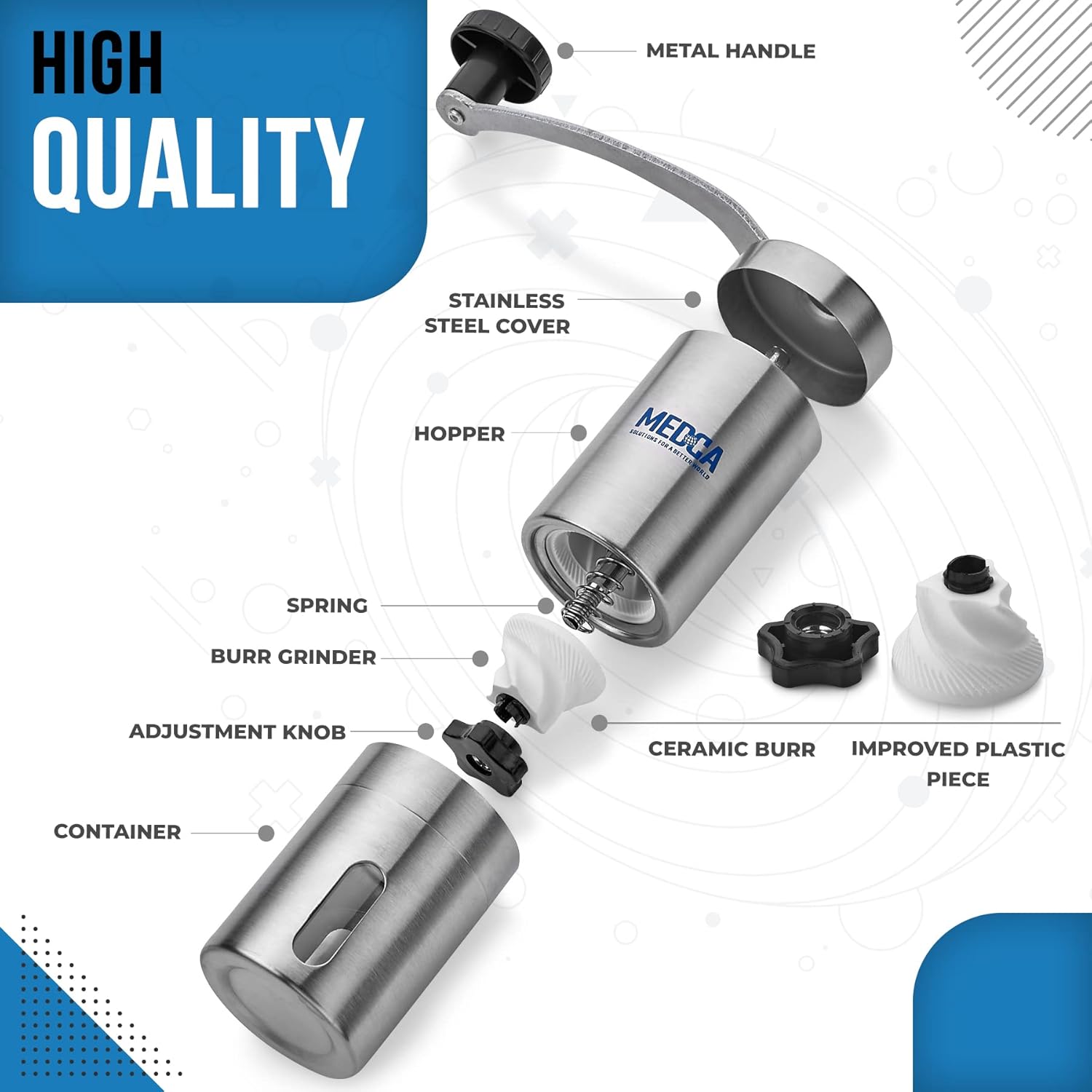

Image: An exploded diagram showing the individual components of the MEDca Pill Grinder, including the metal handle, stainless steel cover, hopper, spring, burr grinder, adjustment knob, and container.
Key Components:
- Metal Handle: Used to manually operate the grinding mechanism.
- Stainless Steel Cover: Protects the grinding mechanism and hopper.
- Hopper: The upper chamber where pills are placed for grinding.
- Spring: Provides tension for the burr grinder.
- Burr Grinder (Ceramic): The core grinding component that pulverizes pills.
- Adjustment Knob: Allows for fine-tuning the grind consistency.
- Container: The lower chamber that collects the ground powder. Features a clear window to view contents.
Setup and Assembly
The MEDca Pill Grinder comes partially assembled. Follow these steps to prepare it for first use:
- Unpack all components from the packaging.
- Ensure all parts are clean and dry before assembly. Refer to the "Maintenance and Cleaning" section for initial cleaning instructions.
- Insert the ceramic burr grinder into the bottom of the hopper, ensuring it seats correctly.
- Place the spring over the shaft of the burr grinder.
- Thread the adjustment knob onto the shaft from the bottom of the container. Turn clockwise to tighten for a finer grind, and counter-clockwise for a coarser grind.
- Attach the container to the hopper by screwing them together securely.
- Place the metal handle onto the top shaft of the hopper and secure it with the provided screw or cap, if applicable.
Image: The MEDca Pill Grinder disassembled, highlighting its compact design and removable canister, making it suitable for travel.
Operating Instructions
Follow these steps to effectively grind your pills and tablets:
Image: A visual guide demonstrating the four steps of using the pill grinder: 1. Cut (large pills if needed), 2. Put (pills into hopper), 3. Grind (turn handle), 4. Done (powder collected).
- Prepare Pills: If you have very large or hard pills, it may be beneficial to break them into smaller pieces before grinding. This can improve grinding efficiency and reduce strain on the mechanism.
- Load Pills: Remove the stainless steel cover and place the pills or tablets into the hopper (upper chamber). The grinder is designed to handle multiple pills at once, depending on their size.
- Replace Cover: Securely place the stainless steel cover back onto the hopper.
- Adjust Grind (Optional): If you desire a specific powder consistency, adjust the adjustment knob located at the bottom of the container. Turn clockwise for a finer powder, and counter-clockwise for a coarser powder. Test with a small amount of pill first.
- Grind: Hold the body of the grinder firmly with one hand. With the other hand, turn the metal handle in a clockwise direction. Continue turning until all pills have been ground and no resistance is felt.
- Collect Powder: Unscrew the container from the hopper. The finely ground powder will be collected in the container, ready for mixing with food or beverages.
Image: The MEDca Pill Grinder shown with its elongated handle, designed to provide leverage for easier and faster crushing of multiple tablets and pills.
Maintenance and Cleaning
Regular cleaning and maintenance will ensure the longevity and hygienic operation of your MEDca Pill Grinder.
- Disassembly: For thorough cleaning, disassemble the grinder by unscrewing the container from the hopper and removing the handle, spring, and ceramic burr.
- Cleaning: Use a small brush (e.g., a soft toothbrush or a dedicated cleaning brush) to remove any residual powder from the burr grinder, hopper, and container. For stubborn residue, a dry cloth can be used.
- Avoid Moisture: It is recommended to clean the grinder dry. Introducing moisture can cause powder to clump and stick to the mechanism, potentially leading to blockages or damage. If washing is absolutely necessary, ensure all parts are completely dry before reassembly and storage.
- Storage: Store the clean and dry grinder in a cool, dry place, away from direct sunlight and extreme temperatures.
Troubleshooting
If you encounter issues with your MEDca Pill Grinder, refer to the following common problems and their solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Pills not grinding finely enough. | Adjustment knob set too coarse; pills too large. | Turn the adjustment knob clockwise for a finer grind. Break larger pills into smaller pieces before grinding. |
| Grinder feels stuck or difficult to turn. | Too many pills loaded; pills are too hard/dense; residue buildup. | Reduce the number of pills loaded. Break very hard pills into smaller pieces. Disassemble and clean the burr mechanism thoroughly. |
| Powder residue left in the grinder. | Normal operation; insufficient cleaning. | This is common. Ensure regular dry cleaning after each use to minimize buildup. |
Specifications
- Model Number: PILLMILL8792CA
- Brand: MEDca
- Material: Food Grade Stainless Steel body, Ceramic Burr Grinder
- Color: Top Choice Silver
- Product Dimensions: Approximately 0.04 x 0.04 x 0.2 inches (0.1 x 0.1 x 0.5 cm)
- Item Weight: Approximately 2 ounces (56.7 grams)
- Special Features: Compact, Travel Size, Elongated Handle, Clear Collection Cup
- Date First Available: November 29, 2018
Warranty and Support
MEDca stands behind the quality of its products. Your MEDca Pill Grinder is backed by a 100% Satisfaction Guarantee.
If for any reason you are not satisfied with your purchase, you may return it for a full refund. For support inquiries, product assistance, or to initiate a return, please contact MEDca customer service through the retailer's platform where the product was purchased or visit the official MEDca website for contact information.
For more information and to explore other MEDca products, please visit the MEDca Store on Amazon.
Legal Disclaimer
Statements regarding dietary supplements have not been evaluated by the FDA and are not intended to diagnose, treat, cure, or prevent any disease or health condition.
