Donner DUB-1 30-inch Acoustic Electric Bass Ukulele Instruction Manual

1. Introduction

The Donner DUB-1 is a 30-inch acoustic-electric bass ukulele designed to produce the same notes as a standard bass guitar (E, A, D, G, from low to high). This instrument combines portability with quality sound, making it suitable for various musical settings. It features a mahogany body and neck, Aquila Nylgut strings, and an integrated preamp system for amplified performance.

This manual provides essential information for the proper setup, operation, maintenance, and troubleshooting of your Donner DUB-1 bass ukulele. Please read it thoroughly to ensure optimal performance and longevity of your instrument.

2. What's in the Box

• Donner DUB-1 30-inch Acoustic Electric Bass Ukulele
• Gig Bag
• Preamp (integrated)
• Aquila Nylgut Strings (pre-installed)

3. Key Features

• Mahogany Body and Neck: Provides a rich and bright tonal quality.
• Integrated Preamp with EQ: Features Volume, Bass, Middle, and Treble controls for amplified sound shaping.
• Built-in Tuner: An integrated tuner for quick and accurate tuning.
• Aquila Nylgut Strings: Designed for tuning stability and accurate fret intonation.
• 18 Brass Frets: Includes fret position markers at the 5th, 7th, 10th, and 12th frets on the neck and top of the fingerboard.

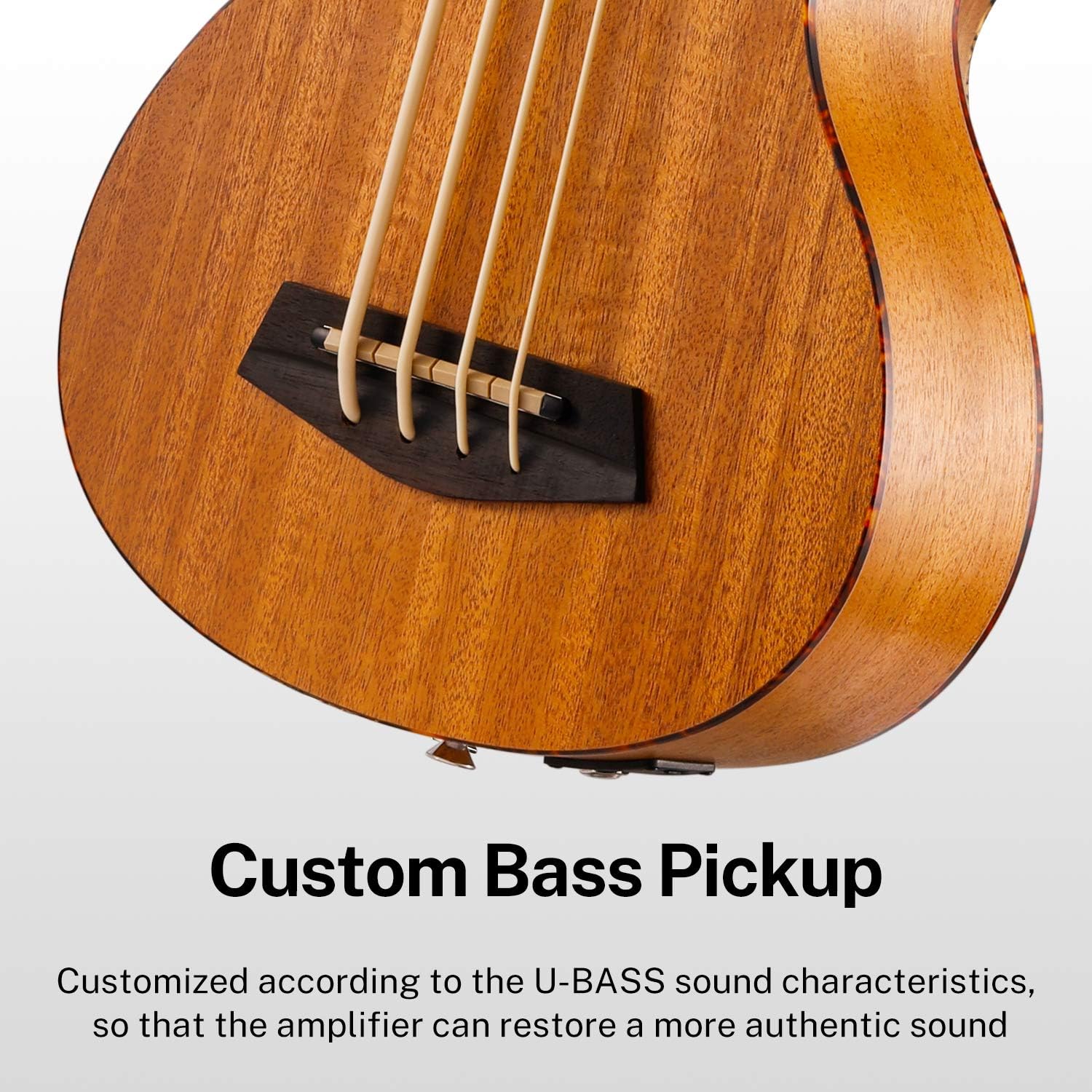

• Custom Bass Pickup: Tailored to the U-Bass sound characteristics for authentic amplified tone.
• Built-in Truss Rod: Enhances neck stability and allows for precise hand adjustment.

4. Setup

4.1 Unpacking and Inspection

Carefully remove the bass ukulele from its gig bag. Inspect the instrument for any signs of damage during shipping. Ensure all included accessories are present.

4.2 Tuning the Instrument

The Donner DUB-1 features an integrated tuner for convenient tuning. The standard tuning for this bass ukulele is E, A, D, G (from lowest to highest string).

1. Press the 'Tuner' button on the preamp to activate the tuner. The display will illuminate.
2. Pluck each string individually. The display will show the note being played and indicate if it is sharp, flat, or in tune.
3. Adjust the corresponding tuning peg on the headstock until the display indicates the string is in tune (typically a green light or centered needle).
4. Repeat for all four strings.
5. Press the 'Tuner' button again to deactivate the tuner.

4.3 Connecting to an Amplifier

To amplify your DUB-1, connect a standard 1/4" instrument cable from the output jack on the side of the ukulele to your amplifier or PA system. Ensure your amplifier is turned off or at a low volume before connecting to prevent sudden loud noises.

5. Operating the Instrument

5.1 Playing the Bass Ukulele

The DUB-1 is played similarly to a standard bass guitar. The Aquila Nylgut strings offer a unique feel and tone. Experiment with fingerstyle, picking, or slapping techniques to explore its sonic capabilities.

5.2 Using the Preamp Controls

The integrated preamp allows you to shape your amplified sound:

• Volume: Controls the overall output level of the amplified sound.
• Bass: Adjusts the low-frequency response. Turn up for a fuller, deeper tone; turn down to reduce muddiness.
• Middle: Adjusts the mid-range frequency response. Affects the presence and clarity of the sound.
• Treble: Adjusts the high-frequency response. Turn up for brighter tones; turn down to soften the sound.

6. Maintenance

6.1 General Care

To maintain your instrument's condition:

• Wipe down the body and strings with a soft, dry cloth after each use.
• Store the ukulele in its gig bag when not in use to protect it from dust, humidity changes, and physical damage.
• Avoid exposing the instrument to extreme temperatures or direct sunlight.

6.2 String Replacement

Over time, strings will wear out and lose their tone. Replace them with new Aquila Nylgut bass ukulele strings for optimal sound and playability. When replacing strings, change them one at a time to maintain neck tension.

6.3 Truss Rod Adjustment

The DUB-1 features a built-in truss rod for neck stability. Truss rod adjustments should only be performed by experienced individuals or a qualified luthier to prevent damage to the instrument's neck.

7. Troubleshooting

• No Sound When Amplified: Check the instrument cable connection at both the ukulele and the amplifier. Ensure the amplifier is powered on and its volume is up. Verify the preamp battery (if applicable) is charged and correctly installed.
• Distorted or Weak Sound: Check the preamp's EQ settings. Ensure the volume on the ukulele and amplifier are not set too high, causing clipping. Replace the preamp battery if the sound is weak.
• Buzzing Frets: This can be caused by several factors, including string action being too low, uneven frets, or neck relief issues. If minor adjustments to string action do not resolve the issue, consult a qualified luthier.
• Tuning Instability: New Aquila Nylgut strings may take some time to stretch and settle, requiring frequent tuning initially. Ensure strings are properly wound around the tuning pegs.

8. Specifications

9. Warranty and Support

Donner offers a 30-day unconditional money-back guarantee for this product. For any questions, technical assistance, or warranty claims, please contact Donner customer support through the official Donner website or your retailer's support channels. Please have your purchase information and model number (DUB-1) available when contacting support.
