1. Introduction
Thank you for choosing the Bosch Serie 2 DLN53AA70 Built-in Extractor Hood. This appliance is designed to efficiently remove cooking fumes and odors from your kitchen, ensuring a fresh and comfortable environment. Please read this manual carefully before installation, operation, or maintenance to ensure safe and optimal performance of your extractor hood. Keep this manual for future reference.
2. Safety Information
Always adhere to the following safety guidelines to prevent injury or damage to the appliance.
- Electrical Safety: Ensure the power supply matches the voltage specified on the rating plate. Do not use extension cords. Disconnect the appliance from the power supply before any cleaning or maintenance.
- Installation: Installation must be performed by a qualified technician in accordance with local regulations. Ensure adequate ventilation in the room when the hood is operating in extraction mode simultaneously with other appliances that burn gas or other fuels.
- Usage: This appliance is for domestic use only. Do not flambé under the extractor hood. Do not leave frying pans unattended during use, as overheated oil can ignite.
- Cleaning: Regularly clean the grease filters to prevent fire hazards.
- Children: This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
3. Product Overview
The Bosch Serie 2 DLN53AA70 is a built-in extractor hood designed for integration under a cabinet or above an integrated kitchen unit. It features a robust stainless steel construction and efficient LED lighting.
Figure 3.1: Front view of the Bosch Serie 2 DLN53AA70 Extractor Hood. This image shows the sleek stainless steel finish and the integrated design, ready for installation.

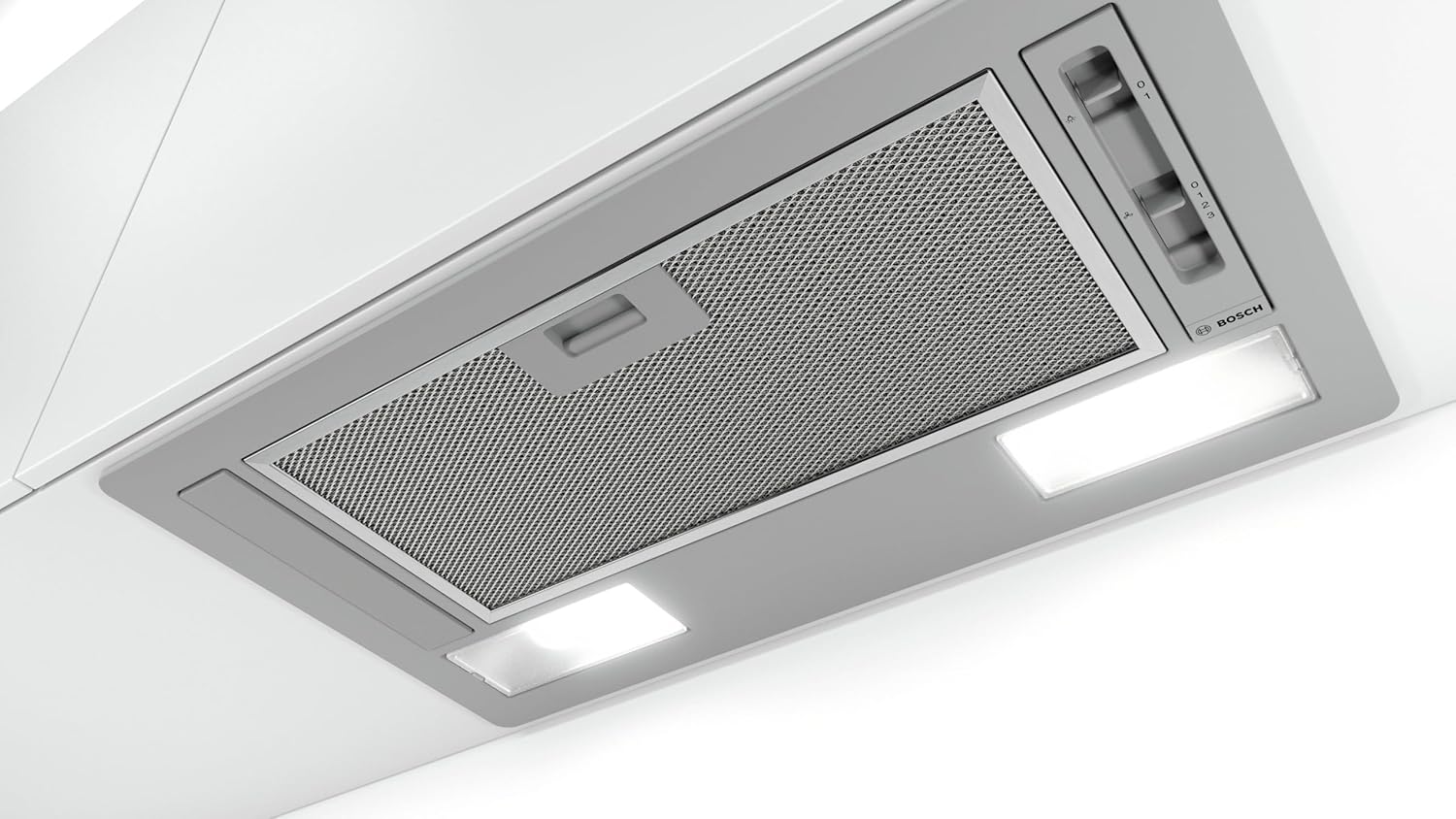

Figure 3.2: Underside view showing the metal grease filter, LED lights, and the slide switch controls for fan speed and lighting.
Figure 3.3: The extractor hood seamlessly integrated into a modern kitchen cabinet, demonstrating its discreet and functional design above a hob.
Key Features:
- Maximum Extraction Capacity: 302 m³/hour
- Type: Built-in
- Product Color: Stainless Steel (Anthracite)
- Grease Filter Type: Aluminum, removable and dishwasher-safe
- Lighting: 2 x LED lights, 78 lux, 2700 K color temperature
- Controls: 3-speed slide switch
- Operation: Can be used in extraction (ducted) or recirculation (recirculating) mode.
4. Installation
The extractor hood is designed for installation under a cabinet or above an integrated kitchen unit. Ensure sufficient space and proper ventilation according to the provided dimensions.
4.1 Dimensions and Mounting
Refer to the technical drawings for precise measurements required for installation.
Figure 4.1: Top view technical drawing with installation dimensions in millimeters. Note the width of 495mm and depth of 260mm for the cutout.
Figure 4.2: Side view technical drawing with installation dimensions in millimeters. The total height is 208mm, with a duct diameter of 120mm.
4.2 Electrical Connection
Connect the appliance to a grounded electrical outlet. The connection parameters are 121 W. Ensure the voltage matches your household supply (240 Volts).
4.3 Ventilation System
The hood can operate in two modes:
- Extraction Mode (Ducted): Air is drawn in, filtered, and expelled outside through a duct with a diameter of 120 mm.
- Recirculation Mode (Recirculating): Air is drawn in, filtered through a grease filter and an optional activated carbon filter (DWZ0NA0 or DWZ0IN0, sold separately), and then returned to the kitchen.
5. Operating Instructions
The Bosch DLN53AA70 extractor hood is controlled via a slide switch located on the underside of the unit.
Figure 5.1: Close-up of the slide switch controls for fan speed and lighting. The top switch controls the light, and the bottom switch controls the fan speed.
5.1 Fan Speed Control
The fan speed is adjusted using the lower slide switch. It offers 3 speed settings:
- Position 0: Fan Off
- Position 1: Low speed, suitable for light cooking or simmering.
- Position 2: Medium speed, for normal cooking.
- Position 3: High speed, for heavy frying or strong odors.
5.2 Lighting Control
The integrated LED lighting is controlled by the upper slide switch.
- Position 0: Lights Off
- Position 1: Lights On (2 x LED, 78 lux, 2700 K)
6. Maintenance
Regular maintenance ensures the longevity and efficient operation of your extractor hood.
6.1 Cleaning the Grease Filter
The aluminum grease filter should be cleaned regularly (approximately every 3-4 weeks, depending on usage) to maintain optimal performance and prevent fire hazards.
- Switch off the extractor hood and disconnect it from the power supply.
- Locate the release catches on the grease filter.
- Press the catches and carefully remove the filter.
- Clean the filter by hand with hot soapy water or in a dishwasher. Ensure it is completely dry before re-inserting.
- Re-insert the filter, ensuring it clicks securely into place.
6.2 Replacing Activated Carbon Filter (for Recirculation Mode)
If your hood is operating in recirculation mode, the activated carbon filter (e.g., DWZ0NA0 or DWZ0IN0) needs to be replaced periodically (typically every 3-6 months, depending on usage). Follow the instructions provided with the carbon filter for replacement.
6.3 Cleaning the Exterior
Clean the exterior surfaces with a soft cloth and a mild, non-abrasive cleaning agent. Do not use harsh chemicals or abrasive pads, especially on stainless steel surfaces.
6.4 Replacing LED Lights
LED lights are long-lasting. If replacement is necessary, contact Bosch customer service or a qualified technician. Do not attempt to replace them yourself unless specifically instructed by the manufacturer.
7. Troubleshooting
Before contacting customer service, check the following common issues:
| Problem | Possible Cause | Solution |
|---|---|---|
| Hood does not turn on. | No power supply. | Check if the plug is properly inserted and the circuit breaker has not tripped. |
| Poor extraction performance. | Grease filters are dirty. | Clean or replace the grease filters. |
| Activated carbon filter is saturated (recirculation mode). | Replace the activated carbon filter. | |
| Obstruction in the ventilation duct. | Check the duct for blockages. | |
| Excessive noise. | Loose components or improper installation. | Ensure all components are securely fastened. Contact a technician if noise persists. |
| Lights not working. | Light switch is off or LED failure. | Check the light switch position. If LEDs are faulty, contact customer service. |
8. Technical Specifications
Detailed specifications for the Bosch Serie 2 DLN53AA70 extractor hood.

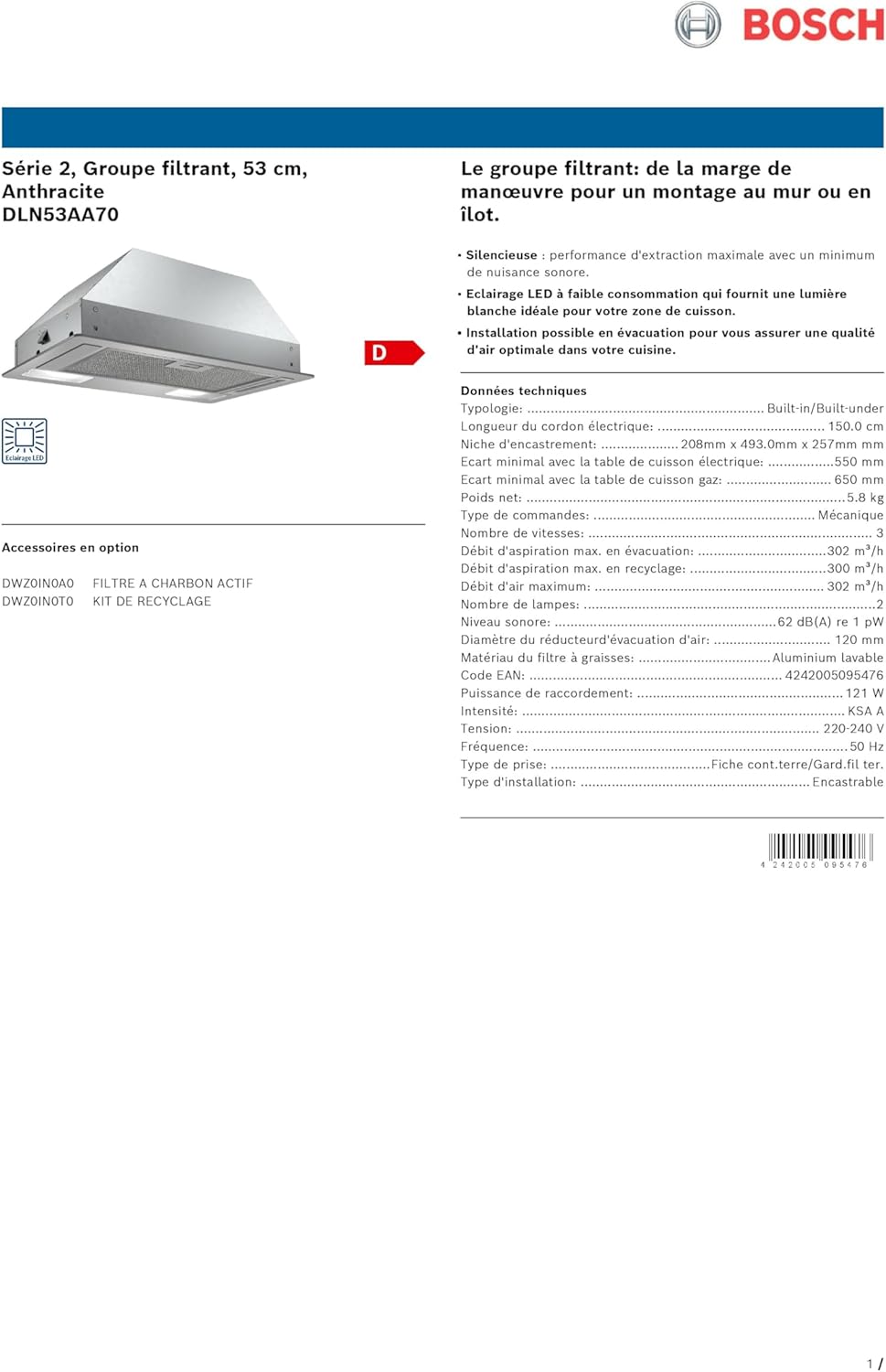

Figure 8.1: Product label showing various technical data and energy efficiency information.
| Feature | Specification |
|---|---|
| Brand: | Bosch |
| Model Number: | DLN53AA70 |
| Type: | Built-in Extractor Hood |
| Color: | Anthracite |
| Product Dimensions (D x W x H): | 30D x 53.4W x 20.8H cm |
| Weight: | 5.8 kg |
| Maximum Extraction Capacity: | 302 m³/hour |
| Number of Speeds: | 3 |
| Control Type: | Slide Switch (Knob) |
| Noise Level: | Min/Max Normal Mode: 46/62 dB |
| Lighting: | 2 x LED, 78 lux, 2700 K |
| Power Consumption: | 121 W |
| Voltage: | 240 Volts |
| Filter Type: | Mesh (Aluminum Grease Filter) |
| Ventilation Type: | Extraction (Ducted) or Recirculation |
| Duct Diameter: | 120 mm |
| Energy Efficiency Class: | D |
| Annual Energy Consumption: | 67.7 kWh/year |
| Availability of Spare Parts (EU): | 11 Years |
9. Warranty and Customer Support
9.1 Warranty Information
The warranty details for this product are typically provided by the selling partner at the time of purchase. Please refer to your purchase documentation or contact your retailer for specific warranty terms and conditions.
9.2 Customer Support
For technical assistance, spare parts, or service inquiries, please contact Bosch customer service. You can find contact information on the official Bosch website or in your product documentation. When contacting support, please have your model number (DLN53AA70) and serial number ready.
Bosch Official Website: www.bosch-home.com
