U`King ZQ01082
U`King Disco Ball Pin Spot Light Instruction Manual
Model: ZQ01082
1. Introduction
This manual provides detailed instructions for the safe and effective use of your U`King Disco Ball Pin Spot Light. Please read this manual thoroughly before operation and retain it for future reference.
The U`King Disco Ball Pin Spot Light is a compact and energy-efficient LED stage lighting solution designed for various indoor applications such as DJ events, discos, halls, restaurants, theaters, churches, exhibitions, parties, and weddings. It features a 3-watt white LED with a 12-degree beam angle, offering bright and focused illumination.
2. Product Features
- Long-Lasting and Energy Efficient: Equipped with a 3-watt single LED bead, designed for flicker-free operation. Features a wide AC90 - 240V input voltage and a rated life of 50,000 hours, ensuring low power consumption and soft lighting.
- Plug-and-Play Convenience: Compact size (6.3 x 3.0 x 2.8 inches) and lightweight (0.4 lb) design. Simple plug-and-play functionality for ease of use. Includes a single stand for easy hanging on trusses or installation on walls or ceilings.
- Versatile Lighting Solution: Optimized for use with mirror balls, this LED pinspot light is suitable for various indoor settings including DJ setups, discos, halls, restaurants, theaters, churches, exhibitions, parties, decorations, weddings, and banquets.
- Compact and High-Tech Design: Constructed from lightweight ABS materials, making it easy to transport for mobile DJ events, parties, or travel. Also ideal for accentuating specific areas in home environments.
- Flexible Installation Options: Comes with an adjustable bracket, allowing the pin spotlight to be suspended from a truss, mounted on a wall, or placed on the ground. The adjustable angle ensures optimal lighting direction.
3. What's in the Box
Upon opening the package, please ensure all components are present and undamaged:
- 1 x U`King Disco Ball Pin Spot Light
Note: Additional accessories such as mounting hardware (screws, anchors) may be required for certain installations and are not included unless specified.
4. Specifications
| Feature | Detail |
|---|---|
| Model Number | ZQ01082 |
| Color | BlackGrey |
| Shape | Round |
| Material | Plastic (Acrylonitrile Butadiene Styrene) |
| Light Source Type | Light Emitting Diode (LED) |
| Power Source | Corded Electric |
| Voltage | AC 90-240V |
| Light Source Wattage | 3 Watts |
| Item Weight | 6.4 ounces (approx. 181g) |
| Product Dimensions | 6.3"L x 3"W x 2.8"H (16cm x 7.6cm x 7.1cm) |
| Mounting Type | Wall Mount (with adjustable bracket) |
| Bulb Features | Single white LED, 12-degree beam angle |
| Life Span | 50,000 hours |
5. Setup and Installation
The U`King Pin Spot Light offers flexible installation options. Always ensure the power is disconnected before installation.
5.1 Mounting Options
The light comes with an adjustable bracket for various mounting configurations:
- Truss Mounting: Securely attach the bracket to a lighting truss using appropriate clamps (not included).
- Wall or Ceiling Mounting: Use screws and anchors (not included) to fix the bracket to a sturdy wall or ceiling surface. Ensure the mounting surface can support the weight of the light.
- Ground Placement: The light can be placed directly on a flat surface, using the bracket as a stable base.
Image: The U`King Pin Spot Light showing its small high-tech plastic shell design, the stand for adjusting the lighting angle, and the 3-watt LED single color beam spotlight with a high-quality lens.

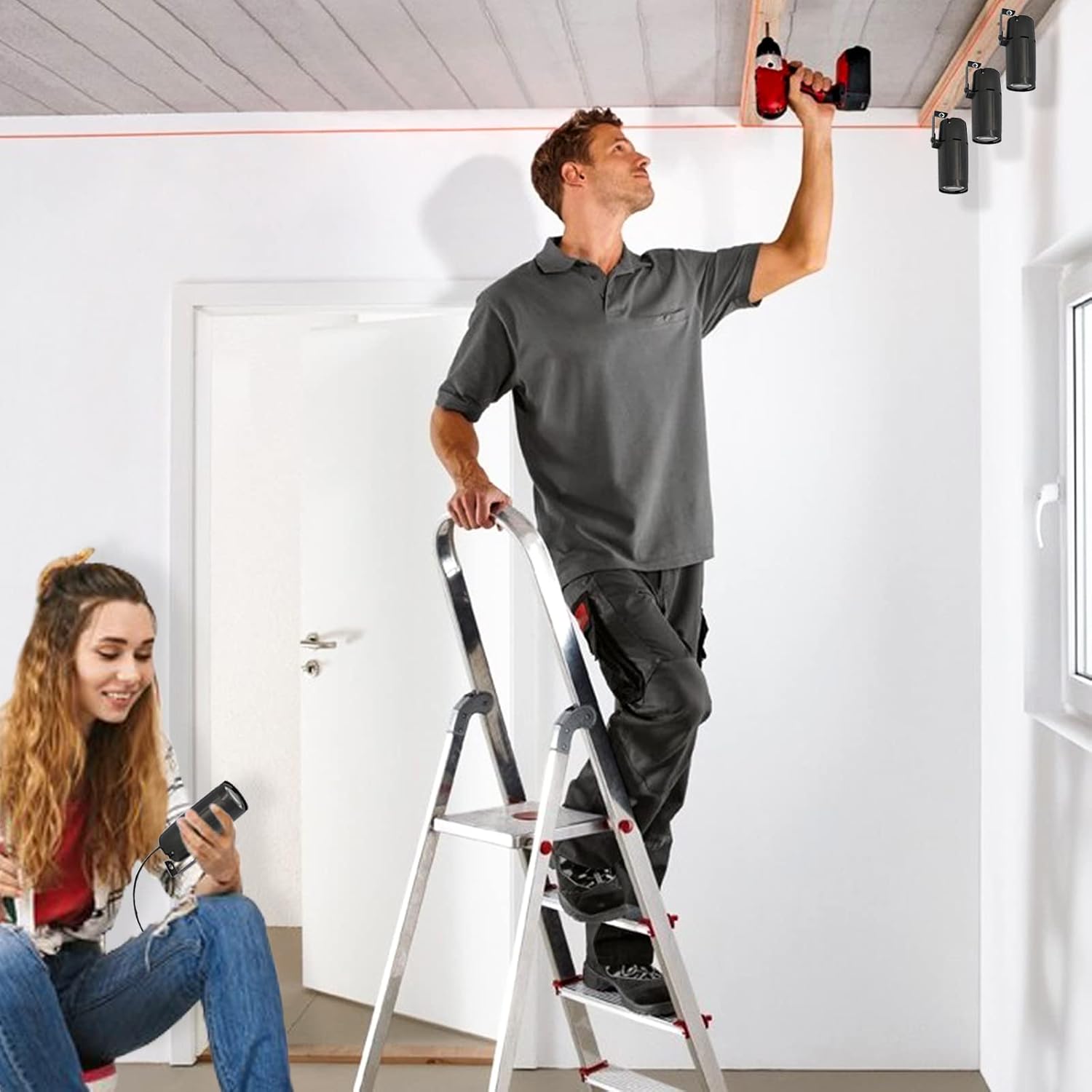

Image: A man installing multiple U`King Pin Spot Lights on a ceiling, demonstrating a typical overhead installation scenario.
5.2 Adjusting the Angle
Once mounted, loosen the screws on the side of the bracket, adjust the light to the desired angle, and then tighten the screws to secure its position. This allows for precise aiming of the light beam.
Image: A U`King Pin Spot Light shown from an angled perspective, highlighting its compact design and the adjustable mounting bracket.
6. Operating Instructions
The U`King Pin Spot Light is designed for simple plug-and-play operation.
6.1 Powering On/Off
- Ensure the light is securely installed and aimed as desired.
- Connect the power cord to a standard AC 90-240V electrical outlet. The light will illuminate immediately.
- To turn off the light, simply disconnect the power cord from the outlet.
6.2 Beam Characteristics
The light produces a focused 12-degree white LED beam, ideal for spotlighting specific objects or areas, or for use with mirror balls.
Image: A diagram illustrating the 12-degree lens of the U`King Pin Spot Light, emphasizing its focused beam capability.
Image: Examples of the U`King Pin Spot Light in use, showing its application in illuminating a dining bar and an exhibition hall, demonstrating its versatility.
Image: The U`King Pin Spot Light effectively illuminating a disco ball, creating a classic disco lighting effect with multiple light beams.
Image: A comparison demonstrating the wider 12-degree beam of the U`King Pin Spot LED compared to a narrower 9-degree beam from another pinspot light.
Image: Four U`King Pin Spot Lights projecting distinct, bright white circles onto a dark floor, showcasing their focused illumination.
7. Maintenance
To ensure the longevity and optimal performance of your U`King Pin Spot Light, follow these maintenance guidelines:
- Cleaning: Regularly clean the exterior of the light with a soft, dry cloth. For the lens, use a lens cleaning solution and a microfiber cloth to avoid scratches. Ensure the light is unplugged before cleaning.
- Ventilation: Ensure the light has adequate ventilation around it to prevent overheating. Do not block any ventilation openings.
- Storage: When not in use for extended periods, store the light in a cool, dry place, away from direct sunlight and extreme temperatures.
- Inspection: Periodically inspect the power cord for any signs of damage. If the cord is damaged, do not use the light and contact customer support.
8. Troubleshooting
If you encounter issues with your U`King Pin Spot Light, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power supply; faulty outlet; damaged power cord. | Check if the power cord is securely plugged into a working outlet. Test the outlet with another device. Inspect the power cord for damage. |
| Light flickers or dims. | Unstable power supply; overheating. | Ensure a stable power source. Check for proper ventilation around the light. Disconnect power and allow the unit to cool down. |
| Beam is not focused or clear. | Dirty lens; incorrect distance. | Clean the lens with a soft, lint-free cloth. Ensure the light is positioned at an appropriate distance from the target surface. |
| Unusual noise from the unit. | Internal component issue. | Immediately disconnect power. Do not attempt to repair. Contact customer support. |
If the problem persists after attempting these solutions, please contact U`King customer support.
9. Warranty Information
U`King products are manufactured to high-quality standards. For specific warranty terms and conditions, please refer to the warranty card included with your product or visit the official U`King website. Typically, products come with a limited warranty covering manufacturing defects from the date of purchase.
Please retain your proof of purchase for warranty claims.
10. Customer Support
For technical assistance, troubleshooting, or warranty inquiries, please contact U`King customer support through the following channels:
- Website: Visit the official U`King website for FAQs and support resources.
- Email: Refer to your product packaging or warranty card for customer service email address.
- Online Store: You can also visit the U`King Store on Amazon for product information and support options.
