Esperanza ESP-EKO006 Mini Oven Napoli 25L User Manual

Important Safety Instructions

Please read all instructions carefully before using the appliance. Keep this manual for future reference.

• Always ensure the appliance is placed on a stable, heat-resistant surface.
• Do not touch hot surfaces. Use oven mitts or gloves.
• To protect against electrical shock, do not immerse the cord, plug, or appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Do not use the appliance for other than intended use.
• Oversized foods or metal utensils must not be inserted in a toaster oven as they may create a fire or risk of electric shock.
• A fire may occur if the oven is covered or touching flammable material, including curtains, draperies, walls, and the like, when in operation.
• Do not store any materials, other than manufacturer's recommended accessories, in this oven when not in use.
• Do not place any of the following materials in the oven: paper, cardboard, plastic, and the like.
• Do not cover crumb tray or any part of the oven with metal foil. This will cause overheating of the oven.

Product Overview

The Esperanza ESP-EKO006 Mini Oven is a versatile appliance designed for various cooking tasks. It features convection heating and a rotisserie function.

Components and Accessories

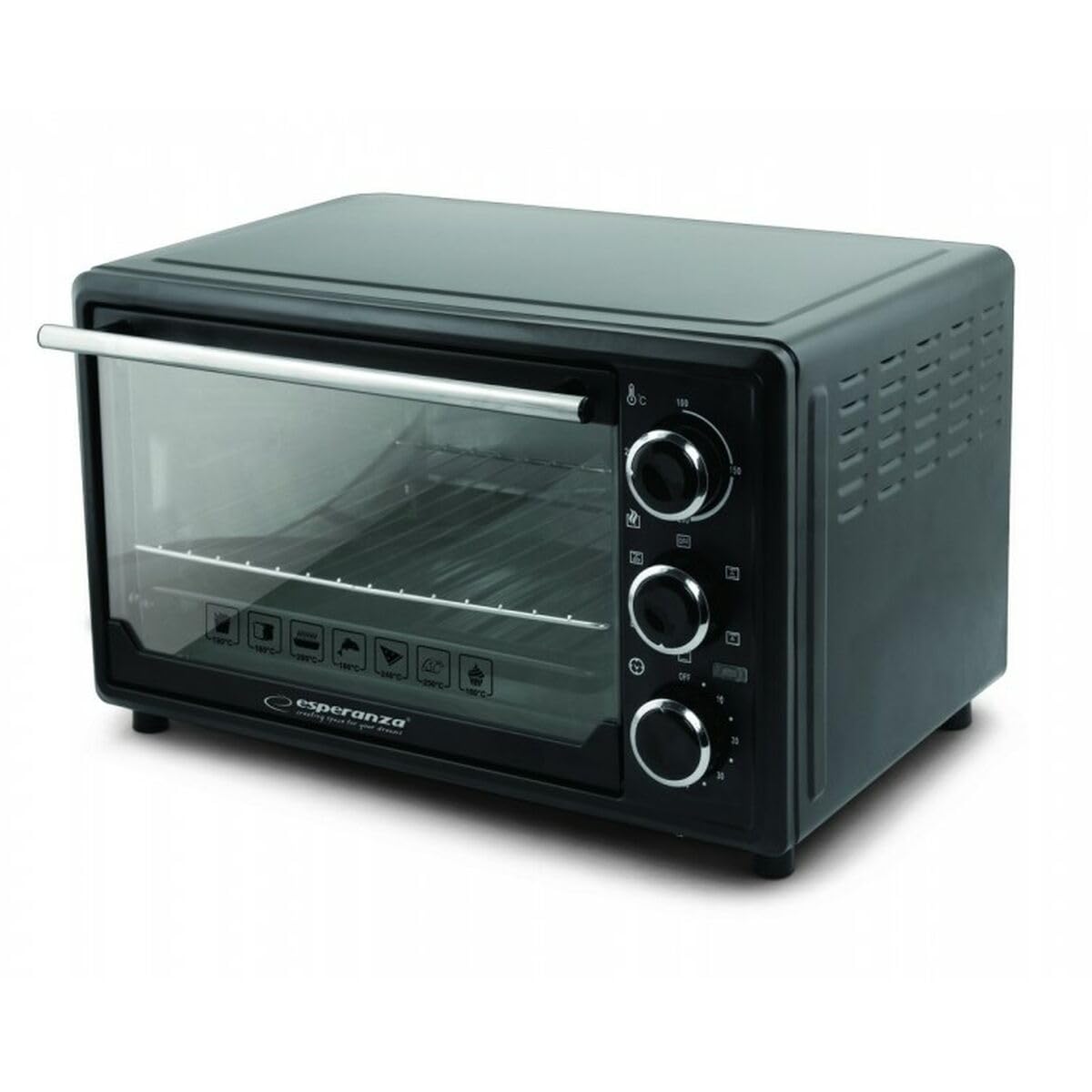

Image: Esperanza ESP-EKO006 Mini Oven Napoli. This image shows the compact black oven with its control panel on the right side and a glass door.

Image: Esperanza ESP-EKO006 Mini Oven Accessories. This image displays the included accessories: a wire rack, a baking tray, a rotisserie spit with forks, a rotisserie handle, and a tray/rack handle.

• Oven Unit: The main body of the mini oven.
• Control Panel: Located on the front, typically with knobs for temperature, function, and timer.
• Glass Door: For viewing food during cooking.
• Wire Rack: For grilling and placing dishes.
• Baking Tray: For baking and collecting drips.
• Rotisserie Spit: For roasting whole chickens or other meats.
• Rotisserie Handle: For safely inserting and removing the hot rotisserie spit.
• Tray/Rack Handle: For safely inserting and removing the hot baking tray or wire rack.

Control Panel (Typical Layout)

The control panel usually consists of three main knobs:

1. Temperature Control Knob: Adjusts the oven temperature (e.g., 100°C to 250°C).
2. Function Selector Knob: Selects the cooking mode (e.g., top heating, bottom heating, top & bottom heating, convection, rotisserie).
3. Timer Knob: Sets the cooking duration (e.g., up to 60 minutes) or continuous operation.

Setup

1. Unpacking: Carefully remove the oven and all accessories from the packaging. Remove any protective films or stickers.
2. Placement: Place the oven on a flat, stable, and heat-resistant surface. Ensure there is adequate ventilation around the oven (at least 10-15 cm clearance on all sides and top) to prevent overheating. Do not place it near flammable materials.
3. Initial Cleaning: Before first use, wipe the interior and accessories with a damp cloth and mild detergent. Dry thoroughly.
4. First Use Burn-Off:
   • Plug the oven into a grounded electrical outlet.
   • Set the temperature to maximum (e.g., 250°C).
   • Set the function to top and bottom heating.
   • Set the timer for approximately 15 minutes.
   • During this process, a slight odor or smoke may be emitted. This is normal and will dissipate. Ensure the area is well-ventilated.
   • After 15 minutes, turn the timer to OFF and unplug the oven. Allow it to cool completely.

Operating Instructions

General Operation

1. Prepare Food: Place food on the baking tray or wire rack.
2. Insert Accessories: Slide the tray or rack into the desired rack position inside the oven.
3. Close Door: Ensure the oven door is securely closed.
4. Set Temperature: Turn the temperature control knob to the desired cooking temperature.
5. Select Function: Turn the function selector knob to the desired cooking mode (e.g., top heat, bottom heat, both, convection).
6. Set Timer: Turn the timer knob to the desired cooking time. The oven will start heating. A bell will sound when the timer reaches zero. For continuous operation, turn the timer past the "OFF" position to the "STAY ON" or similar setting (if available).
7. Monitor Cooking: Observe food through the glass door. Adjust settings if necessary.
8. Remove Food: Once cooking is complete, turn the timer to OFF and unplug the oven. Use the provided handle or oven mitts to carefully remove hot food and accessories.

Using the Rotisserie Function

The rotisserie function is ideal for roasting poultry or larger cuts of meat evenly.

1. Prepare Meat: Securely attach the meat (e.g., a whole chicken) onto the rotisserie spit using the forks. Ensure the meat is centered and balanced to prevent uneven rotation.
2. Insert Spit: Carefully insert one end of the rotisserie spit into the rotisserie drive socket on the right side of the oven interior. Rest the other end on the support bracket on the left side.
3. Set Drip Tray: Place the baking tray on the bottom rack position to catch any drips.
4. Close Door: Close the oven door.
5. Set Temperature: Turn the temperature control knob to the desired roasting temperature (e.g., 180-200°C).
6. Select Function: Turn the function selector knob to the rotisserie setting (usually indicated by a rotating spit icon).
7. Set Timer: Set the timer for the required cooking duration.
8. Remove: Once cooking is complete, turn the timer to OFF and unplug the oven. Use the rotisserie handle to carefully lift and remove the hot spit and meat from the oven.

Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the life of your oven.

1. Always Unplug: Before cleaning, always unplug the oven from the power outlet and allow it to cool completely.
2. Exterior Cleaning: Wipe the exterior surfaces with a damp cloth and mild detergent. Do not use abrasive cleaners or scouring pads.
3. Interior Cleaning:
   • Remove the wire rack, baking tray, and rotisserie spit. Wash them in warm, soapy water or in a dishwasher if they are dishwasher-safe. Rinse and dry thoroughly.
   • Wipe the interior walls with a damp cloth and mild detergent. For stubborn stains, a non-abrasive oven cleaner designed for mini ovens can be used, following the product instructions carefully.
   • Clean the glass door with a glass cleaner or a damp cloth.
   • Ensure all interior surfaces are dry before using the oven again.
4. Crumb Tray: Regularly remove and clean the crumb tray located at the bottom of the oven. This prevents grease and food particles from accumulating and potentially causing a fire.
5. Storage: When not in use, store the oven in a clean, dry place.

Troubleshooting

If the problem persists after trying these solutions, please contact customer support.

Specifications

• Brand: Esperanza
• Model Number: ESP-EKO006
• Capacity: 25 Litres
• Power: 1600 Watts
• Material: Metal
• Color: Black
• Product Dimensions (L x W x H): Approximately 5 x 16 x 5 cm (Note: This dimension seems incorrect based on typical oven sizes and weight. It might refer to a specific component or be a data entry error. Please refer to the actual product for accurate dimensions.)
• Item Weight: 6.9 Kilograms
• Special Feature: Large capacity, Convection, Rotisserie
• Control Type: Knob Control
• Door Style: Roll-up Door (Note: This might be a translation error, typically mini ovens have hinged doors. Please verify with the actual product.)

Warranty and Support

Information regarding warranty coverage and customer support for the Esperanza ESP-EKO006 Mini Oven is typically provided with your purchase documentation or on the manufacturer's official website.

• Warranty Period: Refer to your purchase receipt or product packaging for specific warranty terms and duration.
• Customer Support: For technical assistance, troubleshooting beyond this manual, or warranty claims, please contact Esperanza customer service. Contact details can usually be found on the product packaging, the manufacturer's website, or your retailer's support page.
• Proof of Purchase: Always retain your proof of purchase (receipt or invoice) for warranty purposes.

For more information, visit the official Esperanza website (link provided as an example, actual link may vary).
