Esperanza EKD003 Food Dehydrator User Manual

1. Introduction

Thank you for purchasing the Esperanza EKD003 Food Dehydrator. This appliance is designed to efficiently dry various foods such as fruits, vegetables, herbs, and meat, preserving their nutrients and flavor. Please read this manual carefully before using the appliance to ensure safe operation and optimal performance. Keep this manual for future reference.

2. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

• Read all instructions before operating the dehydrator.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse the base unit, cord, or plug in water or other liquids.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Ensure the appliance is placed on a stable, heat-resistant surface during operation.
• Provide adequate ventilation around the dehydrator during use.

3. Product Components

The Esperanza EKD003 Food Dehydrator consists of the following main parts:

• Base Unit: Contains the heating element, fan, and control knob.
• Drying Trays (2): Stackable trays for holding food items.
• Lid: Transparent cover for the top tray.
• Power Switch: On/Off control.
• Temperature Control Knob: Adjusts drying temperature.

Image 1: Esperanza EKD003 Food Dehydrator. This image shows the assembled dehydrator with its transparent trays, white base, power switch, and temperature control knob.

4. Setup and First Use

1. Unpacking: Carefully remove the dehydrator and all its components from the packaging. Retain packaging for future storage or transport.
2. Initial Cleaning: Before first use, wash the drying trays and lid in warm, soapy water. Rinse thoroughly and dry completely. Wipe the base unit with a damp cloth. Do not immerse the base unit in water.
3. Placement: Place the dehydrator on a clean, dry, stable, and heat-resistant surface. Ensure there is adequate space around the unit for proper air circulation. Do not place it near heat sources or flammable materials.
4. Assembly: Stack the clean drying trays onto the base unit. Place the lid on top of the uppermost tray.
5. Power Connection: Ensure the power switch is in the "OFF" position. Plug the power cord into a standard 220V electrical outlet.

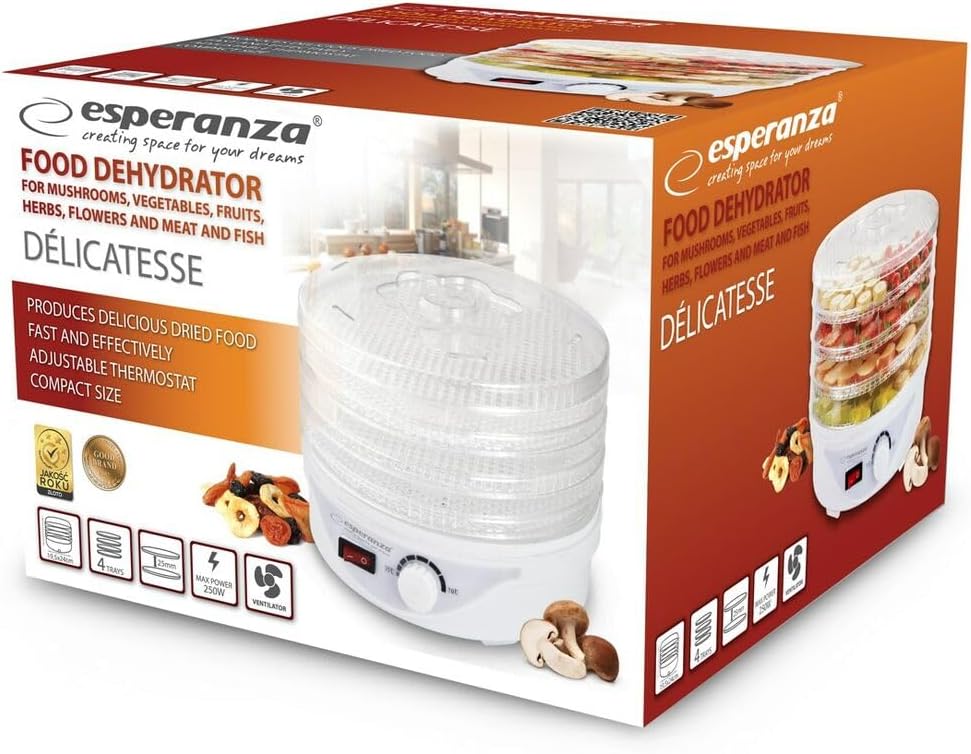

Image 2: Esperanza EKD003 Food Dehydrator in its retail packaging. This image shows the product box, highlighting its features and appearance.

5. Operating Instructions

5.1 Food Preparation

• Wash and prepare food items (e.g., peel, core, remove seeds).
• Slice food into uniform thickness (typically 3-6 mm) for even drying.
• Some foods may benefit from pre-treatment (e.g., blanching for vegetables, soaking in lemon juice for fruits to prevent browning). Refer to specific food dehydration guides for best results.

5.2 Loading Trays

• Arrange prepared food in a single layer on the drying trays.
• Do not overlap food items to ensure proper air circulation.
• Leave a small gap between pieces for optimal drying.

5.3 Drying Process

1. Once trays are loaded, stack them onto the base unit and place the lid on top.
2. Turn the power switch to the "ON" position. The indicator light should illuminate.
3. Rotate the temperature control knob to select the desired drying temperature. The range is approximately 35°C to 70°C.
   • Lower temperatures (e.g., 35-50°C) are suitable for herbs, delicate fruits, and vegetables.
   • Higher temperatures (e.g., 55-70°C) are suitable for meat jerky and denser fruits.
4. Drying times vary significantly based on food type, thickness, moisture content, and ambient humidity. It is recommended to check food periodically.
5. For even drying, it is advisable to rotate the trays every few hours (move bottom trays to the top and vice versa).
6. Food is sufficiently dried when it is pliable but not sticky, or brittle and crisp, depending on the food type.
7. Once drying is complete, turn the power switch to "OFF" and unplug the appliance.
8. Allow the dried food to cool completely before storing.

6. Maintenance and Cleaning

Regular cleaning ensures the longevity and hygienic operation of your dehydrator.

1. Before Cleaning: Always unplug the dehydrator from the power outlet and allow it to cool completely before cleaning.
2. Drying Trays and Lid: The drying trays and lid are dishwasher safe. Alternatively, they can be washed by hand in warm, soapy water. Rinse thoroughly and dry completely before reassembling or storing.
3. Base Unit: Wipe the exterior of the base unit with a damp cloth. For stubborn stains, use a mild detergent. Do not immerse the base unit in water or any other liquid. Ensure no water enters the internal components.
4. Storage: Store the assembled or disassembled dehydrator in a clean, dry place.

7. Troubleshooting

If you encounter issues with your dehydrator, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact customer support.

8. Specifications

• Model: EKD003
• Brand: Esperanza
• Power: 250 Watts
• Voltage: 220 Volts
• Material: Food-grade Plastic
• Number of Trays: 2
• Dimensions (approx.): 24.6 cm (Depth) x 27.9 cm (Width) x 16.5 cm (Height)
• Color: Transparent, White
• Dishwasher Safe Parts: Trays and Lid

9. Warranty and Support

Warranty information for the Esperanza EKD003 Food Dehydrator is not available in the provided product details. Please refer to the product packaging or your point of purchase for specific warranty terms and conditions.

For technical support or service inquiries, please contact the retailer or manufacturer directly using the contact information provided with your purchase.

10. Official Product Videos

No official product videos from the seller are available in the provided product information.
