Jaronx Center Console Organizer Tray User Manual

1. Introduction and Compatibility

The Jaronx Center Console Organizer Tray is designed to enhance the storage and organization within your vehicle's center console. This accessory provides additional compartments to manage small items, preventing clutter and making frequently used items easily accessible.

1.1. Vehicle Compatibility

This organizer is compatible with specific Chevrolet and GMC models equipped with a full console with bucket seats ONLY. It is not suitable for vehicles with a split bench seat configuration.

Compatible with GMC Sierra: 1500 (2014-2018), 2500 HD (2015-2019), 3500 HD (2015-2019)
Compatible with GMC Yukon: 2015-2020
Compatible with GMC Yukon XL: 2015-2020
Compatible with Chevy Silverado: 1500 (2014-2018), 2500 HD (2015-2019), 3500 HD (2015-2019)
Compatible with Chevy Tahoe: 2015-2020
Compatible with Chevy Suburban: 2015-2020

Compatibility diagram showing full console with bucket seats and a red X over a split bench seat.

Image 1.1: This diagram illustrates the compatible full console with bucket seats (green checkmark) and the incompatible split bench seat (red X). Ensure your vehicle's console matches the compatible configuration.

2. Product Features

The Jaronx Center Console Organizer Tray is engineered with practical features to maximize your console's utility and maintain order.

2.1. Enhanced Storage and Organization

This organizer provides multiple compartments, transforming a deep, often messy, console into an organized storage area. It allows for the separation of items such as wallets, sunglasses, pens, business cards, and phones, while leaving ample space underneath for larger items.

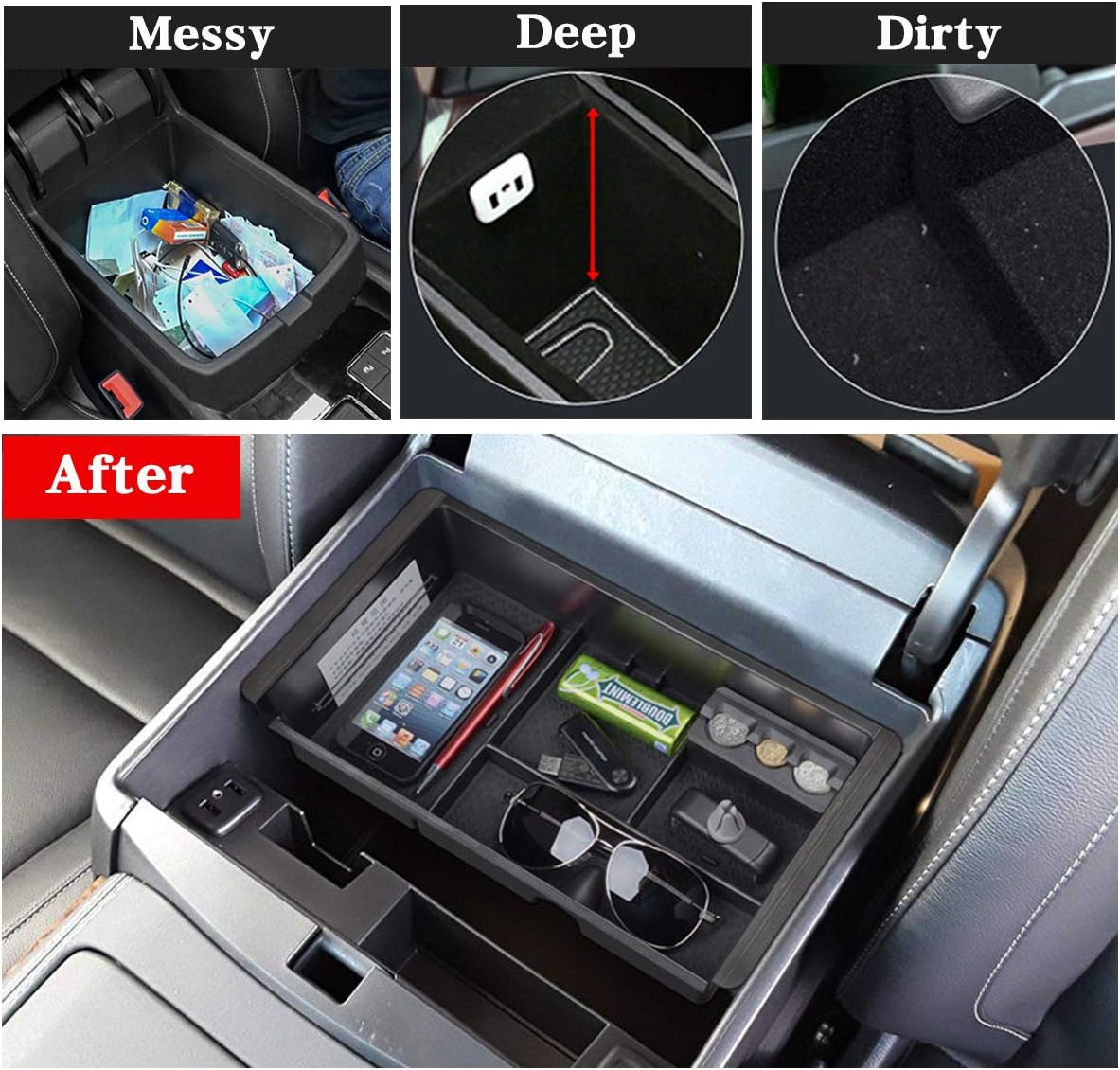

Before and after images of a messy console transformed by the organizer.

Image 2.1: The top row shows a messy, deep, and dirty console. The bottom image shows the same console after installation of the organizer, demonstrating improved organization and accessibility.

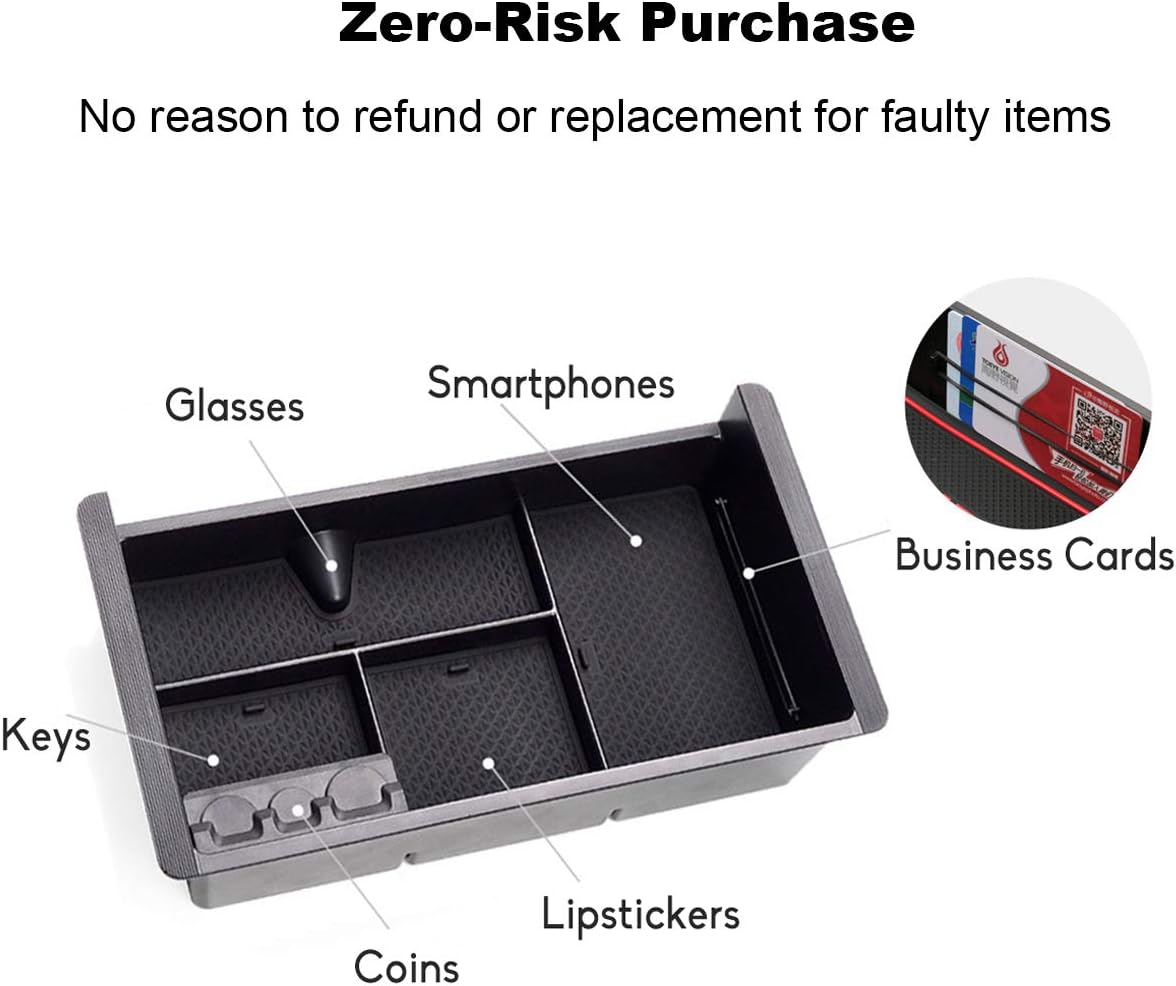

Diagram showing various items organized within the tray, including keys, coins, lipsticks, glasses, smartphones, and business cards.

Image 2.2: An overhead view of the organizer with labels indicating designated areas for keys, coins, lipsticks, glasses, smartphones, and business cards, highlighting its versatile storage capabilities.

2.2. Durable Construction and Anti-Slip Design

The organizer is constructed from solid ABS material with a thickened edge for enhanced durability and resistance to breakage. High-quality silicone mats are included to prevent items from sliding, rolling, or rattling within the compartments, ensuring a quiet and secure storage solution.

Image showing the organizer made of ABS material and close-up of silicone mats.

Image 2.3: This image highlights the high-quality ABS and PC materials used in the organizer's construction (top panel) and the textured silicone mats designed to prevent items from slipping (bottom panel).

2.3. Detachable Coin Organizer

A detachable coin organizer is included, allowing you to neatly store and access coins. This coin box can be fixed in different areas within the tray using integrated buckles, providing flexibility in layout.

Image showing the detachable coin organizer.

Image 2.4: The detachable coin organizer is shown, designed to securely hold coins. This component can be removed or repositioned as needed.

Image showing how the coin box can be fixed in different areas.

Image 2.5: This image demonstrates how the coin box can be securely fixed into various positions within the organizer tray using its integrated buckles, indicated by red circles.

2.4. Dedicated Glasses Storage

The organizer features an exclusive position specifically designed for storing glasses. This dedicated slot helps prevent glasses from rolling around or getting scratched, keeping them safe and easily accessible.

Image showing the dedicated glasses storage slot.

Image 2.6: The top panel shows the dedicated slot for glasses within the organizer. The bottom panel illustrates how glasses fit securely into this position, preventing movement and potential damage.

3. Setup and Installation

Installation of the Jaronx Center Console Organizer Tray is straightforward and requires no tools or modifications to your vehicle.

3.1. Installation Steps

Ensure your vehicle's center console is clean and free of debris.
Open the center console lid.
Carefully place the Jaronx Center Console Organizer Tray into the console opening. The tray is designed to fit snugly into the existing console structure.
Adjust the tray as needed to ensure it sits level and stable.
Place the included anti-slip mats into the designated compartments within the tray.
Position the detachable coin organizer in your preferred location within the tray, securing it with its buckles if desired.

Image of the organizer tray installed in a vehicle's center console.

Image 3.1: The Jaronx Center Console Organizer Tray shown installed in a vehicle's console, demonstrating its seamless integration and immediate organizational benefits.

4. Operating and Use

Once installed, the organizer tray is ready for immediate use. Utilize the various compartments to store and categorize your personal items.

Main Compartments: Use the larger sections for items such as smartphones, small notebooks, or a wallet.
Coin Holder: Place coins in the detachable coin organizer for easy access.
Glasses Slot: Securely store your eyeglasses or sunglasses in the dedicated slot to prevent damage.
Card Slot: Utilize the specially designed slot for business cards or other small cards.

5. Maintenance

Maintaining your Jaronx Center Console Organizer Tray is simple and helps prolong its lifespan and appearance.

5.1. Cleaning Instructions

The organizer tray and silicone mats can be easily removed for cleaning.
Wipe the ABS plastic tray with a damp cloth and mild detergent if necessary. Avoid abrasive cleaners.
The silicone mats can be rinsed with water and air-dried.
Ensure all components are completely dry before placing them back into the console.

6. Troubleshooting

Most issues with the organizer tray relate to compatibility or minor fitment. Refer to the following common scenarios:

6.1. Common Issues and Solutions

Issue	Possible Cause	Solution
Tray does not fit or is too loose.	Incorrect vehicle console type (e.g., split bench seat instead of full console with bucket seats) or incompatible model year.	Verify your vehicle's console type and model year against the compatibility list in Section 1.1. This organizer is designed for a precise fit in specified full consoles.
Items slide or rattle within the tray.	Anti-slip mats are not installed or are misplaced.	Ensure all four anti-slip mats are correctly placed in the bottom of the tray's compartments.
Coin organizer is not secure.	Coin organizer not properly buckled into place.	Ensure the coin organizer's buckles are fully engaged with the corresponding slots in the main tray.

7. Specifications

Key specifications for the Jaronx Center Console Organizer Tray:

Attribute	Detail
Brand	Jaronx
Model Name	Sierra/Silverado Console Organizer
Item Model Number	Compatible With GMC/Chevy Storage Box
Material	Acrylonitrile Butadiene Styrene (ABS)
Color	Black
Item Weight	1.15 pounds
Package Dimensions	13.46 x 7.32 x 3.43 inches
ASIN	B07K597ZPC

Diagram showing the dimensions of the organizer tray.

Image 7.1: This diagram provides the key dimensions of the organizer tray: 11.4 inches (length), 11.6 inches (overall length), 6.7 inches (width), and 2.8 inches (height), with an edge thickness of 1.64mm/0.065 inches.

8. Warranty and Support

Jaronx is committed to customer satisfaction. While specific warranty details are not provided in this manual, the product is generally supported by a
