Arcchio LED Logan Floor Lamp User Manual

1. Product Overview

The Arcchio LED Logan floor lamp (Model 9968019) is designed to provide efficient and versatile lighting for office and study environments. Its modern design, combined with advanced LED technology, ensures optimal illumination and energy savings.

Key features include:

• Energy-Efficient LED Lighting: Utilizes modern LED technology for energy saving and efficient illumination.
• Integrated Dimmability: Features a swivelling dimmer for infinitely adjustable light intensity, allowing for personalized lighting atmospheres.
• Optimized Light Distribution: Emits 60% of light upwards and 40% downwards, providing balanced room illumination.
• Glare-Free Design: Equipped with a prismatic diffuser on the underside to ensure comfortable, glare-free light.
• Sturdy U-shaped Base: Provides stability and a sleek profile.
• Included Light Sources: Comes with high-quality LED light sources (1 x 36W LED + 1 x 24W LED) for immediate use.

Figure 1.1: Arcchio LED Logan Floor Lamp, showcasing its sleek black aluminum design and U-shaped base.

Figure 1.2: Top view of the Arcchio Logan lamp head, revealing the integrated LED array that provides powerful and efficient illumination.

2. Safety Instructions

Please read these safety instructions carefully before installation and operation. Failure to follow these instructions may result in electric shock, fire, or other injuries.

• Electrical Safety: Ensure the power supply is disconnected before installation, cleaning, or maintenance. This product operates on 230 Volts.
• Installation: Installation should be performed by a qualified electrician if you are unsure. Ensure all connections are secure.
• Placement: Place the lamp on a stable, level surface to prevent tipping. Do not place near heat sources or in excessively damp environments. The housing rating is IP20, meaning it is protected against solid objects over 12.5mm but not against water.
• Handling: Do not touch the LED light sources directly when the lamp is in operation, as they may be hot.
• Cleaning: Use a soft, dry cloth for cleaning. Do not use abrasive cleaners or solvents.
• Damage: If the lamp or power cord is damaged, do not operate it. Contact customer support for assistance.

3. Package Contents

Verify that all components are present and undamaged before proceeding with assembly.

• Arcchio LED Logan Floor Lamp (Main Body with integrated LED light sources)
• U-shaped Base
• Power Cord with Plug
• Assembly Hardware (screws, washers, etc. - specific items may vary)

Figure 3.1: The U-shaped base and power plug of the Arcchio Logan lamp, indicating the components for stable placement and electrical connection.

4. Setup and Installation

While specific assembly instructions are not provided, the following general steps outline the typical setup process for the Arcchio LED Logan floor lamp. Assembly is required.

1. Unpack Components: Carefully remove all parts from the packaging and lay them out on a clean, flat surface.
2. Attach Base: Securely attach the U-shaped base to the main lamp body using the provided assembly hardware. Ensure all screws are tightened firmly to prevent wobbling.
3. Position Lamp: Place the assembled lamp in your desired location, ensuring it is on a stable and level surface. Consider the optimal light distribution for your workspace.
4. Connect Power: Plug the power cord into a standard 230V electrical outlet.

Figure 4.1: The Arcchio Logan lamp positioned in an office environment, demonstrating its intended use and aesthetic integration.

5. Operating Instructions

The Arcchio LED Logan floor lamp is designed for simple and intuitive operation.

• Power On/Off: The lamp is equipped with an integrated switch. Locate the switch on the lamp body and press it to turn the lamp on or off.
• Dimming Function: The lamp features a swivelling dimmer. Rotate the dimmer knob to infinitely adjust the light intensity from minimum to maximum brightness.

Figure 5.1: Close-up view of the swivelling dimmer switch on the Arcchio Logan lamp, used for adjusting light brightness.

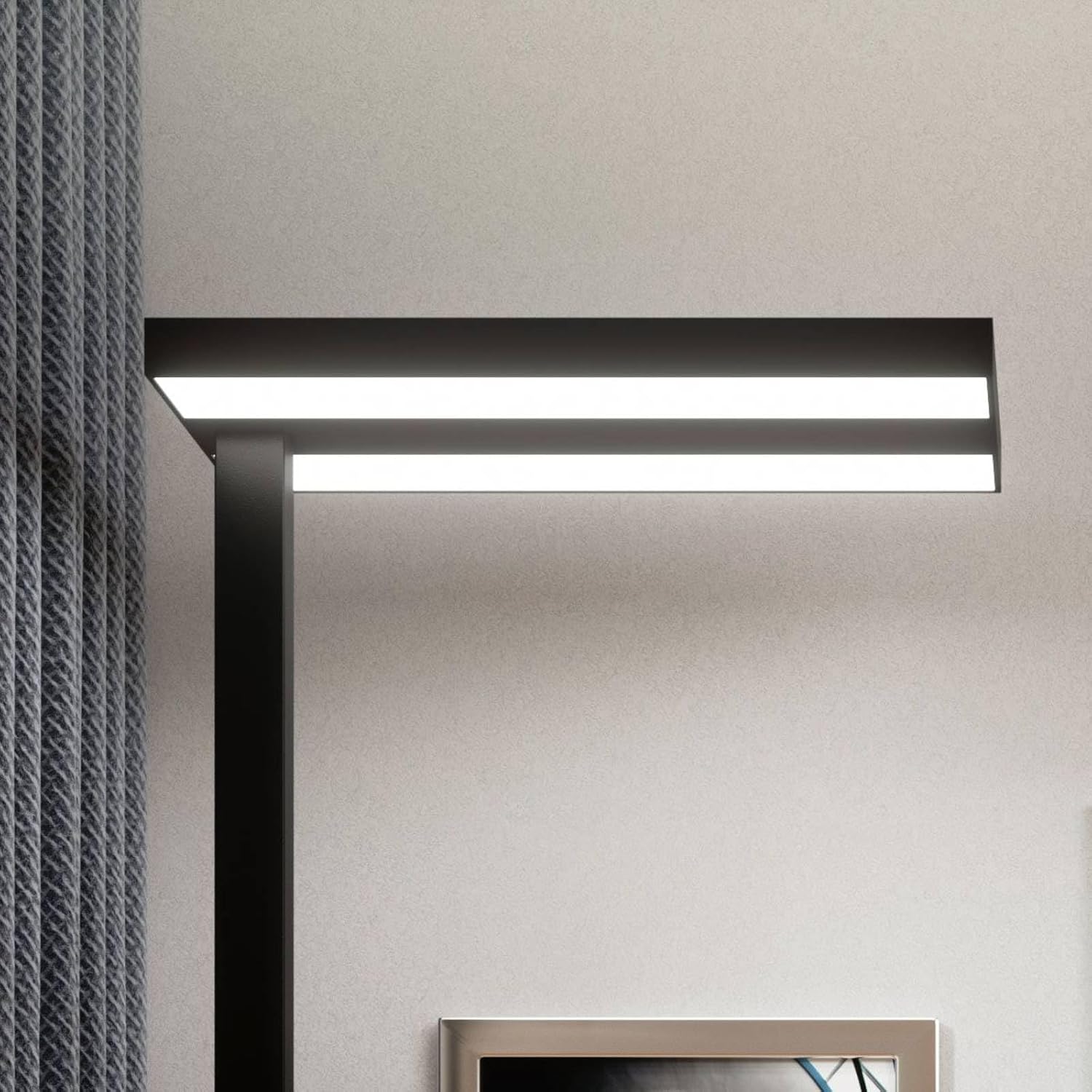

Figure 5.2: Close-up of the lamp head with the LED lights illuminated, showing the dual light strips and the prismatic diffuser.

6. Maintenance

Regular maintenance will help ensure the longevity and optimal performance of your Arcchio LED Logan floor lamp.

• Cleaning: Disconnect the lamp from the power supply before cleaning. Use a soft, dry, lint-free cloth to wipe down the lamp body and diffuser. Do not use liquid cleaners, abrasive materials, or chemical solvents, as these can damage the finish or electrical components.
• LED Light Sources: The LED light sources are integrated and designed for a long lifespan. They are not user-replaceable. If the LEDs fail, the entire lamp head or unit may require professional service or replacement.
• Inspection: Periodically inspect the power cord and plug for any signs of damage. Ensure the base remains securely attached to the lamp body.

Figure 6.1: Detailed view of the prismatic diffuser on the underside of the lamp head, designed to provide glare-free light.

7. Troubleshooting

If you encounter issues with your Arcchio LED Logan floor lamp, refer to the following common troubleshooting steps:

If the problem persists after trying these steps, please contact customer support.

8. Specifications

Figure 8.1: The EU Energy Efficiency Label for the Arcchio Logan lamp, indicating an A+ rating under the previous system (equivalent to E under the new system).

9. Warranty and Support

For warranty information and customer support, please refer to the purchase documentation or contact the retailer where the product was purchased. Keep your proof of purchase for any warranty claims.

For technical assistance or inquiries, please visit the official Arcchio website or contact their customer service department.
