OMNI5 K2542 Motor & Trans Mount Set User Manual

1. Product Overview

The OMNI5 K2542 Motor & Trans Mount Set is a 3-piece kit designed for specific Saturn Ion models. This set provides essential support for the engine and transmission, reducing vibration and ensuring proper alignment within the vehicle's chassis.

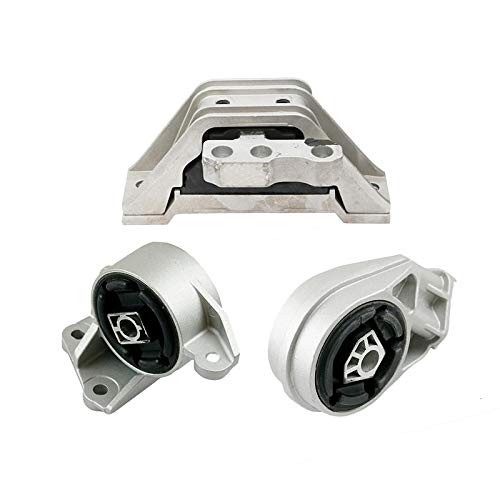

Figure 1: The OMNI5 K2542 Motor & Trans Mount Set, showing the front right motor mount and two transmission mounts.

This kit includes the following components:

• GP3108 / A5384 / EM3108: Motor Mount - Front Right
• GP3042 / A3042 / EM3042: Transmission Mount - Front
• GP3092 / A5395 / EM3092: Transmission Mount - Rear

This set is specifically compatible with 2003-2004 Saturn Ion 2.2L Sedan models equipped with a manual transmission.

2. Setup and Installation

Installation of engine and transmission mounts requires specialized tools and automotive knowledge. It is highly recommended that installation be performed by a certified professional mechanic.

2.1 Compatibility Verification

Before installation, ensure the product's compatibility with your vehicle. You can verify fitment by:

• Consulting your vehicle's service manual.
• Cross-referencing the part numbers with your existing mounts.
• Providing your Vehicle Identification Number (VIN) and transmission type to a qualified parts specialist or the manufacturer for confirmation.

2.2 Installation Procedure (Professional Guidance Recommended)

1. Safely lift and secure the vehicle on a hoist or jack stands.
2. Support the engine and transmission using appropriate lifting equipment to prevent damage or shifting.
3. Carefully remove the old engine and transmission mounts, noting their original positions and orientation.
4. Install the new OMNI5 mounts in the correct locations (Front Right Motor Mount, Front Transmission Mount, Rear Transmission Mount).
5. Ensure all bolts are torqued to the manufacturer's specifications.
6. Lower the vehicle and perform a final inspection.

Note: Improper installation can lead to vehicle damage, reduced performance, or safety hazards.

3. Operation

Engine and transmission mounts are passive components that function continuously during vehicle operation. Their primary role is to:

• Support Weight: Bear the weight of the engine and transmission assembly.
• Absorb Vibration: Dampen vibrations generated by the engine and drivetrain, preventing them from being transmitted to the vehicle's chassis and cabin.
• Maintain Alignment: Keep the engine and transmission properly aligned with the vehicle's driveline components.

Once correctly installed, these mounts operate silently and require no direct user interaction during vehicle use.

4. Maintenance

While engine and transmission mounts are designed for durability, regular inspection is recommended as part of routine vehicle maintenance to ensure their optimal performance and longevity.

4.1 Inspection Schedule

• Inspect mounts during every oil change or at least annually.
• Pay close attention if you notice increased vibrations or unusual noises from the engine bay.

4.2 What to Look For

• Cracks or Tears: Inspect the rubber components for any signs of cracking, tearing, or excessive wear.
• Fluid Leaks: Some mounts are fluid-filled; check for any signs of leakage.
• Excessive Movement: With the engine supported, check for excessive play or movement in the mounts.
• Corrosion: Inspect metal parts for rust or corrosion that could compromise structural integrity.

If any issues are detected, it is advisable to have the mounts replaced by a qualified technician to prevent further damage to the vehicle.

5. Troubleshooting

Issues with engine or transmission mounts often manifest through specific symptoms. If you experience any of the following, it may indicate a need for mount inspection or replacement:

• Excessive Vibration: Increased vibration felt in the steering wheel, floor, or seats, especially at idle or specific RPMs.
• Loud Clunking or Banging Noises: Sounds originating from the engine bay during acceleration, deceleration, shifting gears, or going over bumps.
• Engine Movement: Visible or excessive movement of the engine when starting, stopping, or shifting.
• Misaligned Components: Issues with exhaust pipes, driveshafts, or other components due to engine/transmission shifting.

If these symptoms occur, consult a professional mechanic for diagnosis and repair. Ignoring these signs can lead to more significant mechanical problems.

6. Specifications

7. Warranty and Support

7.1 Warranty Information

This OMNI5 product comes with a Five-Year Warranty, offering a one-time replacement for parts. This warranty covers defects in material and workmanship under normal use and service.

For warranty claims, please retain your proof of purchase and contact the manufacturer or authorized seller.

7.2 Customer Support

For technical assistance, installation inquiries, or any other support needs, please contact the manufacturer, Autopartsman Corporation, or your authorized dealer. When contacting support, please have your product model number (MK2542-03) and vehicle details readily available.

Note: Always refer to your vehicle's specific service manual for detailed repair and maintenance procedures.
