Introduction
This manual provides essential instructions for the safe and effective use of your Adventure Force Tactical Strike Quantum Motorized Ball Blaster. Please read this manual thoroughly before operating the blaster and retain it for future reference. The Quantum blaster is designed for competitive play, featuring fully automatic firing and a high-capacity round hopper.
Safety Information
WARNING: To avoid injury, do not aim at eyes or face. Use only official Adventure Force Tactical Strike Rounds. Other rounds may not meet safety standards and could cause injury. Do not modify the blaster or rounds.
- Always wear eye protection when using this blaster.
- Do not aim or fire at people or animals at close range.
- Keep fingers and other body parts clear of all moving parts and the firing mechanism.
- Adult supervision is recommended for younger users.
- Store the blaster and rounds out of reach of small children.
Package Contents
Ensure all items listed below are present in your package:
- 1 x Adventure Force Tactical Strike Quantum Motorized Ball Blaster
- 75 x Adventure Force Tactical Strike Rounds
Blaster Overview

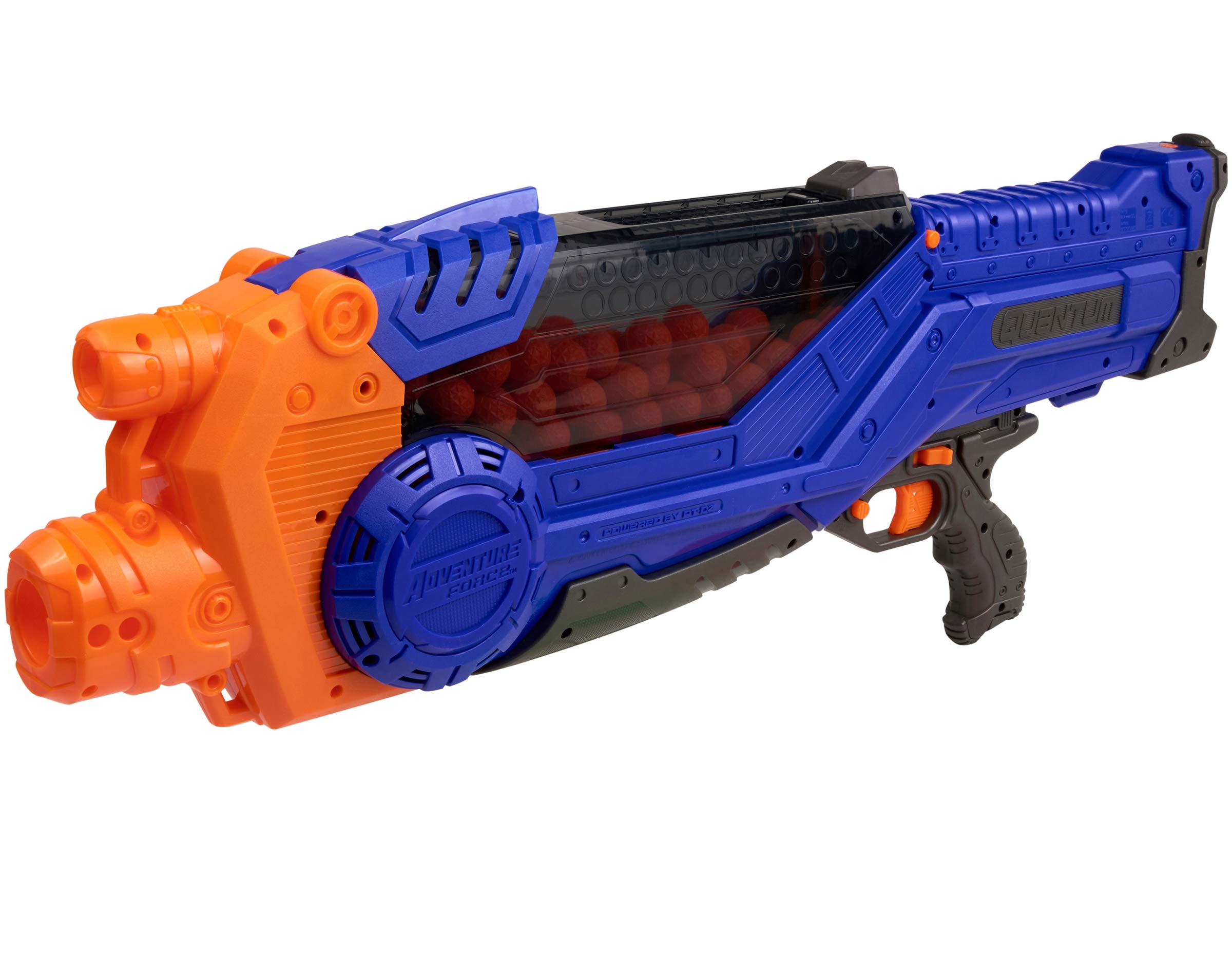

Figure 1: Adventure Force Tactical Strike Quantum Motorized Ball Blaster. This image displays the blaster's overall design, including the blue main body, orange front section, and the transparent hopper on top filled with red foam rounds.
The Quantum blaster features a robust design with a large capacity hopper for rounds. Key components include the trigger, grip, motorized firing mechanism, and the round loading port.
Setup
1. Power Source
The Adventure Force Tactical Strike Quantum Blaster is motorized. No user-replaceable batteries are required for operation. Ensure the blaster is fully charged or connected to its power source if applicable (refer to packaging for specific power requirements).
2. Loading Rounds
- Locate the clear hopper on top of the blaster.
- Open the hopper lid.
- Carefully pour up to 100 Adventure Force Tactical Strike Rounds into the hopper. Ensure rounds are not jammed or stacked improperly.
- Close the hopper lid securely.
Figure 2: Loading rounds into the transparent hopper. The image highlights the large capacity hopper designed for quick and easy loading of up to 100 rounds.
Operating Instructions
1. Powering On
Locate the power switch, typically found near the grip or on the side of the blaster. Slide the switch to the "ON" position. You may hear the motor rev up, indicating it is ready for firing.
2. Firing the Blaster
- Ensure eye protection is worn by all participants.
- Hold the blaster firmly with both hands.
- Aim at a safe target, away from eyes and face.
- Press and hold the trigger to engage the fully automatic firing mechanism. Rounds will be propelled rapidly from the muzzle.
- Release the trigger to stop firing.
3. Powering Off
When finished playing, slide the power switch to the "OFF" position to conserve power and prevent accidental firing.
Maintenance
Cleaning
- Wipe the exterior of the blaster with a clean, damp cloth. Do not submerge the blaster in water.
- Ensure no dirt or debris enters the firing mechanism or hopper.
Storage
- Store the blaster in a cool, dry place away from direct sunlight.
- Remove all rounds from the hopper before storing for extended periods.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Blaster does not fire. | Power switch is OFF. Rounds are jammed. Low power (if rechargeable). | Ensure power switch is ON. Clear any jammed rounds from the hopper or firing mechanism. Recharge the blaster if it has an internal battery. |
| Rounds are not feeding properly. | Hopper lid not closed. Rounds are damaged or not official. Hopper is overfilled. | Ensure hopper lid is securely closed. Use only official, undamaged Adventure Force Tactical Strike Rounds. Do not overfill the hopper; ensure rounds can move freely. |
| Rounds fire weakly. | Low power (if rechargeable). Rounds are wet or damaged. | Recharge the blaster. Use dry, undamaged rounds. |
Specifications
- Model Number: 5505
- Brand: Adventure Force
- Product Type: Motorized Ball Blaster
- Round Capacity: Up to 100 rounds
- Included Rounds: 75 Tactical Strike Rounds
- Dimensions: Approximately 30 x 12 x 4 inches (76.2 x 30.5 x 10.2 cm)
- Weight: Approximately 5.8 Pounds (2.63 kg)
- Material: Plastic
- Power Source: Motorized (No user-replaceable batteries required)
- Recommended Age: Kid (Refer to product packaging for specific age recommendations)
Warranty and Support
For warranty information or product support, please refer to the contact details provided on the product packaging or visit the official Adventure Force website. Keep your purchase receipt as proof of purchase.
