Introduction
Thank you for purchasing the BELLA 5.3 Quart Touchscreen Convection Air Fryer. This appliance utilizes high-performance Circular Heat Technology to cook food evenly and efficiently with little to no oil, offering a healthier alternative to traditional frying. This manual provides essential information for safe operation, setup, use, and maintenance of your air fryer. Please read all instructions carefully before first use and retain for future reference.
Important Safety Instructions
- Read all instructions before operating the appliance.
- Do not touch hot surfaces. Use handles or knobs.
- To protect against electrical shock, do not immerse cord, plugs, or the main unit in water or other liquid.
- Close supervision is necessary when any appliance is used by or near children.
- Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
- Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
- Do not use outdoors.
- Do not let cord hang over edge of table or counter, or touch hot surfaces.
- Do not place on or near a hot gas or electric burner, or in a heated oven.
- Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
- Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
- Do not use appliance for other than intended use.
- Ensure the air fryer is placed on a stable, heat-resistant surface.
- Do not block any ventilation openings.
Product Overview
Components
The BELLA 5.3 Quart Touchscreen Convection Air Fryer consists of the main unit, a removable frying basket, and a drawer.

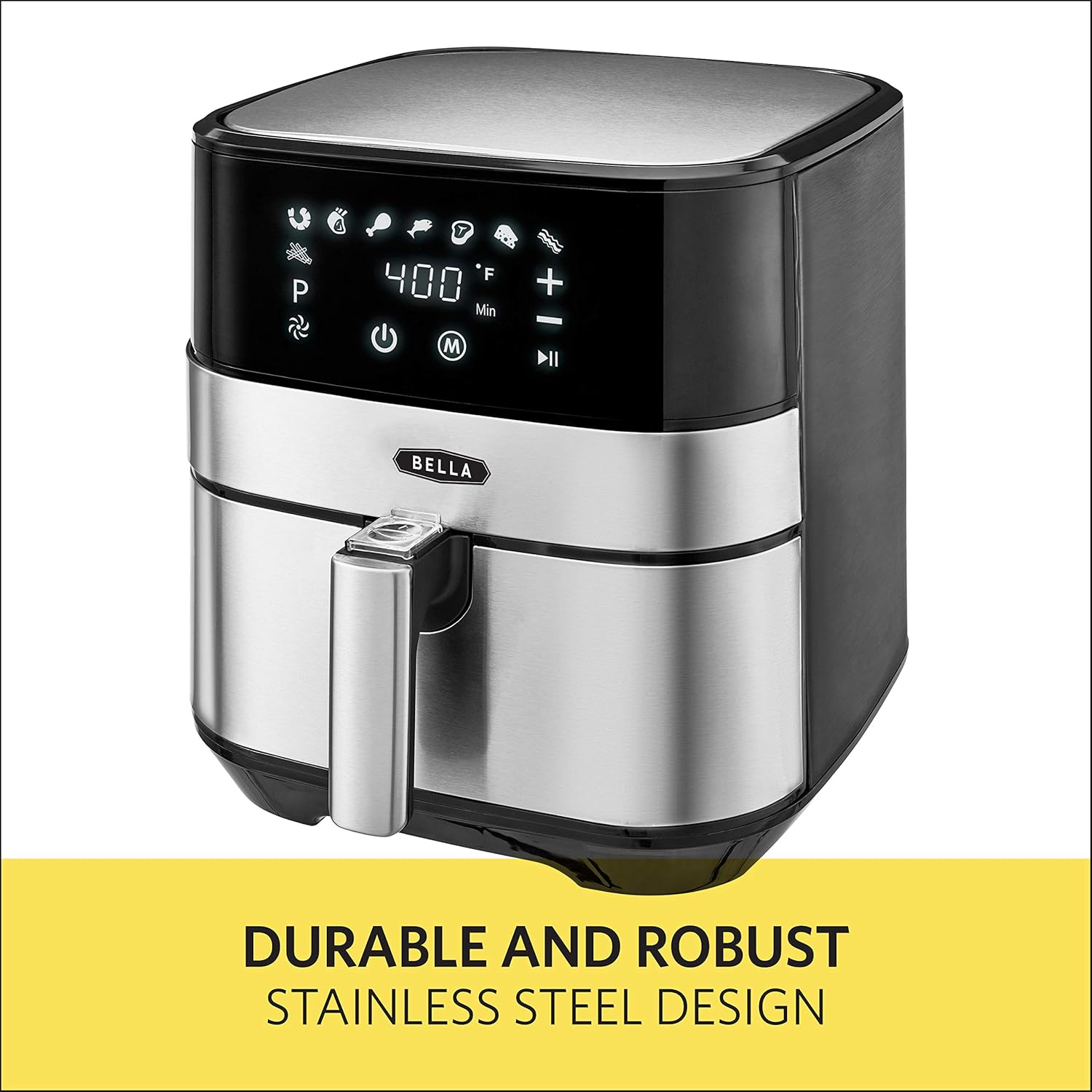

Image: The BELLA 5.3 Quart Touchscreen Convection Air Fryer, showcasing its sleek design and stainless steel finish, positioned on a kitchen counter.
Image: A top-down view of the air fryer's internal basket, highlighting its 4.4lb food capacity, suitable for a whole chicken or multiple servings of fries.
Digital Touchscreen Interface
The air fryer features an intuitive digital touchscreen for easy control of cooking settings.
Image: A detailed view of the air fryer's digital touchscreen, displaying temperature (400°F) and time settings, along with various preset icons.
Setup
- Unpacking: Carefully remove all packaging materials and promotional labels from your air fryer.
- Initial Cleaning: Wash the frying basket and drawer with warm, soapy water. Rinse thoroughly and dry completely. Wipe the exterior of the air fryer with a damp cloth.
- Placement: Place the air fryer on a stable, level, heat-resistant surface, away from walls and other appliances to allow for proper air circulation. Ensure there is at least 6 inches of space on all sides.
- Power Connection: Plug the power cord into a grounded electrical outlet.
Operating Instructions
Basic Operation
- Prepare Food: Place your desired food into the frying basket. Do not overfill the basket to ensure even cooking.
- Insert Basket: Slide the drawer with the basket firmly into the air fryer.
- Power On: Press the power icon on the touchscreen to turn on the appliance.
- Set Temperature and Time: Use the temperature and time adjustment buttons (+/-) to set your desired cooking temperature (up to 400°F) and time.
- Start Cooking: Press the play/pause icon to begin the cooking cycle.
- Easy Check Function: You can pull out the drawer at any time during operation to check or shake your food. The air fryer will automatically pause and resume cooking once the drawer is reinserted.
- Completion: The air fryer will beep when the cooking cycle is complete. Carefully remove the drawer and basket.
Using Preset Functions
The air fryer includes several preset functions for common foods. To use a preset:
- After powering on, select the desired preset icon on the touchscreen. The air fryer will automatically set the recommended temperature and time.
- You can adjust the temperature and time manually after selecting a preset if needed.
- Press the play/pause icon to start cooking.
Image: An internal diagram illustrating the high-performance Circular Heat Technology, showing how hot air circulates to ensure food is cooked crisply and evenly.
Cleaning and Maintenance
Proper cleaning and maintenance will extend the life of your BELLA Air Fryer.
- Before Cleaning: Always unplug the air fryer from the power outlet and allow it to cool completely before cleaning.
- Frying Basket and Drawer: The frying basket and drawer are dishwasher safe for easy cleaning. For stubborn food residue, soak in warm, soapy water before washing.
- Exterior: Wipe the exterior of the air fryer with a damp cloth. Do not use abrasive cleaners or scourers, as they may damage the finish.
- Interior: Wipe the interior with a damp cloth. If necessary, use a mild detergent.
- Storage: Ensure all parts are clean and dry before storing the air fryer in a cool, dry place.
Image: A hand demonstrating the easy removal of the air fryer basket, filled with golden french fries, for serving or cleaning.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Air fryer does not turn on. | Appliance is not plugged in or power outlet is not working. | Ensure the power cord is securely plugged into a working electrical outlet. |
| Food is not cooked evenly. | Basket is overfilled; food needs shaking. | Do not overfill the basket. Shake the basket halfway through the cooking time. |
| Food is not crispy. | Not enough oil (if applicable) or temperature/time settings are incorrect. | Lightly spray food with oil. Adjust temperature or increase cooking time. |
| White smoke comes from the appliance. | Grease residue from previous use; fatty food being cooked. | Clean the basket and drawer thoroughly after each use. This is normal for fatty foods. |
Specifications
- Model Number: 14734
- Capacity: 5.3 Quarts (5.02 Liters)
- Wattage: 1750 Watts
- Max Temperature: 400°F (204°C)
- Control Method: Touchscreen Digital Interface
- Material: Stainless Steel, Plastic
- Dimensions: 16.14 x 14.37 x 14.25 inches
- Item Weight: 16.4 Pounds
- Dishwasher Safe Parts: Basket and Drawer
- Air Frying Technology: Circular Heat Technology
Warranty and Support
For warranty information or product support, please refer to the warranty card included with your purchase or visit the official BELLA website. Do not attempt to repair the appliance yourself. Contact qualified service personnel for assistance.
