1. Product Overview
The Tripp Lite P036-L10 is a heavy-duty C20 to C19 power cord designed for connecting network devices that require a robust power connection. This 10-foot cable features 12 AWG wire, suitable for high-power applications, and supports 20A at 100-250V. It is an ideal solution for connecting servers, routers, switches, blade server enclosures, or other network equipment to a UPS system or PDU.
Key features include:
- Heavy-Duty Construction: 12 AWG wire for high-power connections (20A, 100-250V).
- Locking C19 Connector: Helps prevent accidental disconnections, ensuring continuous power supply to critical equipment.
- Versatile Use: Connects devices with C20 and C19 connectors, or extends existing power connections.
- Durability: Rugged design with integral strain relief for long-lasting performance.
- Compliance: Meets strict RoHS specifications and is UL listed.

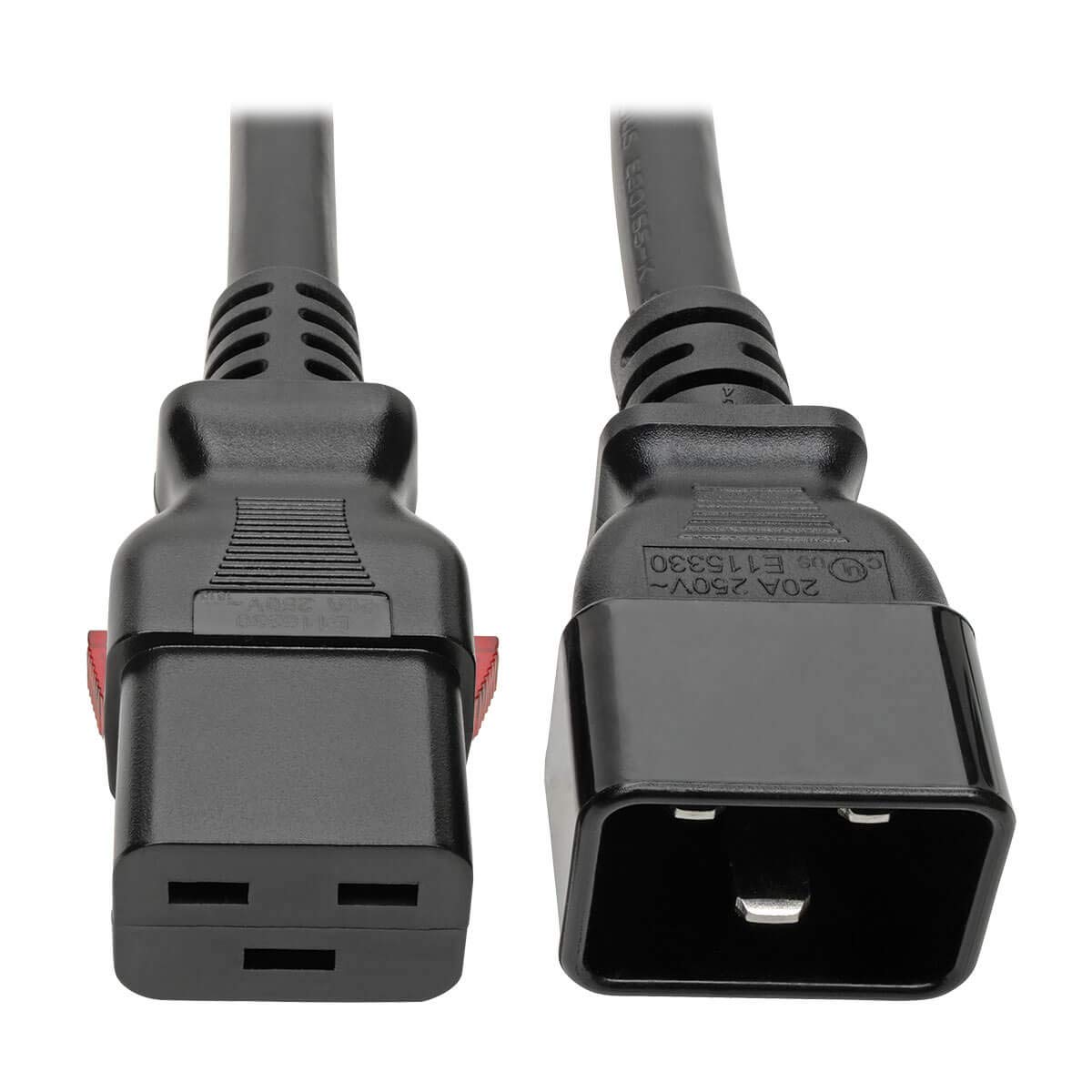

Figure 1: Overall view of the Tripp Lite P036-L10 heavy-duty C20 to C19 locking power cord, coiled.
2. Setup and Installation
This power cord is designed for straightforward installation. Ensure all equipment is powered off before making connections.
- Identify Connectors: Locate the C20 inlet on your power source (e.g., UPS, PDU) and the C19 inlet on your device (e.g., server, switch).
- Connect C20 End: Insert the C20 male connector of the P036-L10 power cord into the C20 inlet of your power source. Ensure it is fully seated.
- Connect C19 End: Insert the C19 female connector of the P036-L10 power cord into the C19 inlet of your device. The locking mechanism on the C19 connector will engage to secure the connection.
- Verify Connection: Gently tug on both ends of the cable to ensure they are securely connected and the locking mechanism on the C19 end is engaged.
- Power On: Once both ends are securely connected, you may power on your equipment.

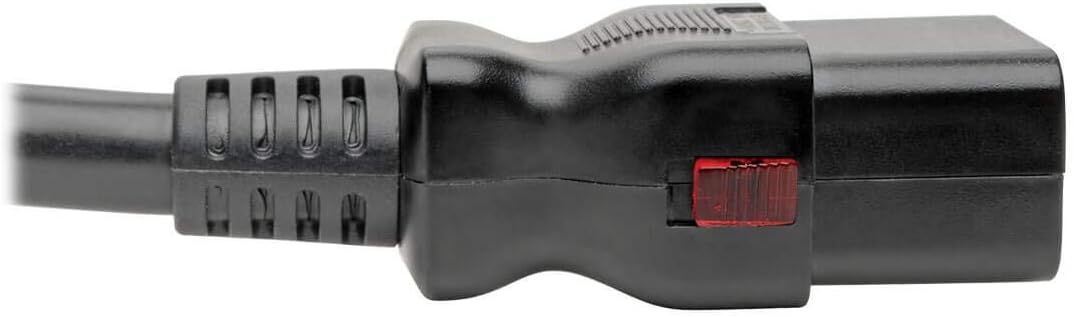

Figure 2: Close-up view of the locking C19 female connector, showing the red locking tab.
Figure 3: Close-up view of the C20 male connector.
3. Operating Instructions
The Tripp Lite P036-L10 power cord operates passively to transmit electrical power. No user interaction is required during operation once properly connected.
- Ensure the power cord is not bent sharply or placed under heavy objects to prevent damage.
- The locking C19 connector provides a secure connection. To disconnect, firmly grasp the connector body and pull it straight out from the device inlet. Avoid pulling on the cable itself.
4. Maintenance
Regular maintenance helps ensure the longevity and safe operation of your power cord.
- Visual Inspection: Periodically inspect the entire length of the cable and both connectors for any signs of damage, such as cuts, fraying, cracks, or discoloration.
- Cleaning: If necessary, gently wipe the cable and connectors with a dry, soft cloth. Do not use liquid cleaners or solvents.
- Storage: When not in use, store the power cord in a cool, dry place, loosely coiled to prevent kinks or damage.
- Avoid Over-bending: Do not bend the cable sharply, especially near the connectors, as this can damage the internal wiring.
5. Troubleshooting
If you experience issues with power delivery, consider the following troubleshooting steps:
- No Power to Device:
- Ensure both the C20 and C19 connectors are fully and securely seated.
- Verify that the power source (UPS, PDU, wall outlet) is active and supplying power.
- Check the device's power switch and internal fuses (if applicable).
- Test with a different, known-working power cord if available, to rule out the cord as the issue.
- Intermittent Power:
- Check for loose connections at both ends. The locking C19 connector should prevent this, but re-seat it if necessary.
- Inspect the cable for any visible damage that might cause intermittent contact.
If problems persist after these steps, contact Tripp Lite technical support.
6. Specifications
| Feature | Detail |
|---|---|
| Model Number | P036-L10 |
| Connectors | IEC-320-C20 Male to IEC-320-C19 Female (Locking) |
| Cable Length | 10 ft. (3.05 m) |
| Wire Gauge | 12 AWG |
| Voltage Rating | 100-250V |
| Current Rating | 20A |
| Color | Black |
| Compliance | RoHS, UL Listed |
| Product Dimensions (LxWxH) | 12.8 x 8.59 x 12.8 inches (packaged) |
| Item Weight | 1.51 pounds |
7. Warranty and Support
The Tripp Lite P036-L10 power cord is backed by a lifetime limited warranty, ensuring reliability and performance.
- Warranty: Lifetime Limited Warranty.
- Technical Support: Free Chicago-based Technical Support is available for any issues or inquiries.
For warranty claims or technical assistance, please visit the official Tripp Lite website or contact their customer service department.
