Cutex Even Feed Walking Foot with Quilt Guide

Introduction

The Cutex Even Feed Walking Foot with Quilt Guide (Model SA107) is an essential accessory designed to enhance the performance of your Brother domestic sewing machine. This specialized presser foot features a moving feed system that works in conjunction with your machine's lower feed dogs to evenly advance fabric layers. This prevents shifting, puckering, and uneven stitching, especially when working with challenging materials or multiple fabric layers.

It is particularly beneficial for tasks such as quilting, matching patterns (like plaids or stripes), and sewing on slippery or bulky fabrics where fabric drift can be an issue.

Product Overview

The Cutex Even Feed Walking Foot SA107 includes the main walking foot mechanism and an adjustable quilt guide. The walking foot's design ensures that both the top and bottom layers of fabric are fed through the machine at the same rate, promoting consistent stitch quality.

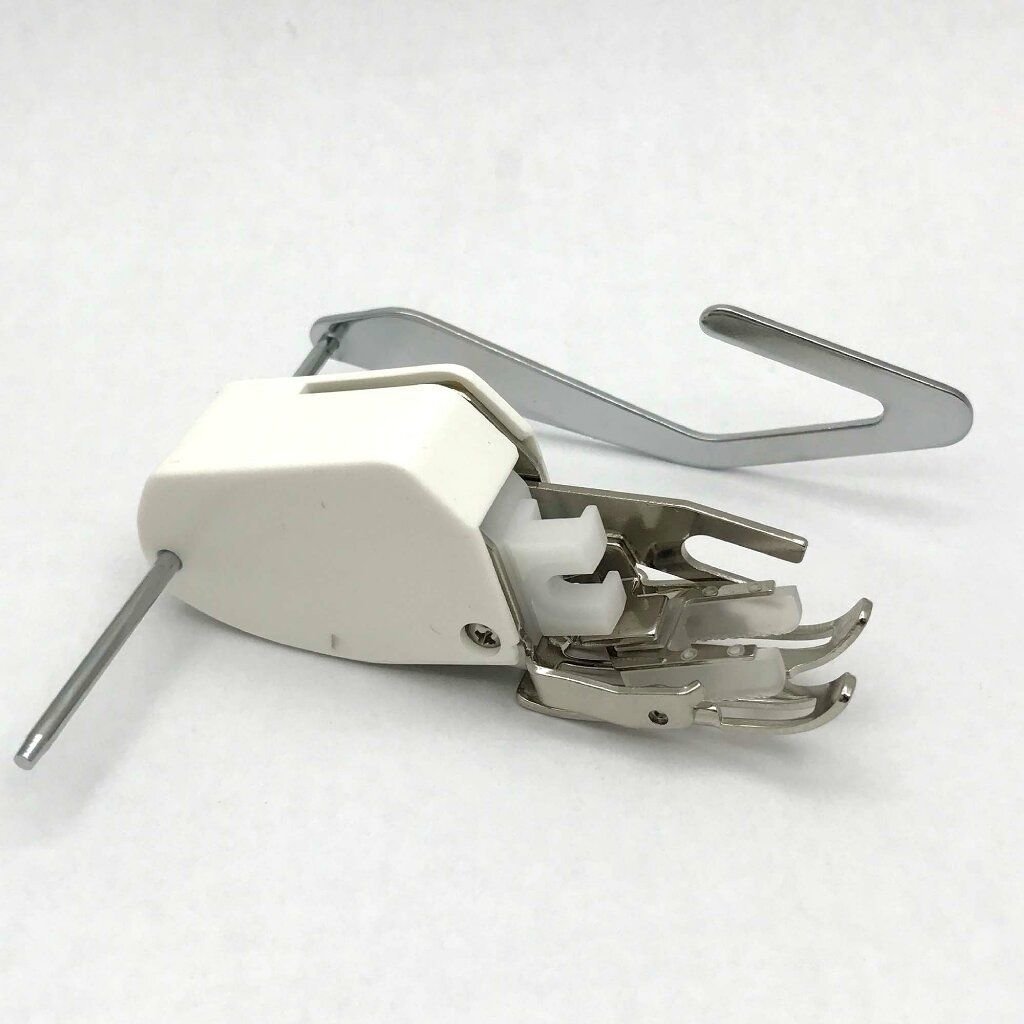

Image: The Cutex Even Feed Walking Foot SA107, showing its main body and the attached quilt guide.

The quilt guide, typically a metal bar, can be inserted into a slot on the walking foot. It helps maintain a consistent seam allowance or spacing between quilting lines, ensuring precise and professional results.

Setup and Installation

1. Power Off: Always ensure your sewing machine is turned off and unplugged before installing or removing any accessories.
2. Remove Current Presser Foot: Raise the needle to its highest position. Loosen the screw that holds the current presser foot in place and remove it.
3. Attach Walking Foot: Position the walking foot so that the 'arm' of the walking foot rests over the needle bar clamp screw. Align the foot with the presser foot holder.
4. Secure the Foot: Tighten the screw to firmly secure the walking foot to the presser foot holder. Ensure the arm is correctly positioned over the needle bar clamp screw, as this is crucial for the walking foot's movement.
5. Insert Quilt Guide (Optional): If using the quilt guide, slide it into the designated slot on the back of the walking foot. Adjust its position to achieve the desired seam allowance or quilting line spacing.
6. Test: Gently lower the presser foot lever and manually turn the handwheel to ensure the needle clears the foot and the walking foot mechanism moves freely.

Note: Always refer to your specific Brother sewing machine's instruction manual for detailed guidance on attaching presser feet, as procedures may vary slightly between models.

Operating Instructions

Once installed, the Even Feed Walking Foot is ready for use. It is ideal for:

• Quilting: Use the quilt guide to sew parallel lines for quilting. Adjust the guide to maintain consistent spacing.
• Matching Patterns: When sewing fabrics with plaids, stripes, or other patterns, the walking foot helps prevent fabric shifting, ensuring patterns align correctly.
• Multiple Layers: Effectively feeds multiple layers of fabric, batting, or interfacing without bunching or stretching.
• Slippery Fabrics: Provides better control over delicate or slippery fabrics like silk, satin, or chiffon.
• Bulky Fabrics: Manages thicker materials such as denim, corduroy, or upholstery fabrics with ease.

Important Considerations:

• The walking foot is designed for forward stitching. It is not recommended for use in reverse, side-to-side sewing, or with certain built-in stitches that involve non-forward movement of the feed dogs. Using it in these modes may damage the foot or your machine.
• Adjust your stitch length as needed for your project.
• Always perform a test stitch on scrap fabric to ensure proper tension and stitch quality before beginning your project.

Maintenance

To ensure the longevity and optimal performance of your Cutex Even Feed Walking Foot SA107:

• Cleaning: Periodically remove any lint or thread buildup from the foot, especially around the feed dogs and moving parts, using a small brush or tweezers.
• Storage: Store the walking foot in a clean, dry place when not in use to prevent dust accumulation and potential damage.
• Inspection: Regularly inspect the foot for any signs of wear or damage. If any parts appear bent or broken, discontinue use and consider replacement.

Troubleshooting

• Fabric Not Feeding Evenly:
  • Ensure the walking foot's arm is correctly positioned over the needle bar clamp screw. If it's not, the foot's upper feed mechanism will not engage.
  • Check for lint or thread buildup under the foot or around the machine's feed dogs.
  • Verify that the presser foot pressure is set correctly for your fabric type (refer to your machine manual).
• Skipped Stitches:
  • Ensure the needle is inserted correctly and is not bent or dull. Replace if necessary.
  • Check that the walking foot is securely attached and not loose.
  • Re-thread your machine, ensuring the thread is properly seated in all guides and tension discs.
• Foot Not Moving:
  • The arm of the walking foot must be resting on the needle bar clamp screw for the foot to operate. Re-attach the foot if necessary.
  • Ensure the machine's feed dogs are engaged (not dropped for free-motion quilting).

Specifications

Compatibility

The Cutex Even Feed Walking Foot SA107 is compatible with a wide range of Brother domestic sewing machine models. Please verify your machine's compatibility by checking your sewing machine manual or the manufacturer's website. Known compatible models include, but are not limited to:

Warranty and Support

For information regarding warranty coverage, returns, or technical support for your Cutex Even Feed Walking Foot SA107, please refer to the retailer where the product was purchased or contact Cutex Sewing Supplies directly. Keep your purchase receipt as proof of purchase.

For general inquiries or to find more information about Cutex products, you may visit the official Cutex website or contact their customer service department.
