1. Introduction
This manual provides instructions for the proper use and maintenance of the Zodiac R0697100 Manual Vacuum Head Adapter Hose. This adapter allows you to connect a Zodiac twist-lock pool cleaner hose to a standard 1.5-inch manual vacuum head, enabling versatile pool cleaning without requiring a separate hose.
2. Safety Information
Always follow general pool safety guidelines when operating pool equipment. Ensure all connections are secure before starting the pump to prevent leaks or loss of suction. Keep the adapter away from children when not in use.
3. Product Overview
The Zodiac R0697100 is a yellow plastic adapter designed to bridge the connection between a Zodiac twist-lock hose and a standard 1.5-inch manual pool vacuum head. Its robust construction ensures durability for regular pool maintenance tasks.

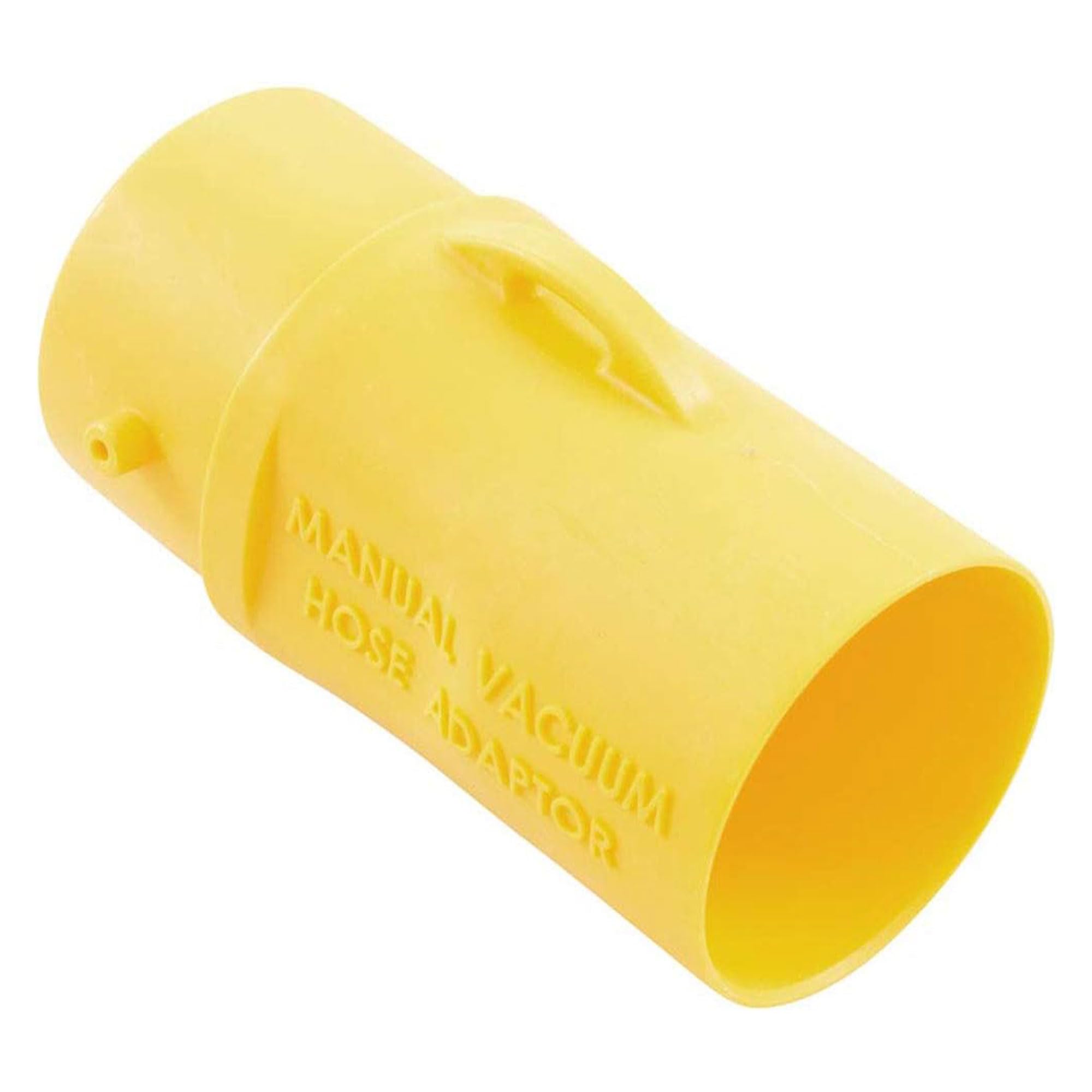

Figure 1: Zodiac R0697100 Manual Vacuum Head Adapter Hose. This image shows the yellow adapter, highlighting its design for connecting pool hoses to vacuum heads.
Figure 2: Close-up view of the adapter, showing the embossed text "MANUAL VACUUM HOSE ADAPTOR" and its sturdy construction.
4. Setup Instructions
- Prepare Equipment: Ensure your Zodiac twist-lock hose and manual vacuum head are clean and free of debris.
- Connect to Vacuum Head: Insert the wider, non-twist-lock end of the R0697100 adapter into the suction port of your standard 1.5-inch manual vacuum head. Ensure a snug fit.
- Connect to Zodiac Hose: Attach the Zodiac twist-lock hose to the narrower end of the R0697100 adapter. Twist the hose connector until it locks securely into place.
- Verify Connections: Double-check that both connections are firm to prevent air leaks, which can reduce suction efficiency.
Figure 3: Illustration of the adapter being connected to a manual pool vacuum head, demonstrating the proper attachment method.
5. Operating Instructions
Once the adapter is securely connected to both your Zodiac hose and manual vacuum head, proceed with your standard pool vacuuming procedure. Submerge the vacuum head and hose assembly into the pool, ensuring all air is expelled from the hose before connecting it to the skimmer or dedicated vacuum line. Operate your pool pump as usual to begin vacuuming.
6. Maintenance
The R0697100 adapter requires minimal maintenance. After each use, rinse the adapter with fresh water to remove any pool chemicals or debris. Store it in a cool, dry place away from direct sunlight to prolong its lifespan. Inspect the adapter periodically for cracks or damage; replace if necessary to maintain optimal performance.
7. Troubleshooting
- Loose Connection to Vacuum Head: If the adapter fits loosely into your manual vacuum head, ensure it is fully inserted. Some users have found that a small amount of waterproof sealant or a tek screw can provide a more permanent and secure connection if a loose fit persists.
- Loss of Suction: Check all connections (adapter to vacuum head, hose to adapter, hose to skimmer/vacuum line) for air leaks. Ensure the hose is fully primed with water before connecting to the suction source.
- Adapter Detaches: If the adapter detaches during operation, verify that it is securely attached to both the vacuum head and the Zodiac hose. A very strong pump or specific hose types might cause detachment if the fit is not tight enough.
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | R0697100 |
| Brand | Zodiac |
| Material | Plastic |
| Color | Yellow |
| Connector Type | Adapter |
| Thread Size | 1.5 inches |
| Item Dimensions (L x W x H) | 6 x 2.4 x 2.2 inches |
| Item Weight | 0.02 Kilograms |
Figure 4: Dimensional diagram of the adapter, illustrating its length, width, and inner diameter for compatibility reference.
9. Warranty and Support
For warranty information and customer support regarding your Zodiac R0697100 Manual Vacuum Head Adapter Hose, please refer to the official Zodiac website or contact their customer service directly. Specific warranty terms may vary by region and retailer.
Zodiac Official Website: www.zodiac.com
