1. Introduction
The Grainfather Wortometer is an essential accessory designed to integrate seamlessly with your Grainfather brewing system, particularly with the Grainfather Connect Control Box thermometer. This device allows for precise measurement and control of wort temperature during transfer from the counterflow cooler to the fermentation tank. Accurate temperature control is crucial for optimal yeast health and fermentation, helping to prevent off-flavors and reduce latency periods.

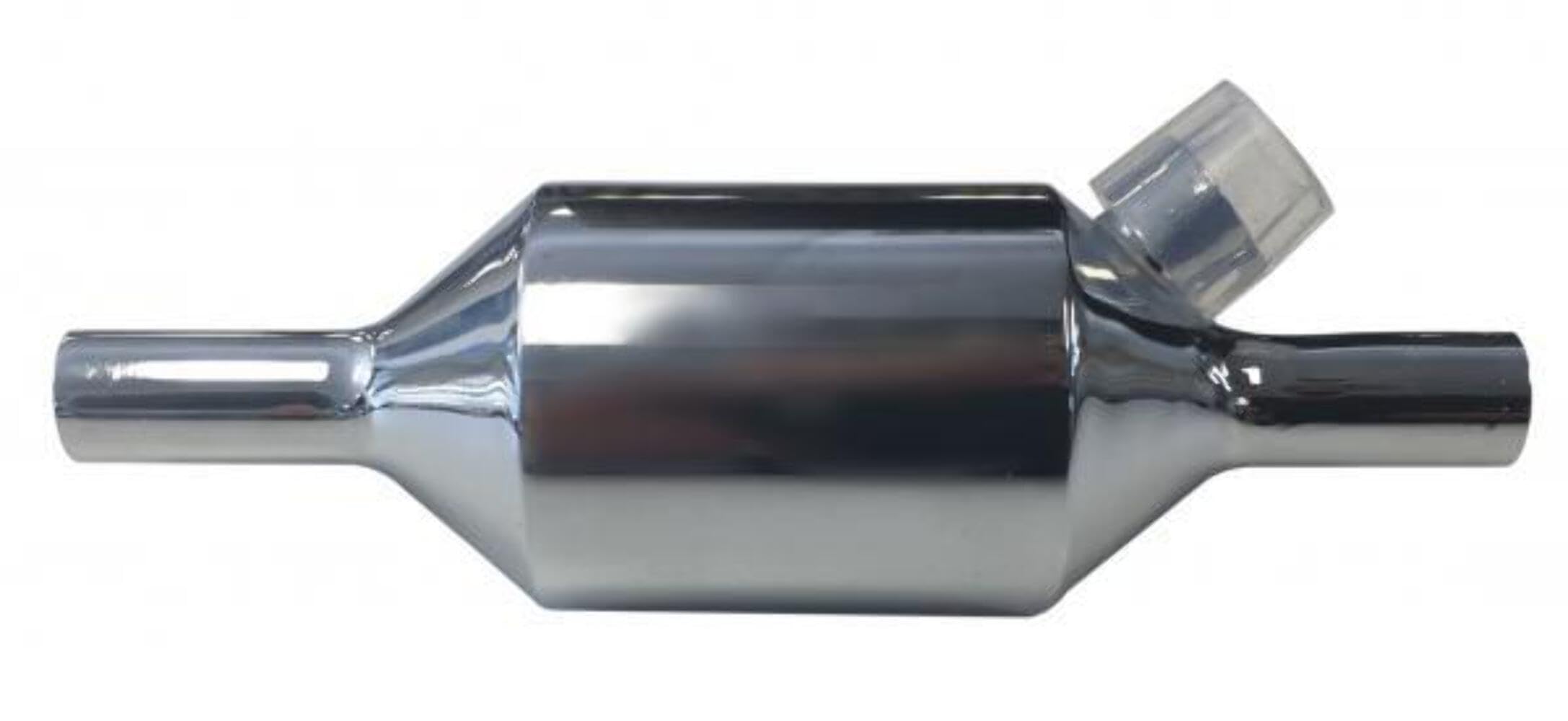

Image: The Grainfather Wortometer, a cylindrical device with hose connections and a port for a temperature probe.
2. Safety Instructions
- Always handle hot wort with extreme caution. Wear appropriate personal protective equipment, including heat-resistant gloves and eye protection.
- Ensure all hose connections are secure and properly clamped to prevent leaks, which can cause burns or create slippery surfaces.
- Do not operate the Wortometer if any part appears damaged or compromised.
- Keep the device clean and free from debris to ensure accurate readings and prevent contamination.
3. Package Contents
The Grainfather Wortometer package includes:
- 1 x Grainfather Wortometer unit
Note: An 8mm inner diameter silicone hose is required for operation and is sold separately.
4. Setup
Follow these steps to set up your Grainfather Wortometer:
- Connect Hoses: Attach an 8mm inner diameter silicone hose from the outlet of your Grainfather counterflow cooler to one end of the Wortometer. Connect another 8mm inner diameter silicone hose from the other end of the Wortometer to your fermentation vessel.
- Secure Connections: Ensure all hose connections are tight and secure. It is highly recommended to use hose clamps on all connections to prevent leaks, especially when dealing with hot wort.
- Insert Temperature Probe: Carefully insert the temperature probe from your Grainfather Connect Control Box into the designated thermowell port on the Wortometer. Ensure the probe is fully seated to obtain accurate temperature readings. If the probe feels loose, ensure the silicone seal is correctly positioned or consider additional securing methods if necessary to prevent it from dislodging during transfer.
- Positioning: Position the Wortometer so that it is stable and the hoses are not kinked, allowing for smooth wort flow.
5. Operating Instructions
Once the Wortometer is set up, follow these steps during your brewing process:
- Initiate Wort Transfer: Begin transferring wort from your Grainfather brewing system through the counterflow cooler and into the Wortometer.
- Monitor Temperature: Observe the wort temperature displayed on your Grainfather Connect Control Box. This reading represents the temperature of the wort as it exits the counterflow cooler and enters the fermentation vessel.
- Adjust Flow Rates: Based on the desired pitching temperature for your specific yeast strain, adjust the flow rate of both the wort and the cooling water through your counterflow cooler. A slower wort flow or increased cooling water flow will result in a lower wort temperature.
- Achieve Target Temperature: Continue to monitor and adjust until the wort reaches your target fermentation temperature before it enters the fermenter. This precise control helps to avoid temperature shock to the yeast and ensures a consistent fermentation start.
6. Maintenance
Proper maintenance ensures the longevity and hygiene of your Wortometer:
- Cleaning After Use: Immediately after each use, rinse the Wortometer thoroughly with warm water to remove any wort residue.
- Sanitization: Sanitize the Wortometer along with your other cold-side brewing equipment before each use to prevent contamination. Follow standard sanitization protocols for brewing equipment.
- Inspection: Regularly inspect the Wortometer for any signs of wear, damage, or blockages. Ensure the thermowell port is clear.
- Storage: Store the Wortometer in a clean, dry place away from direct sunlight and extreme temperatures.
7. Troubleshooting
| Issue | Possible Cause | Solution |
|---|---|---|
| Wort leaks from connections | Loose hose connections; inadequate clamping. | Ensure hoses are fully seated and secured with appropriate hose clamps. Inspect hoses for damage. |
| Temperature probe falls out or is loose | Probe not fully inserted; silicone seal misaligned or worn. | Push the probe firmly into the thermowell. Check the silicone seal for proper placement and condition. Consider using a small piece of tape or a wider tube around the probe for a more secure fit if necessary. |
| Inaccurate temperature readings | Probe not fully inserted; air pocket in thermowell; faulty probe. | Ensure the temperature probe is fully inserted into the thermowell. Verify the probe is clean and functioning correctly with another temperature source if possible. |
| Slow wort flow | Kinked hoses; blockage in Wortometer or hoses. | Check all hoses for kinks. Disassemble and clean the Wortometer and hoses to remove any blockages. |
8. Specifications
- Model Number: 10328
- Product Dimensions: 4.72 x 1.57 x 1.57 inches (120 x 40 x 40 mm)
- Item Weight: 2.2 pounds (1 kg)
- Manufacturer: Grainfather
- Hose Compatibility: Requires 8mm inner diameter silicone hose
9. Warranty and Support
For warranty information, technical support, or replacement parts, please contact Grainfather customer service. Refer to the official Grainfather website or your product's original packaging for specific contact details and warranty terms applicable to your region.
