1. Introduction
Thank you for choosing the Belmint Full Body Vibration Massage Mat with Shiatsu Neck Pillow, Model BEL-NMM. This manual provides essential information for the safe and effective use, setup, operation, maintenance, and troubleshooting of your massage mat. Please read this manual thoroughly before first use and retain it for future reference.
Image: A woman relaxing on the Belmint Full Body Vibration Massage Mat, demonstrating its full body coverage and comfortable design on a sofa.
2. Important Safety Instructions
To reduce the risk of electric shock, burns, fire, or injury, always follow these basic safety precautions:
- Always read and follow the user manual before using the massager.
- Do not use the massager if you have any medical conditions, are pregnant, or have recently had surgery without consulting your doctor.
- Keep the massager away from water and do not use it while sleeping to prevent overheating or burns.
- Do not use the heating function for more than 15 minutes at a time to avoid skin irritation.
- If you experience any discomfort or pain while using the massager, stop using it immediately and consult a medical professional.
- Ensure the power cord is not damaged and is properly connected to a suitable power source.
- Do not attempt to repair or modify the massager yourself. Contact qualified service personnel for any repairs.
3. Product Features
- Full Body Vibration Massage: Equipped with 10 powerful vibration motors designed to provide a therapeutic and relaxing massage across the entire body. Note: This mat primarily uses vibration massage. The neck pillow incorporates Shiatsu kneading.
- Integrated Shiatsu Neck Pillow: Features 4 deep-kneading Shiatsu massage nodes specifically targeting the neck and shoulder areas to relieve tension and discomfort.
- Soothing Heat Function: An optional heat function is available to enhance relaxation and improve blood circulation in the back, neck, and shoulders. Includes a 15-minute safety auto shut-off.
- Customizable Massage Settings: Offers 5 distinct vibration modes, 4 selective massage zones (neck, back, lumbar, legs), and 3 intensity levels (Low, Medium, High) for a personalized massage experience.
- Comfortable and Portable Design: Constructed with soft plush polyester fabric for comfort. The mat is foldable for easy storage and portability, suitable for use on various surfaces such as beds, couches, chairs, or floors.
Image: Visual representation of the massage mat's key features including intensity levels, massage modes, heat function, and remote control.
4. Setup Instructions
- Unpack the Mat: Carefully remove the massage mat and all accessories from its packaging.
- Position the Mat: Place the massage mat on a flat, stable surface such as a bed, couch, chair, floor, or recliner. Ensure there is enough space for comfortable use.
- Connect Power: Plug the power adapter into the mat's power input, then plug the adapter into a standard electrical outlet. Ensure the connection is secure.
- Prepare for Use: Lie down on the mat, positioning your body comfortably. The neck pillow should align with your neck for optimal Shiatsu massage.

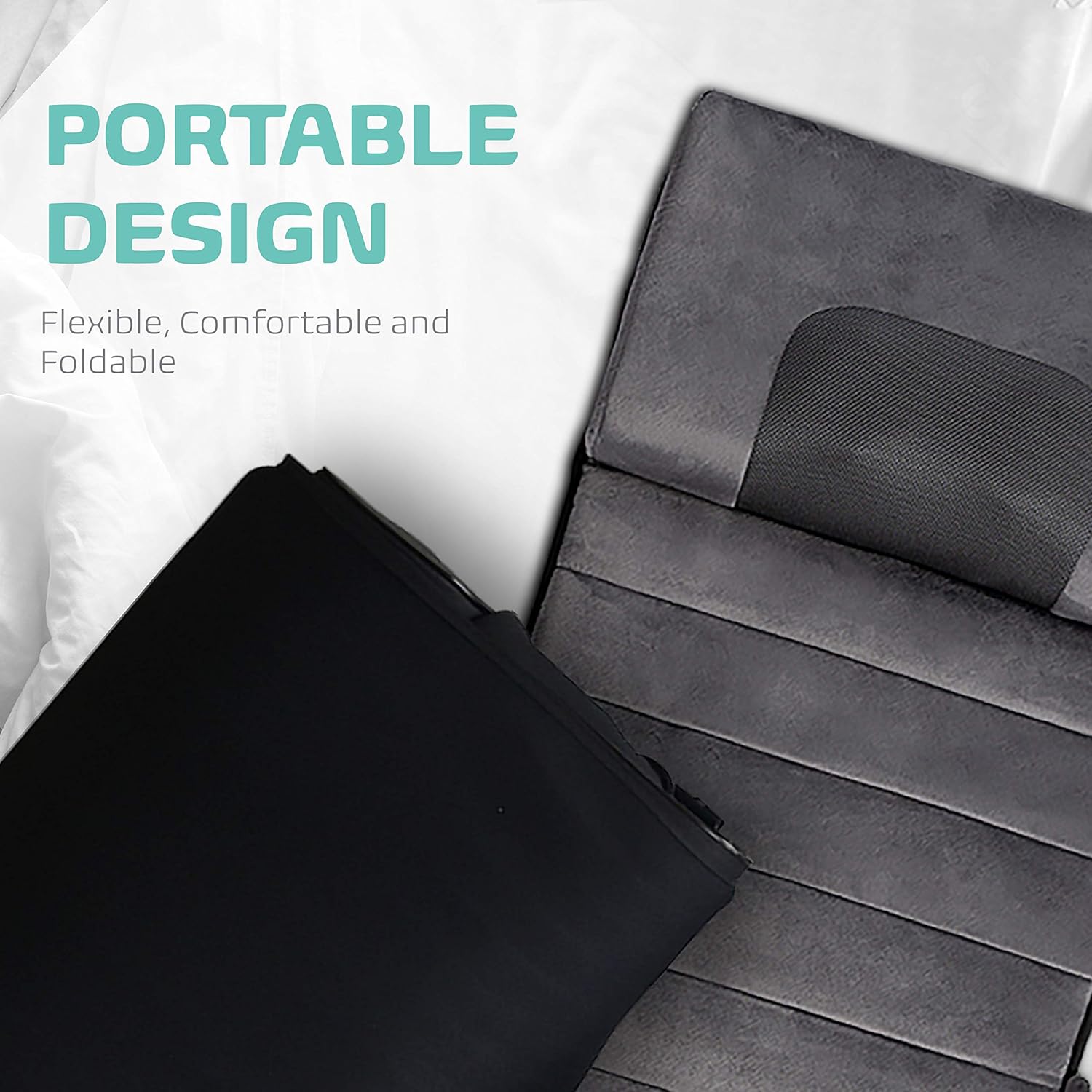

Image: The Belmint massage mat in a folded state, highlighting its portable design for easy storage and transport.
5. Operating Instructions
The massage mat is controlled via the attached remote control. Familiarize yourself with the remote's functions before use.
Image: Close-up of the remote control, showing buttons for power, intensity, massage modes, heat, and specific body zone selection (neck, back, lumbar, legs).
- Power On/Off: Press the 'ON/OFF' button to turn the massager on or off.
- Select Massage Zones: Use the dedicated buttons for 'Neck', 'Back', 'Lumbar', and 'Legs' to activate or deactivate massage in specific areas.
- Choose Massage Mode: Press the 'Mode' button to cycle through the 5 available vibration modes (1-5).
- Adjust Intensity: Press the 'Intensity' button to select one of the 3 intensity levels (L - Low, M - Medium, H - High).
- Activate Heat Function: Press the 'Heat' button to turn the soothing heat function on or off. The heat function will automatically shut off after 15 minutes.
- Automatic Shut-off: The massager is equipped with an automatic shut-off feature to prevent overheating and ensure safety.
Image: A close-up view of the neck area of the massage mat, illustrating the optional heat function with a subtle red glow.
6. Care and Maintenance
- Cleaning: Disconnect the power before cleaning. Wipe the mat with a soft, slightly damp cloth. Do not use abrasive cleaners or immerse the mat in water.
- Storage: When not in use, store the mat in a cool, dry place. The mat can be folded for compact storage.
- Avoid Damage: Do not place heavy objects on the mat. Keep away from sharp objects and direct heat sources.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Massager does not turn on. | Power cord not properly connected or no power from outlet. | Ensure the power adapter is securely plugged into both the mat and a working electrical outlet. Test the outlet with another device. |
| Massager turns off automatically during use. | Safety auto shut-off activated (e.g., 15-minute heat timer) or internal fault. | This is normal for the heat function after 15 minutes. If the entire mat shuts off unexpectedly, unplug the unit, wait 5 minutes, and plug it back in. If the issue persists, contact customer support. |
| Remote control is unresponsive or buttons do not work. | Loose connection or internal remote issue. | Ensure the remote's cable is securely connected to the mat. If the remote continues to malfunction, contact customer support. |
| Vibration is weak or uneven. | Incorrect intensity setting or potential motor issue. | Increase the intensity level using the remote. Ensure the mat is on a flat surface. If the problem persists, contact customer support. |
8. Product Specifications
- Model Number: BEL-NMM
- Product Dimensions: 65 x 21.5 x 0.98 inches (L x W x H)
- Item Weight: 6.1 Pounds
- Material Type: Polyester
- Color: Black
- Power Source: Corded Electric
- Massage Therapy Technique: Vibration (with Shiatsu neck pillow)
- Special Features: Heat, Speed Control
- Water Resistance Level: Not Water Resistant
- UPC: 019962873560
9. Warranty and Customer Support
For warranty information, technical assistance, or any questions regarding your Belmint Full Body Vibration Massage Mat, please contact Belmint customer support. Refer to the product packaging or the official Belmint website for contact details.
When contacting support, please have your model number (BEL-NMM) and purchase information readily available.
