1. Product Overview
The TecTake lockable office cabinet is designed to help you organize your documents and important items securely and efficiently. This high-quality cabinet is suitable for various environments, including workshops, warehouses, offices, basements, and archives. It features a robust construction made from durable powder-coated steel.
The cabinet includes six compartments for versatile storage. Four smaller compartments are ideal for binders, while two larger vertical and horizontal compartments accommodate bulkier items. An integrated bar allows for hanging clothes. The body and reinforced hinged doors, made from particularly durable powder-coated steel sheet, feature an elegant color that seamlessly integrates into any room style.
Key Features:
- Lockable office cabinet with 6 compartments.
- Easy assembly and stable positioning.
- High-quality powder-coated steel construction.
- Reinforced hinged doors (130° opening angle) equipped with noise-dampening rubber buffers.
- Easy interior cleaning due to smooth, rimless shelves.
- Closure with a rotary handle and cylinder lock, including two keys.
Figure 1: Front view of the TecTake Metal Office Cabinet, showing its sleek black finish and central lock.
2. Package Contents
Before beginning assembly, please ensure all components listed below are present and undamaged. If any parts are missing or damaged, please contact customer support.
- 1 x Lockable Office Cabinet (disassembled components)
- 2 x Keys for the cylinder lock
- Assembly Hardware (screws, nuts, etc.)
- Assembly Instructions (this manual)
3. Setup and Assembly
The TecTake office cabinet is designed for easy assembly. It is recommended to assemble the cabinet on a soft, clean surface to prevent scratches. Two people are recommended for assembly for stability and ease.
Assembly Steps:
- Unpack Components: Carefully remove all parts from the packaging and lay them out. Verify against the package contents list.
- Assemble Base Frame: Connect the bottom panel to the side panels using the provided hardware. Ensure all connections are secure.
- Attach Back Panel: Slide or screw the back panel into place.
- Install Shelves: Insert the shelves into the designated slots. The shelves are smooth and rimless for easy cleaning.
- Mount Doors: Attach the reinforced hinged doors to the cabinet frame. Ensure the rubber buffers are correctly positioned to dampen noise.
- Install Lock Mechanism: Secure the rotary handle and cylinder lock mechanism to the door. Test the lock with the provided keys.
- Position Cabinet: Once assembled, carefully move the cabinet to its desired stable position.

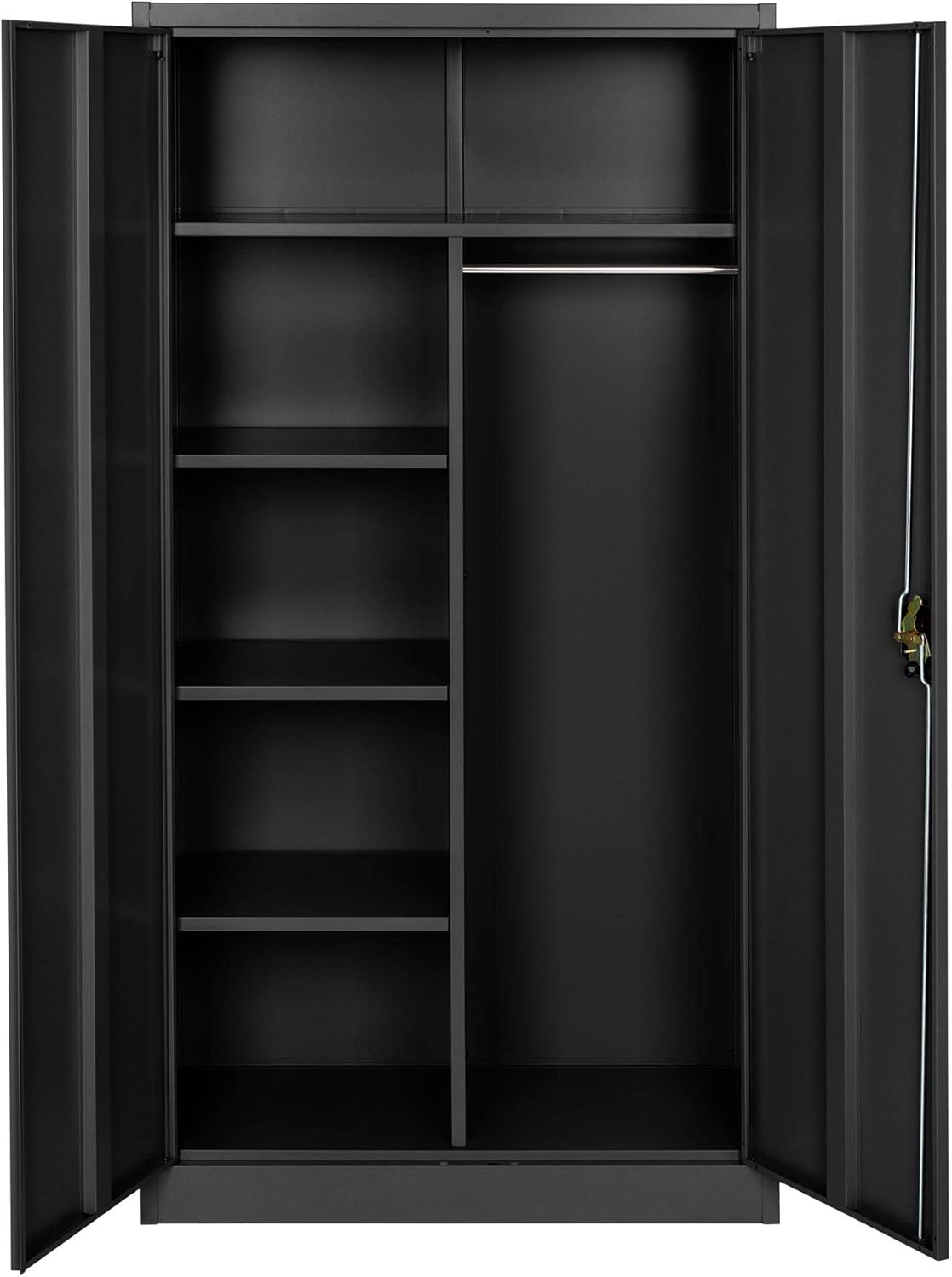

Figure 2: Interior view of the cabinet showing the arrangement of shelves and the hanging bar, ready for organization.
Figure 3: Example of cabinet interior with items, demonstrating the versatile storage options including a hanging bar for clothes.
4. Operating Instructions
Using your TecTake office cabinet is straightforward. Follow these guidelines for optimal use and security.
Locking and Unlocking:
- To lock the cabinet, ensure both doors are fully closed. Insert one of the provided keys into the cylinder lock on the rotary handle and turn it clockwise until the mechanism engages. Remove the key.
- To unlock the cabinet, insert the key into the cylinder lock and turn it counter-clockwise. The handle will then be free to turn, allowing you to open the doors.
- Always keep spare keys in a secure location.
Storage Guidelines:
- Distribute weight evenly across shelves. The maximum load capacity is 30 kg per level.
- Utilize the various compartment sizes for different items: smaller compartments for binders and documents, larger ones for bulkier supplies or equipment.
- The integrated bar is suitable for hanging garments or other items that require vertical storage.
Figure 4: Close-up views highlighting the robust lock mechanism, the side profile of the cabinet, and the smooth interior shelves.
5. Maintenance
Regular maintenance will ensure the longevity and optimal performance of your TecTake office cabinet.
Cleaning:
- Wipe down the exterior and interior surfaces with a soft, damp cloth.
- For stubborn marks, a mild, non-abrasive cleaning solution can be used. Ensure to wipe dry immediately to prevent water spots.
- Avoid using harsh chemicals, abrasive cleaners, or scouring pads, as these can damage the powder-coated finish.
Lock and Hinge Care:
- Periodically check the lock mechanism for smooth operation. If it becomes stiff, a small amount of graphite lubricant can be applied to the keyhole.
- Inspect hinges for any signs of wear or looseness. Tighten screws if necessary.
- Ensure the rubber buffers on the doors are intact and functioning to maintain quiet closing.
6. Troubleshooting
This section addresses common issues you might encounter with your cabinet.
| Problem | Possible Cause | Solution |
|---|---|---|
| Doors do not close properly. | Cabinet is not level; hinges are loose or misaligned; obstruction inside. | Ensure the cabinet is on a flat, level surface. Adjust leveling feet if present. Tighten hinge screws. Check for items blocking the door closure. |
| Lock is stiff or difficult to turn. | Lack of lubrication; debris in lock mechanism. | Apply a small amount of graphite lubricant to the keyhole. Avoid oil-based lubricants. Gently work the key in and out. |
| Cabinet wobbles or is unstable. | Uneven floor; loose assembly hardware. | Move the cabinet to a level surface. Check and tighten all assembly screws. |
| Noise when closing doors. | Rubber buffers are missing or damaged. | Check if the rubber buffers are properly installed on the doors. Replace if damaged. |
If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact TecTake customer support.
7. Specifications
| Feature | Detail |
|---|---|
| Model Number | 402940 |
| Overall Dimensions (L x W x H) | Approx. 90 x 40 x 180 cm (35.4 x 15.7 x 70.9 inches) |
| Compartment 1-4 Dimensions (H x W x D) | Approx. 32 x 43 x 37 cm (12.6 x 16.9 x 14.6 inches) |
| Compartment 5 Dimensions (H x W x D) | Approx. 32.5 x 89.5 x 37 cm (12.8 x 35.2 x 14.6 inches) |
| Compartment 6 Dimensions (H x W x D) | Approx. 134.5 x 43.5 x 37 cm (53.0 x 17.1 x 14.6 inches) |
| Max. Load Capacity per Level | 30 kg (66 lbs) |
| Weight | Approx. 37.5 kg (82.7 lbs) |
| Material | Steel (Powder-coated) |
| Color | Black |
| Lock Type | Cylinder lock with rotary handle |

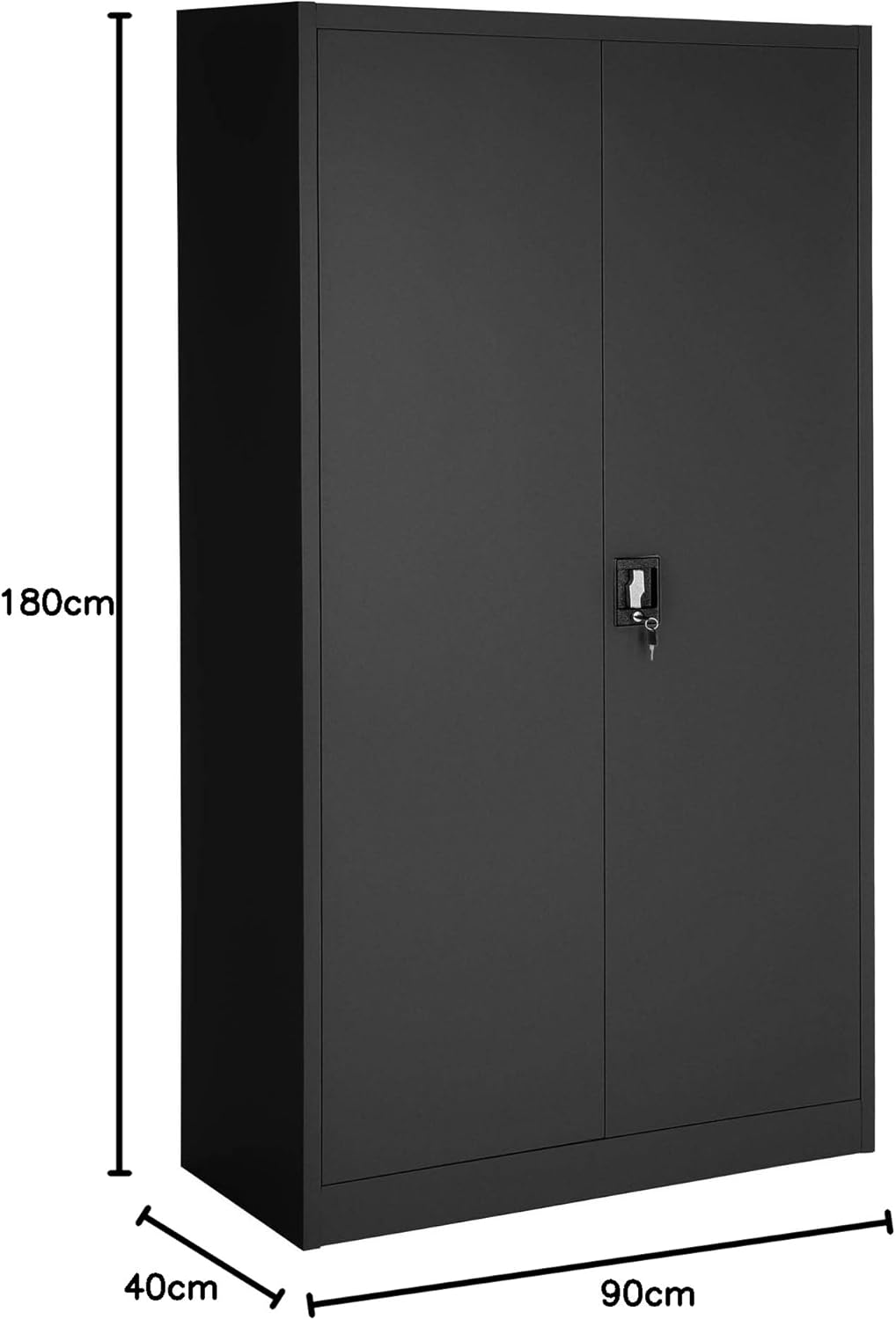

Figure 5: Diagram illustrating the overall dimensions of the cabinet: 180cm height, 90cm width, and 40cm depth.
8. Warranty and Support
TecTake products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the purchase documentation or the official TecTake website.
For technical support, missing parts, or any other inquiries, please contact TecTake customer service. You can often find contact information on the brand's official website or through your point of purchase.
Online Support: Visit the official TecTake website for FAQs, product registration, and contact forms. www.tectake.de (Note: This is a general link, specific support contact may vary by region).
