Product Overview
The ROBOTIME Marble Run Lift Coaster (Model LG503) is an engaging wooden mechanical puzzle designed for assembly. This kit allows you to construct a functional marble run with intricate gears and tracks, providing both a challenging building experience and an entertaining display.

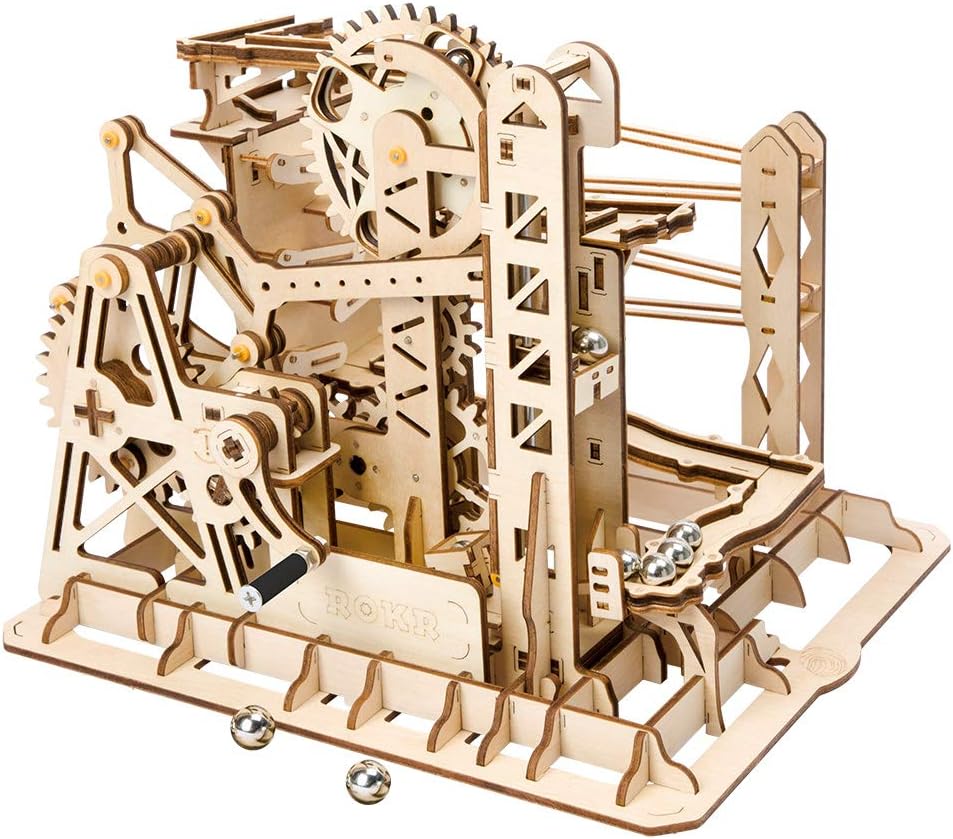

Image: Fully assembled Robotime Marble Run Lift Coaster, showcasing its wooden construction and marble lifting mechanism.
Key Features:
- Build your own wooden marble run, engaging your crafting skills.
- Laser-cut parts are easily pushed out from the wooden sheets.
- Step-by-step manual facilitates easy assembly.
- Enjoyable to build and equally fun to play with.
- Metal marbles included.
Safety Information:
Warning: Not suitable for children under 36 months due to small parts.
Setup and Assembly
Assembly of the ROBOTIME Marble Run Lift Coaster requires careful attention to detail and patience. The kit includes all necessary wooden parts, wood glue, and metal marbles. An estimated assembly time is approximately 1 hour, but this may vary based on individual experience.
Before You Begin:
- Unpack all components and verify against the parts list in your included manual.
- Prepare a clean, well-lit workspace.
- Familiarize yourself with the step-by-step instructions provided in the physical manual.
- Ensure you have the included wood glue readily available.
Image: Diagram showing the dimensions of the assembled Marble Run Lift Coaster: 252mm length, 227mm width, and 203mm height.
Assembly Tips:
- Handle laser-cut parts gently when pushing them out to prevent breakage.
- Follow the numbered steps in the manual precisely.
- Apply wood glue sparingly where indicated, allowing sufficient drying time.
- Ensure all gears and moving parts are aligned correctly and move freely before proceeding to the next step.
Operating Instructions
Once fully assembled, the ROBOTIME Marble Run Lift Coaster operates manually. It does not require batteries or external power.
How to Operate:
- Place the assembled marble run on a stable, flat surface.
- Place the included metal marbles into the designated starting point or collection tray.
- Locate the hand crank mechanism (typically on the side or front of the model).
- Gently turn the hand crank clockwise to activate the lift mechanism. This will raise the marbles to the top of the track.
- Observe as the marbles descend through the various tracks and obstacles, returning to the collection tray.
- Continue turning the crank to enjoy continuous marble action.
Image: Close-up view of the intricate wooden gear system responsible for lifting the marbles in the coaster.

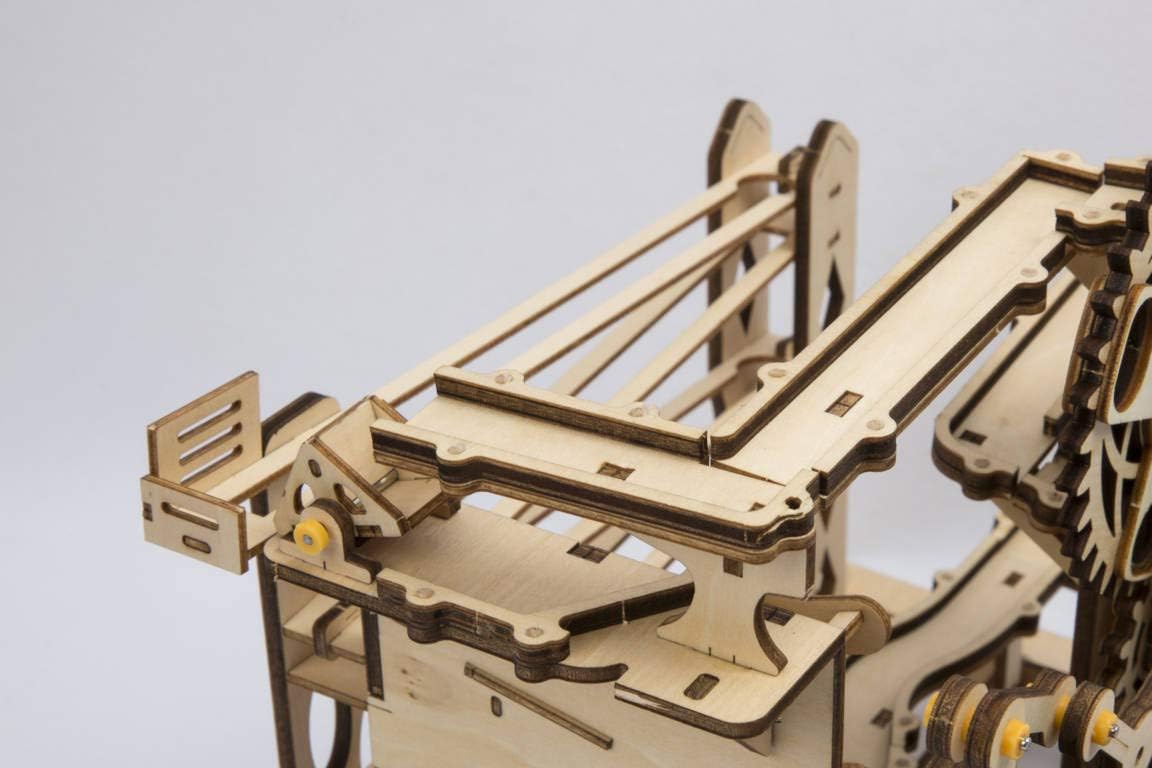

Image: Detailed view of a section of the marble track, showing the precision of the laser-cut wooden components.
Maintenance
The ROBOTIME Marble Run Lift Coaster requires minimal maintenance to ensure smooth operation and longevity.
General Care:
- Keep the model clean and free from dust. Use a soft, dry cloth to gently wipe surfaces.
- Avoid exposing the model to direct sunlight, extreme temperatures, or high humidity, as this can cause the wood to warp or crack.
- Do not use water or chemical cleaners on the wooden parts.
Lubrication (Optional):
If the gears or moving parts become stiff over time, a small amount of paraffin wax or a dry lubricant (like graphite powder) can be applied to contact points to improve smoothness. Avoid using oil-based lubricants, as they can attract dust and damage the wood.
Troubleshooting
If you encounter issues with your Marble Run Lift Coaster, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Marbles get stuck on the track. | Misaligned track sections, dust/debris, or insufficient lubrication. |
|
| Lift mechanism is stiff or not moving. | Gears are misaligned, friction, or parts are not fully seated. |
|
| Parts break during assembly. | Excessive force applied, or part not properly aligned. |
|
Specifications
- Model: LG503
- Brand: ROBOTIME
- Product Dimensions (L x W x H): 25.5 x 22.9 x 0.1 cm (flat sheet size); Assembled: 25.2 x 22.7 x 20.3 cm
- Weight: 840 g
- Material: Wood
- Number of Pieces: 217
- Assembly Required: Yes
- Estimated Assembly Time: 1 Hour
- Batteries Required: No
- Included Components: Laser-cut wooden parts, wood glue, metal marbles, instruction manual.
- Recommended Age: Adult
- Educational Objective: Matching Skill
- Theme: Fantasy
- GTIN: 06946785178555
Warranty and Support
The ROBOTIME Marble Run Lift Coaster (Model LG503) comes with a 1-year manufacturer's warranty from the date of purchase.
Warranty Coverage:
This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, accident, modification, or unauthorized repair.
Customer Support:
For warranty claims, missing parts, or technical assistance, please contact ROBOTIME customer support. Refer to the contact information provided in your original product packaging or visit the official ROBOTIME website for the most up-to-date support details.
You can also visit the ROBOTIME Store on Amazon for more information and product details.
