iMeshbean 2 HP Pool Pump Motor with Strainer Manual

1. Product Overview

This manual provides instructions for the iMeshbean 2 HP In Ground Swimming Pool Pump Motor with Strainer. This pump is designed for efficient water circulation in both in-ground and above-ground swimming pools.

Key Features

• Reinforced thermoplastic body for durability.
• Carborundum and graphite mechanical seals.
• 304 grade stainless steel motor shaft.
• EPDM O-ring for high resistance and leak prevention.
• High-efficiency impeller for maximum flow and reduced noise.
• Energy-efficient motor.
• Strainer basket for debris collection.
• See-through strainer cover for easy inspection.
• Easy-thread strainer housing ring for simple cover removal.
• Thermal Overload Protection.
• Dual voltage capability (115V-230V).

2. Safety Information

WARNING: Read and understand all instructions before installation and operation. Failure to follow these instructions could result in serious injury or death.

• Always disconnect power before servicing the pump.
• Installation must be performed by a qualified electrician in accordance with all local and national electrical codes.
• Ensure proper grounding to prevent electrical shock.
• Do not run the pump dry. Always prime the pump with water before initial use to prevent motor damage.
• Keep children and pets away from the pump during operation.
• Do not operate if any part of the pump is damaged.
• Wear appropriate personal protective equipment during installation and maintenance.

3. Setup and Installation

3.1 Unpacking

Carefully remove all components from the packaging. Inspect for any shipping damage. Retain packaging for future transport or storage.

Image: The iMeshbean pool pump motor with its strainer basket and clear lid detached, showing the internal components ready for assembly or maintenance.

3.2 Placement

Position the pump on a solid, level surface as close to the pool as possible to minimize friction loss from long piping runs. Ensure adequate ventilation around the motor.

Image: The iMeshbean pool pump positioned outdoors next to a swimming pool, demonstrating typical installation placement.

3.3 Electrical Wiring

This pump is designed for dual voltage operation (115V or 230V). The factory setting is typically 230V. Verify the correct voltage setting before connecting to power.

1. Disconnect all power to the pump.
2. Open the switch cover on the motor housing.
3. Locate the voltage selection switch (if present) and ensure it matches your power supply. The video below demonstrates how to wire a dual voltage pump.
4. Identify the three lines from your power cord: green (ground), black (line), and white (neutral/line).
5. Remove the green screw from the ground terminal.
6. Connect the green ground wire to the ground terminal and tighten the screw securely.
7. Connect the black and white power lines to the remaining two terminals. The connection order for black and white wires does not matter for AC power.
8. If your line end is shovel-shaped, insert it into the plug part of the terminal. If it is Y-shaped, insert it to the bolt part of the terminal.
9. Securely close the switch cover.

3.4 Plumbing Connections

The internal inlet fitting is 1.5" NPT. Connect appropriate plumbing from your pool's skimmer/main drain to the pump's inlet and from the pump's outlet to your filter system. Use thread sealant on all threaded connections to prevent leaks.

4. Operating Instructions

4.1 Priming the Pump

Before starting the pump for the first time, or after cleaning the strainer basket, the pump must be primed.

1. Ensure all valves are open to allow water flow from the pool to the pump.
2. Remove the clear strainer cover.
3. Fill the strainer housing with water until it reaches the suction pipe level.
4. Replace the strainer cover, ensuring it is tightly sealed.
5. Turn on the pump. The pump should begin to draw water and expel air. If water does not flow within a few minutes, turn off the pump, re-prime, and check for air leaks in the suction line.

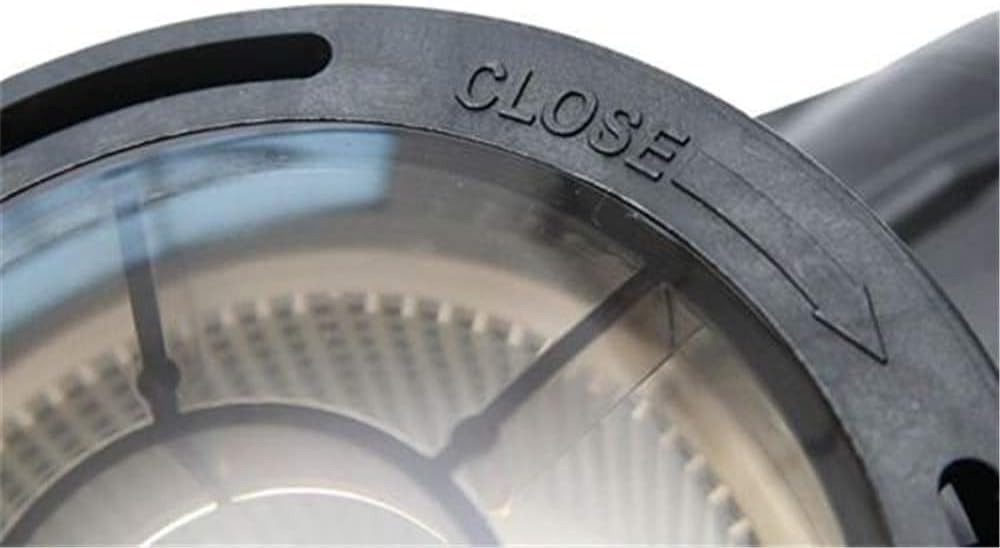

Image: A close-up view of the clear strainer lid on the iMeshbean pool pump, showing the "OPEN" and "CLOSE" indicators for proper sealing.

4.2 Normal Operation

Once primed, the pump will continuously circulate water through your pool's filtration system. Monitor the pressure gauge on your filter (if applicable) to ensure proper flow.

5. Maintenance

5.1 Cleaning the Strainer Basket

The strainer basket collects debris and should be checked and cleaned regularly to maintain optimal pump performance.

1. Turn off the pump and disconnect power.
2. Rotate the easy-thread strainer housing ring counter-clockwise to remove the clear cover.
3. Lift out the strainer basket.
4. Empty debris from the basket and rinse thoroughly with water.
5. Inspect the basket for cracks or damage. Replace if necessary.
6. Reinsert the clean basket into the housing.
7. Replace the clear cover and tighten the housing ring clockwise until snug. Do not overtighten.
8. Re-prime the pump as described in Section 4.1.

Image: A close-up of the removable strainer basket, highlighting its design for easy cleaning and debris removal.

5.2 Winterization

In areas subject to freezing temperatures, the pump must be drained and winterized to prevent damage. Consult a pool professional for specific winterization procedures for your region.

6. Troubleshooting

7. Specifications

Image: Technical diagram illustrating the dimensions and performance curves for iMeshbean pool pump models J11501 and J15001, providing detailed measurements and flow rate data.

8. Warranty and Support

For warranty information and customer support, please refer to the documentation included with your purchase or contact iMeshbean directly through their official website or the retailer where the product was purchased.

Visit the iMeshbean Store: iMeshbean Store on Amazon
