PetTech PT0Z1 Dog Training Collar User Manual

Introduction

Welcome to the PetTech PT0Z1 Dog Training Collar user manual. This guide provides comprehensive instructions for the safe and effective use of your new training system. Please read this manual thoroughly before operating the device to ensure proper functionality and the well-being of your dog.

Image Description: A complete view of the PetTech PT0Z1 dog training system. It features the remote transmitter and the receiver collar, both in black and blue, alongside the product box. The box highlights key features such as 'New Improved', '4 Training Modes', 'Train up to 2 Dogs', 'Fits All Dogs from 10 to 100 lbs', '1200ft Range', 'Rechargeable', and '100% Waterproof'. A golden retriever wearing the collar is visible on the box.

Important Safety Information

• This device is intended for training purposes only. Do not use it for any other purpose.
• The static shock function should be used responsibly and only when necessary, as a last resort, to prevent harm to your dog or others. Always start with the lowest intensity level.
• Avoid leaving the receiver collar on your dog for more than 12 hours per day to prevent skin irritation.
• Regularly check your dog's neck for any signs of irritation or sores. If irritation occurs, discontinue use until the skin heals.
• This product is not a toy. Keep out of reach of children.
• Do not attempt to modify or disassemble the device. This will void the warranty.

Package Contents

Verify that all items are present in your package:

• Remote Transmitter
• Receiver Collar
• Adjustable Nylon Collar Strap
• USB Charging Cable
• Power Adapter
• Long and Short Contact Points (2 pairs)
• Test Light Tool
• User Manual

Image Description: An overhead view displaying all components included in the PetTech PT0Z1 package. These include the remote transmitter, receiver collar, a black leather-style collar strap, a blue nylon collar strap, a USB charging cable, a power adapter, two sets of contact points (short and long), and a test light tool.

Product Overview

Familiarize yourself with the components of your PetTech PT0Z1 training system.

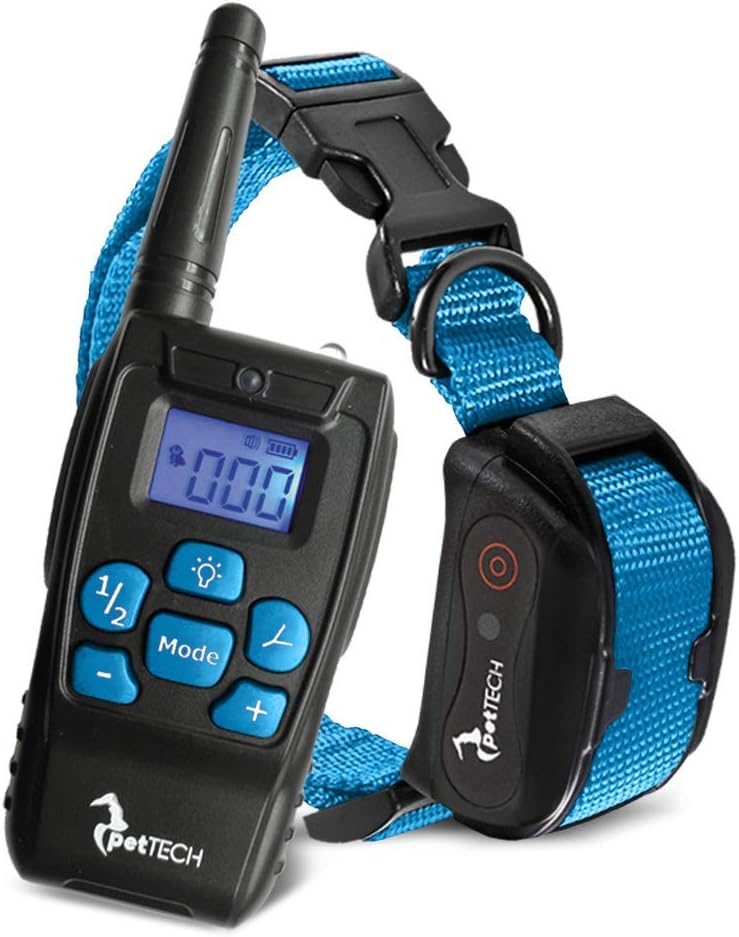

Image Description: A detailed close-up of the PetTech PT0Z1 remote transmitter and receiver collar. The remote features a digital display, mode button, intensity adjustment buttons (+/-), and a dedicated action button. The receiver collar shows the contact points and the power button.

Remote Transmitter

• LCD Display: Shows battery level, intensity level, and training mode.
• Mode Button: Cycles through Beep, Vibration, Light, and Static Shock modes.
• +/- Buttons: Adjusts the intensity level for Vibration and Static Shock modes.
• Action Button: Activates the selected training mode.
• Channel Button: Switches between training channels for multiple dogs.

Receiver Collar

• Contact Points: Deliver static stimulation. Choose appropriate length for your dog's coat.
• Power Button: Turns the receiver on/off.
• Charging Port: For recharging the internal battery.
• LED Indicator: Shows power, pairing status, and battery level.

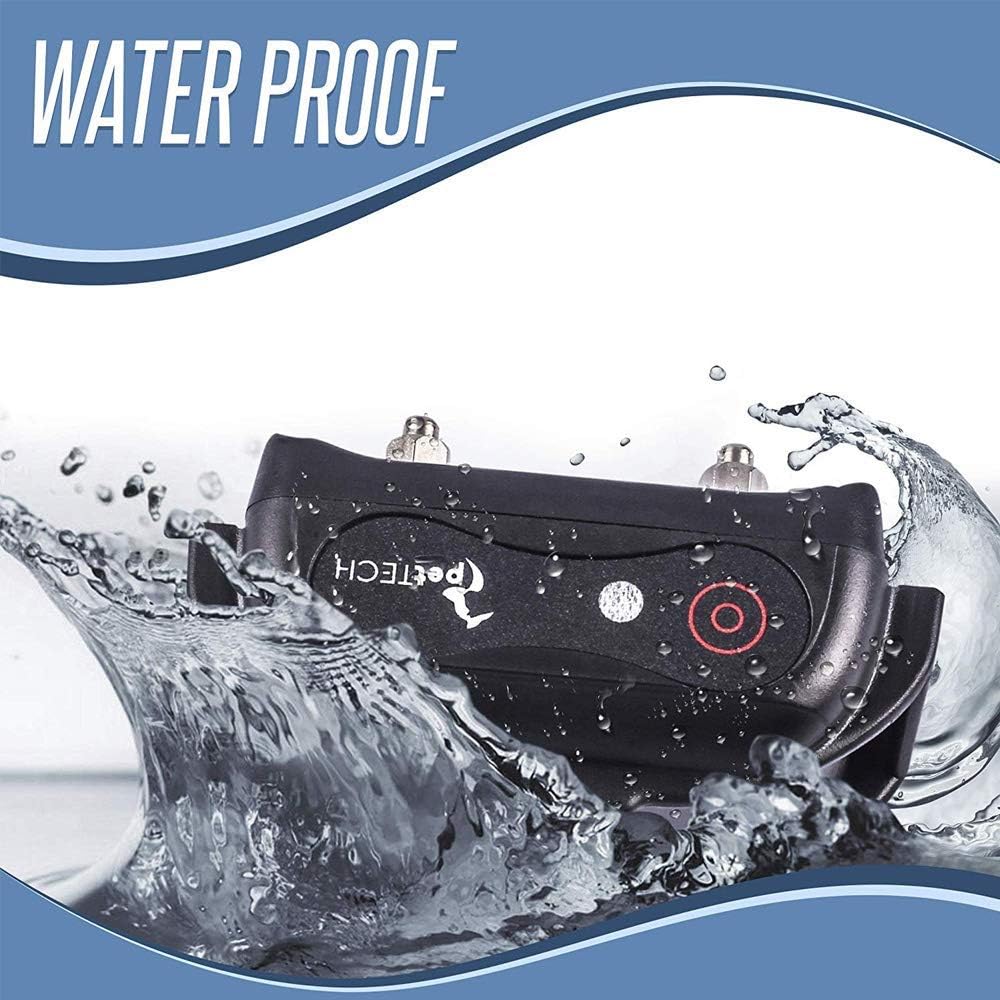

Image Description: The PetTech PT0Z1 receiver collar is shown with water splashing around it, illustrating its waterproof design. The contact points are visible on the top of the device.

Setup

Charging the Devices

1. Connect the USB charging cable to the charging ports on both the remote transmitter and the receiver collar.
2. Plug the USB cable into the power adapter and then into a standard wall outlet.
3. The LED indicator on both devices will show charging status (e.g., red light while charging, green light when fully charged).
4. Allow approximately 2-3 hours for a full charge.

Attaching the Collar Strap

Thread the adjustable nylon collar strap through the slots on the receiver collar. Ensure the strap is securely fastened.

Fitting the Receiver Collar

• Place the receiver collar around your dog's neck so that the contact points are positioned underneath, making direct contact with the skin.
• Adjust the strap to a snug fit. You should be able to fit one finger comfortably between the strap and your dog's neck. A loose fit will reduce the effectiveness of the static stimulation.
• Trim any excess strap length if necessary.

Image Description: An image showcasing five different dog breeds, ranging from a small Chihuahua to large breeds like a Bernese Mountain Dog and a Newfoundland. This visually confirms that the PetTech PT0Z1 collar is designed to fit dogs weighing between 10 and 100 pounds.

Pairing the Remote and Receiver

The remote and receiver are typically pre-paired from the factory. If re-pairing is needed:

1. Ensure both devices are charged and turned off.
2. Turn on the remote transmitter.
3. Press and hold the power button on the receiver collar until the LED indicator flashes rapidly.
4. While the receiver LED is flashing, press the Action Button on the remote transmitter.
5. The receiver's LED will stop flashing and remain solid, indicating successful pairing.

Image Description: A graphic titled 'EASY TO PAIR' showing a dog wearing the collar and a person holding the remote. Three steps are illustrated: 1. Turn Remote On, 2. Hold Antenna To PowerSync Sensor (referring to the receiver), 3. Press The Action Button. A checkmark indicates 'RECEIVER AND REMOTE ARE ALREADY PAIRED OUT OF THE BOX'.

Selecting Contact Points

Choose the appropriate length of contact points based on your dog's coat length:

• Short Contact Points: For dogs with short coats.
• Long Contact Points: For dogs with thick or long coats to ensure proper skin contact.

Operating the Device

Turning On/Off

• Remote Transmitter: Press any button to activate. It will automatically enter sleep mode after a period of inactivity.
• Receiver Collar: Press and hold the power button until the LED indicator lights up (to turn on) or turns off (to turn off).

Training Modes

The PetTech PT0Z1 offers four training modes:

Image Description: A circular graphic titled '4 MODES' detailing the different functions of the collar. These include: Light (indicates power, pairing, and channel status), Beep (use as positive reinforcer), Vibration (use as negative marker), and Static Shock (for use in extreme situations only to prevent harm to dog or others).

1. Light Mode: Activates an LED light on the receiver, useful for locating your dog in low light conditions.
2. Beep Mode: Emits an audible tone from the receiver. Can be used as a positive reinforcer or a warning signal.
3. Vibration Mode: Delivers a non-harmful vibration. Effective as a negative marker to interrupt unwanted behaviors.
4. Static Shock Mode: Delivers a static stimulation. This mode should be used with extreme caution and only in situations where other modes are ineffective, to prevent harm to your dog or others. Always start at the lowest intensity level.

Press the Mode button on the remote to cycle through these options. The selected mode will be displayed on the LCD screen.

Adjusting Intensity Levels

For Vibration and Static Shock modes, you can adjust the intensity:

• Use the + and - buttons on the remote to increase or decrease the intensity level.
• Start with the lowest level and gradually increase until your dog responds without showing signs of excessive stress or fear.

Training Multiple Dogs

The PetTech PT0Z1 system supports training up to two dogs simultaneously with additional receiver collars (sold separately).

Image Description: Two dogs, a black Labrador mix and a brindle Pitbull mix, are shown sitting side-by-side in a grassy outdoor setting. Both dogs are wearing training collars, demonstrating the system's capability to train up to two dogs together.

• To switch between dogs, press the Channel button on the remote. The display will show the active channel (e.g., '1' or '2').
• Ensure each receiver collar is paired to a different channel on the remote.

Range Information

The PetTech PT0Z1 offers a training range of up to 1200 feet (approximately 365 meters) in open areas. Environmental factors such as terrain, weather, and electromagnetic interference can affect the actual range.

Image Description: A white dog wearing the blue PetTech PT0Z1 receiver collar is sitting attentively on a grassy field, looking up at a person who is holding the remote transmitter. This illustrates the product in an active training scenario outdoors.

Maintenance

Cleaning the Collar

• Regularly clean the receiver collar and contact points with a damp cloth.
• Ensure the charging port cover is securely closed to maintain waterproofing.
• Do not use harsh chemicals or abrasive cleaners.

Battery Care

• Recharge the devices when the battery indicator shows low power.
• For optimal battery life, avoid fully discharging the batteries frequently.
• If storing the device for an extended period, charge it to about 50% and recharge every few months.

Storage

Store the device in a cool, dry place away from direct sunlight and extreme temperatures.

Troubleshooting

Specifications

• Model: PT0Z1
• Range: Up to 1200 feet (365 meters)
• Waterproof Rating: Fully Waterproof (Receiver)
• Battery Type: Rechargeable Lithium Polymer (included)
• Charging Time: Approximately 2-3 hours
• Suitable for Dogs: 10 to 100 lbs
• Training Modes: Light, Beep, Vibration, Static Shock
• Manufacturer: PetTech

Warranty and Support

PetTech products are designed for durability and performance. For specific warranty details and customer support, please refer to the warranty card included in your package or visit the official PetTech website. Please have your model number (PT0Z1) and purchase information ready when contacting support.
