Introduction
This manual provides essential instructions for the safe and effective use of your Hawkins Pressure Regulator, Model H10-20. This regulator is designed for use with Hawkins Classic, Ekobase, and Hevibase pressure cookers ranging from 1.5 to 12 liters. Please read all instructions carefully before installation and operation to ensure proper function and safety.
Important Safety Instructions
Failure to follow these safety instructions may result in serious injury or damage to your pressure cooker.
- Always ensure the pressure regulator is clean and free from food particles or blockages before each use.
- Verify that the vent tube of the pressure cooker is clear before placing the regulator.
- Use only genuine Hawkins replacement parts. This regulator is specifically designed for Hawkins Classic, Ekobase, and Hevibase models (1.5 to 12 liters).
- Never force the regulator onto the vent tube. It should fit securely but without excessive force.
- Do not attempt to open the pressure cooker until the regulator has stopped rocking and all internal pressure has been released.
- Keep hands and face away from the vent tube and regulator when the cooker is under pressure. Steam release can cause burns.
- If the regulator does not begin to rock or release steam after the cooker reaches pressure, immediately turn off the heat and allow the cooker to cool completely before investigating.
Product Overview
The Hawkins Pressure Regulator (H10-20) is a critical safety component for your pressure cooker, designed to maintain optimal cooking pressure by releasing excess steam. It is a weighted valve that sits on the vent tube of the pressure cooker lid.

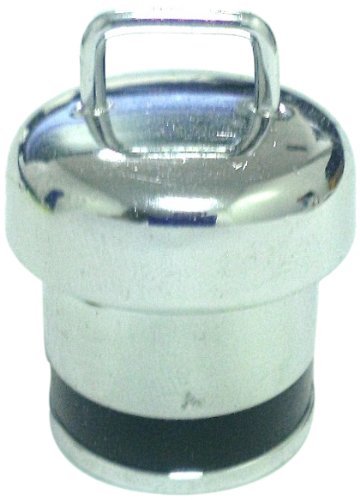

Image 1: Hawkins Pressure Regulator Model H10-20. This image shows the metallic, cylindrical pressure regulator with a slightly tapered top, designed to fit onto the vent tube of a pressure cooker.
Installation Instructions
- Inspect the Regulator: Before first use and subsequent uses, examine the pressure regulator for any signs of damage, cracks, or blockages. Ensure the small hole at the bottom is clear.
- Clean the Vent Tube: Ensure the vent tube on your pressure cooker lid is clean and free from any food debris. Use a thin wire or brush if necessary to clear any blockages.
- Place the Regulator: Once the pressure cooker lid is securely closed and locked, carefully place the Hawkins Pressure Regulator onto the vent tube. It should sit firmly without wobbling excessively. Do not apply excessive force.
- Compatibility Check: Confirm that this H10-20 regulator is the correct model for your Hawkins Classic, Ekobase, or Hevibase pressure cooker (1.5 to 12 liters). Using an incorrect regulator can be dangerous.
Operating Instructions
- Prepare Cooker: Fill your pressure cooker with food and liquid as per your recipe, ensuring not to exceed the maximum fill line.
- Secure Lid: Close and lock the pressure cooker lid properly.
- Place Regulator: Place the H10-20 pressure regulator onto the vent tube.
- Apply Heat: Place the pressure cooker on a heat source. Initially, steam will escape from the vent tube before the regulator is placed. Once the cooker builds pressure, steam will begin to escape from under the regulator.
- Pressure Indication: The regulator will begin to rock gently and steadily, indicating that the cooker has reached the desired operating pressure. This rocking motion signifies that excess steam is being released to maintain pressure.
- Adjust Heat: Once the regulator begins to rock, reduce the heat to the lowest setting that maintains a steady, gentle rocking motion. Excessive rocking indicates too much heat.
- Release Pressure: After cooking, turn off the heat. Allow the pressure to drop naturally until the regulator stops rocking and no more steam escapes. Alternatively, for quicker release, follow your pressure cooker's specific instructions for quick pressure release methods (e.g., running cold water over the lid, if applicable and safe for your model). Never remove the regulator or open the lid while the cooker is under pressure.
Maintenance and Care
- Cleaning: After each use, wash the pressure regulator with warm, soapy water. Rinse thoroughly and ensure the small hole at the bottom is completely clear of any food residue.
- Inspection: Regularly inspect the regulator for any signs of wear, damage, or corrosion. If the regulator appears damaged or does not function correctly (e.g., does not rock steadily), replace it immediately.
- Storage: Store the regulator in a clean, dry place, preferably with your pressure cooker, to prevent loss or damage.
- Dishwasher Safe: The regulator is dishwasher safe, as indicated in the product specifications. However, hand washing is recommended for thorough inspection and to prolong its lifespan.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Regulator does not rock. |
|
|
| Excessive steam leakage from under the lid (not regulator). |
|
|
| Regulator rocks too vigorously. | Heat is too high. | Reduce heat until a gentle, steady rocking motion is achieved. |
Specifications
- Model: H10-20
- Brand: HAWKINS
- Compatibility: Hawkins Classic, Ekobase, and Hevibase Pressure Cookers (1.5 to 12 Liters)
- Material: Stainless steel
- Item Weight: 0.08 Kilograms (approx. 2.82 ounces)
- Product Dimensions: 1.57 x 1.18 x 1.18 inches
- Dishwasher Safe: Yes
Warranty and Support
For information regarding warranty coverage, replacement parts, or technical support, please refer to the documentation provided with your original Hawkins pressure cooker or visit the official HAWKINS website. Always use genuine Hawkins replacement parts to ensure safety and performance.
You can visit the HAWKINS Store for more products and support: HAWKINS Official Store
