DPO AL4 Automatic Transmission output Speed Sensor User Manual

Product Overview

This manual provides essential information for the DPO AL4 Automatic Transmission output Speed Sensor, designed for various vehicle models. This sensor is a critical component for accurate transmission operation.

Key features include:

• new
• DPO AL4 Automatic Transmission output Speed Sensor for Renault Peugeot Nissan
• Please check the compatibility list to make sure it fits your vehicle.

Vehicle Compatibility

This DPO AL4 Automatic Transmission output Speed Sensor is compatible with a wide range of vehicles. Please verify compatibility with your specific vehicle model before installation. Compatible vehicles include:

• CHERY: A3 09-10 4SP 4WDL4 2.0L, A5 06-11 4SP 4WDL4 2.0L, EASTAR A6 09-10 4SP FWDL4 2.0L
• CITROEN: BERLINGO 00-02 4SP FEDL4 1.6L 1.8L, C2 06-10 4 SP FEDL4 1.6L, C3/C3 PICASSO08-114 SP FEDL4 1.6L 2.0L, C301-114 SP FEDL4 1.4L 1.6L, C3114 SP FEDL4 1.6L, C4/C4 PICASSO04-114 SP FEDL4 1.6L 2.0L, C500-114 SP FEDL4 2.0L 2.2L V6 2.9L, C802-114 SP FEDL4 2.0L, C-TRIOMPHE06-114 SP FEDL4 2.0L
• FIAT: ULYSSE00-064 SP FWDL4 2.0L
• KIA/NAZA: 206 BESTARI*06-094 SP FWDL4 1.4L
• LANCIA: PHEDRA02-054 SP FWDL4 2.0L
• NISSAN/DATSUN: PLATINA02-104 SP FWDL4 1.6L
• PERODUA: KELISA01-064 SP FWDL3 1.0L, KENARI00-094 SP FWDL3 1.0L, VIVA07-114 SP FWDL3 1.0L
• PEUGEOT: 206/206SD00-114 SP FWDL4 1.4L 1.6L 2.0L, 207/207 PASSION06-114 SP FWDL4 1.6L, 30600-024 SP FWDL4 1.8L 2.0L, 30701-114 SP FWDL4 1.6L 2.0L, 30807-114 SP FWDL4 1.6L 2.0L, 406/406 COUPE00-054 SP FWDL4 1.7L 1.8L 2.0L, 40703-114 SP FWDL4 2.0L, 408114 SP FWDL4 2.0L, 80702-104 SP FWDL4 2.0L
• RENAULT: CLIO00-114 SP FWDL4 1.4L 1.6L 2.0L, ESPACE00-024 SP FWDL4 2.0L, FLUENCE09-114 SP FWDL4 1.6L 2.0L, KANGOO/KANGOO LCV00-114 SP FWDL4 1.4L 1.5L 1.6L, LAGUNA00-074 SP FWDL4 1.8L 1.9L 2.0L, LOGAN07-104 SP FWDL4 1.6L, MEGANE00-114 SP FWDL4 1.4L 1.5L 1.6L 1.9L 2.0L, MODUS04-114 SP FWDL4 1.6L, SAFRANE04 SP FWDL4 2.0L 2.2L , SANDERO114 SP FWDL4 1.6L , SCENIC00-114 SP FWDL4 1.5L 1.6L 1.9L 2.0L, SYMBOL/THALIA00-114 SP FWDL4 1.4L 1.6L
• SAMSUNG: SM309-114 SP FWDL4 1.5L

Note: Always consult your vehicle's specific repair manual for detailed, model-specific compatibility and installation instructions.

Product Images

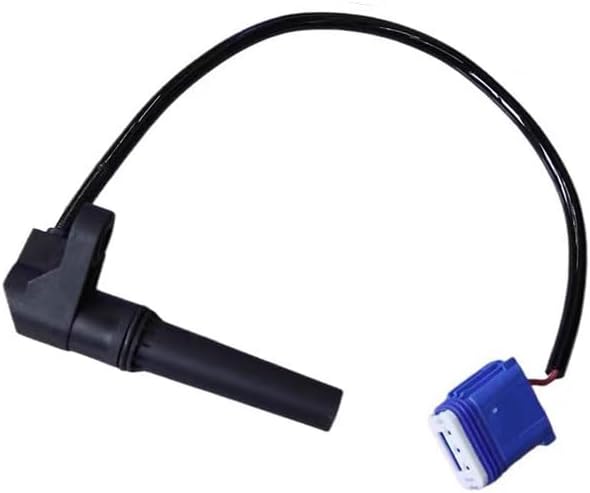

Front view of the DPO AL4 Automatic Transmission output Speed Sensor, showing the main body and the connected wire with a blue connector.

Side view of the DPO AL4 Automatic Transmission output Speed Sensor, highlighting the sensor's shaft and the VIGSuce branding.

Setup and Installation

Installation of the DPO AL4 Automatic Transmission output Speed Sensor should be performed by a qualified technician. Incorrect installation can lead to transmission malfunction or damage.

1. Safety First: Ensure the vehicle is turned off, the battery is disconnected, and the vehicle is securely lifted or on jack stands.
2. Locate the Old Sensor: Identify the existing output speed sensor on the DPO AL4 automatic transmission. Refer to your vehicle's specific service manual for the exact location.
3. Disconnect Wiring: Carefully disconnect the electrical connector from the old sensor.
4. Remove Old Sensor: Unscrew or unclip the old sensor from its mounting point. Be prepared for a small amount of transmission fluid leakage.
5. Install New Sensor: Insert the new VIGSuce DPO AL4 Automatic Transmission output Speed Sensor into the mounting hole. Ensure it seats properly and secure it with the appropriate fasteners.
6. Connect Wiring: Reconnect the electrical connector to the new sensor, ensuring a secure and tight connection.
7. Fluid Check: Check the transmission fluid level and top up if necessary, according to your vehicle manufacturer's specifications.
8. Test Operation: Reconnect the battery, start the vehicle, and perform a test drive to ensure the transmission shifts correctly and there are no error codes related to the speed sensor.

Note: Always consult your vehicle's specific repair manual for detailed, model-specific installation instructions.

Operation

The DPO AL4 Automatic Transmission output Speed Sensor operates by monitoring the rotational speed of the transmission's output shaft. This data is crucial for the vehicle's Engine Control Unit (ECU) or Transmission Control Unit (TCU) to accurately determine vehicle speed, optimize gear shifting, and manage torque converter lock-up.

Once installed, the sensor functions automatically as part of the vehicle's transmission system. No user interaction is required for its operation.

Maintenance

The DPO AL4 Automatic Transmission output Speed Sensor is designed to be a maintenance-free component. Regular inspection of the sensor and its wiring during routine vehicle maintenance is recommended to ensure its integrity and proper function.

• Visual Inspection: Periodically check the sensor for any signs of physical damage, corrosion, or loose connections.
• Wiring Check: Ensure the wiring harness connected to the sensor is not frayed, pinched, or damaged.
• Cleanliness: Keep the area around the sensor free from excessive dirt, debris, or fluid buildup.

If any issues are observed, it is advisable to consult a professional mechanic.

Troubleshooting

If you experience issues that may be related to the output speed sensor, consider the following common symptoms and potential solutions:

For complex issues or if you are unsure about diagnosis, it is always best to consult a certified automotive technician.

Specifications

Warranty and Support

For specific warranty information regarding your VIGSuce DPO AL4 Automatic Transmission output Speed Sensor, please refer to the documentation provided with your purchase or contact the manufacturer directly.

If you require technical assistance or have questions about the product, please reach out to VIGSuce customer support through their official website or contact channels. When contacting support, please have your product model number (2529.28) and purchase details ready.

Note: Unauthorized modifications or improper installation may void the product warranty.
