1. Introduction
This manual provides instructions for the Redi-Remote replacement remote control, designed for use with Genesis GT3.0, GT30, and 100580 RV Entertainment Systems. This remote is a custom-built replacement and is not an original Genesis brand remote control. It is specifically engineered to be compatible with the listed Genesis units, providing full functionality for the entertainment system.
The remote features a sliding cover over the lower half of the buttons, which can be moved down to reveal additional controls.
2. Setup
2.1 Battery Installation
The remote control requires four (4) AAA alkaline batteries for operation. To install the batteries:
- Locate the battery compartment cover on the back of the remote control.
- Slide the cover off in the direction indicated by the arrow (if present).
- Insert four AAA batteries, ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment.
- Replace the battery compartment cover, sliding it back into place until it clicks securely.
2.2 Initial Use
This Redi-Remote replacement remote control requires no programming. Once batteries are correctly installed, it is ready for immediate use with your compatible Genesis GT3.0, GT30, or 100580 RV Entertainment System. It operates using infrared (IR) technology.
3. Operating Instructions
The remote control is designed to perform all functions for the specific Genesis unit it is intended to control. It is primarily for use with DVD Receivers.

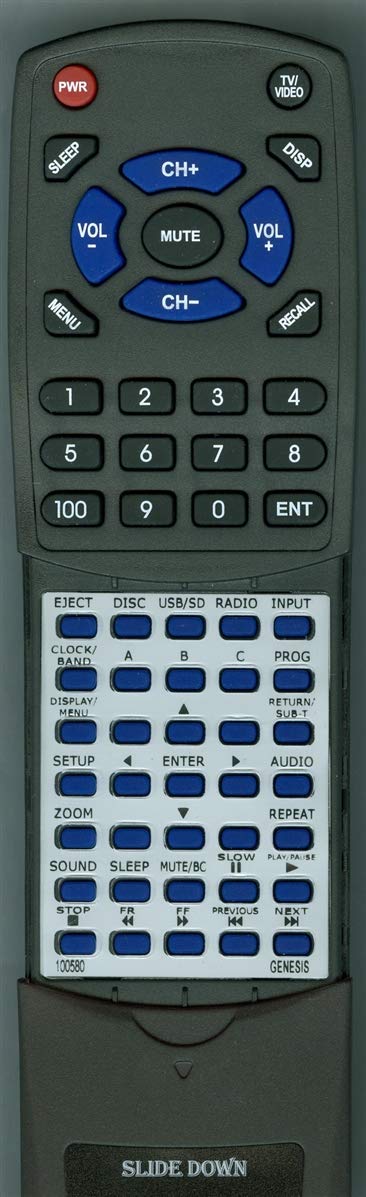

Image of the Redi-Remote replacement remote control, showing its black casing and button layout. The remote measures approximately 7.5 inches in length.
3.1 Basic Functions
- Power: Press the POWER button to turn the Genesis entertainment system on or off.
- Volume Control: Use the VOL+ and VOL- buttons to adjust the audio volume.
- Channel/Track Selection: Use the CH+ and CH- buttons for channel surfing or track selection.
- Navigation: Use the directional arrow buttons and ENTER button to navigate menus and make selections.
3.2 Accessing Lower Buttons
The remote control features a sliding cover that conceals additional function buttons. To access these buttons, gently slide the cover downwards. Once revealed, these buttons provide access to advanced features of your Genesis entertainment system.
Ensure a clear line of sight between the remote control and the infrared receiver on your Genesis unit for optimal performance. The maximum effective range is approximately 20 feet.
4. Maintenance
4.1 Cleaning
To clean the remote control, use a soft, dry cloth. For stubborn dirt, slightly dampen the cloth with water or a mild, non-abrasive cleaner. Do not use harsh chemicals or abrasive materials, as these can damage the remote's surface or internal components.
4.2 Battery Replacement
Replace batteries when the remote's responsiveness decreases or if it stops functioning. Always replace all four AAA batteries at the same time with new ones. Do not mix old and new batteries, or different types of batteries, as this can lead to leakage or improper operation. Dispose of used batteries according to local regulations.
5. Troubleshooting
If you experience issues with your Redi-Remote replacement remote control, please refer to the following troubleshooting steps:
- Remote Not Responding:
- Check if the batteries are installed correctly with the correct polarity (+/-).
- Replace the batteries with fresh AAA alkaline batteries.
- Ensure there is a clear line of sight between the remote's infrared emitter and the Genesis unit's IR receiver. Obstructions can block the signal.
- Verify that you are within the maximum operating range of 20 feet.
- Certain Functions Not Working:
- Confirm that the remote is designed for your specific Genesis GT3.0, GT30, or 100580 RV Entertainment System. This remote is not programmable for auxiliary devices.
- Ensure the sliding cover is fully open if you are trying to access buttons located underneath it.
- Remote Feels Stiff:
- The sliding cover may feel tight initially. With regular use, it should become smoother.
If these steps do not resolve the issue, please refer to the Support section for further assistance.
6. Specifications
| Brand | Redi-Remote |
| Model Name | RT100580 |
| Model Number | RT100580 |
| Compatible Devices | Genesis GT3.0, GT30, 100580 RV Entertainment System (DVD/Blu-ray Player) |
| Connectivity Technology | Infrared (IR) |
| Maximum Range | 20 Feet |
| Number of Buttons | 58 |
| Special Feature | No Programming Required |
| Color | Black |
| Item Dimensions (L x W x H) | 7.5" x 2.25" x 0.75" (19.05 cm x 5.72 cm x 1.91 cm) |
| Item Weight | 5 Ounces (141.75 grams) |
| Batteries Required | 4 AAA batteries |
| Battery Type | Alkaline |
7. Warranty and Support
This Redi-Remote replacement remote control is provided by RemotesPro. For any concerns with the remote after purchase, please contact the seller directly for assistance.
7.1 Return Policy
A return policy of 30 days for refund or replacement is typically offered. Please refer to your purchase documentation or contact the seller, RemotesPro, for specific details regarding returns and exchanges.
