1. Product Overview
The Diode LED SWITCHEX DI-24V-SE-60W is an integrated LED dimmer switch and low-voltage LED power supply. This unit is designed to simplify LED lighting installations by combining both components into a single device that fits within a standard electrical box. It accepts a 120 VAC input and converts it to a low-voltage DC output, making it suitable for various low-voltage LED lighting applications.

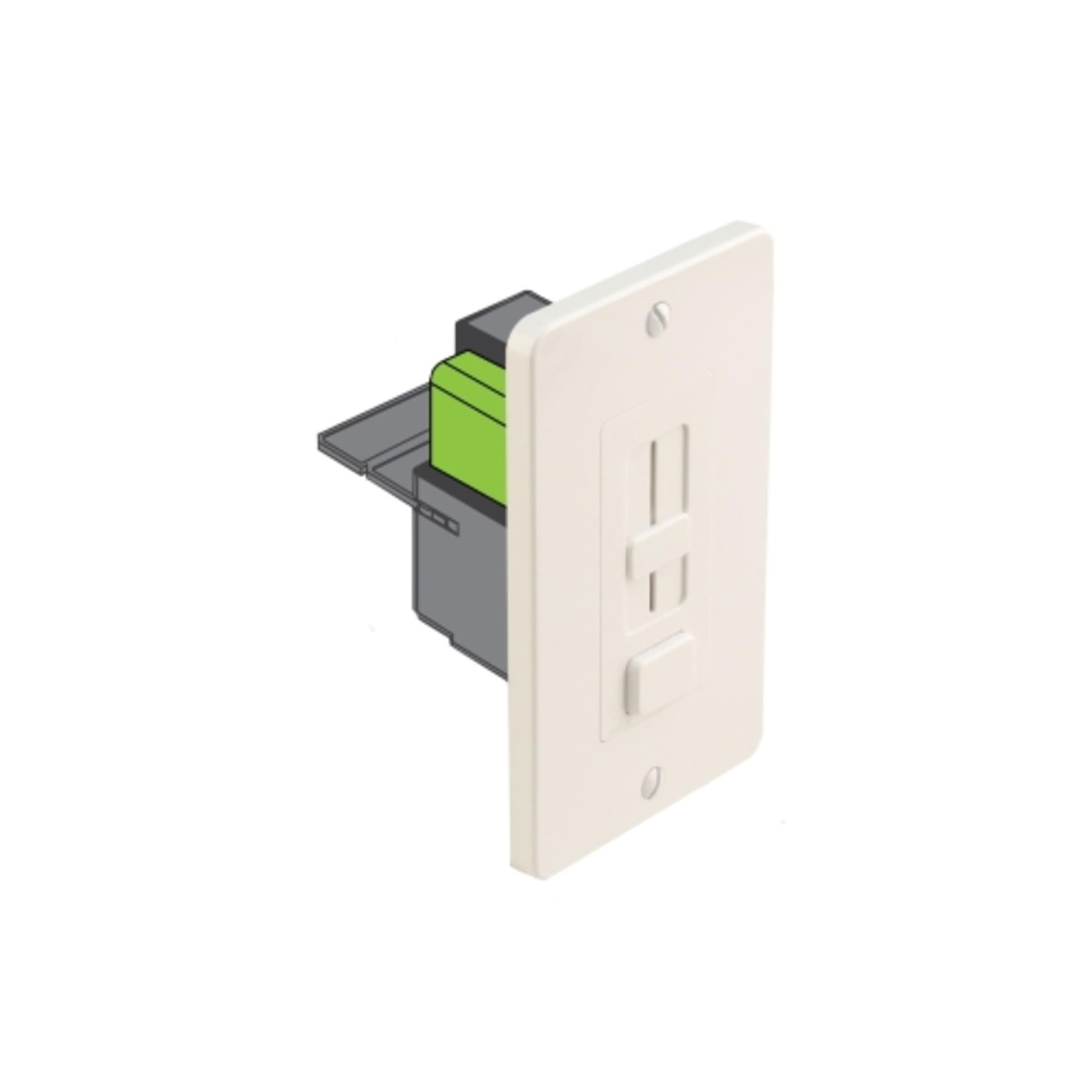

Image Description: This image illustrates the compact design of the SWITCHEX unit, featuring a standard dimmer switch faceplate in a light color, with the integrated driver component visible behind it. It is designed to be installed within a single-gang electrical wall box.
2. Safety Information
WARNING: Risk of Electric Shock. Installation of this product requires knowledge of electrical systems. If you are not qualified, do not attempt installation. Contact a qualified electrician. Always disconnect power at the circuit breaker before installing or servicing this unit.
- Ensure all wiring complies with national and local electrical codes.
- Do not exceed the maximum load rating of 60W.
- This device is intended for indoor use only.
- The unit includes a voltage barrier partition to safely separate high and low voltage circuits within the same switch box.
3. Package Contents
Verify that all components are present before beginning installation:
- Diode LED SWITCHEX DI-24V-SE-60W Unit
- Interchangeable Face Plates (Glossy White, Glossy Light Almond, Glossy Brown)
Note: Trim plate is not included.
4. Features
- Integrated Design: Combines an LED driver and in-wall dimmer switch into a single unit, simplifying installation and eliminating compatibility issues.
- Smooth Dimming: Provides 100% to 5% smooth dimming capability.
- Power Failure Memory: Retains the last dimming setting after a power interruption.
- No Minimum Load: Operates effectively without a minimum load requirement.
- Standard Fit: Designed to fit into a standard recessed electrical box.
- Voltage Barrier: Includes an internal partition for safe installation of high and low voltage circuits in the same switch box.
- Interchangeable Face Plates: Includes three color options (glossy white, light almond, brown) to match decor.
5. Installation
Follow these general steps for installation. Always consult local electrical codes and diagrams for specific wiring requirements.
- Turn Off Power: Locate the circuit breaker controlling the switch location and turn off the power. Verify power is off using a voltage tester.
- Prepare Wiring: Remove the existing switch (if any) and carefully identify the line voltage (120VAC) input wires and the low-voltage DC output wires for your LED lighting.
- Connect Wiring: Connect the SWITCHEX unit according to the wiring diagram provided with the product and local electrical codes. Ensure secure connections for all wires (line, neutral, ground, and low-voltage output).
- Mount Unit: Carefully place the SWITCHEX unit into the standard electrical wall box. Secure it with the provided screws.
- Attach Face Plate: Select the desired face plate color (white, light almond, or brown) and attach it to the unit.
- Restore Power: Turn the power back on at the circuit breaker.
6. Operation
The SWITCHEX unit features a rocker switch for on/off control and a sliding lever for dimming adjustment.
- On/Off Control: Press the top or bottom of the rocker switch to turn the connected LED lighting on or off.
- Dimming Adjustment: Use the sliding lever to adjust the brightness of the LED lighting from 100% down to 5%.
7. Specifications
| Model Number | DI-24V-SE-60W |
| Input Voltage | 120VAC (108 ~ 132VAC), 50/60Hz (47 ~ 63Hz) |
| Output Voltage | 24VDC |
| Maximum Output Power | 60W |
| Current Rating | 1 Amps |
| Stand-by Power | ≤0.5W |
| Operation Mode | Manual |
| Contact Type | Normally Open |
| Connector Type | Screw Terminals |
| Circuit Type | 1-way |
| Actuator Type | Rocker |
| Contact Material | Copper |
| Package Dimensions | 4.49 x 2.8 x 2.76 inches |
| Weight | 9.14 ounces |
8. Troubleshooting
If you encounter issues with your SWITCHEX unit, refer to the following common troubleshooting steps:
- Lights Not Turning On:
- Verify that power is supplied to the circuit breaker.
- Check all wiring connections for proper contact and polarity.
- Ensure the connected LED lighting is compatible with a 24VDC power supply and does not exceed 60W.
- Lights Not Dimming Properly:
- Confirm that the sliding dimmer lever is being adjusted correctly.
- Ensure the LED lighting connected is dimmable.
- Intermittent Operation:
- Inspect wiring for loose connections.
- Check for any signs of damage to the unit or wiring.
If problems persist after following these steps, contact Diode LED customer support or a qualified electrician.
9. Maintenance
The Diode LED SWITCHEX DI-24V-SE-60W requires minimal maintenance.
- Cleaning: To clean the face plate, gently wipe with a soft, dry cloth. Do not use abrasive cleaners, solvents, or harsh chemicals, as these may damage the finish.
- Inspection: Periodically inspect the unit for any visible damage or loose connections. If damage is found, disconnect power and have the unit inspected by a qualified professional.
10. Warranty and Support
For information regarding the product warranty, please refer to the warranty documentation included with your purchase or visit the official Diode LED website. For technical support, installation assistance, or to report a product issue, please contact Diode LED customer service directly through their official channels.
